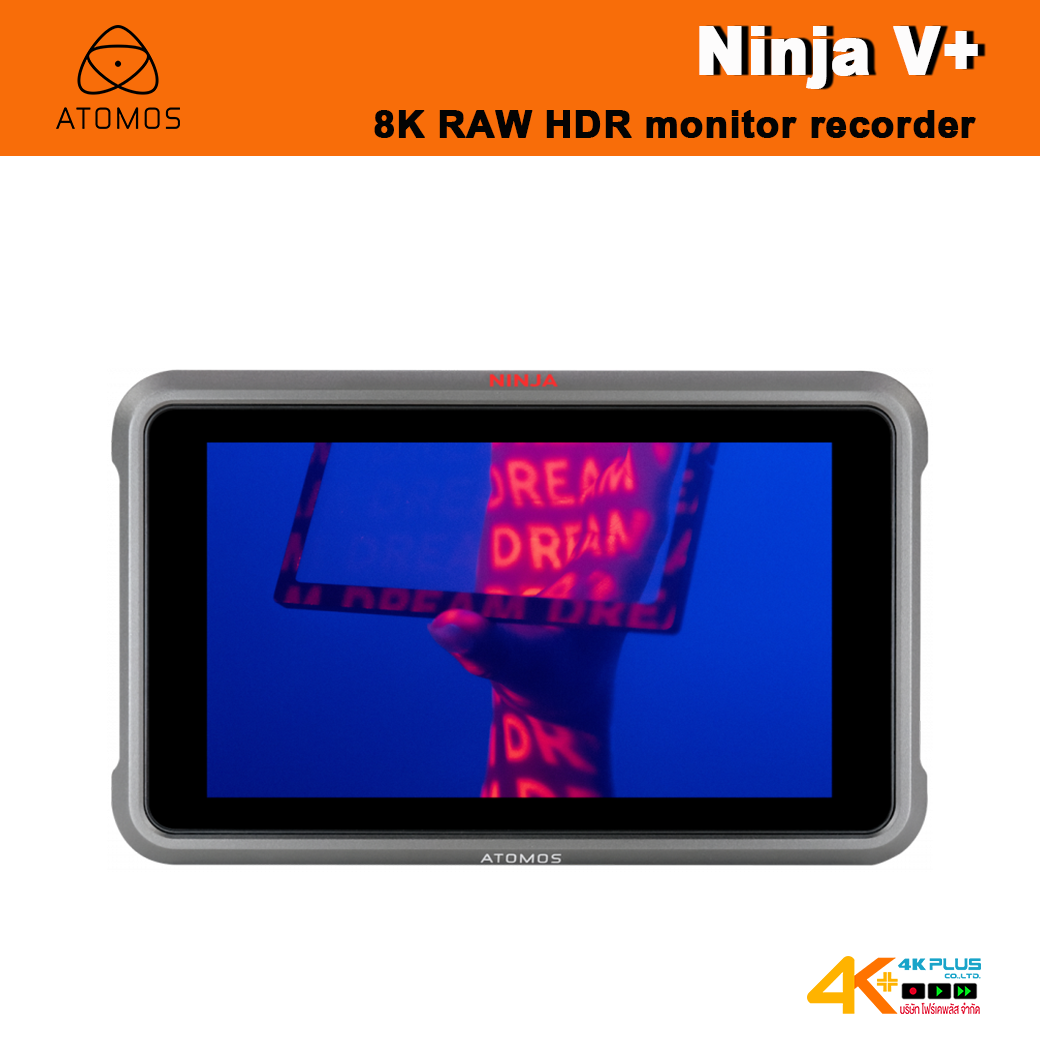

ATOMOS NINJA V+ 8K RAW HDR monitor recorder

Physical Specifications

Dimensions (W x H x D mm)

151 x 91.5 x 31 mm

Weight

360 g / 12.7 oz

Mount points

1 x Anti rotation 1/4" / 3/8 top and bottom

Environmental

Ambient operating temperature

Up to 40 Degrees Celsius

Construction and Control

Body

Aluminium with ABS plastic

Cooling

Actively controlled fan and Heat Sink

Tally light

Rear and front

Multi-function button

Power / lock Screen

AtomXpansion slot

Yes

Power

Input voltage

6.2V to 16.8V

Operating power

5.8-7.2v

Compatible batteries

NPF L series

Built in battery

No

Battery Run time (Record)

5200mAh - up to 2hrs (monitor & record 4K 60p)

Continuous power

Via Optional AtomX SYNC Module

DC in connector

Via DC Jack on Battery eliminator

Dtap

Via Battery Eliminator and optional DTap to DC cable

Display

Touchscreen

SuperAtom IPS panel (capacitive touch)

Size

5.2"

Resolution

1920 x 1080

PPI

427

Bit depth

10Bit (8+2 FRC)

Backlight Type

Edge lit

Brightness (cdm2 / nits)

1000 +/- 10%

Aspect ratio

16 : 9

De-interlace mode

I > P and PSF > P

Color Gamut

Rec.709

Calibration support

Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail)

Color Pipeline

Gamma

Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Olympus OM Log, Lecia L Log

Gamut

Bt2020, DCI P3, PDCI p3 65 Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 JVC LS300 Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut

3D LUT Display

.Cube Format

3D LUT Down Stream

Loop out

3DLUT 50/50

Yes

Monitoring Modes

Native / HLG / PQ / 3D LUT

HDR output Conversion

Log / HDR to HLG / PQ / Dolby Vision

Video Input

HDMI

1 x HDMI (2.0) 4k p60

HDMI RAW

Apples ProRes RAW up to 8k

SDI

Optional via AtomX SDI module

SDI RAW

Optional Activation Key required

Bit Depth

8/10Bit Video / RAW up to 12Bit

Video Chroma Subsampling

420 and 422

HDCP copy protection

Not supported

Metadata

HDMI

RAW - white balance, Exposure index, Shutter speed/angle, Iris F stop, ISO, Gamma, gamut

SDI

Optional via AtomX SDI module

Video Output

HDMI

1 x HDMI (2.0) 4k p60

SDI loop out

Optional Via AtomX SDI module

SDI Play out

Optional Via AtomX SDI module

Video Chroma Subsampling

422

Bit Depth

10Bit Video

Web Streaming

USB UVC

Optional Via Connect 4k

Video Signal Conversion

HDMI to SDI

Optional Via AtomX SDI module

SDI to HDMI

Optional Via AtomX SDI module

Audio In/Out

Audio Quality

24/48kHz

Audio Codec

PCM

HDMI

8ch 24Bit, input dependent

SDI

12ch 24Bit, input dependent

Analogue Audio in

3.5mm 2ch.

Analogue Audio Out

3.5mm 2ch.

Headphone out

3.5mm 2ch.

Timecode / Sync

Embedded

HDMI

Time of day

Yes, Time and Date

LTC

via 3.5mm audio Jack input (Requires post processing)

Wireless SYNC

Via Optional AtomX SYNC Module

Resolution and Frame Rates (Record, Monitor & Playback)

8k

RAW Only up to 30p via HDMI

6k

RAW Only up to 30p via HDMI

5k

RAW Only up to 30p via HDMI

4k DCI

23.98/24/25/29.9/30/50/59.94/60p - HFR 100/120 via RAW over HDMI & SDI on selected cameras

4k UHD

23.98/24/25/29.9/30/50/59.94/60p

2K DCI 2046 x 1080

Optional via AtomX SDI module

Anamorphic

3.5k: RAW up to 60p (from supported cameras only)

FHD 1920 x 1080 Progressive

23.98/24/25/29.9/30/50/59.94/60/100/120p

FHD 1920 x 1080 PsF

converted to P and looped out PsF

FHD 1920 x 1080 Interlaced

23.98/24/25/29.9/30/50/59.94/60i

1280 x 720p

50/59.94/60p

Recording CODEC

Apple ProRes RAW

ProRes RAW, HQ (Free activation key via visit my.Atomos.com)

Apple ProRes

LT, 422, 422HQ

Avid DNxHD

DNxHD 220x,220,145,36 (Free activation key via visit my.Atomos.com)

Avid DNxHR

LB, SQ, HQ, HQX. (Free activation key via visit my.Atomos.com)

H.265

LQ,MQ,HQ in 8/10Bit, 422 and 420 Free activation key via visit my.Atomos.com)

Playback

Playlist

Yes, Create customer play lists from full or sub clips

Loop

Yes, with user customisable in / out markers

Apple ProRes Raw

Yes, recorded clips

Apple ProRes

Yes, with Linear PCM audio

Avid DNx

Yes, with Linear PCM audio

H.265

Yes, recorded clips

Recording functions

Pre-roll record

Yes (HD 8s, 4K 2s) - Not available in RAW

Timelapse

Yes

Multi Input / Switching

Supported media

Master Caddy I

Not compatible

SSDmini

Native Size and Fit

CFast II

Via Supported cards via optional SSDmini CFAST II Adaptor

File Naming

Unit Name - Scene/Shot/Take

File System

ExFAT

On screen tools

Waveform

Yes, 3 size / Position

RGB parade

Yes, 3 size / Position

Vector scope

Yes, 2 size / Position

1 x Zoom

Yes. 1:1 Pixel mapping for 4k

2 x Zoom

Yes

Focus peaking

Colour selected / threshold setting / colour

False colour

Yes, with Scale

Zebra

Yes, Adjustable

Isolate color channel

Blue Only

Cine Frame Guides

2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3

Social Frame guides

9:16, 1:1, 191:1, 4:5

Safe areas

Action and Graphic

Grid markers

9 grid

Anamorphic desqueeze

1.25x 1.33x , 1.5x ,1.8x ,2x

Display Flip

Vertical Only

Onboard Signal Processing

Pulldown Removal

24/25/30pSF > 24/25/30p (2:2 pulldown)

4K UHD Downscale for HD

Loop out - 4K UHD to FHD

DCI Crop

Loop out - 17:9 to 16:9 Crop

Remote control

HDMI

Auto HDMI Trigger, Supported Protocols - Canon, Sony

SDI

SDI trigger camera selectable

Serial 2.5mm Jack

LANC control and calibration via optional USB to serial cable

Bluetooth LE

Via optional AtomX SYNC module

Wireless RF

Via optional AtomX SYNC module

External Device Control

Serial 2.5mm Jack

Camera control for supported cameras via Optional USB to Serial Cable

Bluetooth LE

Via optional AtomX SYNC module to compatible devices

Wireless RF

Via optional AtomX SYNC module to compatible devices

Supported Applications

XML

Cut tag EDL in FCPX XML

Apple ProRes RAW

Apple FCPX, Adobe Premier, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light.

Video Codecs

All Applications with support for Apple ProRes and Avid DNX in .MOV wrapper

What’s in the box

Accessories included

Ninja V +, EVA Carry case, 5" Protective Monitor sleeve, Battery eliminator, international DC power supply, 1x MasterCaddy II and QuickStart Guide

Optional extras

Sunhood, DC to DTap, Power Kit, HDMI Cables, USB to Serial cable, AtomX SYNC, SDI modules
