Blackmagic Mini Converter SDI to Audio 4K (SD/HD/3G-SDI audio de embedde)

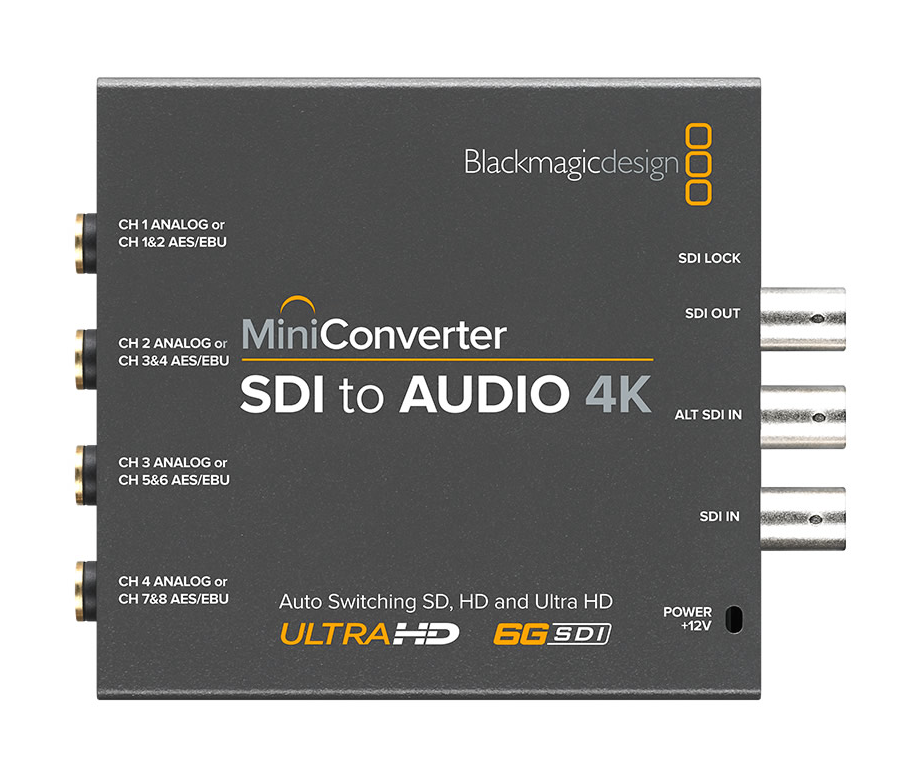

Blackmagic Mini Converter SDI to Audio 4K

         SD/HD/3G-SDI audio de embedder to 8 ch AES/EBU or 4 ch analog audio. Mini Converter SDI to Audio 4K includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection

        Tech Specs

SDI Video Input  Switchable between SD, HD, 3G and 6G-SDI.

SDI Video Output  Automatically matches the SD, HD, 3G and 6G-SDI video input.

Analog Audio  4 channels of professional balanced analog audio with standard 1/4 inch jack connections.

AES/EBU Digital Audio 8 channels of professional balanced digital with standard 1/4 inch jack connections.

SDI Redundant Input Automatically switches over if main SDI input is lost.

Multi Rate Support Auto detection of 4K, UHD, 2K, HD or SD SDI inputs.

SDI Format Support  525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p, 29.97, 3840x2160p30, 4096x2160p23.98, 4096x2160p24, 4096x2160p25, 4096x2160p29.97, 4096x2160p30.
