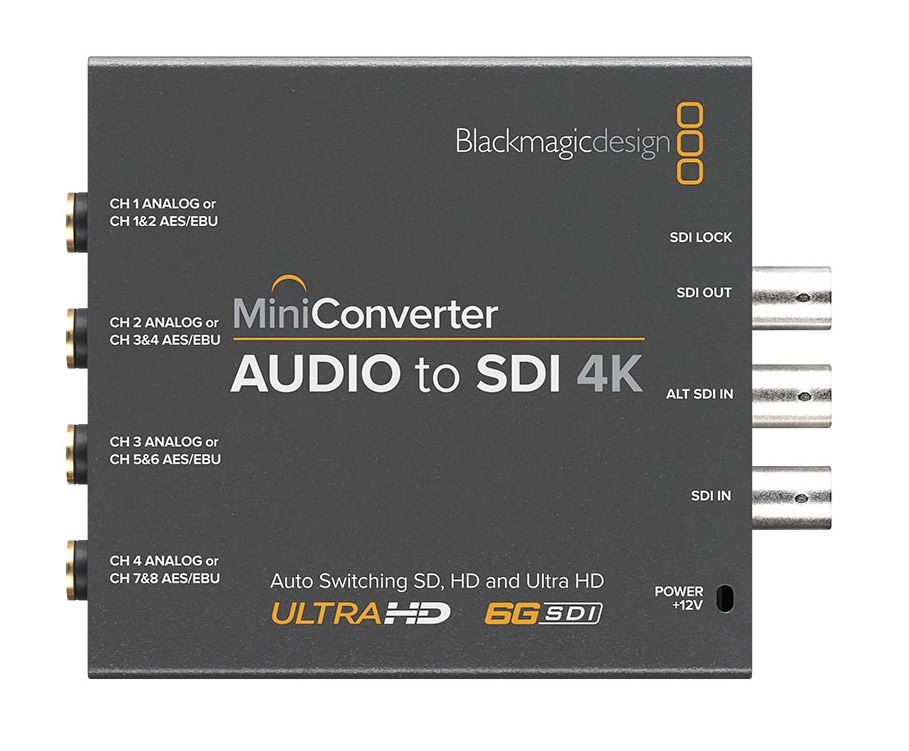

Blackmagic Mini Converter Audio to SDI 4K (SD/HD/3G-SDI audio embedder)

Blackmagic Mini Converter Audio to SDI 4K

     SD/HD/3G-SDI audio embedder from 8 ch AES/EBU or 4 ch analog audio. Mini Converter Audio to SDI 4K includes everything you need to embed 4 channels of analog audio or 8 channels of AES/EBU digital audio into any SDI video connection.

  Tech Specs

SDI Video Input Switchable between SD, HD, 3G and 6G-SDI.

SDI Video Output Automatically matches the SD, HD, 3G and 6G-SDI video input.

Analog Audio 4 channels of professional balanced analog audio with standard 1/4 inch jack connections.

AES/EBU Digital Audio 8 channels of professional balanced digital with standard 1/4 inch jack connections.

SDI Redundant Input Automatically switches over if main SDI input is lost.

Multi Rate Support Auto detection of 4K, UHD, 2K, HD or SD SDI inputs.

SDI Format Support  525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p23.98, 4096x2160p24, 4096x2160p25, 4096x2160p29.97, 4096x2160p30.
