Smart Videohub 40 x 40

Smart Videohub 40 x 40

     Advanced 40 x 40 multi format SD, HD and Ultra HD SDI router with built in video monitoring, spin knob control, and 6G-SDI technology.

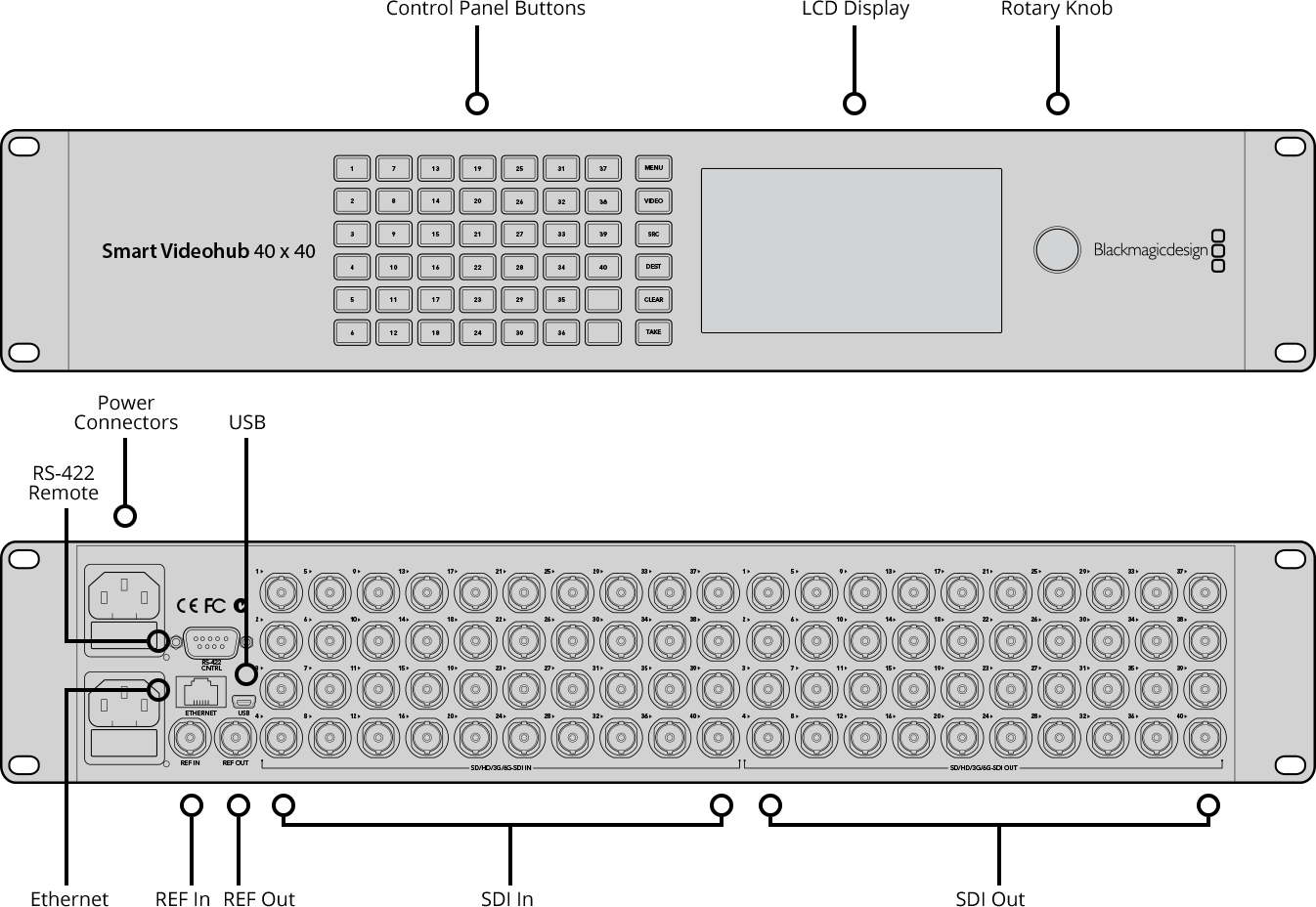

   Tech Specs

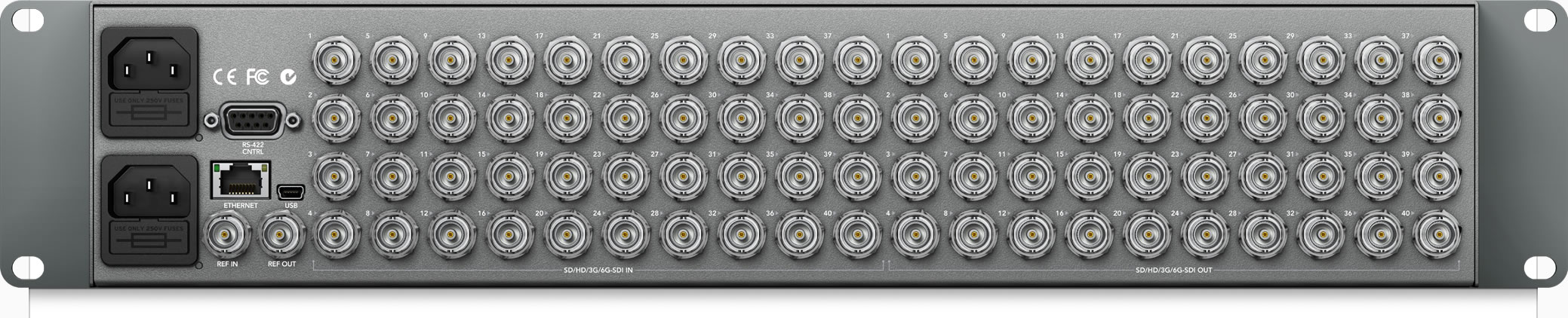

SDI Video Input : 40 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

SDI Video Output : 40 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

Reference Input : Black burst and Tri-level sync for SD, HD and 4K.

Reference Output : Reference terminating loop output.

Router Configuration : Via front panel LCD or RJ45 Ethernet. USB for firmware updates and IP address                  setting only.

4K Format Support : 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p24.

2K Format Support : 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25.

HD Format Support : 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

SD Format Support : 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC.

SDI Video Sampling : 4:2:2 and 4:4:4.
