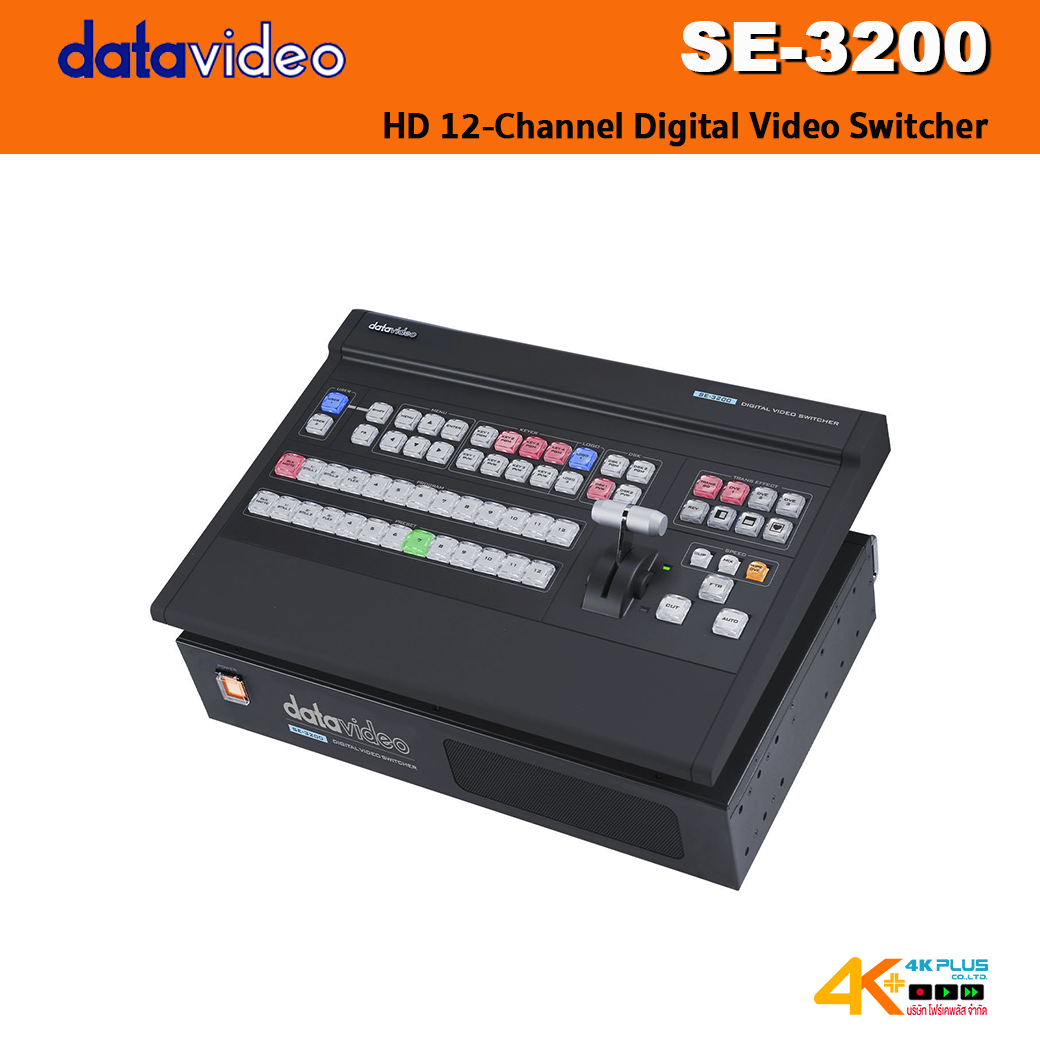

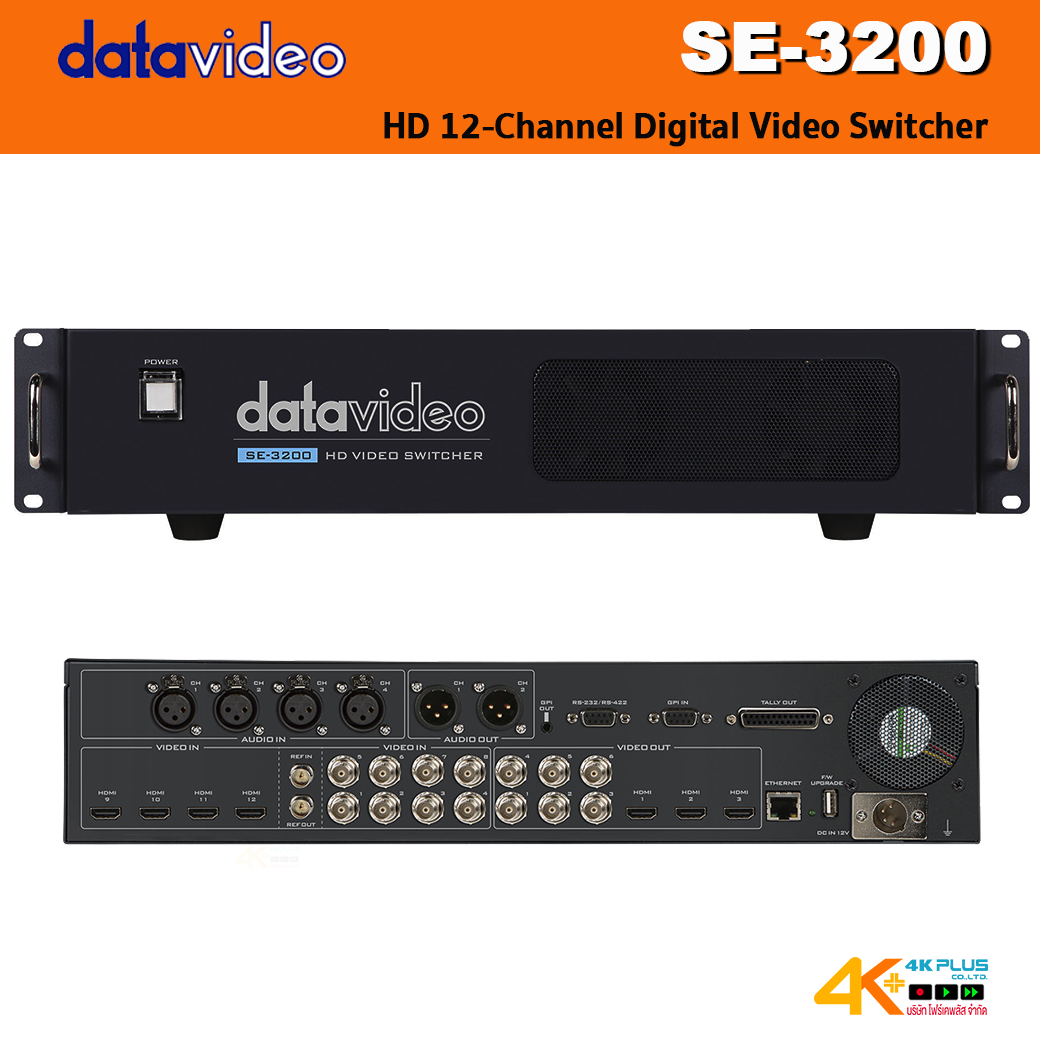

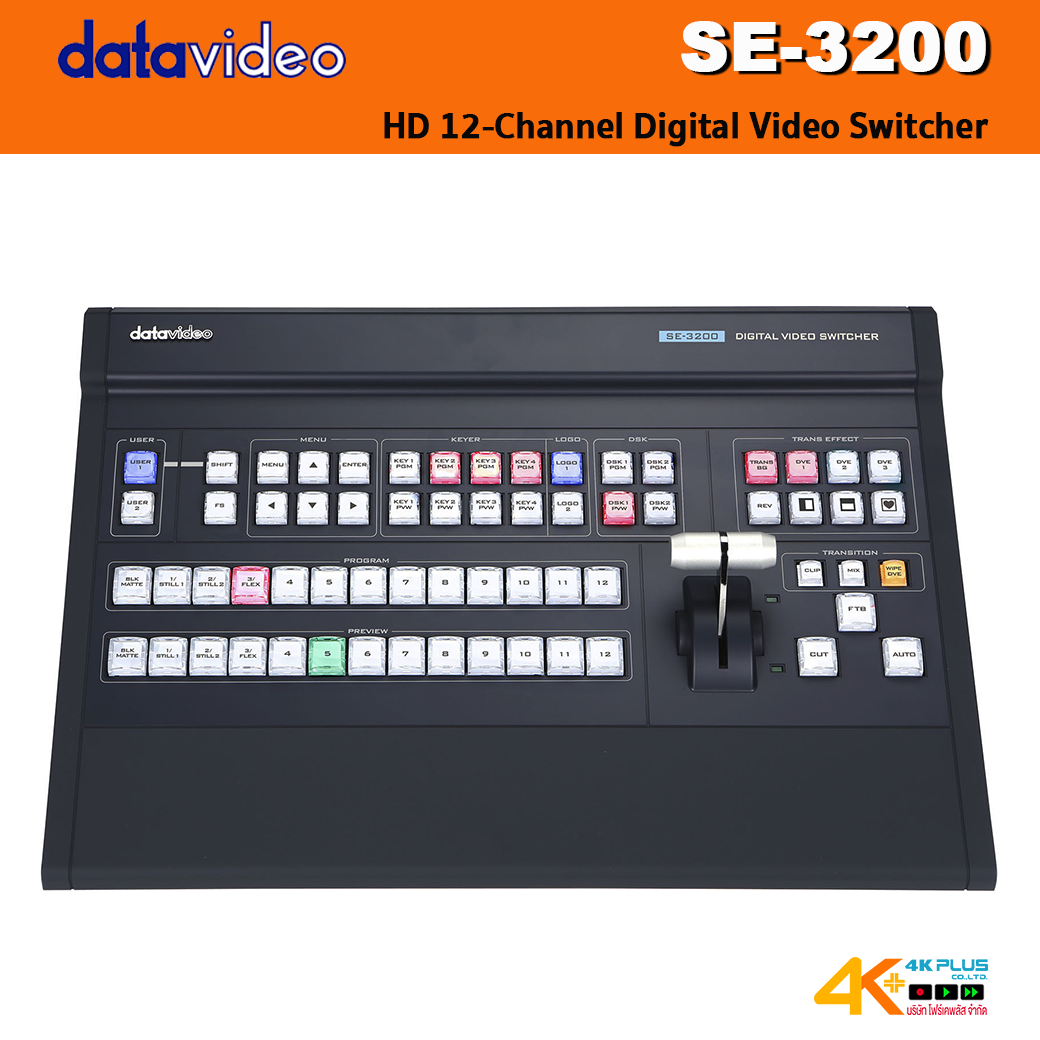

Datavideo SE-3200 HD 12-Channel Digital Video Switcher

Video Standard Full HD

1080p 50/59.94/60Hz Video Format 1080i 50/59.94/60Hz

720p 50/59.94/60Hz

Video Processing

SDI: 4:2:2
HDMI: YUV 4:2:2, RGB: 4:4:4

Input Routable / Crosspoint All 12, repeatable

Video Input 8x SDI, 4x HDMI

Mix HD & SD Source ----

Computer Graphic Interface 4 via HDMI

Video Output

6x SDI Outputs assignable:
Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source
3x HDMI assignable:
Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source

Down-converted Output 1x SDI

Built-in Multi-view Monitoring Out

HDMI & SDI assignable

Analogue Audio Input 4x Balanced XLR

Analogue Audio Output 2x Balanced XLR

Digital Embedded Audio Support

Input 2 channels, Output 4 channels

Audio Delay Calibration Up to 16 fields or 8 frames per channel

A+V Switching Yes

Chromakey 4

Title Creator Yes, CG-200 software free download

USK 4x Keyer support Chromakey/ Linear/ Luma Key

DSK 2x DSK support Lumakey & Linear key (Key / Fill)

Picture in Picture 8 (4x PIP, 4x Flex Source)

Logo Insertion 2

Still Store 999+

Effects DVE, FTB, Cut, 32 Wipe with border

Transition Preview Full transitions preview

Sync / Reference In/Out

Built-in Genlock
Support external sync with loop thru

Tally Output 1x D-sub 25pin, dual color

PC Remote Control

RS-232 / DVIP (Ethernet)

Built-in Audio Mixer

----

Special Features

4 User Memory Preset
Free Virtual Set and Stinger transition included

Chassis

2 units, 2RU rack-mount mainframe

Dimension (LxWxH)

433 x 312 x 76 mm (switcher) 432 x 252 x 88 mm (main unit)

Weight

4 kg

Power

DC 12V, 69W

Operating Temp. Range

0~40 °C

What's in the Box

1 x SE-3200 Main Unit
1 x SE-3200 Control Board 2 x AD Switch DC 12V
1 x AC Cord
1 x DB9P TO DB9P Cable 12 x Screw
2 x 2U Ear Rack
