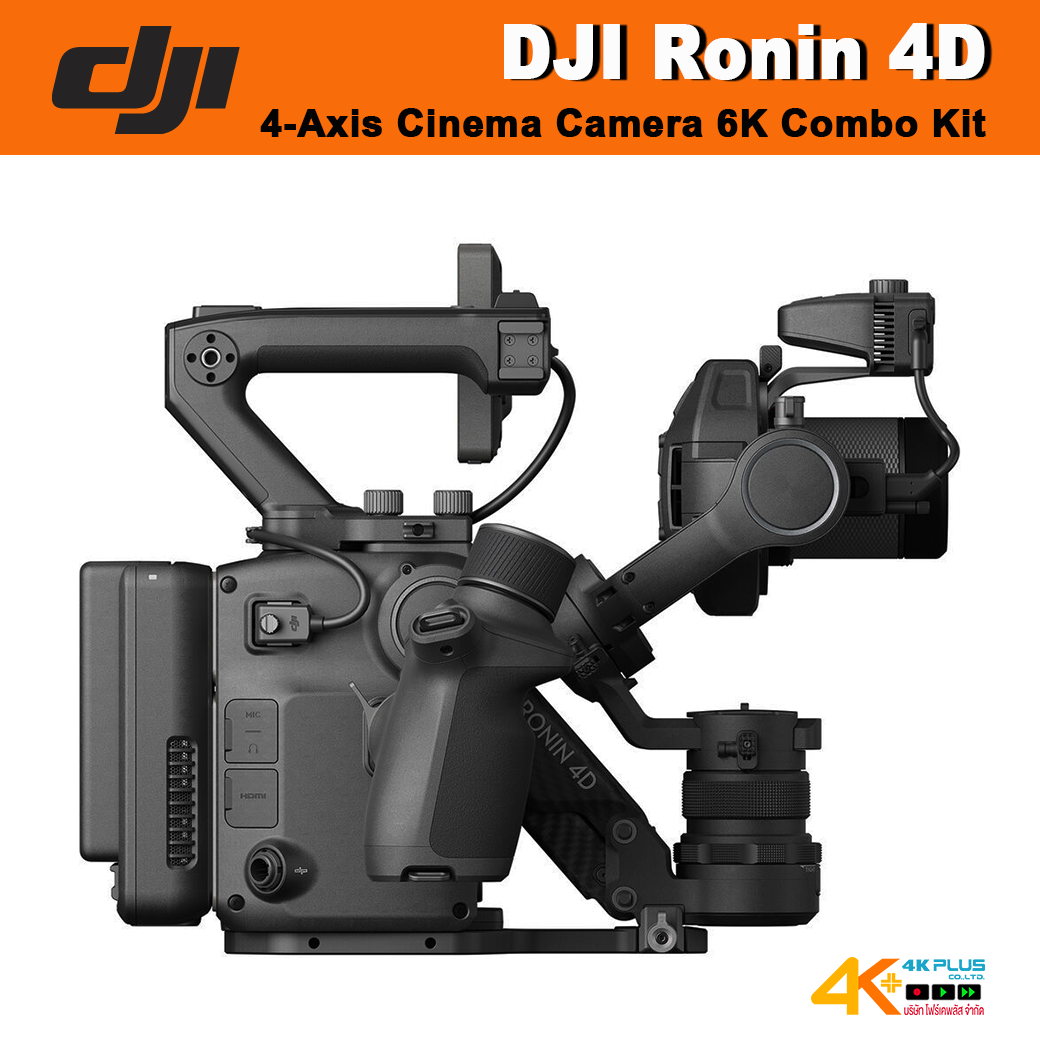

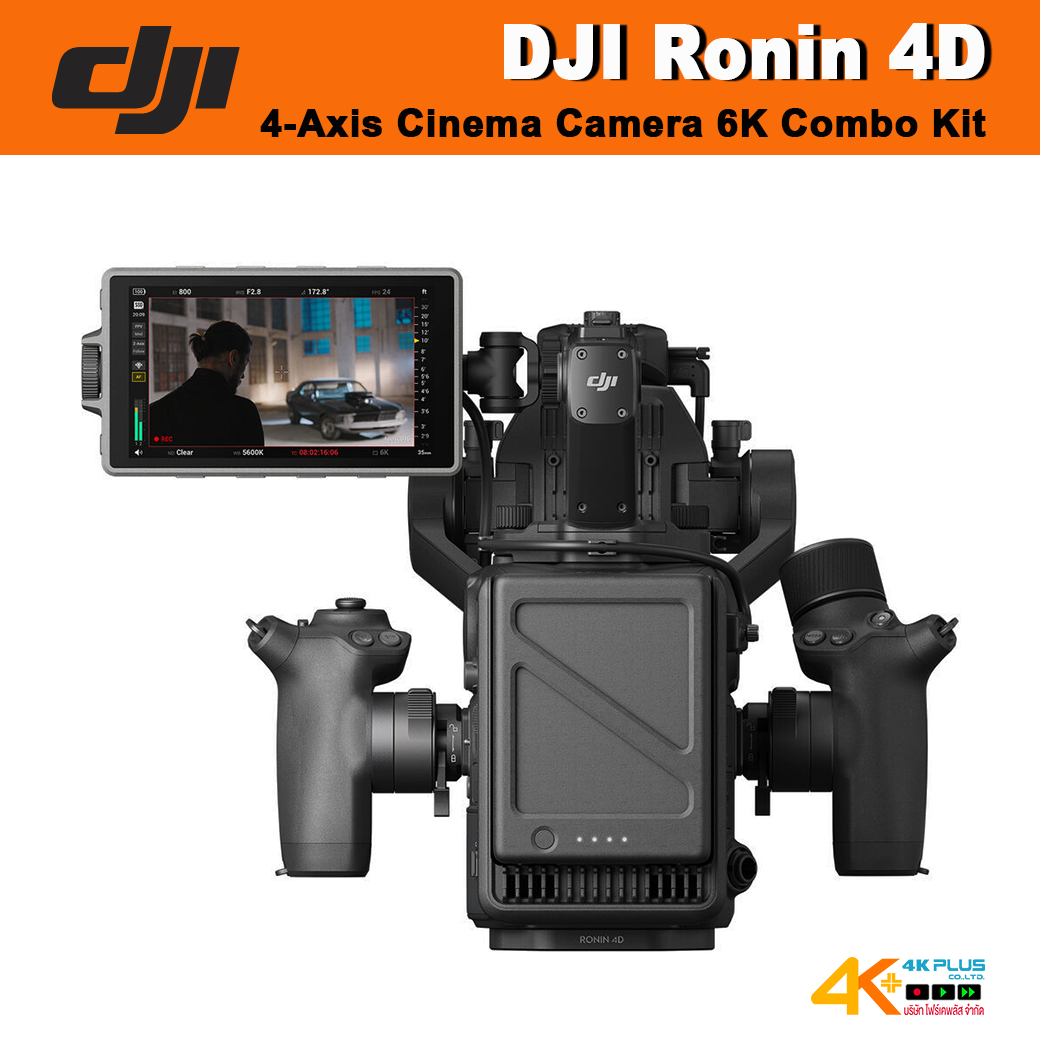

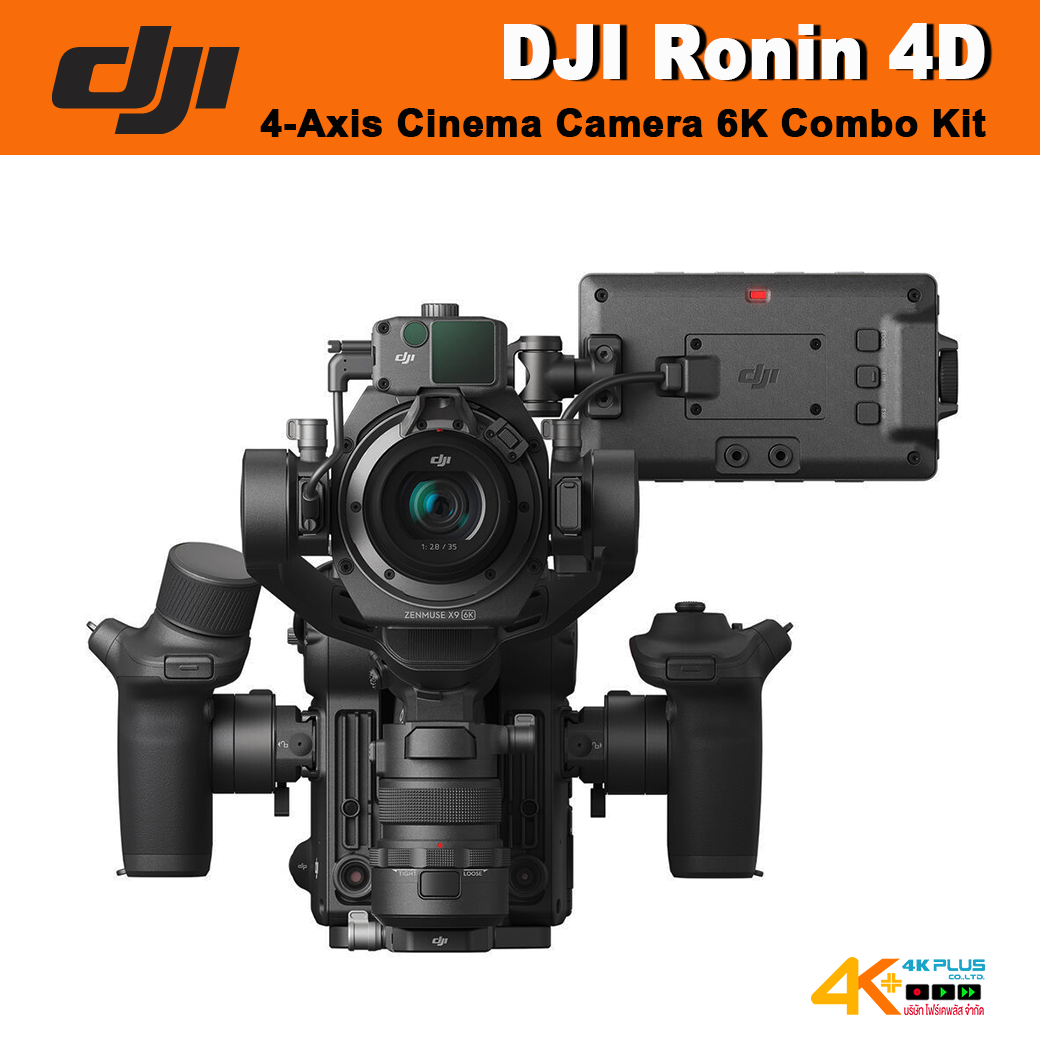

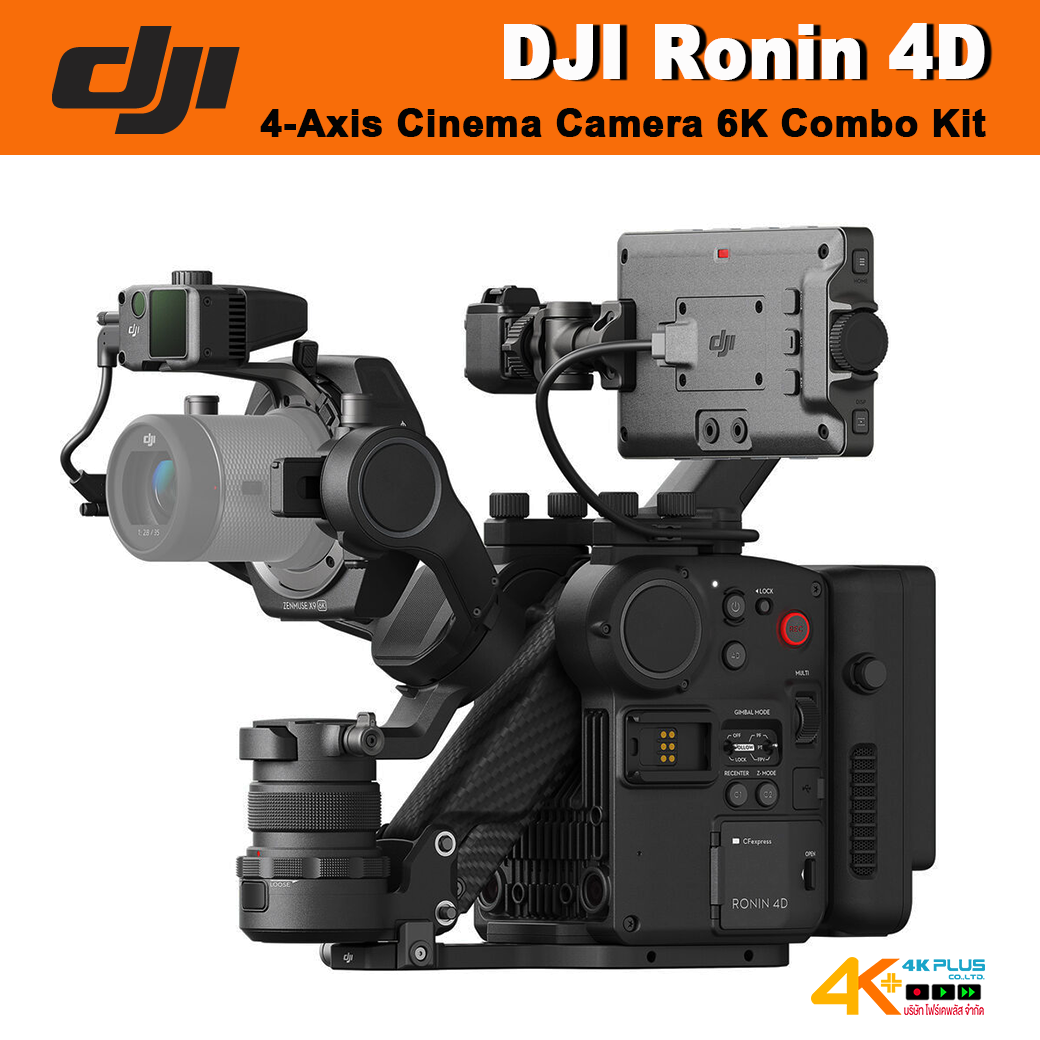

DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit

General

• Main Body Dimensions (length×width×height)

• 235×115×160 mm

• Overall Dimensions (length×width×height)

• 309×290×277 mm [1]

• Gimbal Weight

• Approx. 1.04 kg

• Main Body Weight

• Approx. 1.45 kg

• Overall Weight

• Approx. 4.67 kg (after installing all modules in the combo, excluding lens and storage card)

• Max Operating Time

• Approx. 150 minutes [2]

• Intelligent Features

• ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject)

• Storage Temperature

• -20° to 60° C (-4° to 140° F)

• Operating Temperature

• -10° to 40° C (14° to 104° F)

Camera

• Sensor Size

• 35mm full-frame CMOS image sensor

• Base Lens Mount

• DX Mount, and support for other mount units

• Supported Lens Mounts

• DL Mount (standard), M Mount, and E Mount

• DL Lens

• DJI DL 24mm F2.8 LS ASPH
  DJI DL 35mm F2.8 LS ASPH
  DJI DL 50mm F2.8 LS ASPH

• Dynamic Range

• 14+ stops

• White Balance

• Manual 2,000-11,000 Kelvin and tint adjustment, supports AWB

• Gamma

• D-Log, Rec.709, HLG

• EI Range

• X9-8K: EI 200-12800, Dual Native ISO 800/4000
  X9-6K: EI 200-12800, Dual Native ISO 800/5000

• Shutter Speed

• Electronic Rolling Shutter 1/24s-1/8000s

• ND

• Built-in 9-stop ND filters:
  Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)

• Focus Control [3]

• Autofocus, Manual Focus, Automated Manual Focus

• X9-6K Max Bit Rate

• 6008×3168, 48fps
  RAW 3.4Gbps

• X9-8K Max Bit Rate

• 8192×4320, 60fps
  RAW 3.95Gbps

• Supported File System

• exFAT

• Recording Format

• Apple ProRes RAW HQ/Apple ProRes RAW
  Apple ProRes 422 HQ/Apple ProRes 422 [4]
  H.264 (4:2:0 10-bit)
  View detailed list

• Storage Media

• DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD

• DJI PROSSD 1TB Recording Format

• No restriction on recording format

• CFexpress 2.0 Type B Recording Format [5]

• ProRes 422 HQ:
  6K: 23.976/24/25/29.97/30fps
  C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
  2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps

  H.264:
  C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
  2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps

• USB-C SSD Recording Format [6]

• ProRes 422 HQ:
  C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
  2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

  H.264:
  C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
  2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

• Built-in Mic

• Built-in 2-ch stereo

• Audio Format

• LPCM 2-ch, 24-bit 48kHz

Gimbal

• Mechanical Range

• Pan: ±330°
  Tilt: -75° to 175°
  Roll: -90° to 230°
  Z-Axis Range: approx 130mm [7]

• Controllable Range

• Pan: ±285°
  Tilt: -55° to +155°
  Roll: ±35°

• Max Control Speed (°/s)

• DJI Master Wheels or DJI Force Pro:
  Tilt: 360°/s
  Roll: 360°/s
  Pan: 360°/s
  Ronin 4D Hand Grips:
  Tilt: 120°/s
  Roll: 120°/s
  Pan: 120°/s

• Maximum Z-Axis Payload

• 2000 g (including 1040 g gimbal)

• Angular Vibration Range

• ±0.01°

LiDAR Range Finder

• Weight

• 88 g

• Dimensions (length×width×height)

• 71×47×34 mm

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• LiDAR Range Measurement Precision

• 0.3-1m (±1%)
  1-10m (±1.5%）

• FOV

• 30cm to 3m @>18% reflectivity 60° (horizontal) × 45° (vertical)
  30cm to 10m @>18% reflectivity 60° (horizontal) × 7° (vertical)

• Safety Rating

• Class 1 (IEC 60825-1:2014) (safe for human eyes)

• Operating Environment

• Use in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.)
  DO NOT use in environments with dense fog or aim it at or through glass surfaces.

• Laser Wavelength

• 940 nm

• Single Pulse Width

• Two kinds of pulses emit in circulation: 5ns and 33.4ns.

• Max Laser Power

• 6 W

Main Monitor

• Screen Size

• 5.5 inches (diagonal)

• Resolution

• 1920×1080

• Refresh Rate

• 60 Hz

• Max Brightness

• 1000 cd/m²

• Screen

• Rotational LCD touchscreen

Battery

• Battery Type

• TB50 Intelligent Battery

• Capacity

• 4280 mAh

• Energy

• 97.58 Wh

• Voltage

• 22.8 V

• Max Charging Voltage

• 26.1 V

• Max Charging Power

• 180 W

• Charging Temperature Range

• 5° to 40° C (41° to 104° F)

• Charging Time

• Approx. 1.5 hours (with standard 86W power adapter)

DJI O3 Pro Video Transmission

• Max Transmission Distance

• 20,000 ft (approx. 6km, FCC-compliant) [8]

• Max Transmission Resolution and Frame Rate

• 1920×1080 @60fps

• Minimum End-to-End Latency

• 100 ms or 68 ms [9]

• Wireless Frequency

• Non DFS frequency band:
  2.400-2.483 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz

  DFS Frequency Band: [10]
  5.250-5.350 GHz
  5.470-5.600 GHz
  5.650-5.725 GHz

• Transmitter Power (EIRP)

• 2.400-2.4835 GHz:
  ≤33 dBm (FCC); ≤20 dBm (SRRC/CE/MIC)
  5.150-5.250 GHz
  <23 dBm (FCC/SRRC/MIC)
  5.250-5.350 GHz:
  <30 dBm (FCC); <23 dBm (SRRC/MIC)
  5.470-5.600 GHz, 5.650-5.725 GHz:
  <30 dBm (FCC);<23 dBm (CE/MIC)
  5.725-5.850 GHz:
  <33 dBm (FCC/SRRC); <14 dBm (CE)

• Max Bandwidth

• 40 MHz

• Max Bitrate

• 50 Mbps

Interface

• Main Body

• 3.5mm TRS Stereo Input Jack × 1 (supports mic, plug-in power mic, and line inputs)
  3.5mm Stereo Output Jack × 1
  USB3.1 Type-C Data Port × 1
  6-pin 1B DC-IN (DC 12-30 V) × 1
  Battery Mount Power Port (female) × 1
  4D Expansion Plate Data Port (female) × 1
  High-Bright Main Monitor Port × 1
  Hand Grips Port × 2
  Top Handle Port × 1
  HDMI Type-A Video Output Port × 1 [11]

• X9 Gimbal

• LiDAR Range Finder/ Focus Motor Port × 2

• TB50 Battery Mount

• Battery Mount Power Port (male) × 1
  TB50 Battery Port × 1

4D Video Transmitter

• Dimensions

• 89×21×137 mm

• 4D Video Transmitter Port

• 4D Expansion Plate Data Port (male) × 1
  SMA Antenna Connector × 4
  USB 3.1 Type-C Data Port × 1
  Battery Mount Power Port (female) × 1
  Battery Mount Power Port (male) × 1

Remote Monitor

• Dimensions

• 216×58×166 mm (includes monitor cage)

• Screen Size

• 7 inches (diagonal)

• Max Brightness

• 1500 cd/m²

• Screen Resolution

• 1920×1200

• Refresh Rate

• 60 Hz

• Max Battery Life

• Approx. 2 hours [12]

• Operating Temperature

• 0° to 40° C (32° to 104° F)

• Storage Temperature

• -20° to 60° C (-4° to 140° F)

• Power System

• DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter)

• Remote Monitor Port

• 3.5mm Stereo Jack × 1
  microSD Card Slot × 1 [13]
  HDMI Type-A Video Input Port × 1 [14]
  Remote Monitor Expansion Plate High-Speed Port (female) × 1
  Remote Monitor Accessory Expansion Port × 1
  USB 3.1 Type-C Data Port × 1

• Remote Monitor Expansion Port

• Remote Monitor Expansion High-Speed Port (male) × 1
  HDMI 1.4 Type-A Video Output Port × 1
  6-pin 1B DC-IN (DC 6.8-17.6 V) × 1
  3G-SDI (Level A) BNC Video Output Port × 1

Notes

•

• 1. Measured when 6K Combo is fully set up with the main monitor attached and the Z-Axis off.

•

• 2. Measured with a fully charged TB50 Battery and Ronin 4D in a still state with the gimbal balanced, the Z-Axis inactive, and continuously recording in RAW. Gimbal movements or use of the Z-Axis will reduce operating time.

•

• 3. Autofocus on manual lenses requires DJI Zenmuse X9 Focus Motor.

•

• 4. Supported through a future firmware update.

•

• 5. Please use recommended CFexpress cards.

•

• 6. Please use recommended USB-C SSD.

•

• 7. Stabilization range of the Z-Axis is subject to change based on Z-Axis modes and usage scenarios and may be smaller than the mechanical range.

•

• 8. Unobstructed, free of interference.

•

• 9. 100ms is measured at 4K/24fps, 68ms is measured at 4K/60fps.

•

• 10. Some frequency bands may not be available depending on the legal policies of the region the monitor was activated in.

•

• 11. Currently supports HDMI 1.4 and will support HDMI 2.0 in a future firmware update.

•

• 12. Measured at 50% screen brightness with DJI WB37 battery.

•

• 13. This port is currently not available. Will support internal recording in a future firmware update.

•

• 14. This port is currently not available. Will support HDMI 1.4 in a future firmware update.
