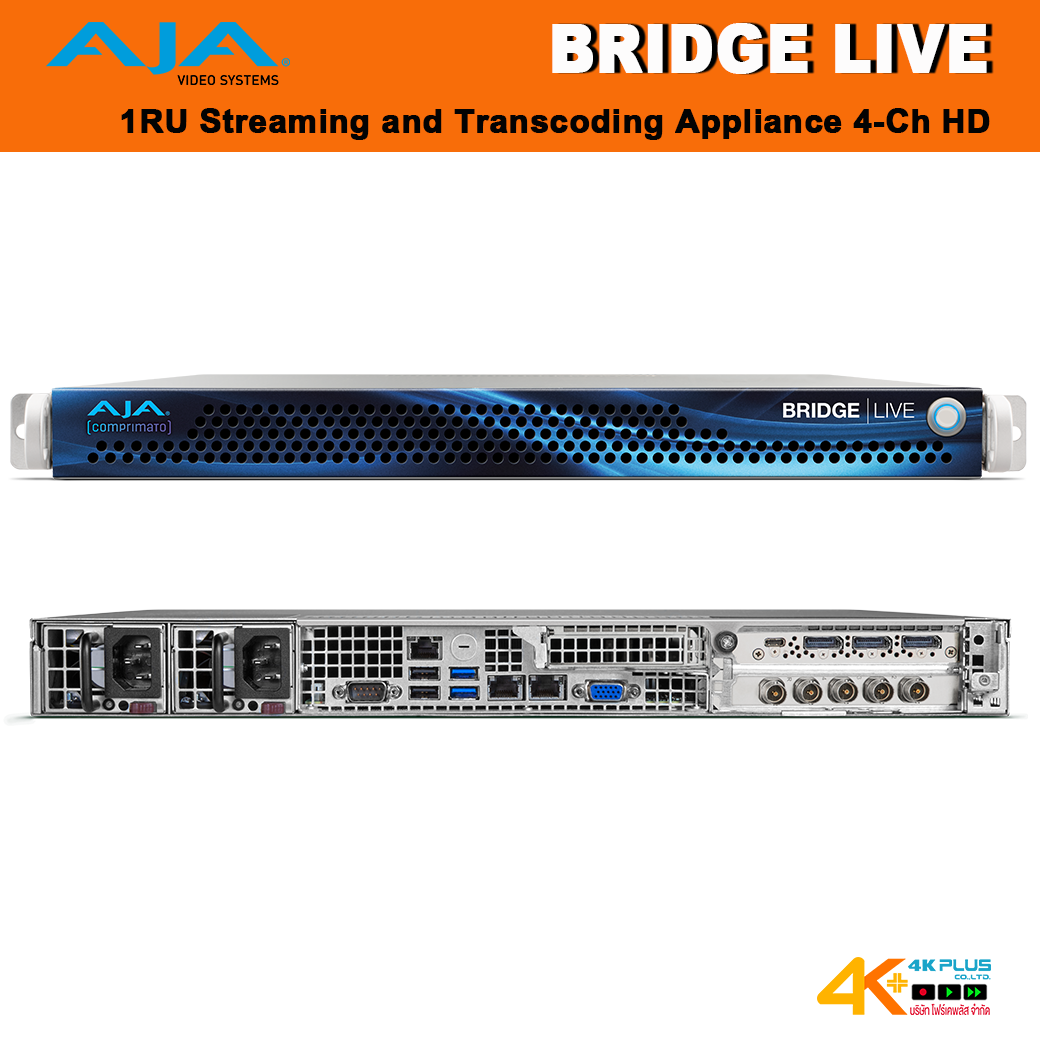

AJA BRIDGE LIVE 1RU Streaming and Transcoding Appliance 4-Ch HD
รายละเอียดสินค้า
BRIDGE LIVE is a broadcast-quality, low-latency turnkey system for Remote Production (REMI), Multi-Channel Video Contribution, Remote Collaboration, Direct to Audience Streaming and Multi Bit Rate/Format Delivery.
Equipped with 12G-SDI I/O plus the power and flexibility to enable real-time bi-directional encoding, decoding and transcoding for critical UHD and HD workflows, BRIDGE LIVE is an essential part of any modern live video production toolkit. A compact and robust 1RU form factor with redundant power supplies and a three year warranty, means peace of mind even when dealing with the most demanding applications.
Whether facilitating remote production, two-way interviews, live event streaming, multi-cam backhaul, field contribution, program return, confidence monitoring, collaborative production, ABR ladder profiles to hand-off for OTT packaging, BRIDGE LIVE ensures simultaneous, secure and stable workflows whether over private lines or the public internet.
Features
- 12G-SDI/3G-SDI I/O supports 4-channels of HD or 1-channel of UltraHD as standard
- Bi-directional Encode/Decode/Transcode; NDI, H.265 (HEVC), H.264 (AVC, MPEG-4), H.262 (MPEG-2) and JPEG 2000 (TR-01)
- Protocols; SRT, HLS, MPEG-TS, MPTS (input), RTMP/RTMPS (output), RTP, and UDP
- Multi bit rate/format content distribution, ABR Ladder Profiles for OTT hand-off
- Selectable profiles for 10-bit and 8-bit, 4:2:2 and 4:2:0
- Unmatched Metadata capabilities including Ad insertion markers (SCTE-35/SCTE-104), CC/Subtitles (EIA-608/708, Line 21, H.264 SEI), MPEG-2 ANC, SMPTE 2038

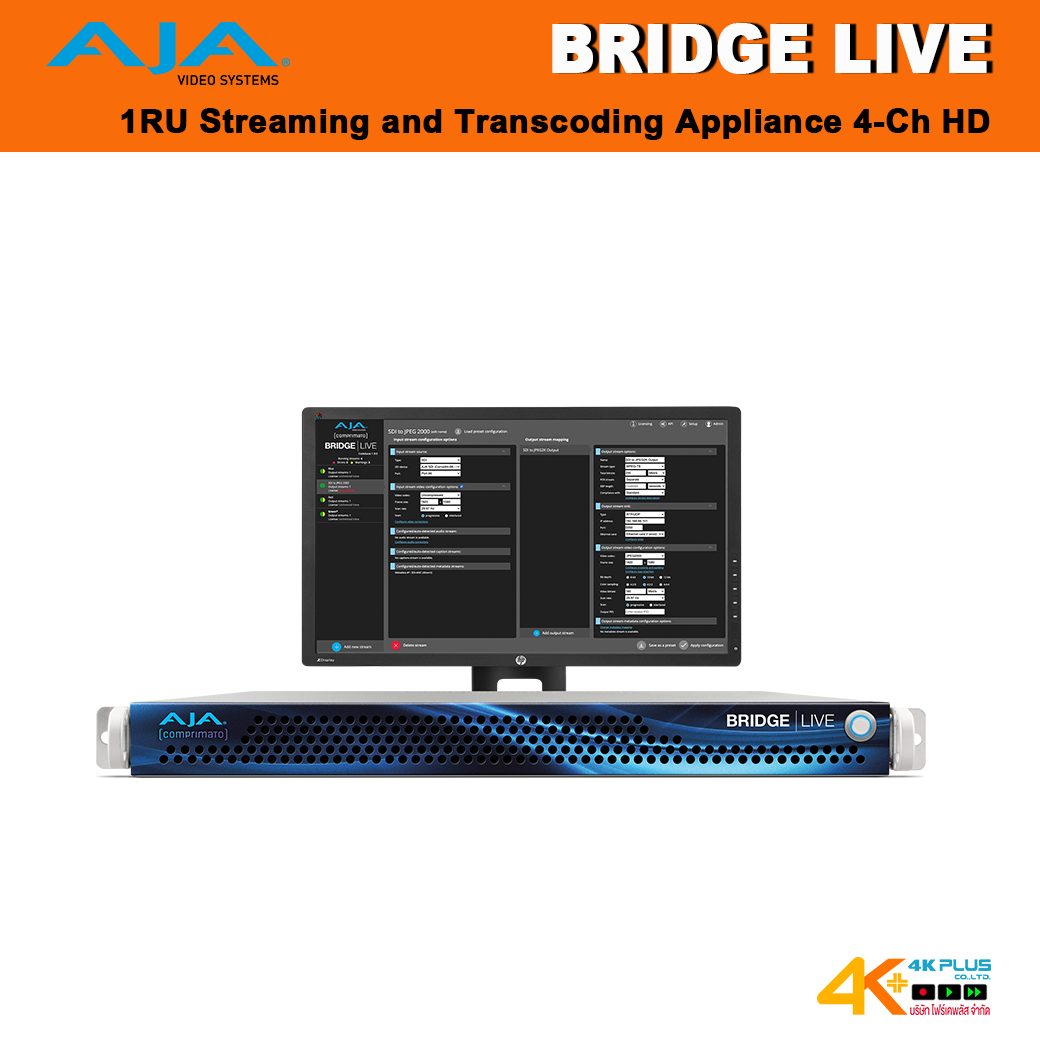

- Remote WebUI or local GUI access for easy administration, control and operation
- Monitoring, Control and Automation supported via REST API or SNMP
- Turnkey 1RU rack-mountable, enterprise-class form factor
- Dual 10GbE interface for control and transport
- Dual power supplies for critical application redundancy
Video Formats
- (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (HD) 1080i 50, 59.94, 60
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
Video Color Component Sampling
- SDI
- YCbCr, 4:2:2, 10-bit
- Transport Streams
- YCbCr, 4:2:2, 10-bit/8-bit
- YCbCr, 4:2:0, 10-bit/8-bit
- NDI
- P216, 4:2:2, 16-bit
- UYVY, 4:2:2, 8-bit
Video Codecs
- H.264 (AVC, MPEG-4)
- H.265 (HEVC)
- JPEG 2000 (VSF TR 01)
- MPEG-2
- NDI
Audio Streams/Codecs
- AAC
- AC3
- E-AC3 (input)
- MPEG-2 Audio
- NDI (uncompressed float)
- Uncompressed PCM (multi-channel), SMPTE 302M-2007
Metadata
- Closed Captioning (EIA-608/708)
- Line 21 Captions
- Metadata pass-through
- MPEG-2 ancillary packet support, SMPTE 2038
- SCTE-35, SCTE-104 (pass-through)
- Subtitles embedded within H.264 SEI messages
- Electronic program guide (EPG) on input
Containers and Protocols
- HLS (input)
- AVC TS segments
- Fragmented MP4
- HLS (output)
- AVC TS segments
- MPEG-TS
- MPTS (input)
- RTMP/RTMPS (output)
- RTP, UDP
- SRT (including encryption)
- VSF-TR01
Video Processing
- Auto Color Component Sampling based on I/O settings
- Cropping / Padding
- Color adjustments
- Deinterlacing
- Frame rate 50% down-conversion (60p->30p, 59.94->29.97, 50p->25p)
- Frame rate up-conversion (50i->50p)
- Logo insertion
- Resizing
Audio Processing
- Channel Remapping
- Gain
- Sample Rate conversion
Synchronization
- Input PCR
- Global configuration (in separate transport stream)
- Local configuration (in each transport stream)
- Output PTS
- Pass-through
- Add offset to input PTS
- NTP
- Encoder Synchronous Multi-Channel Transport
- PCR
- Decoder Synchronous Multi-Channel Transport
Performance
- Stream startup time maximum 5 seconds after configuration applied
- Latency down to sub 150ms input to output (based on codec and other parameters)
- Up to 4 simultaneous primary HD streams, plus additional output variations per stream*
- Up to 1 primary UltraHD stream, plus additional output variations of that stream*
*Final additional stream count per output is dependent on configuration
Video Input Digital
- 12G-SDI, SMPTE-2082, 10-bit
- 6G-SDI*, SMPTE-2081, 10-bit
- 3G-SDI, SMPTE-424, 10-bit
- 1.5G-SDI, SMPTE 292M, 10-bit
- 270 Mbit/s SDI, SMPTE 259M-C, 10-bit
*UltraHD 30p supported, no other SMPTE-2081 support at this time
Video Output Digital
- 12G-SDI, SMPTE-2082, 10-bit
- 6G-SDI*, SMPTE-2081, 10-bit
- 3G-SDI, SMPTE-424, 10-bit
- 1.5G-SDI, SMPTE 292M, 10-bit
- 270 Mbit/s SDI, SMPTE 259M-C, 10-bit
*UltraHD 30p supported, no other SMPTE-2081 support at this time
Audio Input Digital
- 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection
Audio Output Digital
- 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection
Configuration and Monitoring
- Local “Kiosk” interface (keyboard, mouse and monitor)
- Remote access via Browser
- REST API
- SNMP
Form Factor
- 1RU turnkey system
- 4x full size BNC (12G/6G/3G/1.5G-SDI compatible)
- 2x 10GigE
- Local interface via Display Port and USB
- OS custom image
- Updates and licenses via download
Size (w x d x h)
- 17.2” x 16.9" x 1.7" (436.88 x 429.26 x 43.18 mm)
Weight
- 28 lb. (12.7kg) in box
- 18 lb. (8.2kg) server only
Power
- 100-240 VAC 50/60 Hz (Dual, redundant power supplies)
- 190W typical, 245W Maximum
Environment
- Safe Operating Temperature: 5 to 35 C (41 to 95 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 8-90% noncondensing
- Nonoperating Relative Humidity: 5-95% noncondensing
