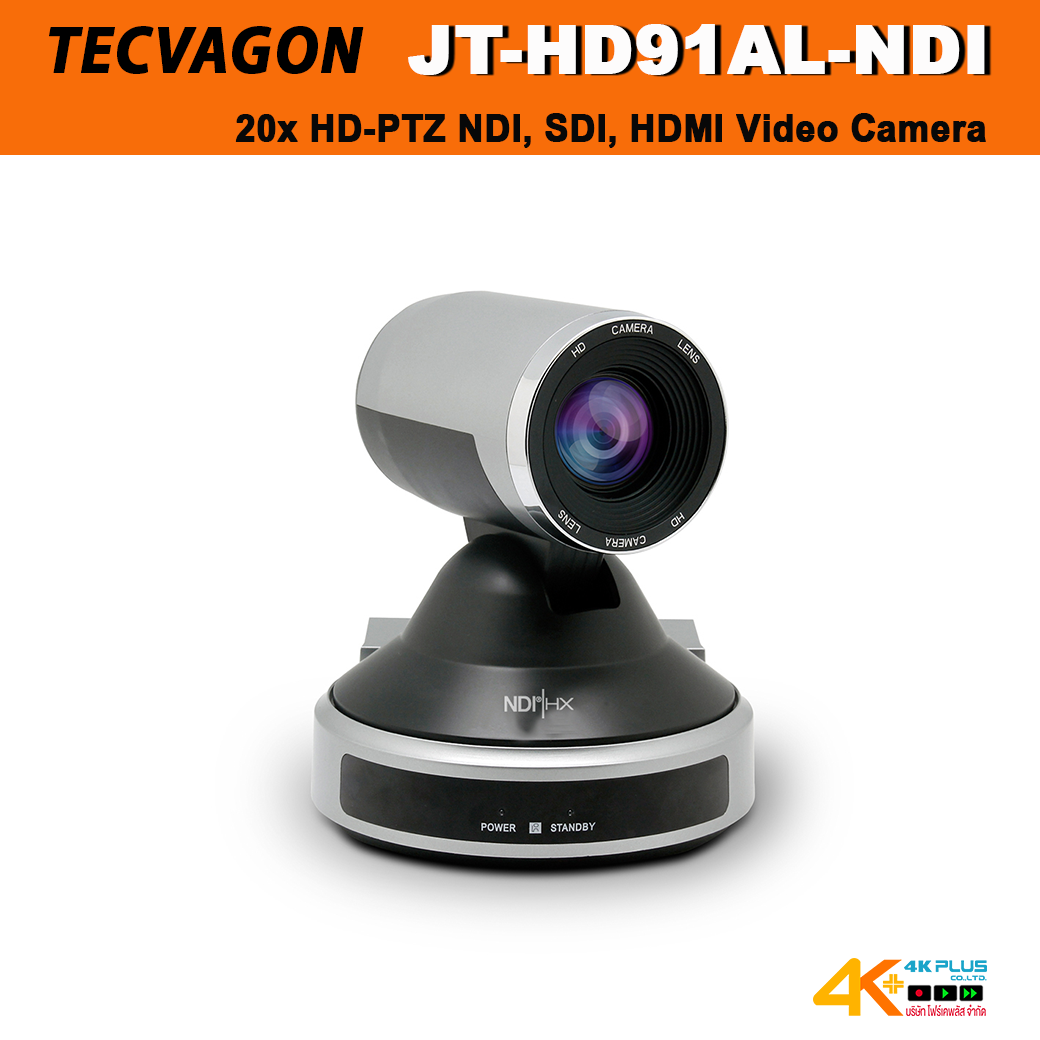

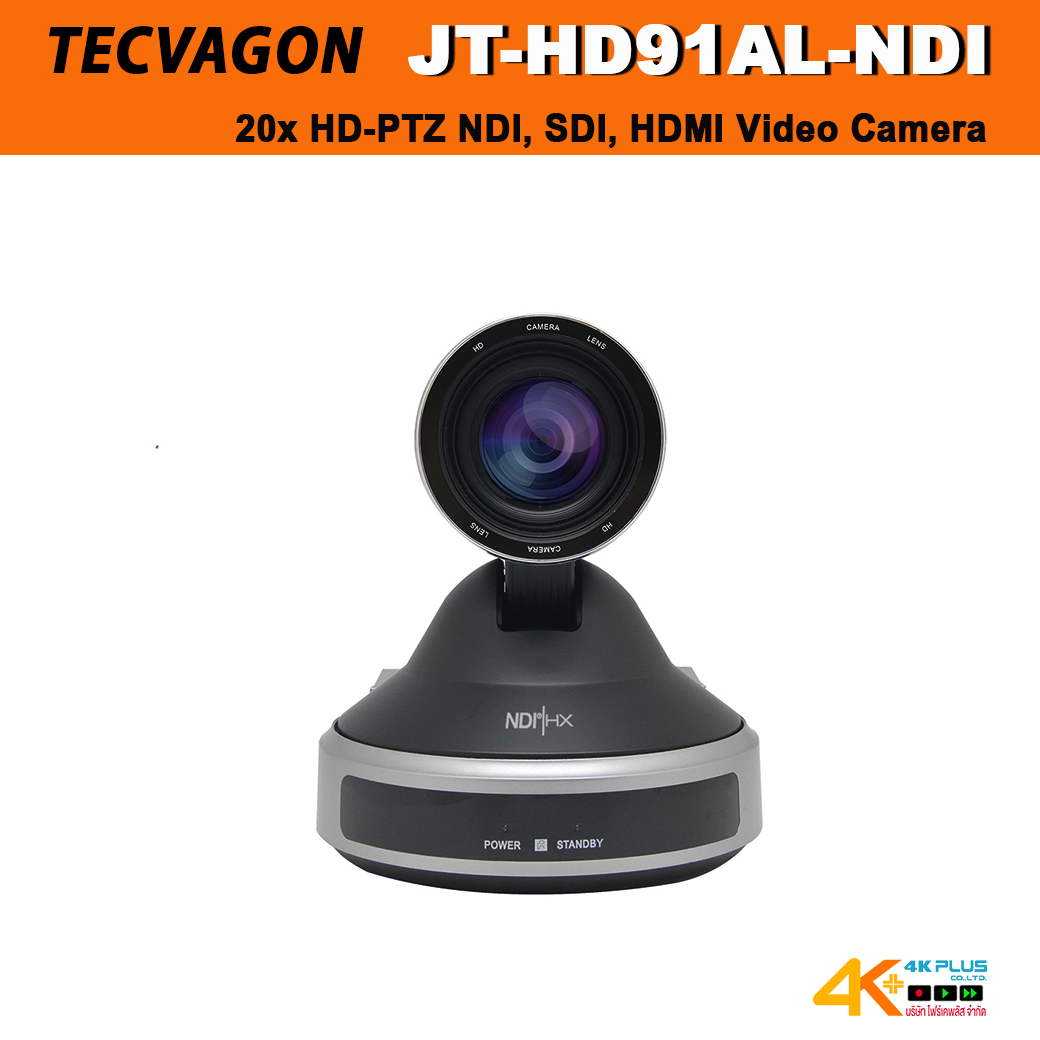

TECVAGON JT-HD91AL-NDI 20x High definition pan,tilt, zoom video camera

Camera model

JT-HD91AL-NDI

Image Sensor

1/2.8" Sony CMOS Sensor

Effective Pixels

3.50 Megapixels

Resolution

1080p60/50, 1080i60/50,1080i59.94, 1080p/30, 1080p/25

Signal System

PAL/NTSC

Lens

20X optical zoom

f=4.7mm(wide)~94.0 mm(far end) F1.6~F2.8

Horizontal View Angle

58.7°(W)~3.2°(T)

Pan

355°(max. speed:80°/s)

Tilt

-30° to +30° (max. speed: 60°/s)

Focus System

Auto/Manual

S/N Ratio

≥50db

Preset Position

9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC

Minimum Illumination

0.1Lux

Exposure Control

Auto/Manual/Priority AE/Exposure Compensation/Bright

Shutter Speed

1/1~1/10,00S

Gain

Auto/Manual

White Balance

Auto/Manual/ATW/One-click/Indoor/Outdoor

Image Effect

Full color/black and white/Electronic flip

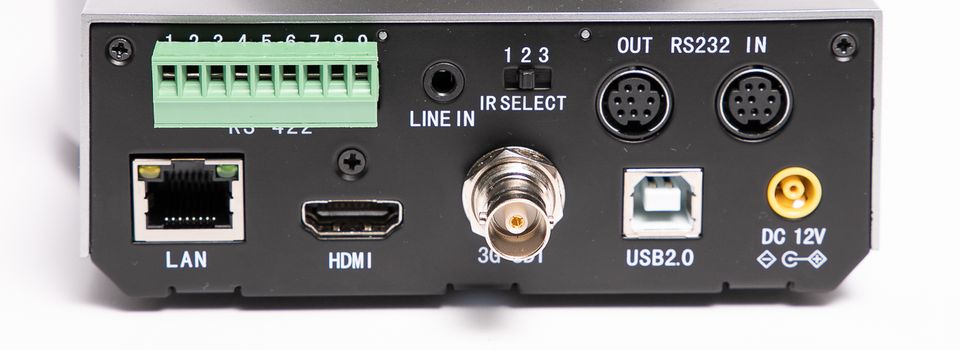

Video Output HD

HDMI, 3G-SDI,USB2.0, IP

Other Input

Line In

Control Protocol

NDI, VISCA OVER IP, SONY VISCA, PELCO P/D

Other Protocol

RTMP, RTSP, TCP/IP, HTTP, ONVIF

Control Mode

RS-232C, RS-422/485

Power

12 DC(10.8~13.0DC)

Power Consumption

Max. 30W(DC 12V)

Operating Temperature

0~40°C

Storage Temperature

-20-60°C

Camera Dimension

(L)164×(W)148×(H)173mm

Weight

1050g

Color

Black/White

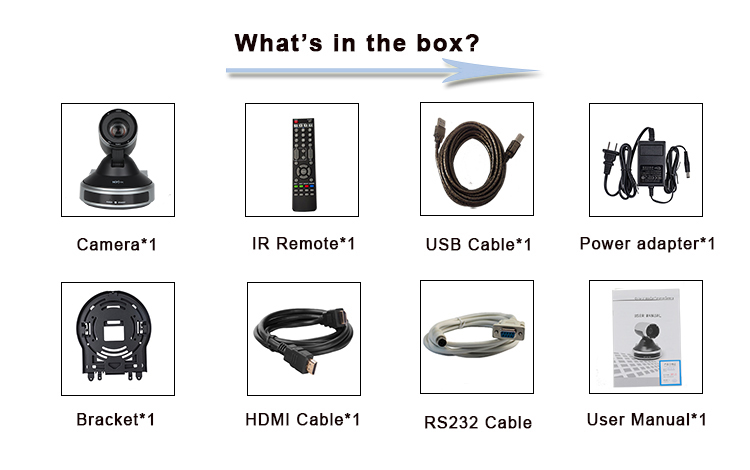

Accessories

DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable,DVI converter HDMI cable, USB Cable , Ceiling bracket

Carton

Each camera in a small carton, then 4pcs packaged in one large carton.

Certificate

ISO/CE/FCC/ROSH

Warranty

1 years
