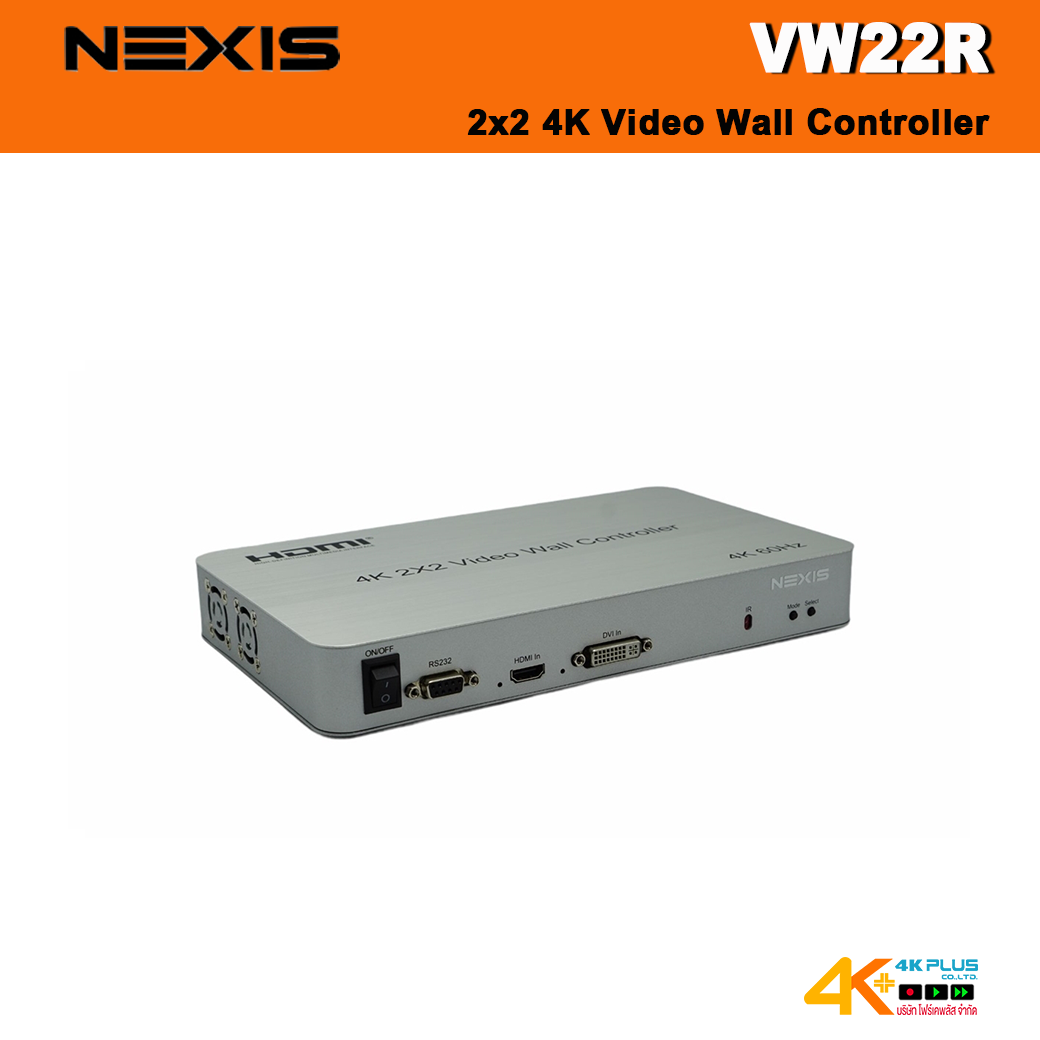

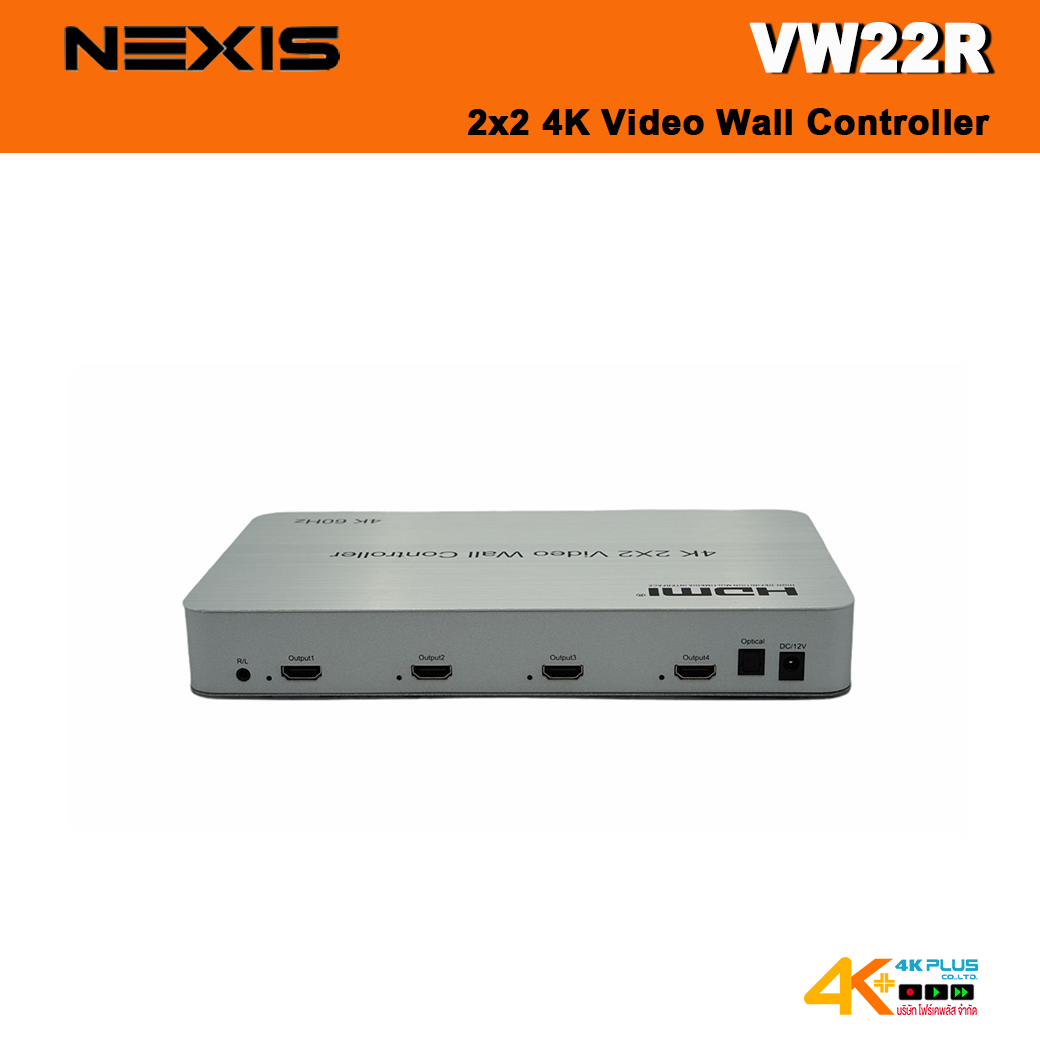

NEXIS VW22R 2x2 4K Video Wall Controller (4K@60HZ)

1. รองรับ 4 ช่องสัญญาณ HDMI output และช่องสัญญาณเสียงขาออก แบบ 3.5มม. strero
2. รองรับความละเอียดของสัญญาณ input 1920x1080P 25/30/50/60Hz,3840x2160P 60Hz;
3. รองรับความละเอียดของสัญญาณ output 3840x2160P 60Hz or 1920x1080P 60Hz;
4. Input format: YUV4:2:2 24bit、YUV4:4:4 24bit、YUV4:2:0 24bit、RGB4:4:4 24bit;
   Output format: RGB4:4:4 24bit;
5. รองรับ RS232 protocal (Net port RJ45);
6. เสียบแล้วใช้งานได้ทันที ไม่ต้องลงซอฟแวร์
7. รองรับการหมุนจอภาพแบบ 90 องศา、180องศา、270องศา

HDMI resolution.................................................................................up to 3840*2160/60Hz
Support video format..........................................................................8/10/12 bit deep color
Support audio format...................................................................................................LPCM
Max bandwidth.........................................................................................................600MHz
Max baud rate .........................................................................................................3x6Gbps
Input cable distance.......................................4K/30Hz ≤15M AWG26 HDMI standard cable
4K/60Hz ≤5M HDMI 60Hz standard cable
Output cable distance....................................4K/30Hz ≤15M AWG26 HDMI standard cable
4K/60Hz ≤5M HDMI 60Hz standard cable
HDMI Input...........................................................................................................................2
HDMI Output........................................................................................................................4
Max working current..................................................................................................2100mA
Power adapter format...................Input：AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A
Operating temperature range...........................................................................(-15 to +45℃)
Operating humidity range....................................................5 to 90%RH (No Condensation)
Dimension (L x W x H)..............................................................................256x153x33 (mm)
Weight .......................................................................................................................1276.3g
