Datavideo PTC-280NDI 4K NDI PTZ Camera

จำหน่าย Datavideo PTC-280NDI 4K NDI PTZ Camera



Specs

Video format/Resolution

HDMI:

2160p 60/59.94/50/30/29.97/25

1080p 60/59.94/50/30/29.97/25

1080i 60/59.94/50

720p 60/59.94/50



SDI:

1080p 60/59.94/50/30/29.97/25

1080i 60/59.94/50

720p 60/59.94/50



(2160p 60/59.94/50 YUV 4:2:0 only)



Image Sensor

1/2.5" CMOS



Effective Pixels (approx.)

8.51Mega Pixels



S/N Ratio

≥55dB



Min. Illumination

0.5 Lux @ (F1.8, AGC ON)



Electronic Shutter

1/30s ~ 1/10000s



Zoom Ratio

12x Optical Zoom, 16x Digital Zoom



Gamma Control

Off / Normal



Iris Control

Auto / Manual



Digital Noise Reductions

2D/3D



On-Screen Display (OSD)

English/Simplified Chinese/Traditional Chinese



White Balance

Auto, Indoor, Outdoor, OnePush, Manual, VAR



AGC / Gain Control

Yes



Mirror / Flip Image

Yes



Focus Mode

Auto/Manual



Panning / Tilting Range

Pan: 300°

Tilt: +130° to -15°



Panning / Tilting Speed

Pan: 0.876°/s~43°/s

Tilt: 0.693°/s ~21.32°/s



Preset

255 Position



Focal Length

12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6



Field of View (Horizontal, Wide)

71°



Image Compensation

Back light compensation



Video Output

HDMI 2.0 x1

3G-SDI x1

10/100/1000M RJ45 x1



Audio Input

3.5mm x1



Tally LED

Yes



Lens Filter

N/A



Control Protocol

Pelco-D, Peldo-P,

VISCA, VISCA over IP

DHCP, RTSP, RTMP (IP Cam), RTMPS,

DVIP

NDI



Remote Control Interface

IR

Web UI

RS-422

DVIP

NDI



Video Compression Format

H.264/H.265/MJPEG



Audio Compression Format

AAC



Audio Bitrate

96Kbps, 128Kbps, 256Kbps



HD IP Interface

---



Streaming Protocols

TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast

First Stream Supported Resolution

3840x2160

1920x1080

1280x720

1024x576

960x540

640x480

640x360



Second Stream Supported Resolution

1280x720

1024x576

720x576 (50Hz)

720x480 (60Hz)

720x408

640x360

480x270

320x240

Video Bitrate

32Kbps ~ 50Mbps (Single Stream)



Video Bitrate Mode

VBR, CBR



Encoding Frame rate

50Hz: 1-50fps

60Hz: 1-60fps



POE

IEEE802.3af



F/W Update

Via Web UI or USB 2.0



IR Control

Yes



Camera Control Unit

RMC-180 series/RMC-300 series/PTZ View Assist APP



Tripod Mount

1/4-20 UNC



Optional Accessories

WM-1/ WM-10/ WM-11



Color

Dark Blue/White



Dimension (LxWxH)

173 (W) x 219 (H) x 189.08 (D)



Weight

2.8 kg



Operating Temp. Range

0~40 °C



Power

DC 12V



What's in the Box

1 x PTC-280NDI product

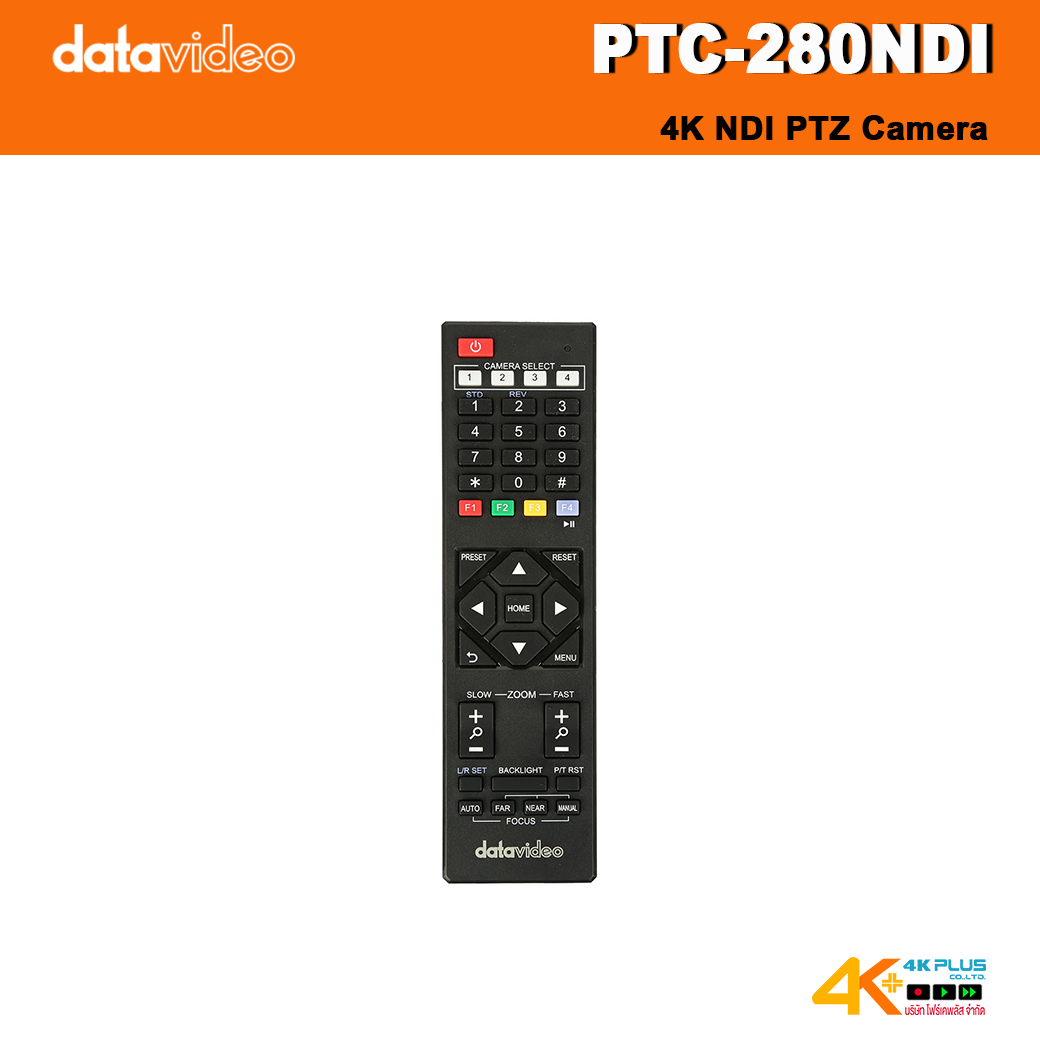

1 x IR remote controller

1 x Ceiling mount bracket-A

1 x Ceiling mount bracket -B

6 x Ceiling mount bracket screw M3*4mm

1 x DC 12V Power Adaptor

1 x A tightrope
