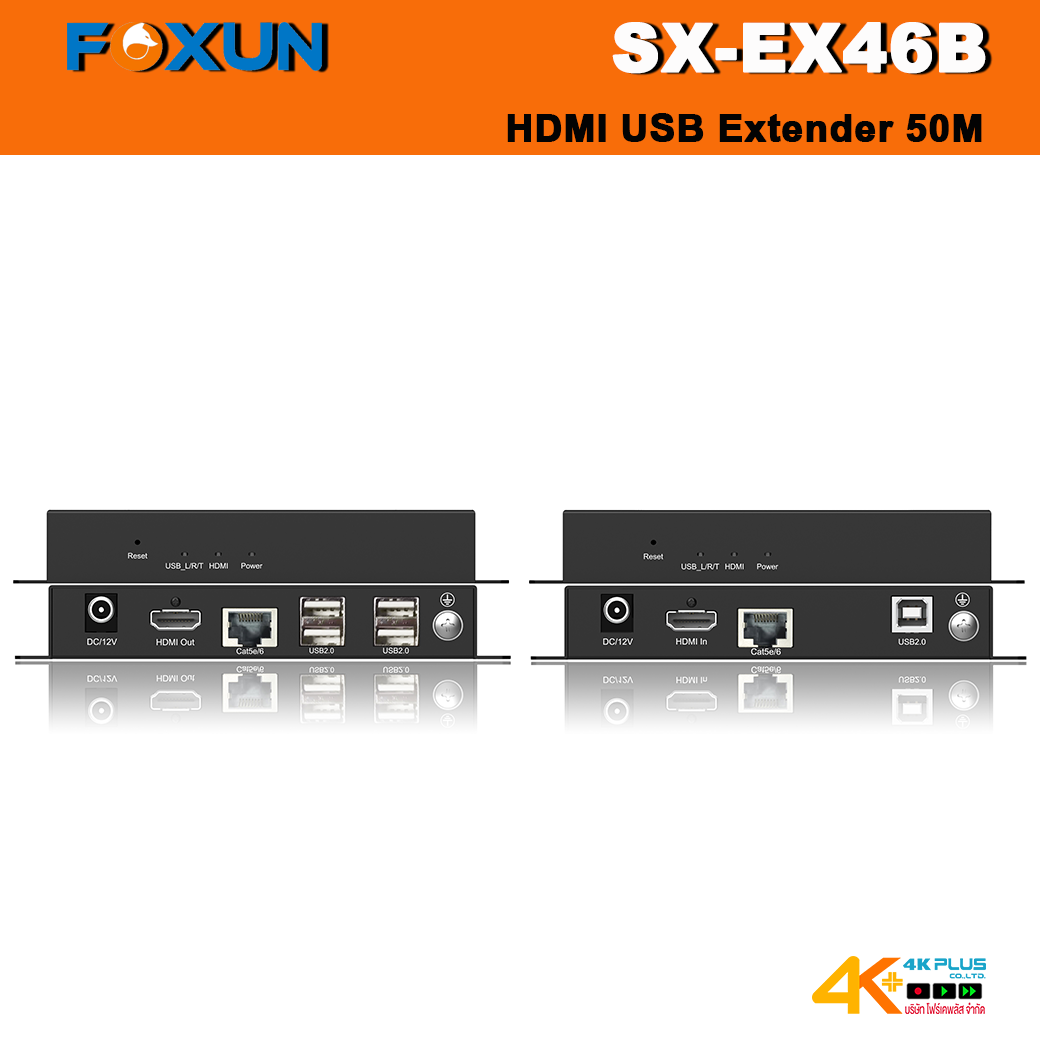

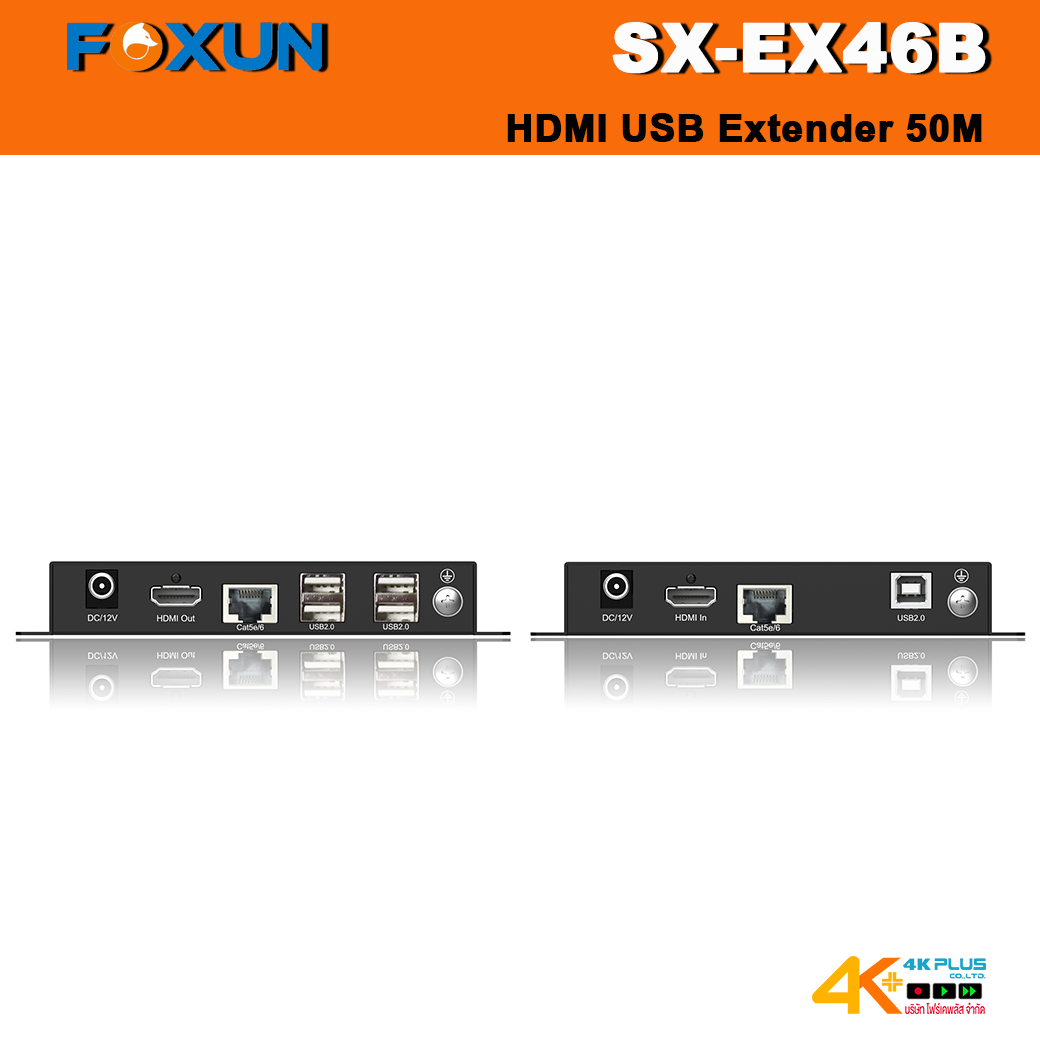

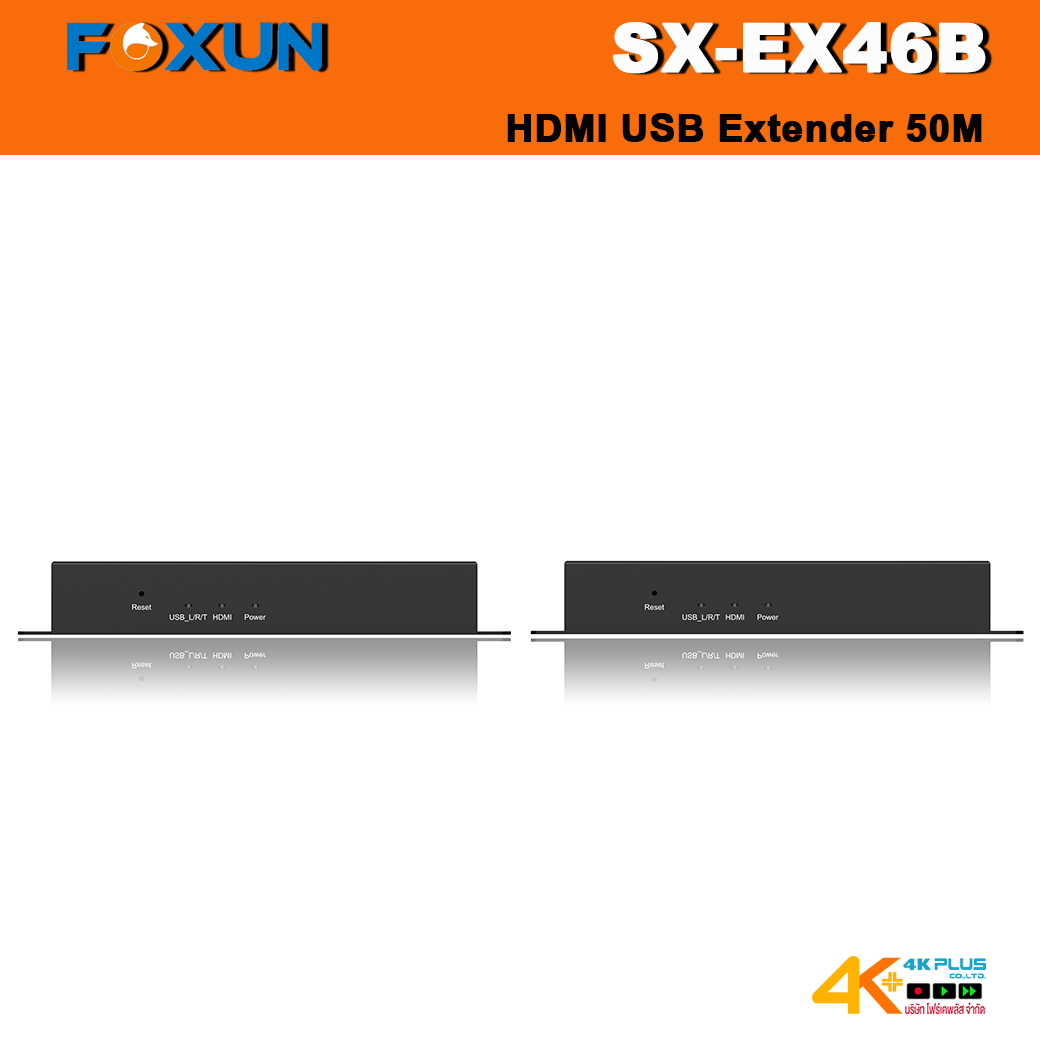

SX-EX46B HDMI KVM Extender - Support 50m(164ft) 1080P/KVM/POC

• Extends 1080p@60Hz upto 50m/164ft over a single Cat5e/6/7 cable and control your devices with a key board and mouse with nearly zero latency
• 1x USB Type-B use in PC, Printer ect
• 4x USB Type-A use in USB Headsets, Cameras, MIC, Keyboards, etc
• Supports bi-directional PoC (Receiver powered by Transmitter or Transmitter powered by Receiver)
• Support HDCP1.4 compliant
• Support PCM2.0, audio sampling rate: 44KHz, 48KHz

Video Input Connectors

1 x HDMI Type A, 19-pin, female ; 1 x RJ45 connector

Video Output Connectors

1 x HDMI Type A, 19-pin, female ; 1 x RJ45 connector

USB/KVM Port

1 x USB Type-B (Host), 4x USB Type-A

Dimensions

147.5x73.6x22mm

Shipping weight(kit)

1kg

Operating Temperature

-10 to +45℃(14 to +113℉)

Operating Humidity

5 to 90%RH (No Condensation)

Power Supply

12V2A

Casing Materia

Iron
