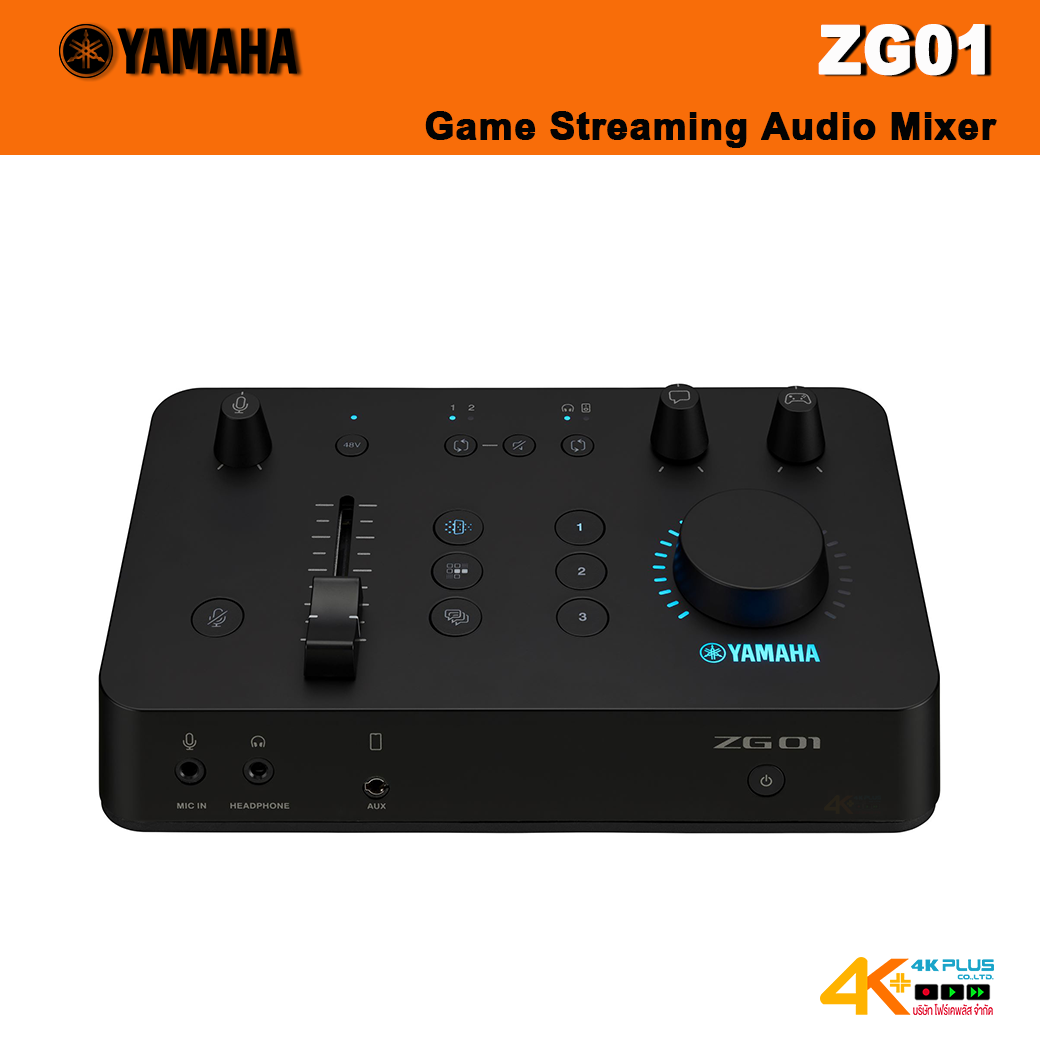

YAMAHA ZG01 Game Streaming Audio Mixer

The ZG01 is Yamaha’s first audio mixer designed specifically for game voice chat and game streaming.

This new mixer allows you to tailor the game audio, your voice, and the voice of the person you are chatting with to your own playback environment, while simultaneously providing the ideal audio signal to both your chat partner and the audience you are streaming to.

The ZG01 also features simple audio operation with carefully selected physical controls, a variety of DSP effects, such as a chat voice changer and authentic surround sound processing through stereo headphones, as well as 2-in/1-out HDMI ports that also work as an HDMI switcher and conversion adapter. The ZG01 offers a higher level of immersive game sound and a more comfortable gaming environment.

Outline

INPUT CHANNELS

• Microphone:  1 - Combo (Mic, +48 V phantom power), 3.5 mm (1/8") mini (Headset mic, Plug-in power) *Mic and Headset mic cannot be used simultaneously
• Smartphone:  1 - 4-pole mini input/output (TRRS)
• HDMI: 1 - Switchable input HDMI 1 or HDMI 2 by button *No video capture function
• USB: 2 - Virtual devices (Voice, Streaming)

OUTPUT CHANNELS

• PHONES: 1 - 3.5 mm (1/8") stereo mini (Headphones or Headset phones)
• Smartphone: 1 - 4-pole mini input/output (TRRS)
• MONITOR OUT: 1 - Stereo mini (Speaker out)
• HDMI: 1 - Audio out: 2ch 24-bit/48kHz fixed, Video signal: Pass-through
• USB: 2 - Virtual devices (Voice, Speaker)

Functions: MUTE button x 1, HDMI input select button x 1, Monitor output select button x 1, Effect preset button x 6 (Voice x 3, Game x3)

ON-BOARD PROCESSORS

• DSP: ZG SURROUND, FOCUS MODE/EQ, 3D VOICE CHAT, Voice change/Game sound effects *Detail is operated on ZG Controller

USB

• USB Audio: Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
• USB DC Power input: 1 - Type-C, 5 V DC, 1.5 A

GENERAL SPECIFICATIONS

• Power requirements: 5 V DC, 1.5 A
• Power consumption: Max. 7.5 W
• Dimensions:   W: 195 mm (7.7")  H: 47.5 mm (1.9")  D: 110 mm (4.3")
• Net weight: 0.8 kg (1.8 lbs)
• Included Accessories: USB 2.0 cable (USB-C to USB-C) 1.5 m x 1, USB 2.0 cable (USB-A to USB-C) 1.5 m x 1, Start Guide, Safety Guide
• Others: Operating Temperature: 0 to + 40 ℃
