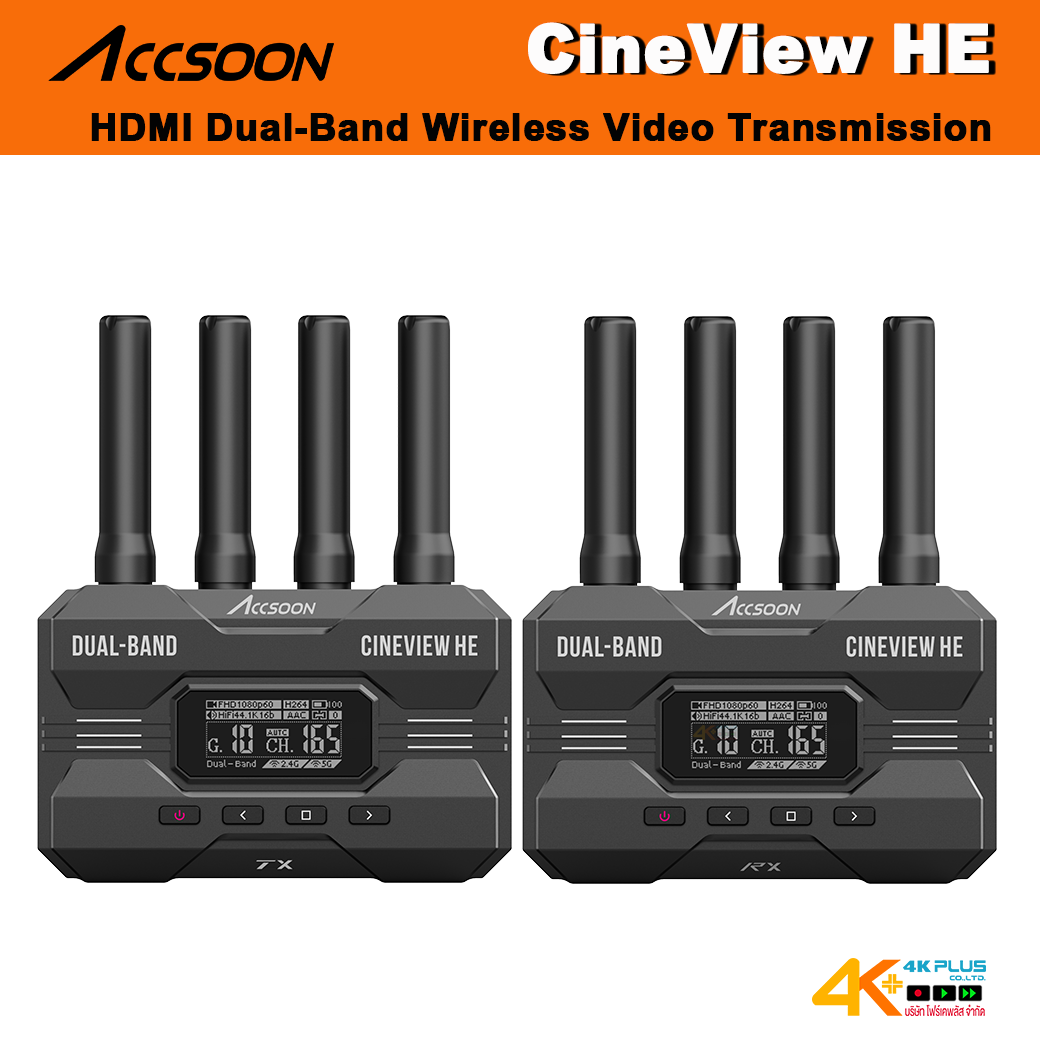

Accsoon CineView HE HDMI Dual-Band wireless camera transmission system

SKU

Model

UPC

1 TX + 1 RX

WIT04-HE

6.64919E+11

1 TX

WIT04-HE-TX

6.64919E+11

1 RX

WIT04-HE-RX

6.64919E+11

Specification

Transmitter

Receiver

Product Image

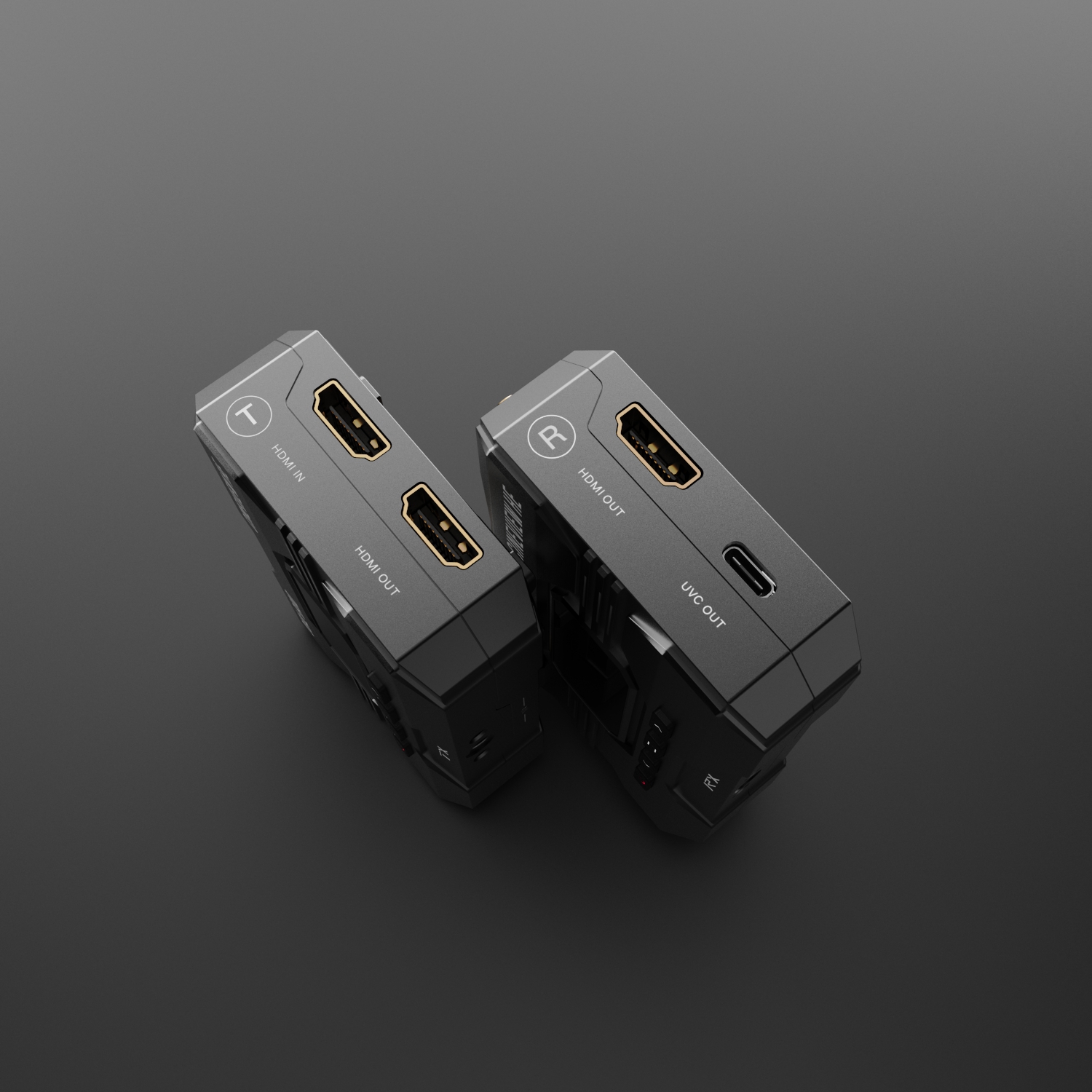

Video Input

HDMI

Video Output

HDMI

HDMI Input Format

1080p 23.98/24/25/29.97/30/50/59.94/60fps

HDMI Output Format

1080p 23.98/24/25/29.97/30/50/59.94/60fps

1080p 24/25/30/50/60fps

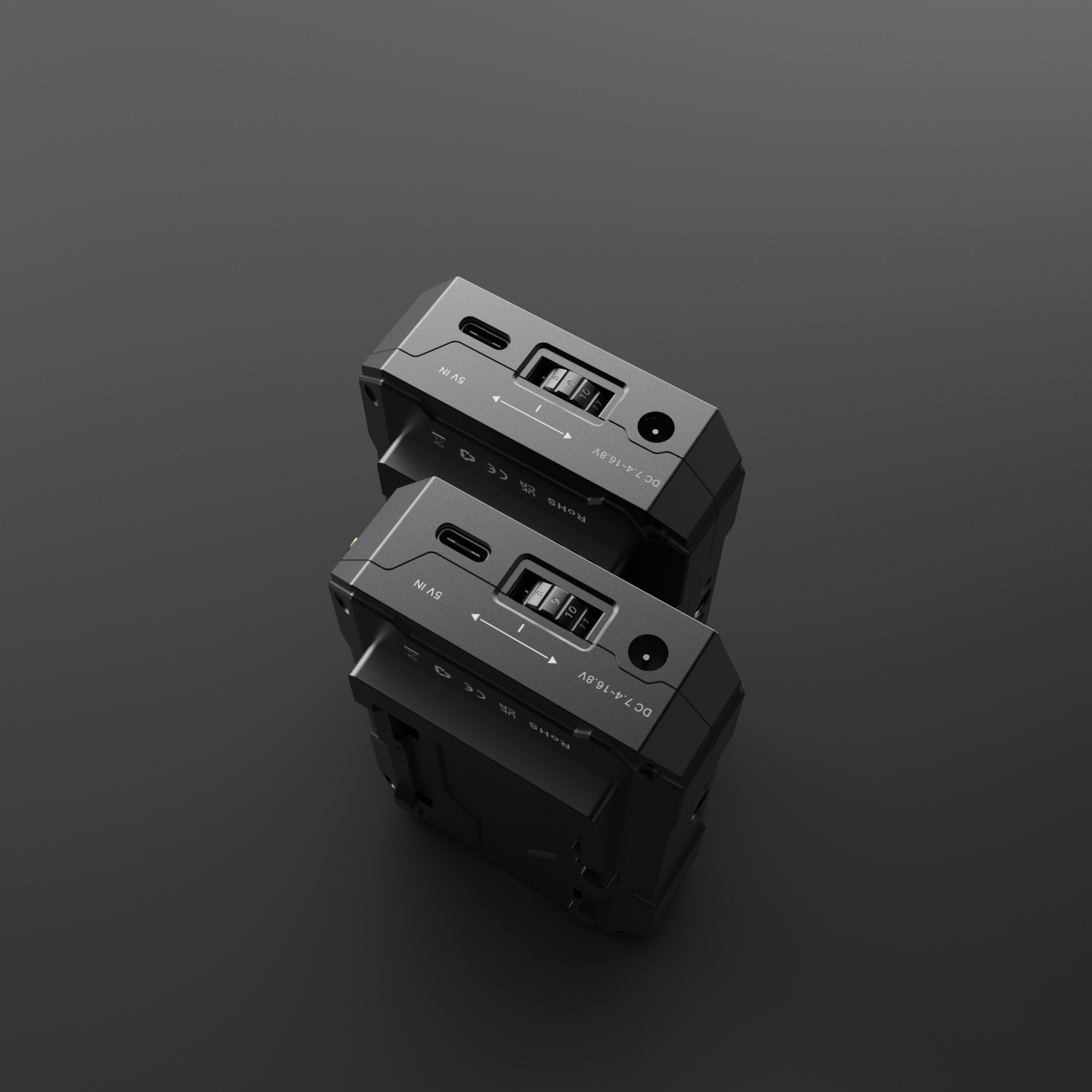

DC Port

5.5mmx2.1mm, center positive

DC Voltage

7.4~16.8V

Audio

44.1KHz/48KHz 16bit/24bit PCM

Latency

＜0.06s

(Camera latency not included)

OLED Display

1.3 inch

1.3 inch

Transmission Power

17~20dBm

Transmission Range

1200ft

(No obstacles, no interference)

Power Consumption

4.5 Watt

（Typical）

4.2 Watt

(Typical)

Operating

Environment Temperature

-10~40℃

Dimensions

(Antennas Not Included)

105mmx66mmx32mm

Weight

(Antennas Not Included)

200g

200g
