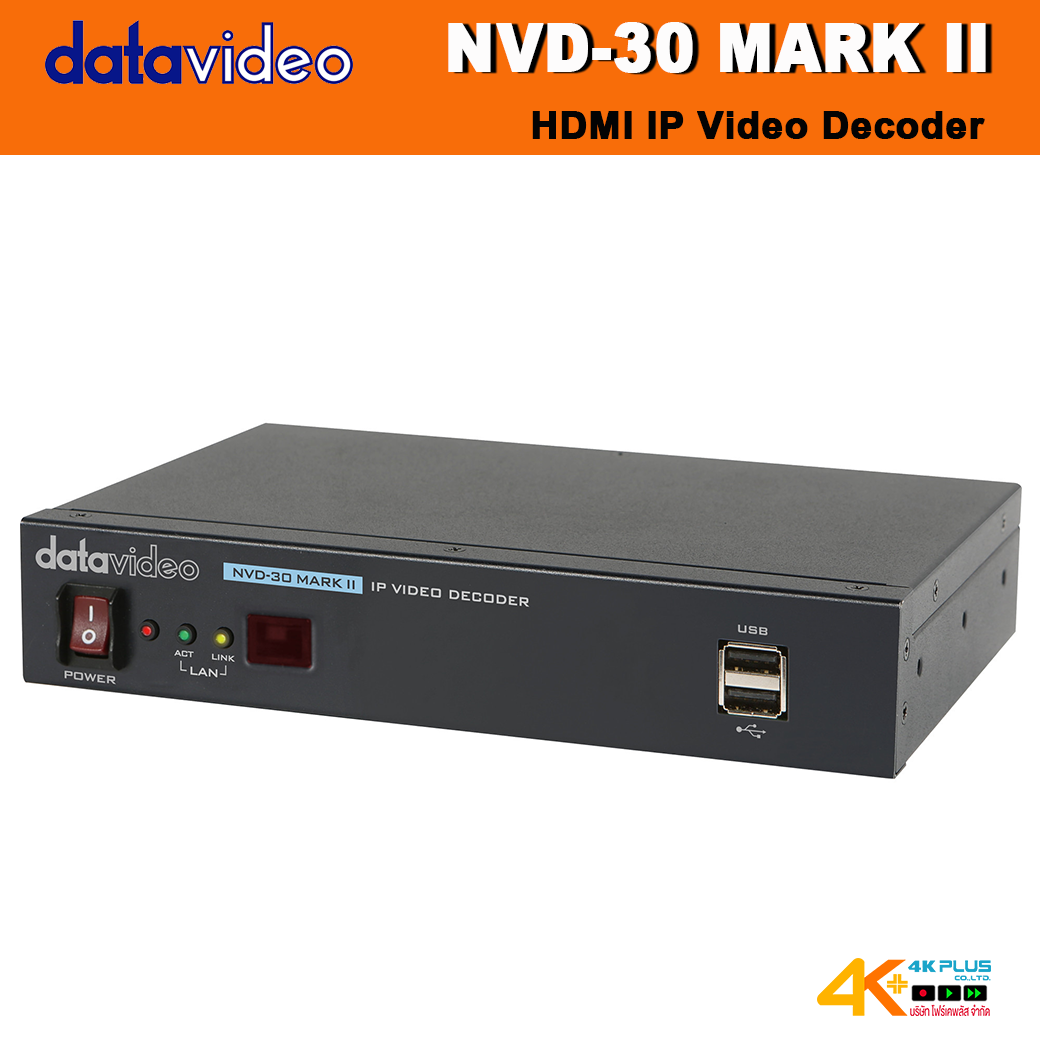

Datavideo NVD-30 MARK II HDMI IP Video Decoder

Audio/Video Input

Stream Input
· RTSP over UDP (Unicast / Multicast)
· RTSP over TCP
· RTSP over HTTP
· SRT (Secure Reliable Transport) caller · MPEG-TS over UDP
· RTMP Pull
· RTMP Push (Internal Server)
· UDP raw (Unicast/Multicast)
· HLS over HTTP
· MPEG-TS over TCP Pull
· Video sharing websites

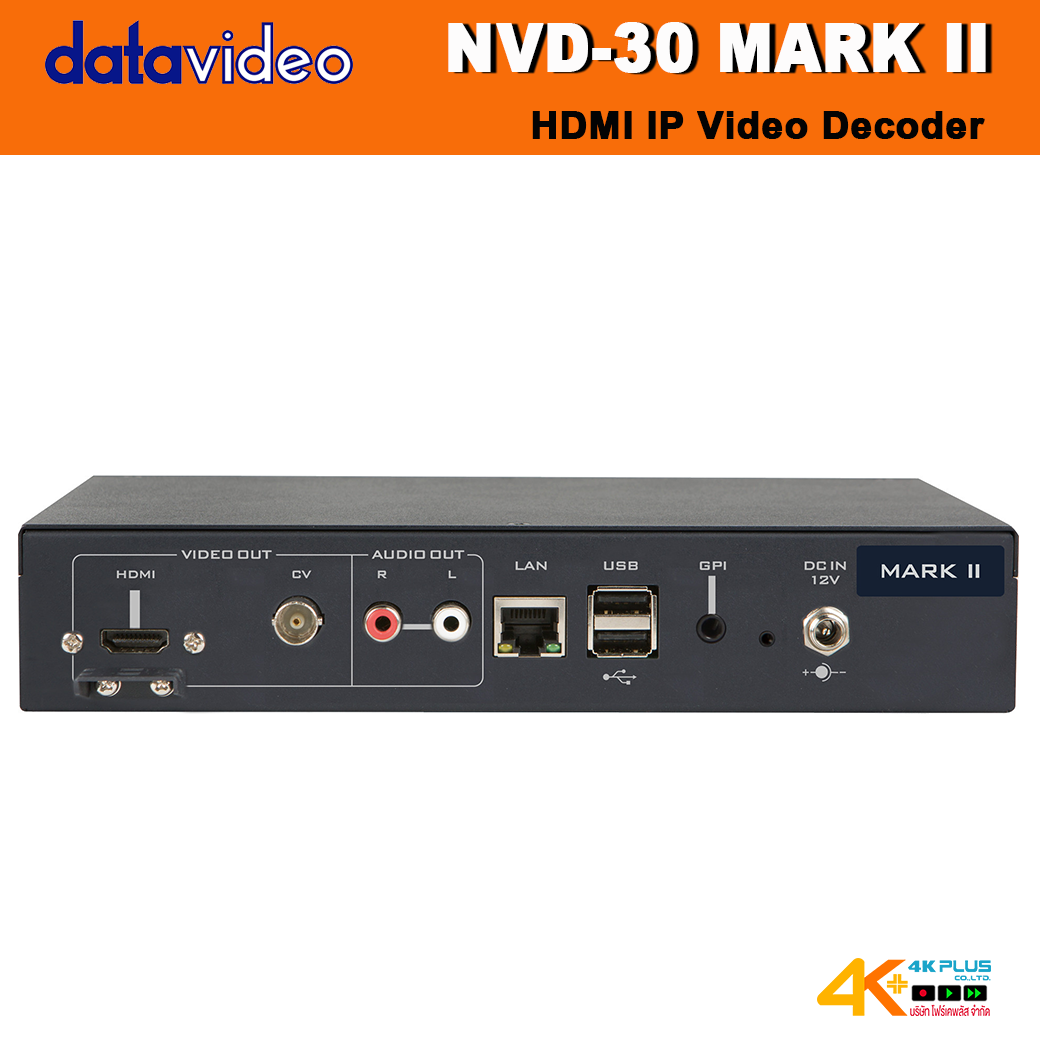

Audio Output

2 x RCA(L/R)
HDMI embedded audio

Video Output

Composite (analogue) HDMI (digital)

Network Feature

1x RJ-45 Female (10/100M Ethernet) DHCP/Static IP

Supported Video Resolution

1080p 60/59.94/30/29.97/25/24 1080i 60/59.94/50
720p 60/59.94/50
576i 50 (PAL)

480i 60 (NTSC)

Supported Decoding Resolution

Up to 1080p60/50

Control

Web browser UI for configuration and control. TCP/IP Socket commands

Update

Automatic firmware upgrade

Power

Input AC 100~240V Switching Adaptor Output DC 12V / 0.5 A

Environmental Conditions

Operating temperature: 0~40°C, Storage temperature: -10~60°C

Dimension (LxWxH)

220 x 143 x 47 mm

Weight

1 kg

Power

DC 12V, 0.5A

What's in the Box

1 x NVD-30 MARK II product 1 x AD Switch DC 12V

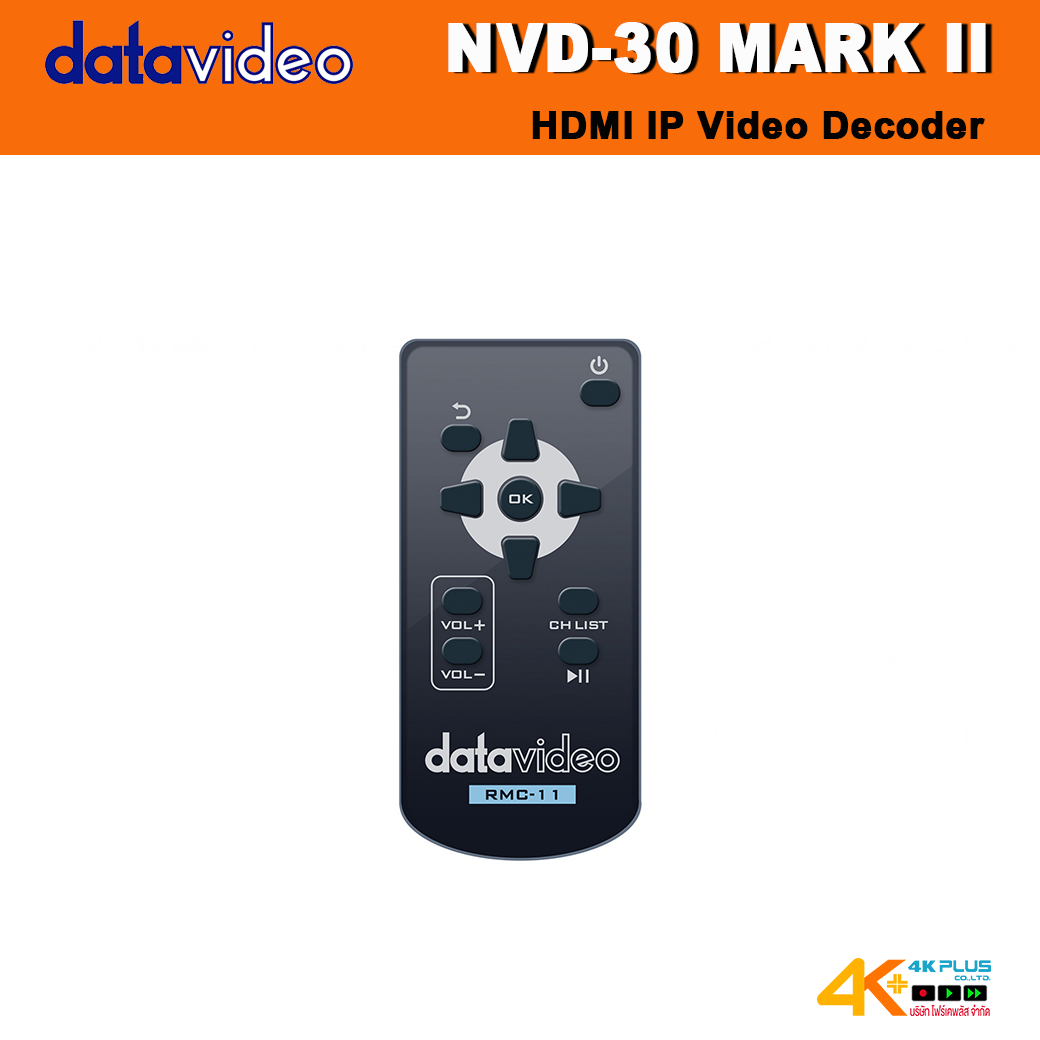

1 x Remote Control
