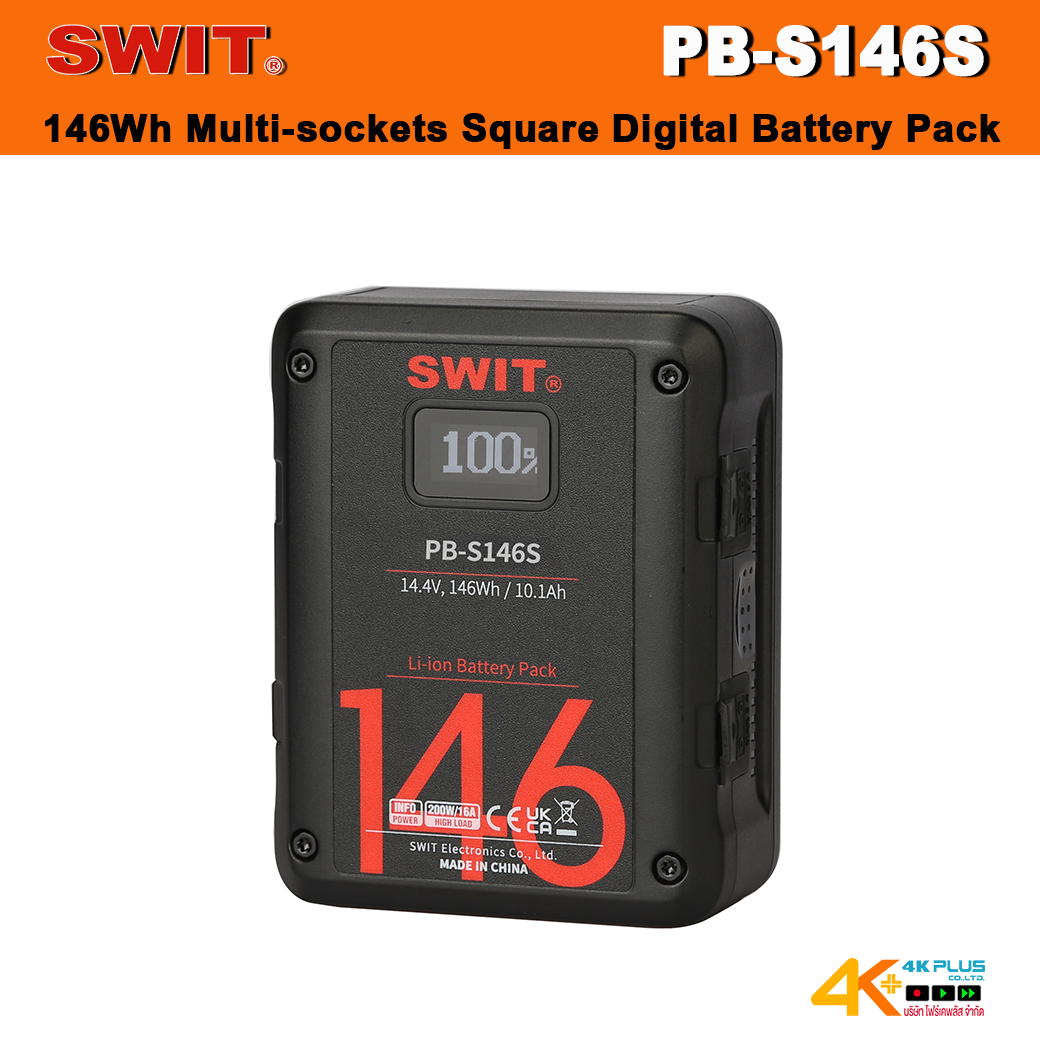

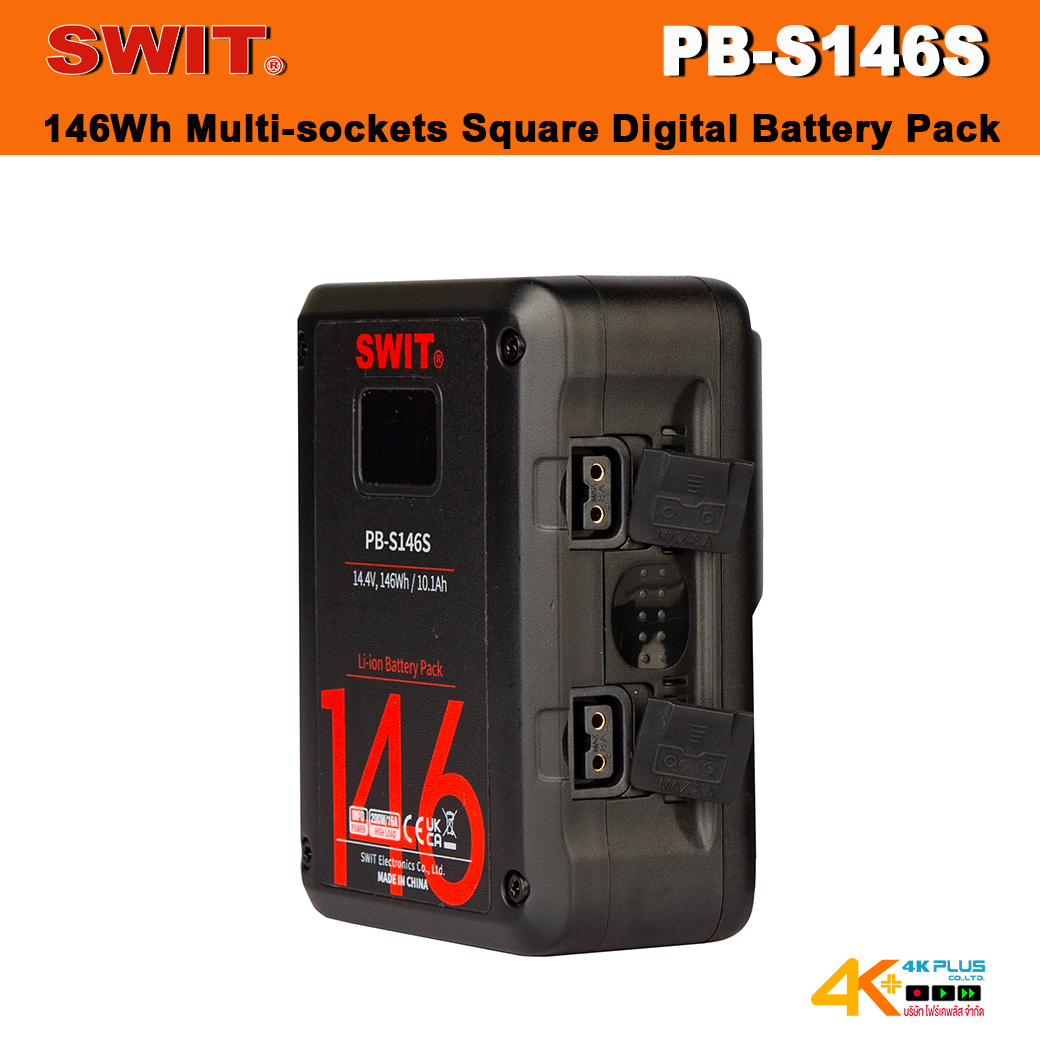

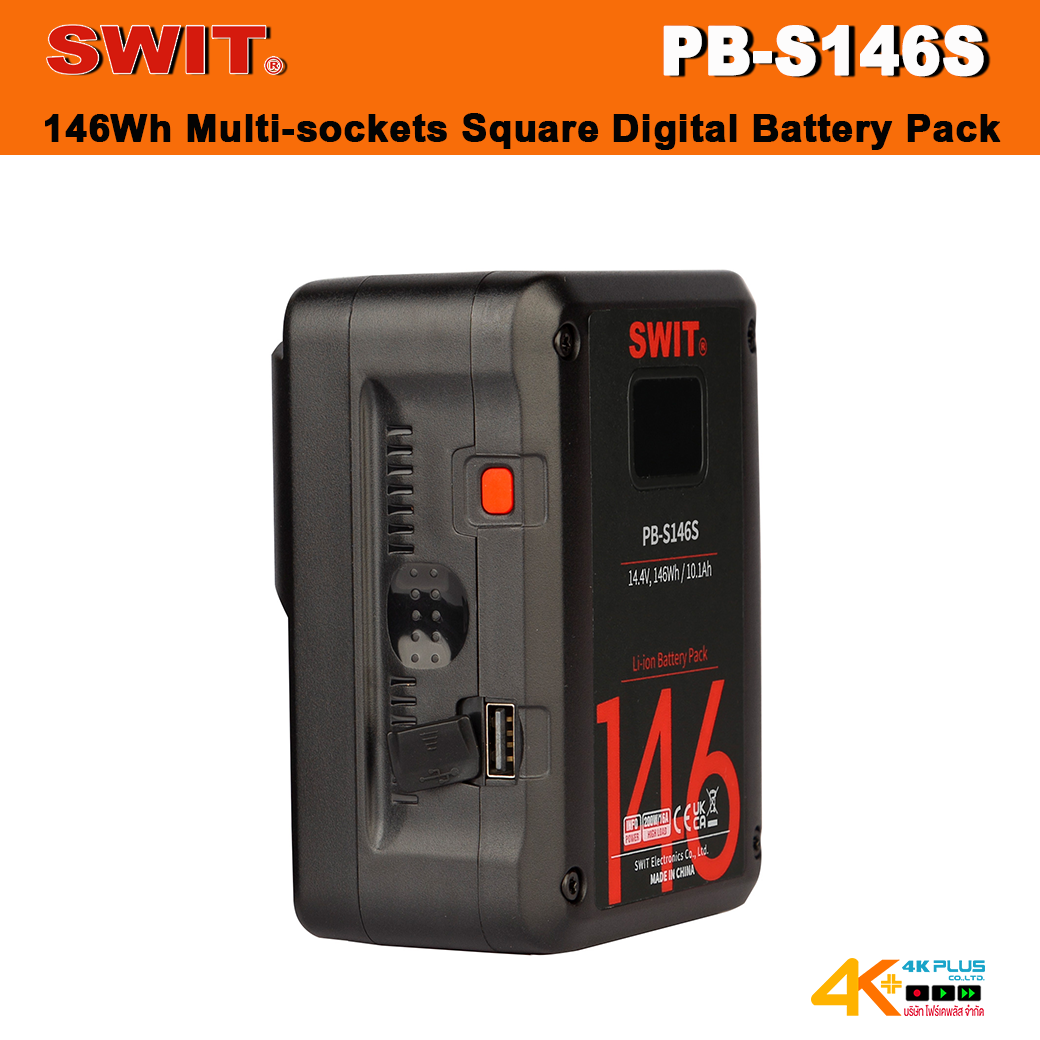

SWIT PB-S146S 146Wh Multi-sockets Square Digital Battery Pack

- Square shape design for Cine-cameras

- 146Wh, 10.1Ah larger capacity

- At least 200W, 16A constant high load

- 2× D-tap output sockets (120W/10A in total)

- 1× USB 5V/2A power output sockets

- OLED display accurate remaining run time

- Display power info in both SONY & RED

- Multiple circuit protections

Specifications

Battery plate

V-mount

Nominal voltage

14.4V

Capacity

146Wh, 10.1Ah

Max output

In total: 200W

Electrodes: 200W,16A

USB:10W, 5V/2A

D-tap: 120W / 10A

Dimension

121×95×59mm

Charging Temperature

0-40°C

Discharging Temperature

-20°C-50°C（Capacity and Max Load may decrease when operating below 0°）

Net weight

0.878kg

Max charging current

5A

D-TAP socket number

2

USB socket number

1
