ezcap328 QUADA Live Switch

Multi Camera Live Production
ezcap328 QUADA Live Switch makes easy to create professional multi camera productions for live streaming to YouTube and innovative business presentations using Skype or Zoom! Simply connect ezcap QUADA Live Switch and you can switch live up to 4 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles. The  ezcap QUADA Live Switchallows exciting picture in picture effects, perfect for commentary! There are loads of video effects too! ezcap328 QUADA Live Switch has USB 3.1 Type-C output that works like a webcam so you can use any streaming software.

Fast Video Production with Live Streaming

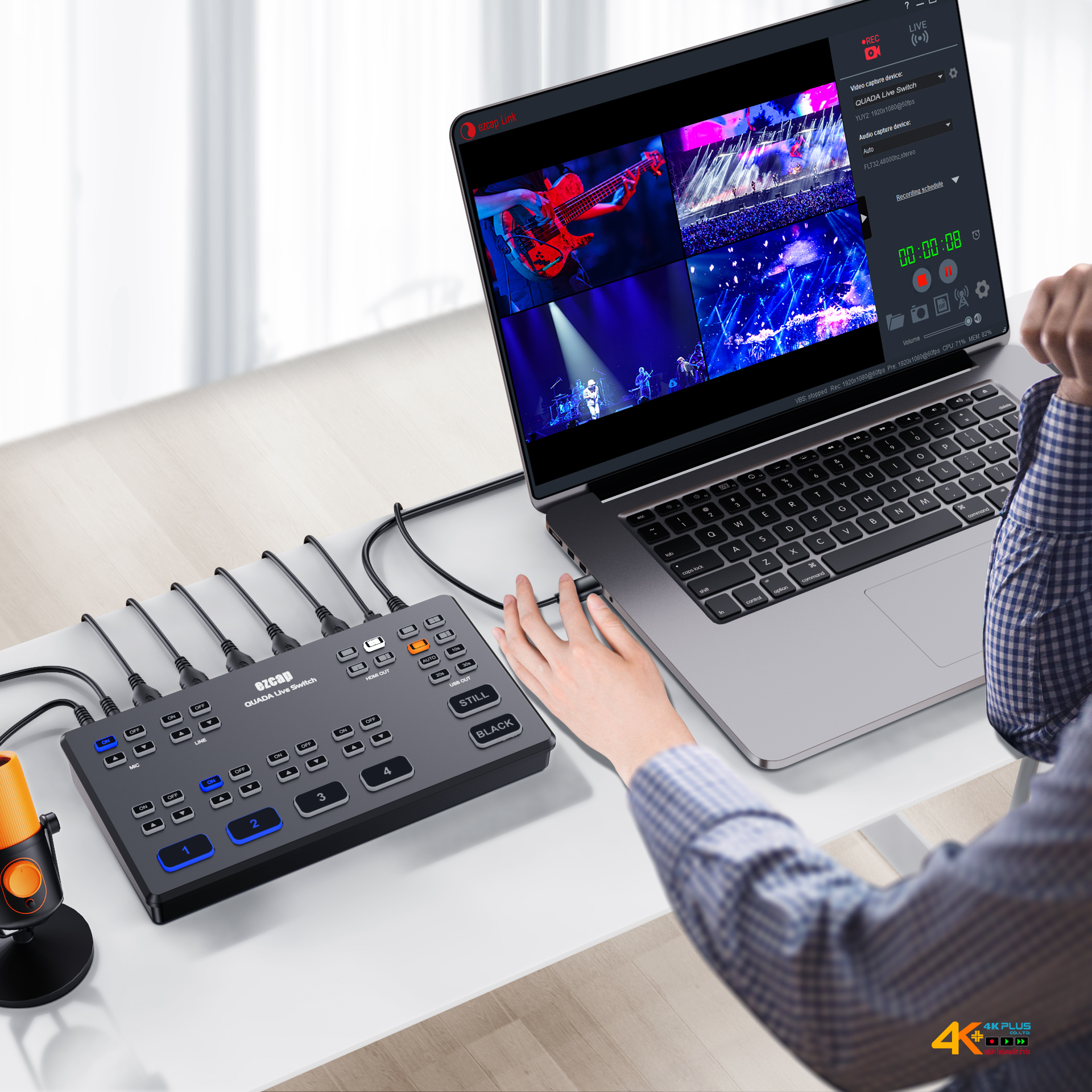

Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via YouTube at the same time. The USB webcam output of ezcap QUADA Live Switch works with any streaming software to popular social media platforms! With up to 4 HDMI inputs, depending on the model, you can set up multiple camera angles such as wide shots and close ups of each person in the performance. Then connect to a computer with a PowerPoint slide show or websites and gaming consoles. All switching is in real time so you can live stream your show to platforms such as YouTube, Facebook, Twitch and many more.

Self Control Broadcast Quality Switch

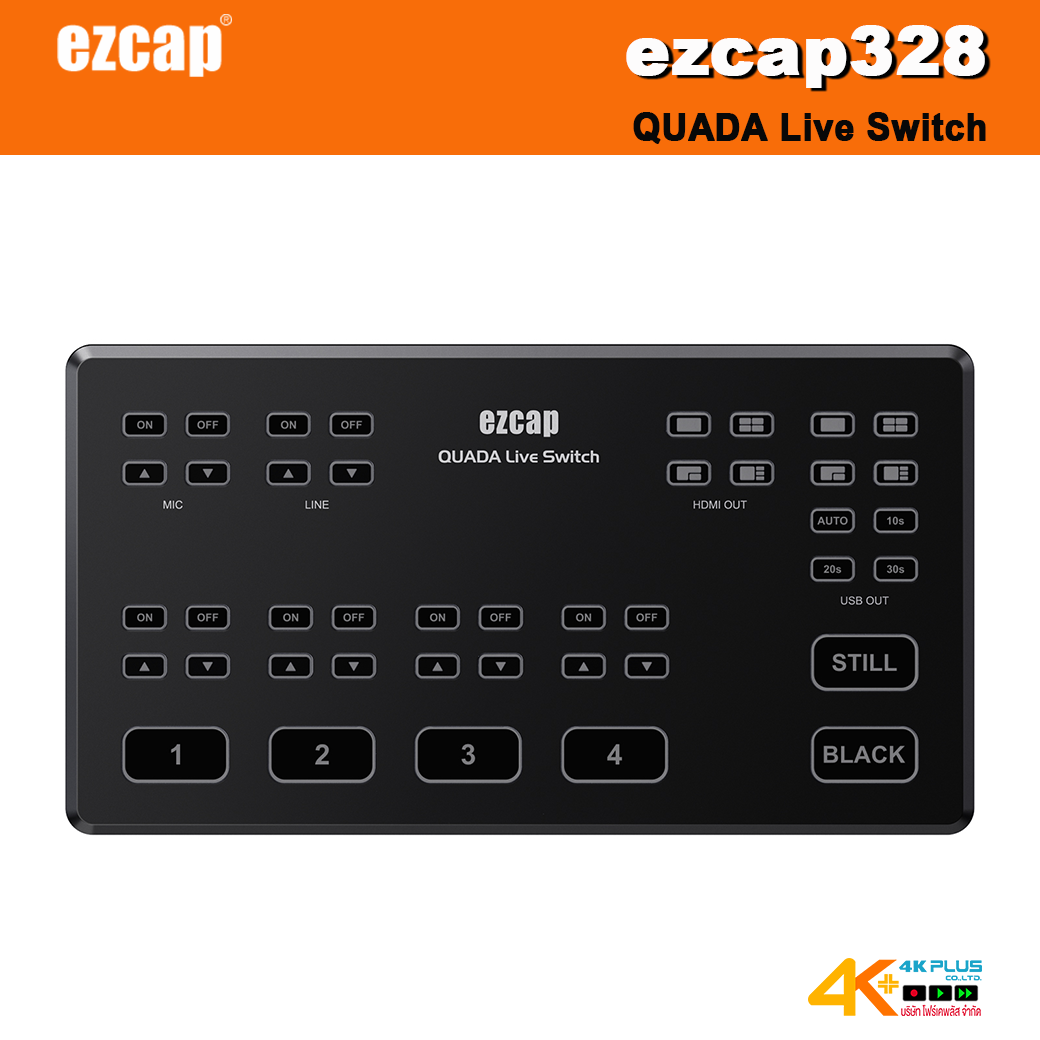

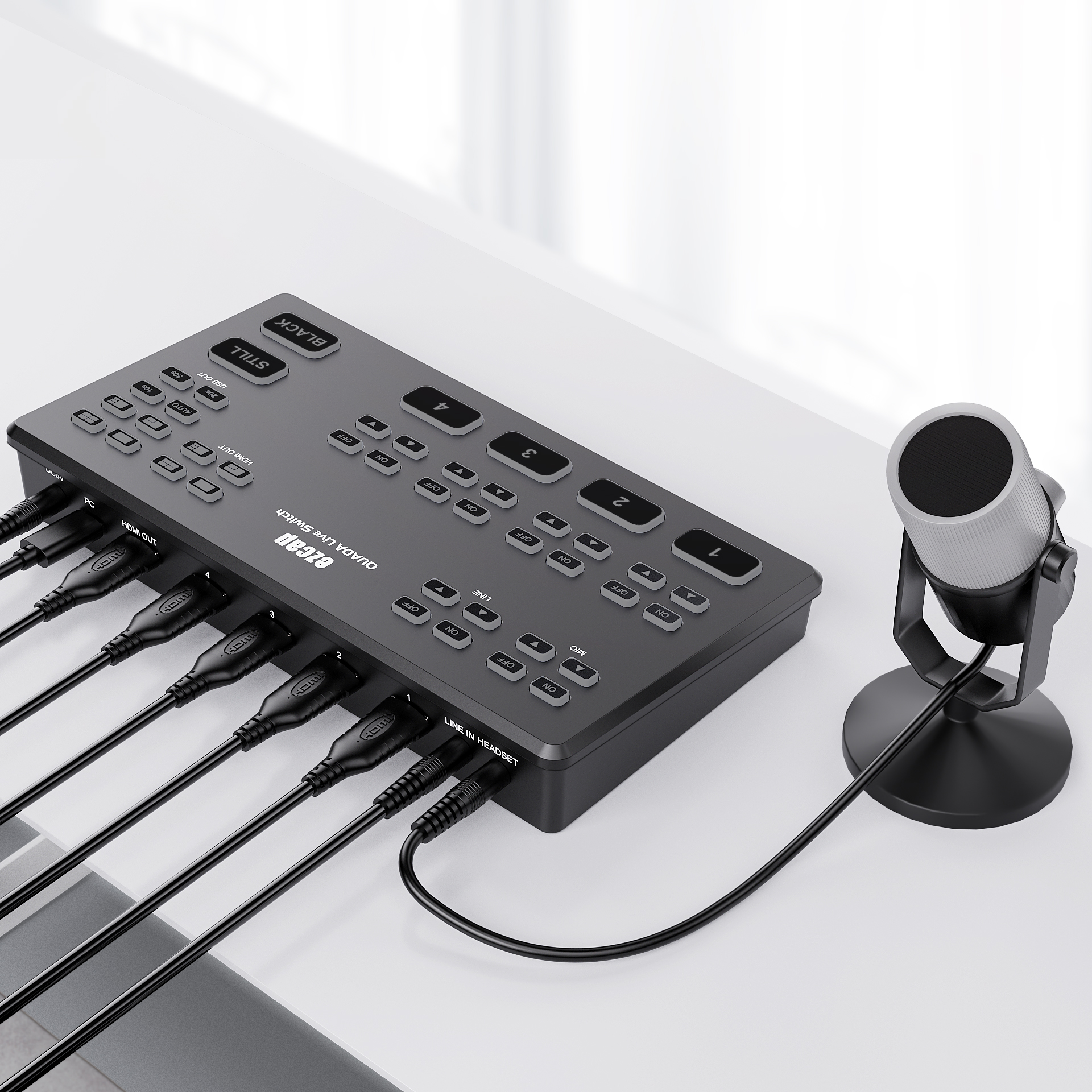

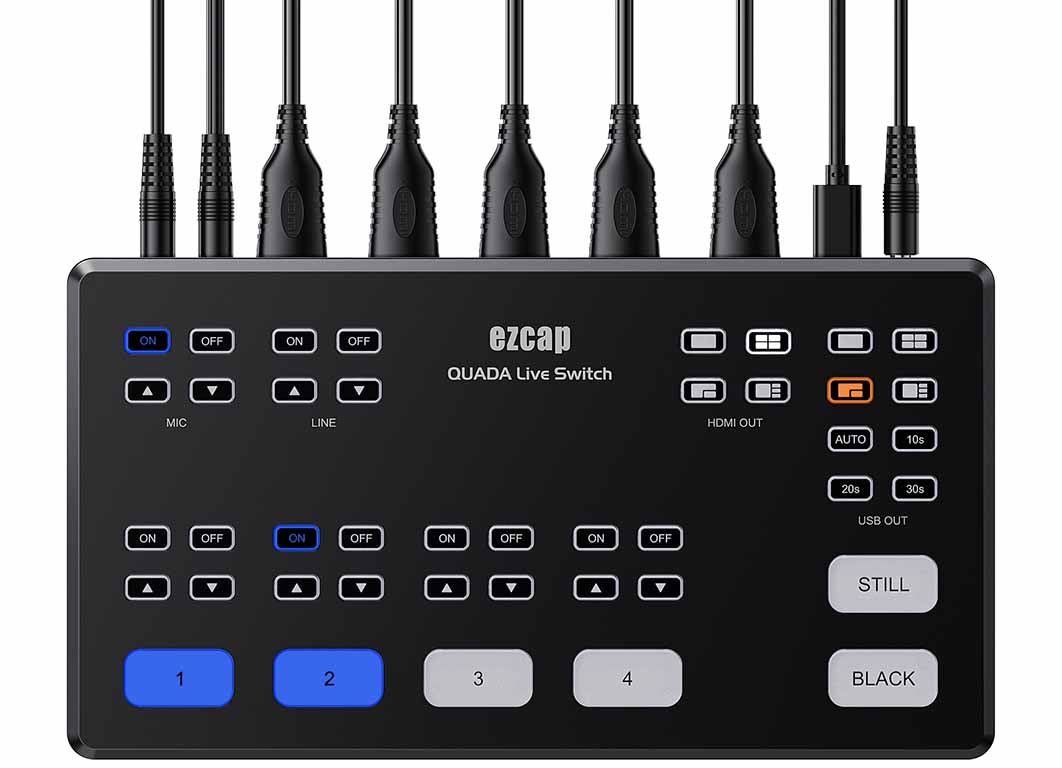

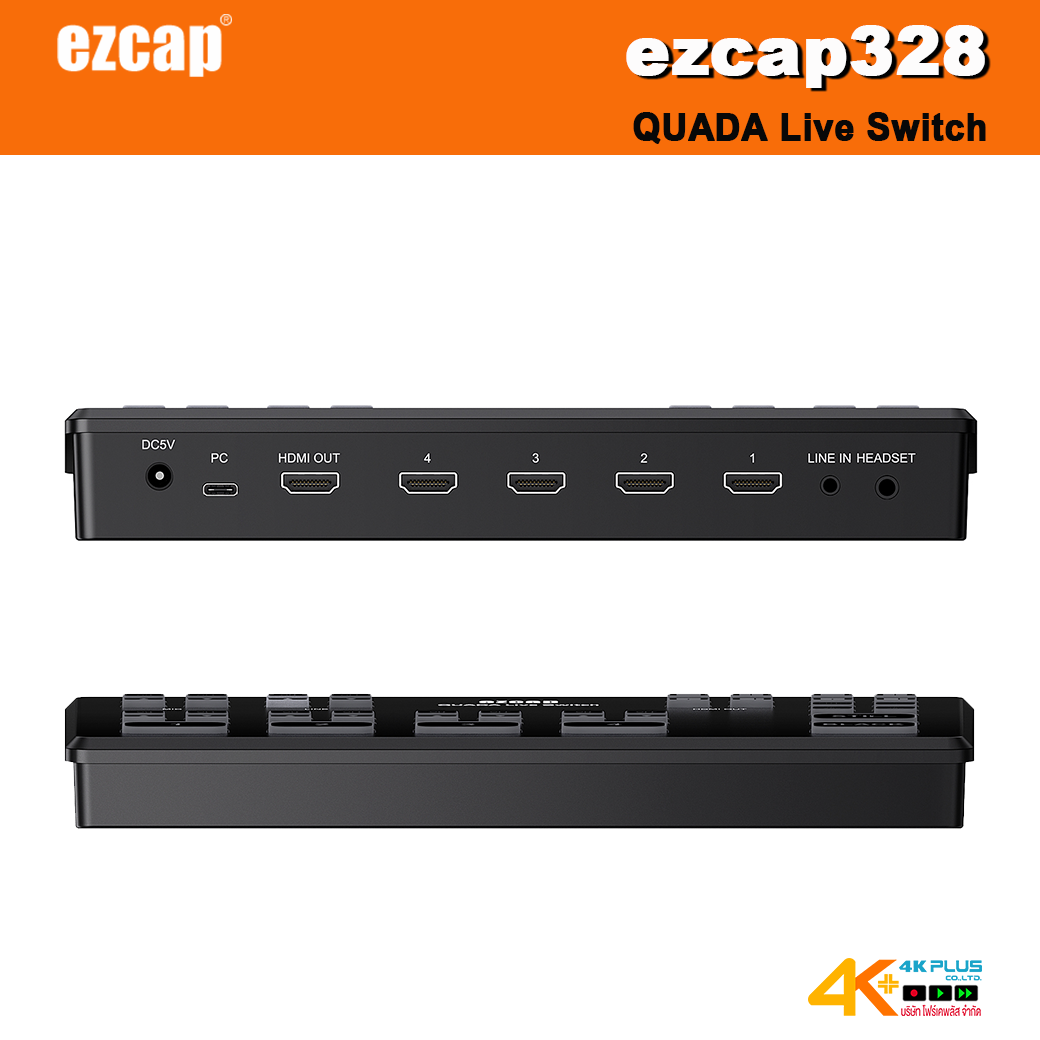

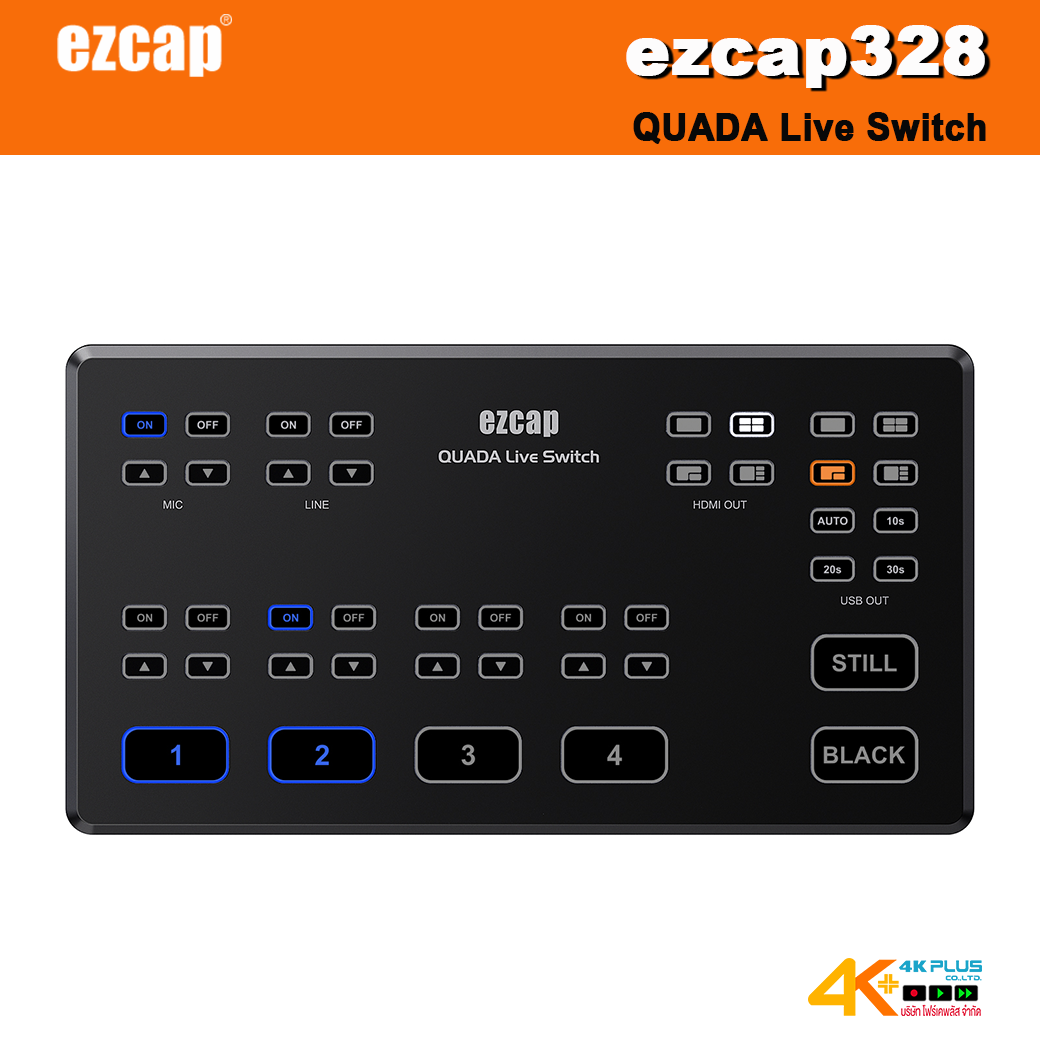

ezcap QUADA Live Switch’s compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it’s possible to use it by feel, letting the presenter do the switching! You even get buttons for audio mixing!  On the rear panel there are HDMI connections for cameras or computers, extra microphone and mixer inputs, USB for webcam out plus an HDMI output for program video.

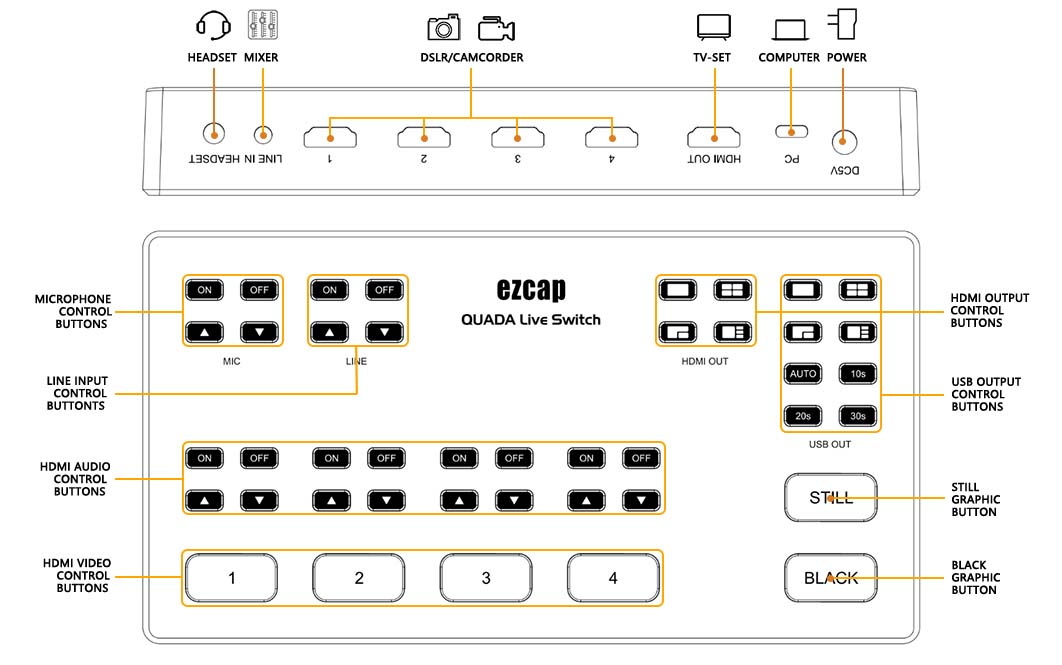

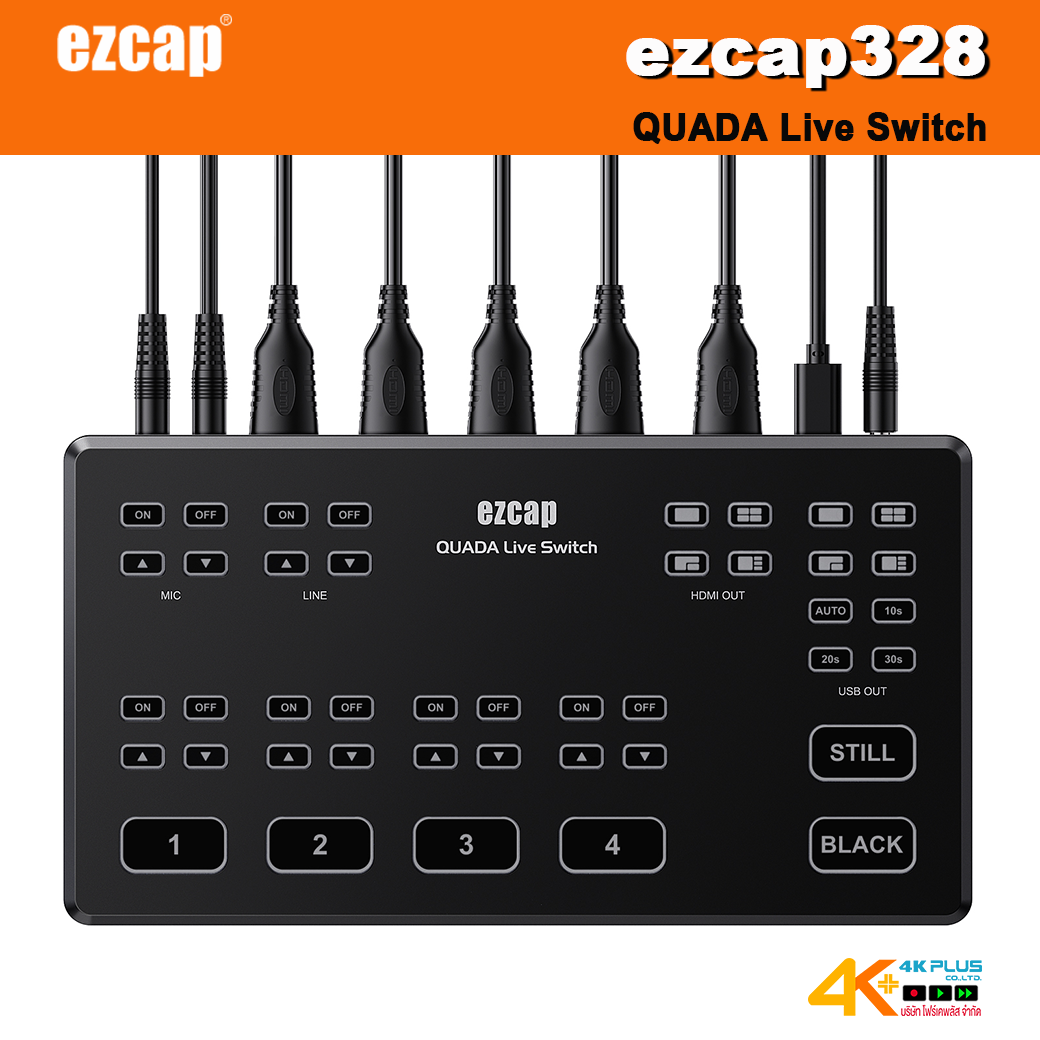

Connections

Features

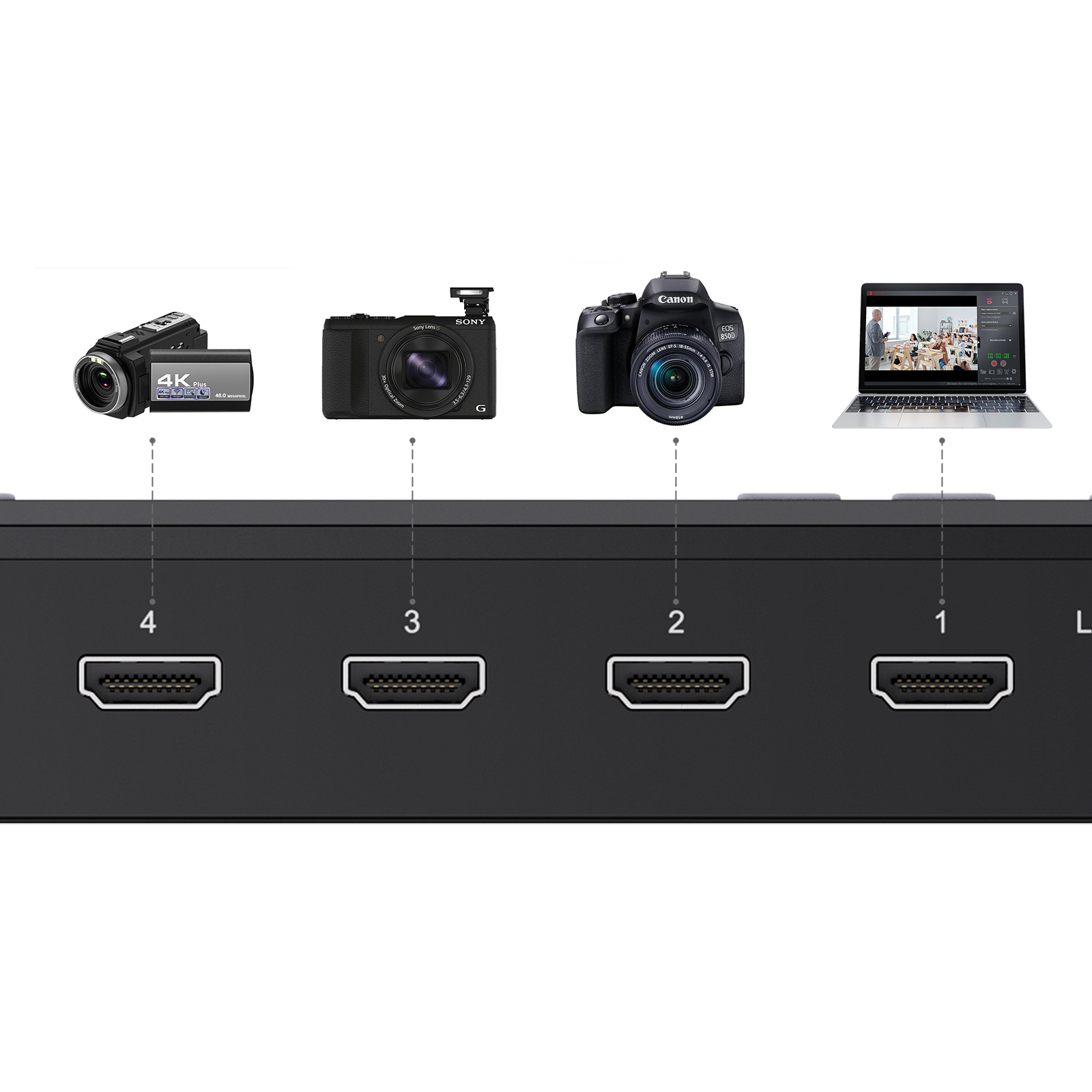

- Connect up to 4 cameras or camcorders.
- USB-C outputs as an USB webcam for all streaming software.
- Buttons are easy to use for selecting sources, multi view effects, switching and mixing audio.



Specifications
Interface: USB 3.1 Gen1, USB Type-C
Video Input: HDMI x 4
Audio Input: HDMI embedded x 4, 3.5mm 3-pole TRS line input, 3.5mm 4-pole CTIA microphone input.
Video Output: HDMI
Audio Output: HDMI embedded, 3.5mm 4-pole CTIA earphone output.

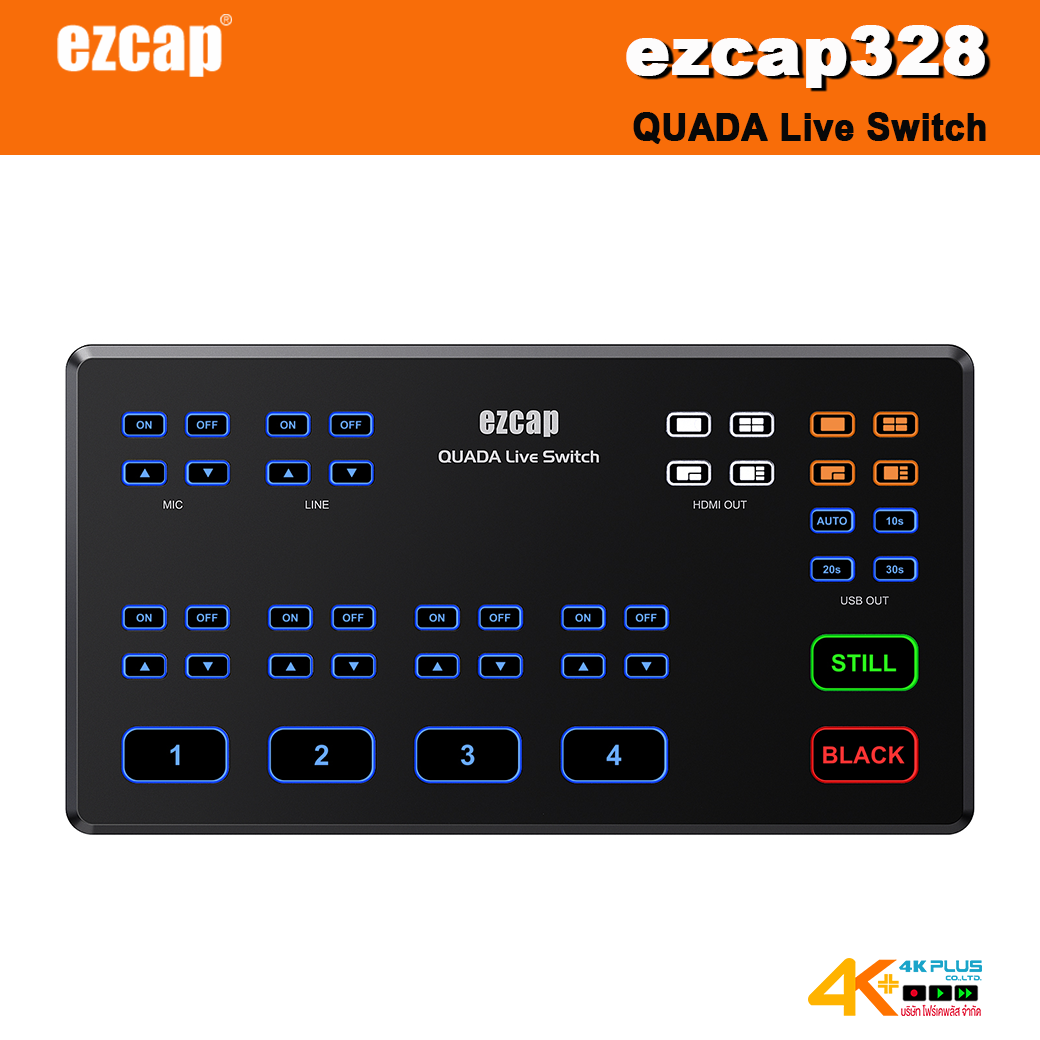

User Interface: Switch and control buttons and indicators.
Resolution: 480p60, 576p50, 720p50/p60, 1080i50/i60, 1080p30/p50/p60.
USB Output Format: NV12, YUY2, RGB
Power Supply: DC 5V2A

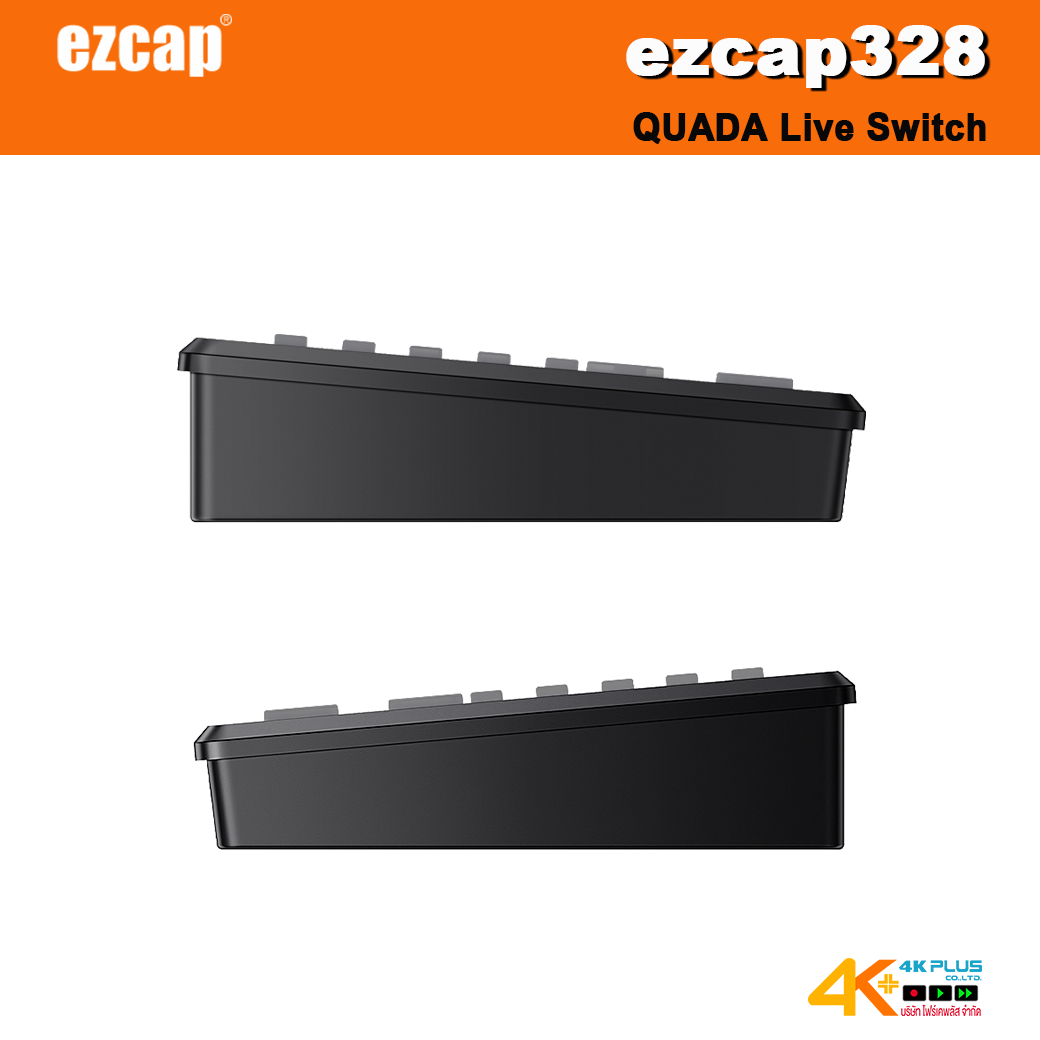

Dimensions: 240(L) x 129(W) x 35(H) mm
Weight: 450g
