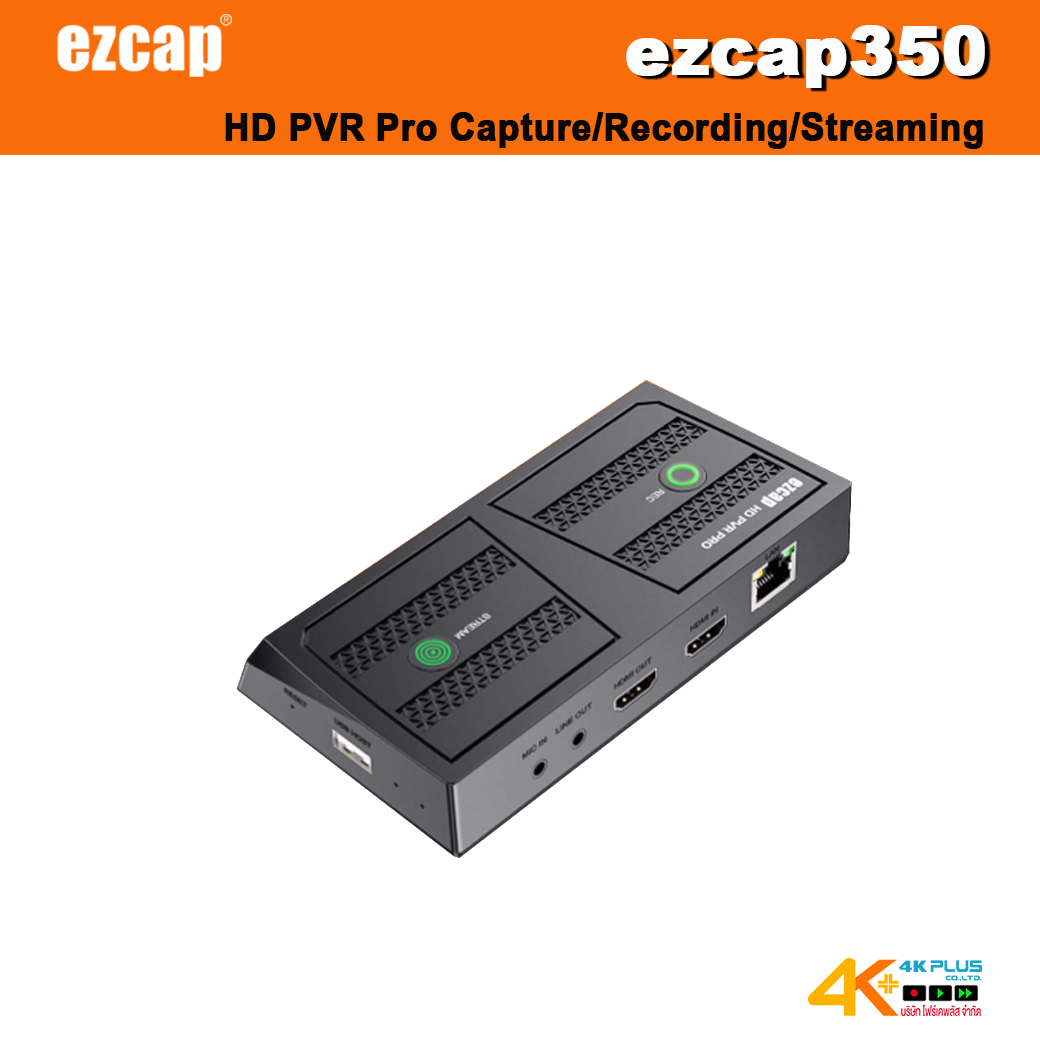

ezcap350 HD PVR Pro Capture/Recording/Streaming

1080p Recording with 4K Gaming
Enjoy 4K ultra HD gaming while recording at 1080p Full HD with ezcap350 HD PVR Pro - perfectly record every game video, and save in USB flash drive or USB HDD, there is no need computer.

PC Free Streaming - RTMP
The ezcap350 HD PVR Pro delivers the easiest live streaming experience. It only needs one button to stream and ther is no complex software or hardware setup. Simply connect a game console, camcorder or DSLR to your HD PVR Pro, and stream to YouTube, Facebook or Twitch without a computer. Live streaming is no longer a difficult task.

Capture and Streaming on Computer
ezcap350 HD PVR Pro not only can record and streaming video standalone, but also can work as an UVC video capture card. It is with USB 3.0 Type-C high speed port, can capture and streaming by software such as own ezcap Link, OBS, VMix on your computer.

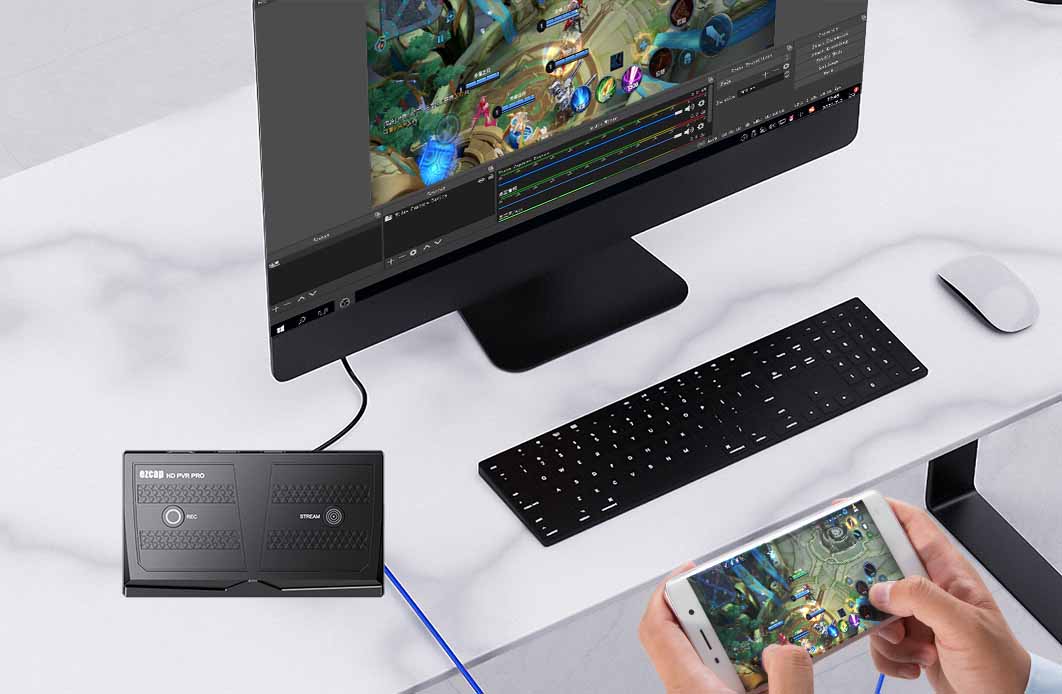

Capture and Stream Smartphone Video on Computer
ezcap350 HD PVR Pro still can connect to your smartphone, and capture and streaming your mobile game video on your computer. *only supports iPhone and iPad.

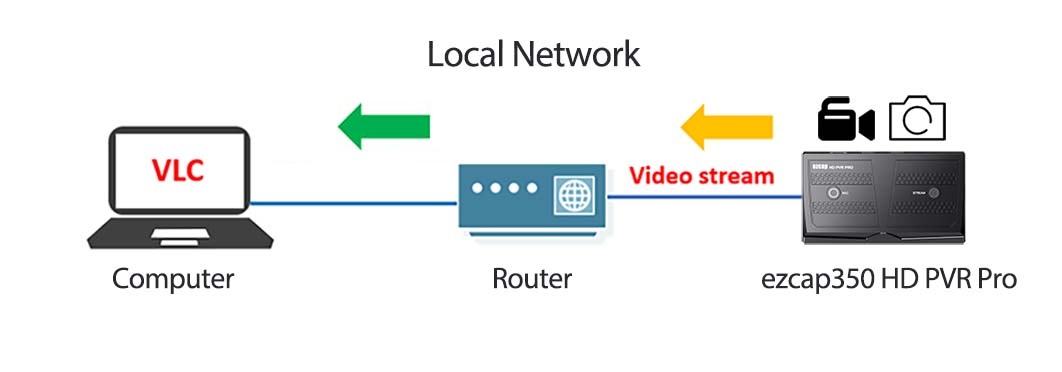

Stream Video in Local Network - RTSP
Connect ezcap350 HD PVR Pro to network, and easily to streaming video in local network.

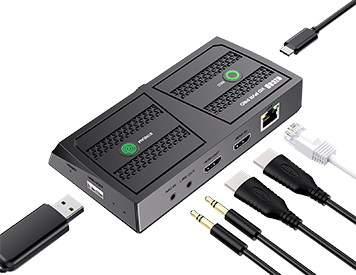

Connection for HDMI Input

Connection for Smartphone Input

- Record and stream 1080p60 video without PC.

- Input and pass-through 4Kp60 HDMI video.

- Capture and stream video as an UVC capture card.

- RTMP/RTSP function.

- Capture and stream smartphone video by software on computer.

- With microphone input and earphone output.

Specifications

- Interface: USB 3.0 Type-C, USB 2.0 Type-A

- Video Input: HDMI 2.0, USB 2.0 Type-A

- Audio Input: HDMI input, 3.5mm 3-pole TRS microphone input, USB 2.0 Type-A

- Video Output: HDMI 2.0, USB 3.0 Type-C, RJ45 network port

- Audio Output: HDMI output, 3.5mm 3-pole TRS earphone output, USB 3.0 Type-C, RJ45 network port

- User Interface: Record button, Stream button, Reset button, Status indicators

- Storage Media: USB flash drive, USB HDD, max 2TB, supports FAT32 and exFAT format.

- Record Format and File: H.264 mp4, max 4GB for per file, max 16Mbps@1080p60fps.

- Input / Pass-through Resolution: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p(50p), 1280 x 720p(60p), 1920 x 1080 (50p), 1920 x 1080 (60p), 3840 x 2160 (30p), 3840 x 2160 (60p)

- Record/RTMP/RTSP Resolution:  720 x 480 (60p), 720 x 576 (50p), 1280 x 720p(50p), 1280 x 720p(60p), 1920 x 1080 (50p), 1920 x 1080 (60p)

- USB 3.0 Type-C Output Resolution: 640 x 480, 1280 x 720, 1920 x 1080

- USB 3.0 Type-C Output Video Format: NV12, H.264, MJPG, max 1080p60.

- Power Supply: USB Type-C, DC 5V2A, power adater is not included.

- Package Contents: ezcap350 HD PVR Pro, USB CtoA cable, USB adapter, Manual

- Dimensions:140 x 80 x 27 mm

- Weight: 180g
