Key features

• Encoder, Monitor, Recorder, Switcher In One
• Intuitive 7-Inch Touchscreen Control on Android OS
• Stream via Ethernet, Wi-Fi, 4G LTE; Internal Battery
• Stream at up to 1080p60; Supports H.264,
• 2 x HDMI, 1 x USB In; 1 x SD Card Input; Mic In, Line In
• 1 x HDMI Confidence Monitor Out; Audio Out
• Built-In Lower-Thirds/Graphic Overlays/Countdown
• Built-In Picture in Picture & Transition Effects & Chroma Key
• Add Logos/Comments to the Stream
• QualComm SnapDragon CPU; 8-Core Processor

Overview

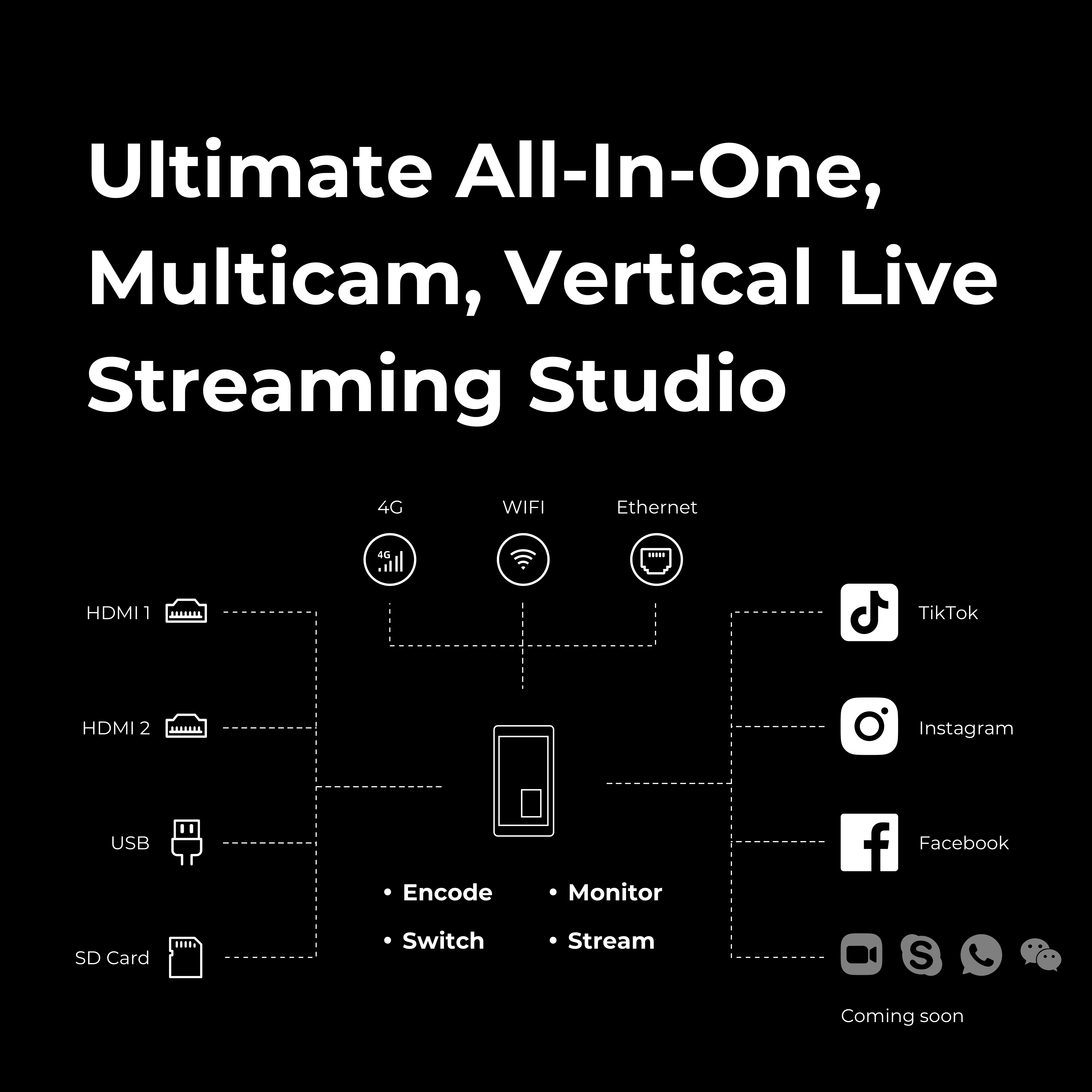

Introducing industry’s first vertical live video encoder, monitor, recorder and switcher in one: Instream is the most portable, all-in-one and super easy to use streaming device to live stream vertical videos to with Multi-Cam, Graphic Overlays, Picture in Picture, Chroma Key.

With native integration with Instagram & TikTok, Instream aims to help videographers, creators,  influencers, story-tellers create better and more engaging content with the professional features.

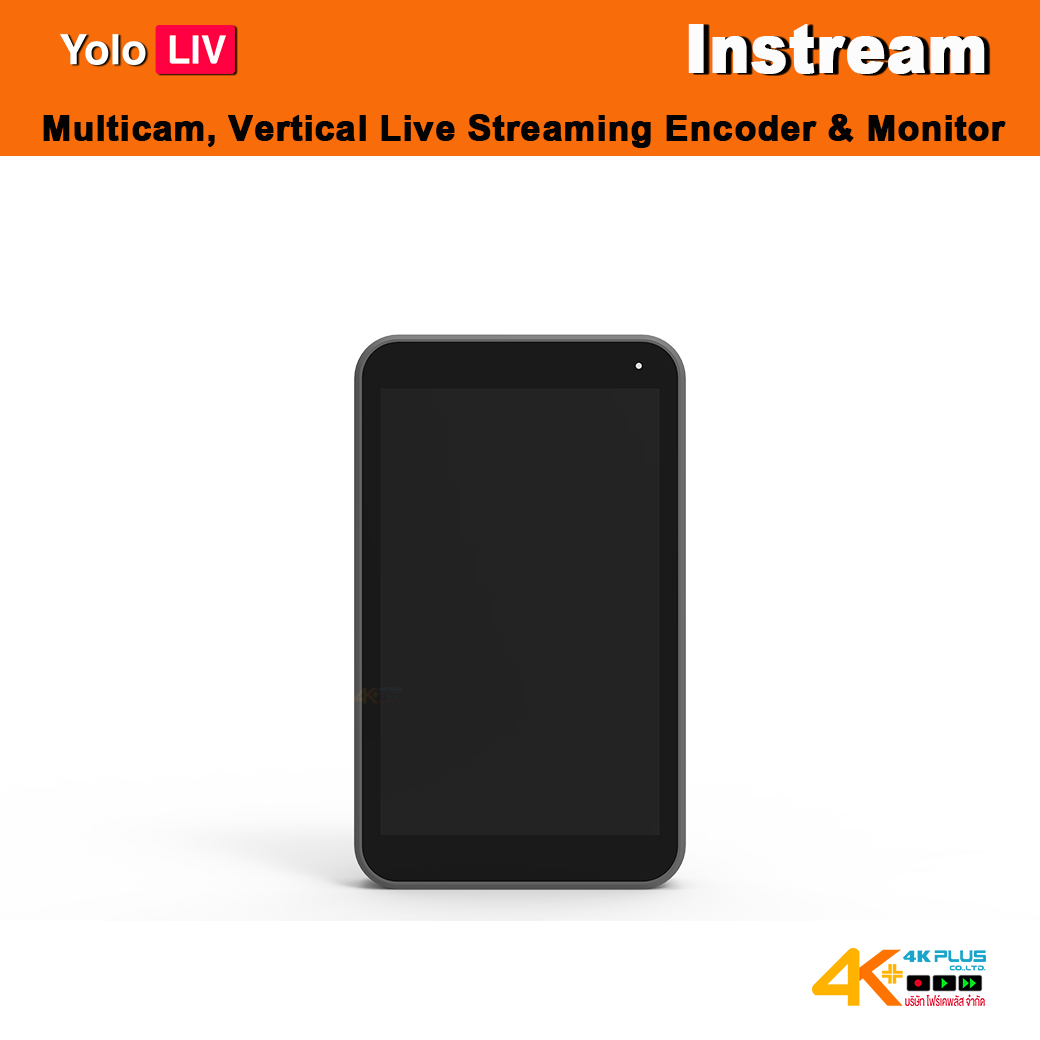

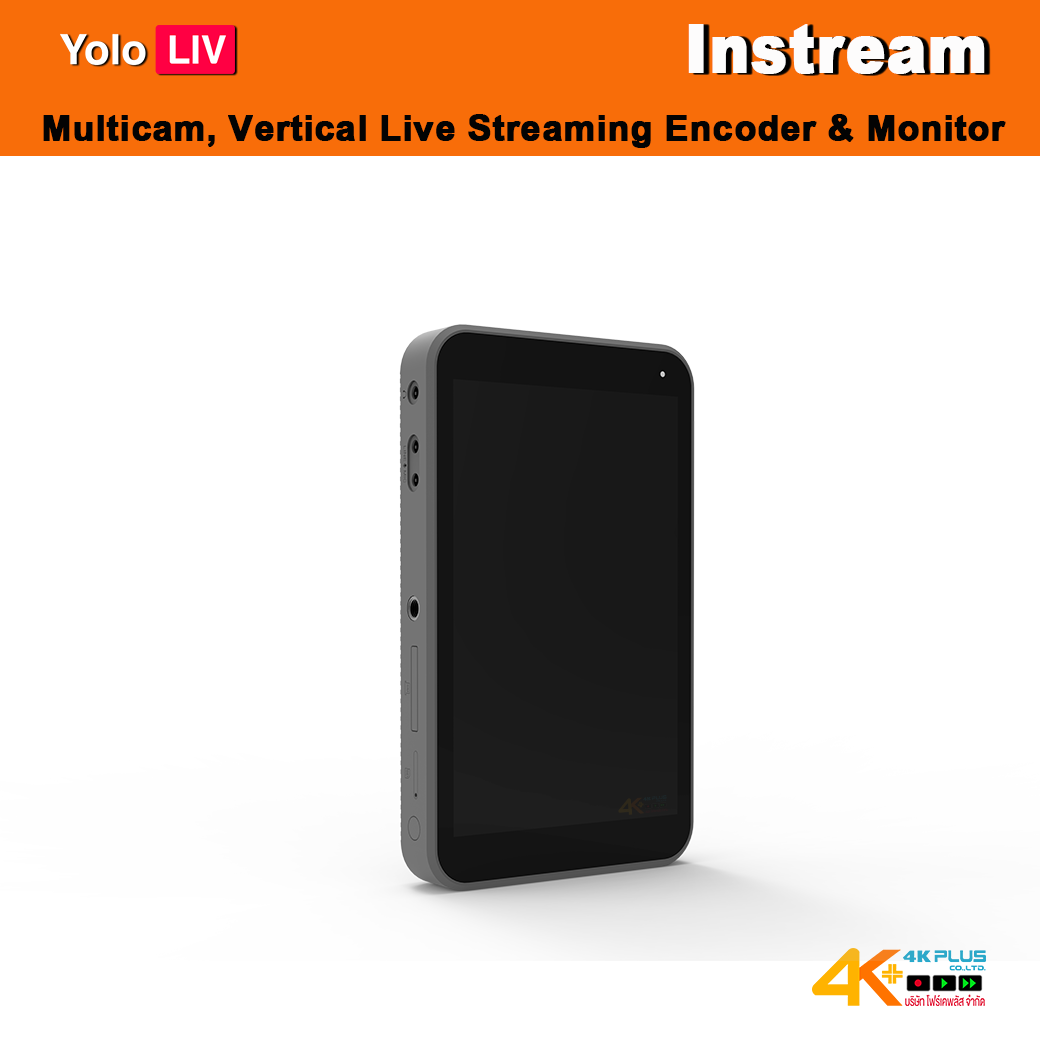

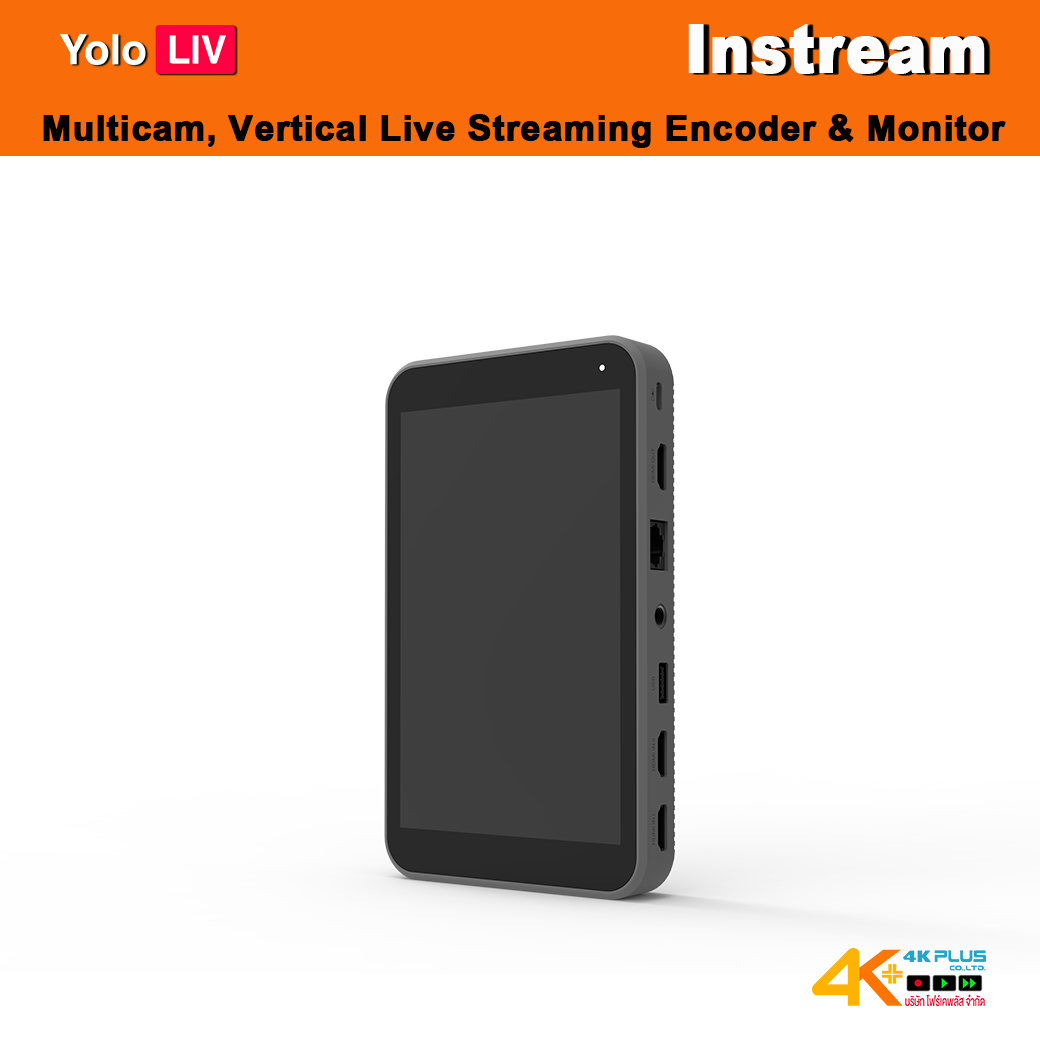

The Instream is a 600g weight and 7-inch touchscreen display, featuring 2 HDMI inputs, 1 HDMI output, 1 USB-A input. The Instream supports input resolutions of 480/720p/1080p/60 at your choice, using the H.264 codec. With HDMI output, you can display your stream locally on an HDMI device.  It also has a line-level audio input, and a separate headphone audio out. You can record your stream directly in the .mp4 format to an optional SD card, up to 128 GB in size, using the built-in SD card slot. The line-in allows you to connect with the synthesizer and mic-in can be connected to the microphone for recording.

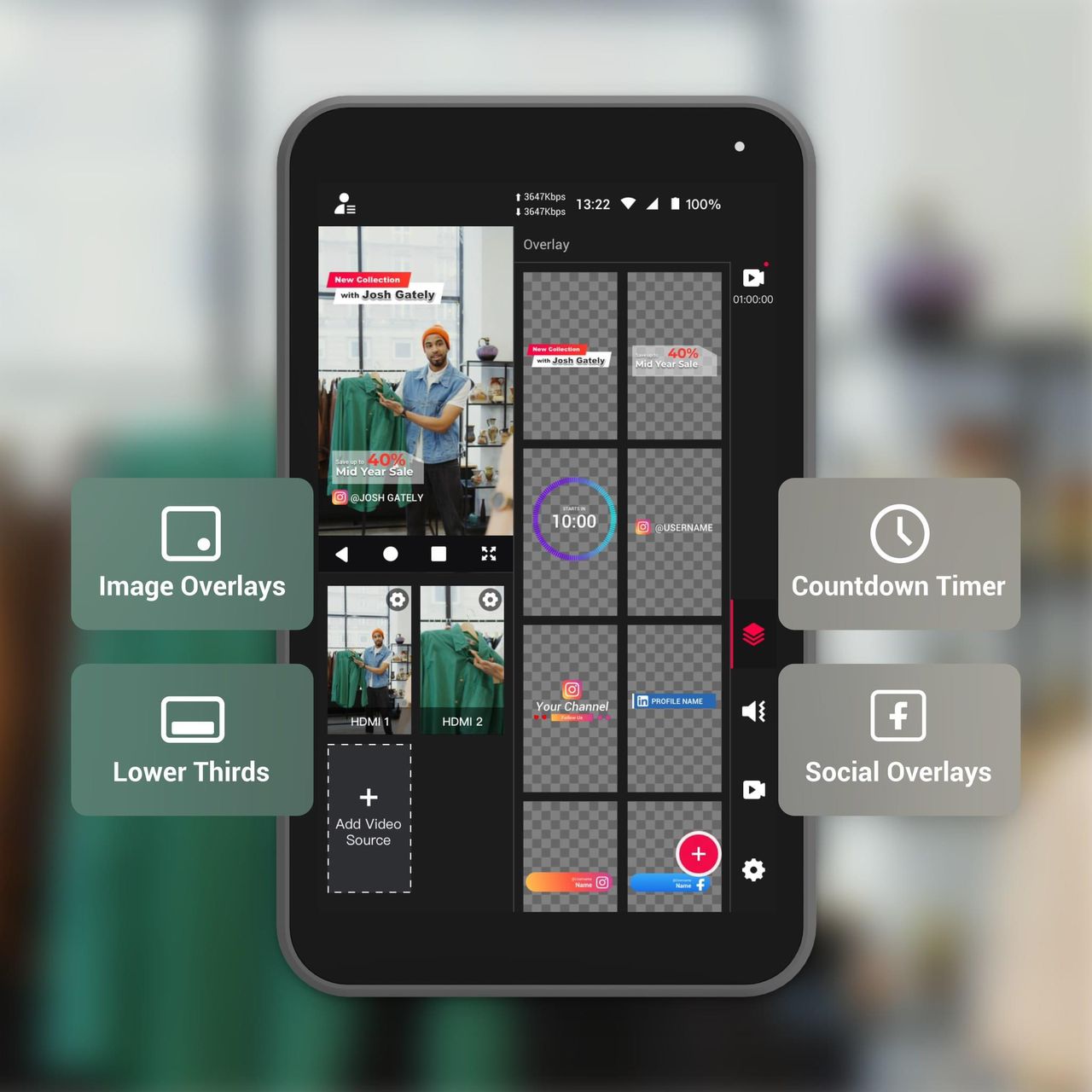

• You can brand your live stream by adding logos/watermarks/rolling captions
• Customized PiP options, allow you to bring a unique look and feel to your stream
• Engage with your audience in real time via feature comment overlays
• Built-in lower-thirds & animated countdown templates can be edited or you can add your own

Internet

You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card.

Use Only as a Monitor & Recorder

Utilize the device even when you are not live streaming. Record, switch, add overlays and transitions to level up your video production efficiency.

Streaming Platforms

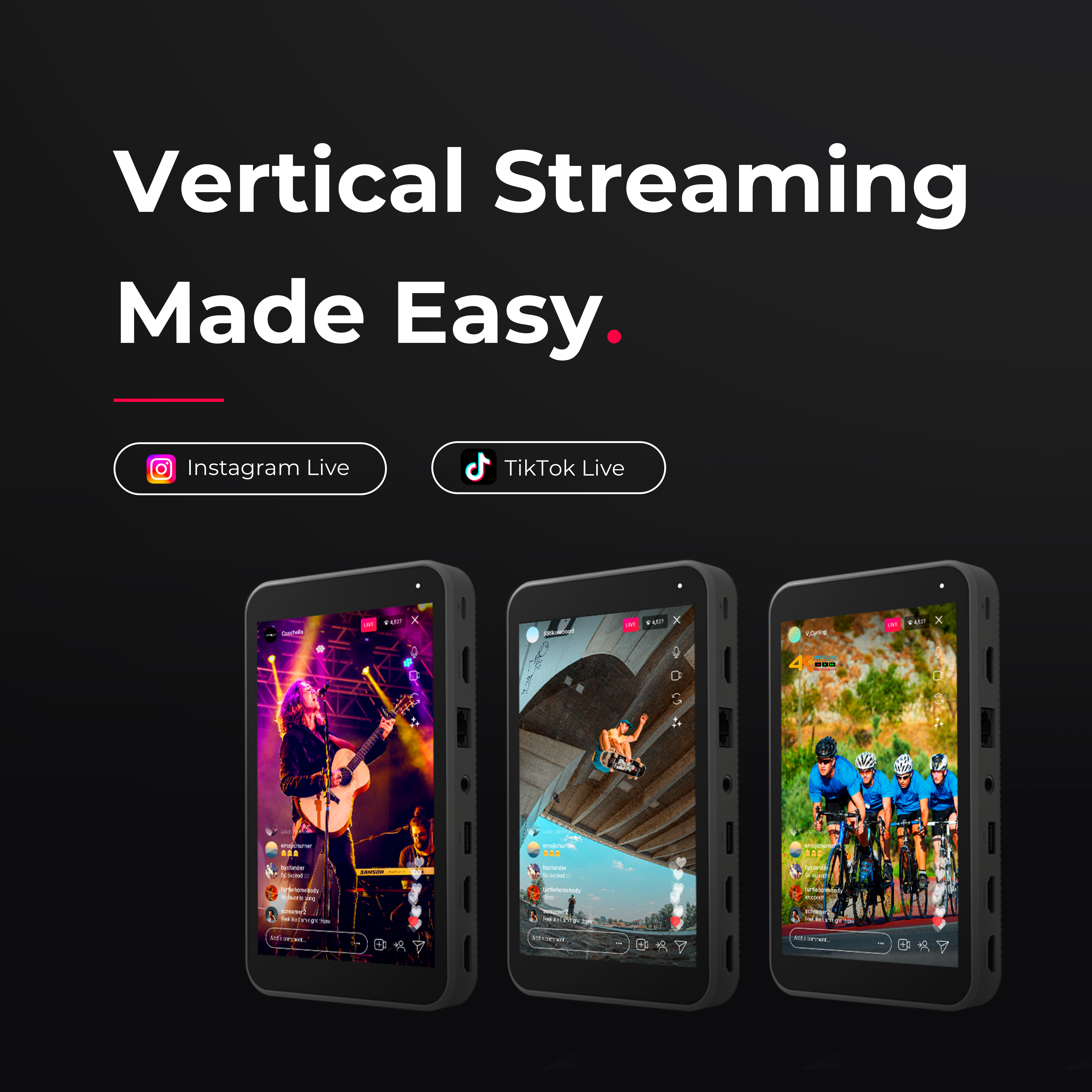

Major streaming platforms such as Instagram & TikTok are directly integrated, you can simply login your social account and stream.

SD Card Input

Roll in pre-recorded videos for intro, countdown, B-rolls, or special segments from an SD media card.

Battery Life

The internal battery can power your Instream for approximately 2 hours. The Instream charges via the USB-C connection, which is used for power only.

Tech Specs

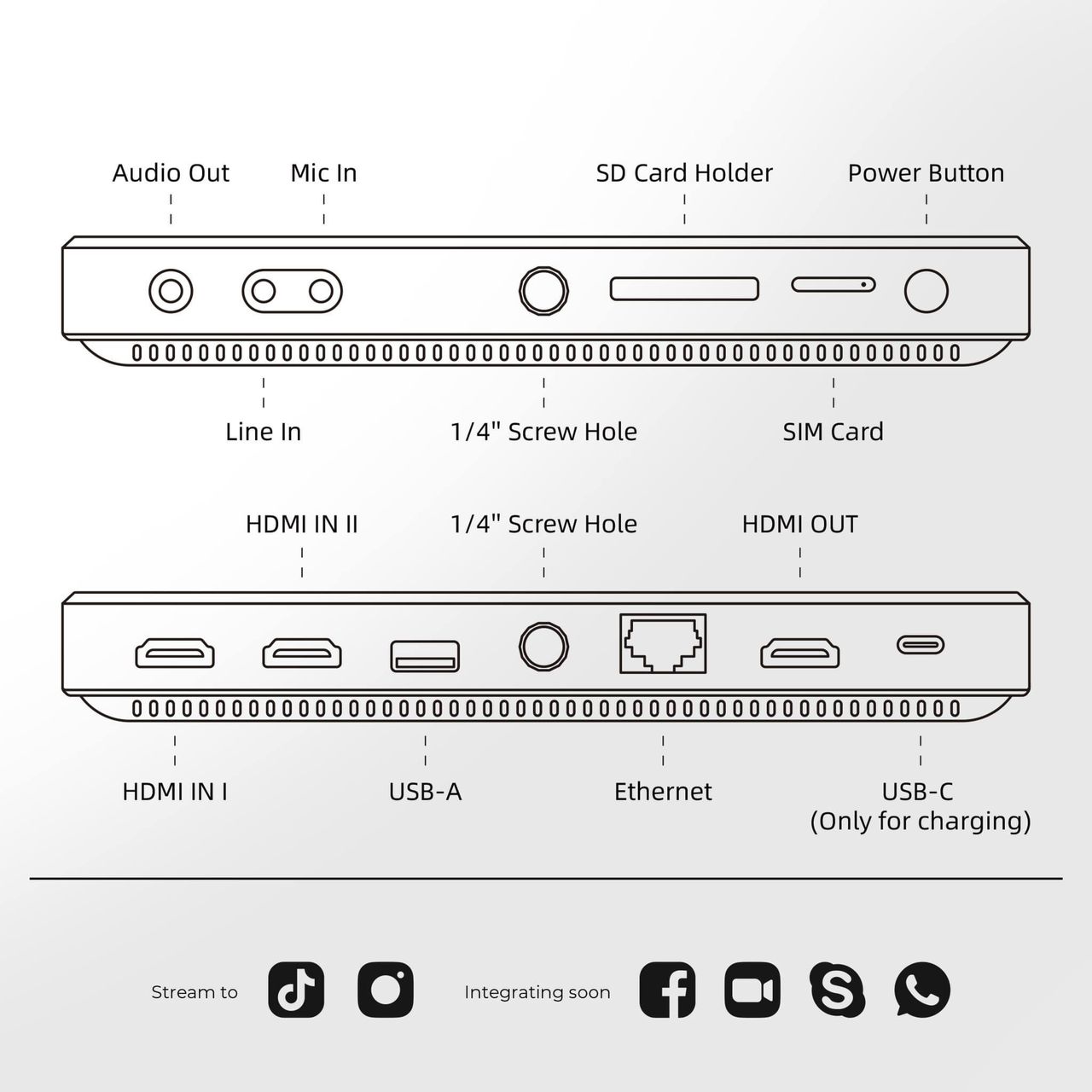

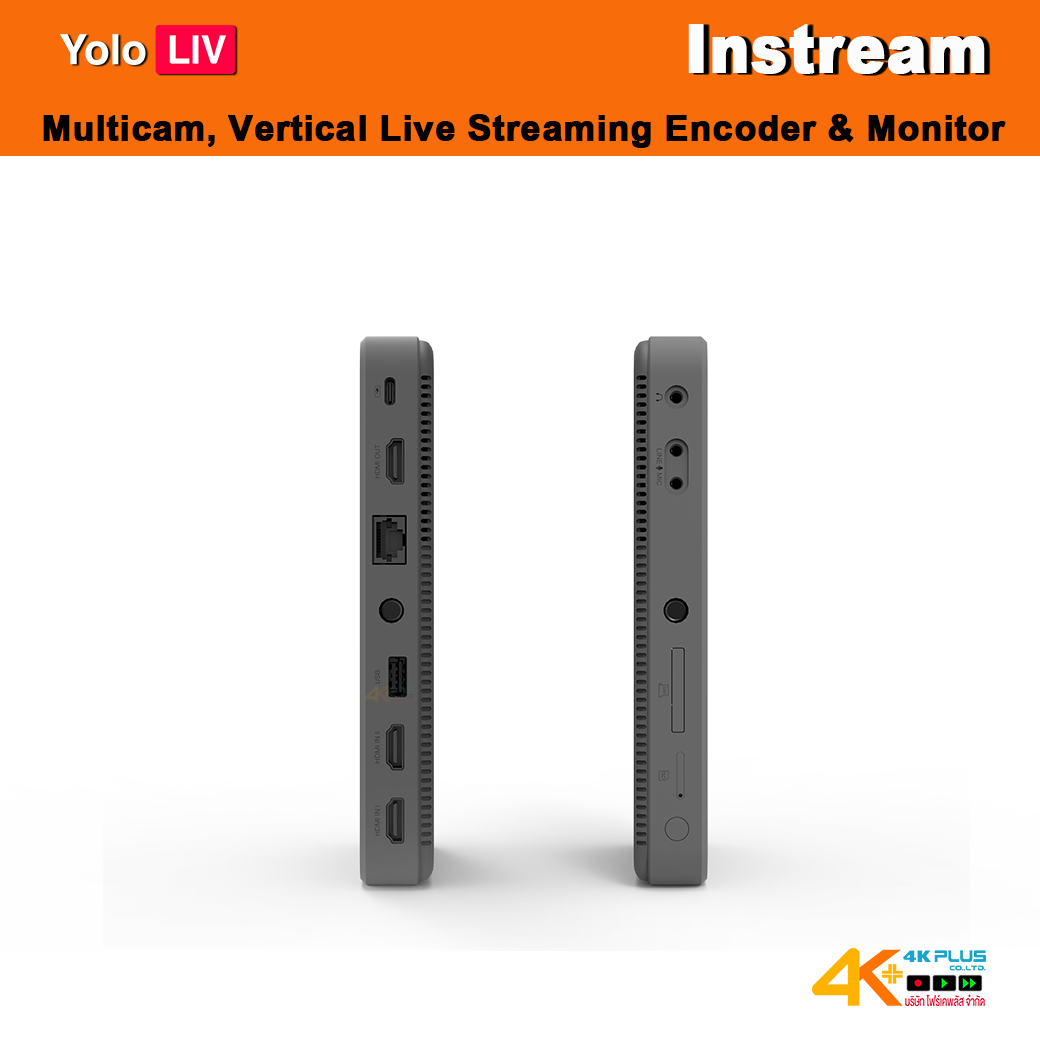

Interface	HDMI IN 1;HDMI IN 2；USB-A3.0; HDMI OUT; Ethernet; LINE IN(3.5mm); MIC IN(3.5mm); AUDIO OUT(3.5mm); Nano-SIM Card Holder; 1/4'' Screw Hole*2； SD Card Holder; USB Type-C(Only for charging)
Input Power	DC5V 3A,9V 2A,12V 1.5A
Power Consumption	＜18W
Power Supply	USB Type-C
USB Rated Output	USB-A:5V 1A
Battery Capacity	10000mAh
Dimensions	(LxWxH)：188x112.5x25mm
Net Weight	600g
Monitor Screen Size	7 inch LCD Resolution:800*1280
Local Video Inputs	HDMI,USB-A
Video Over Ethernet	RTMP/RTMPS
Video Input Connectors	HDMI,USB-A,RJ-45
Video Input Aspect Ratios Video	4:3,16:9
Input Deinterlacing	Yes
Live Broadcast Video input Resolution	480p/720p/1080p(up to 60fps)
Video Encoded Format	H.264
Video processing Bitrate control	CQ,VBR,CBR
Hardware-Accelerated Video Encoding	Optional
Video Output Signal Types	FLV-RTMP,HDMI,UVC
Video Output Connectors	HDMI OUT
Video Output Streaming protocols	RTMP,RTMPS,MJPEG
Live Broadcast Video Output Resolution	480p/720p/1080p(up to 60fps)
