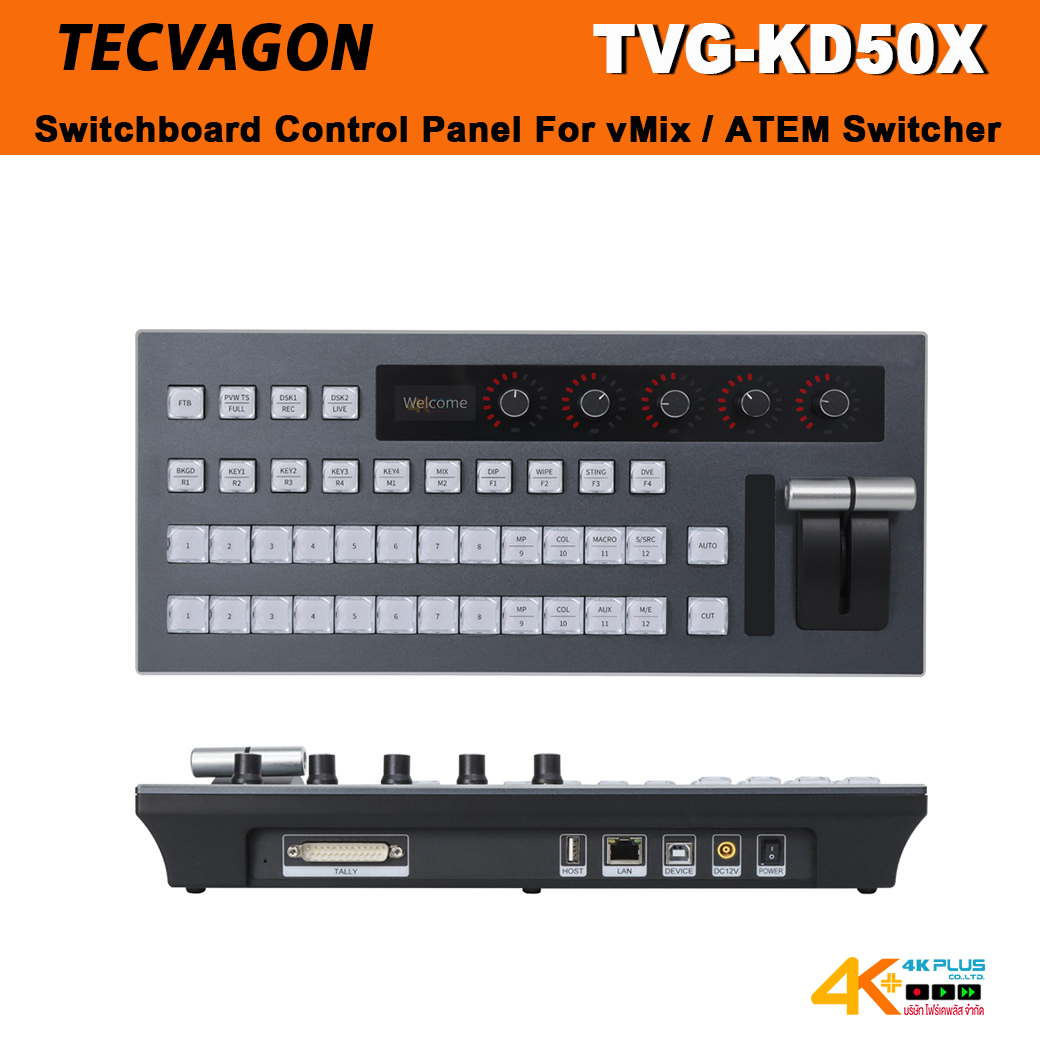

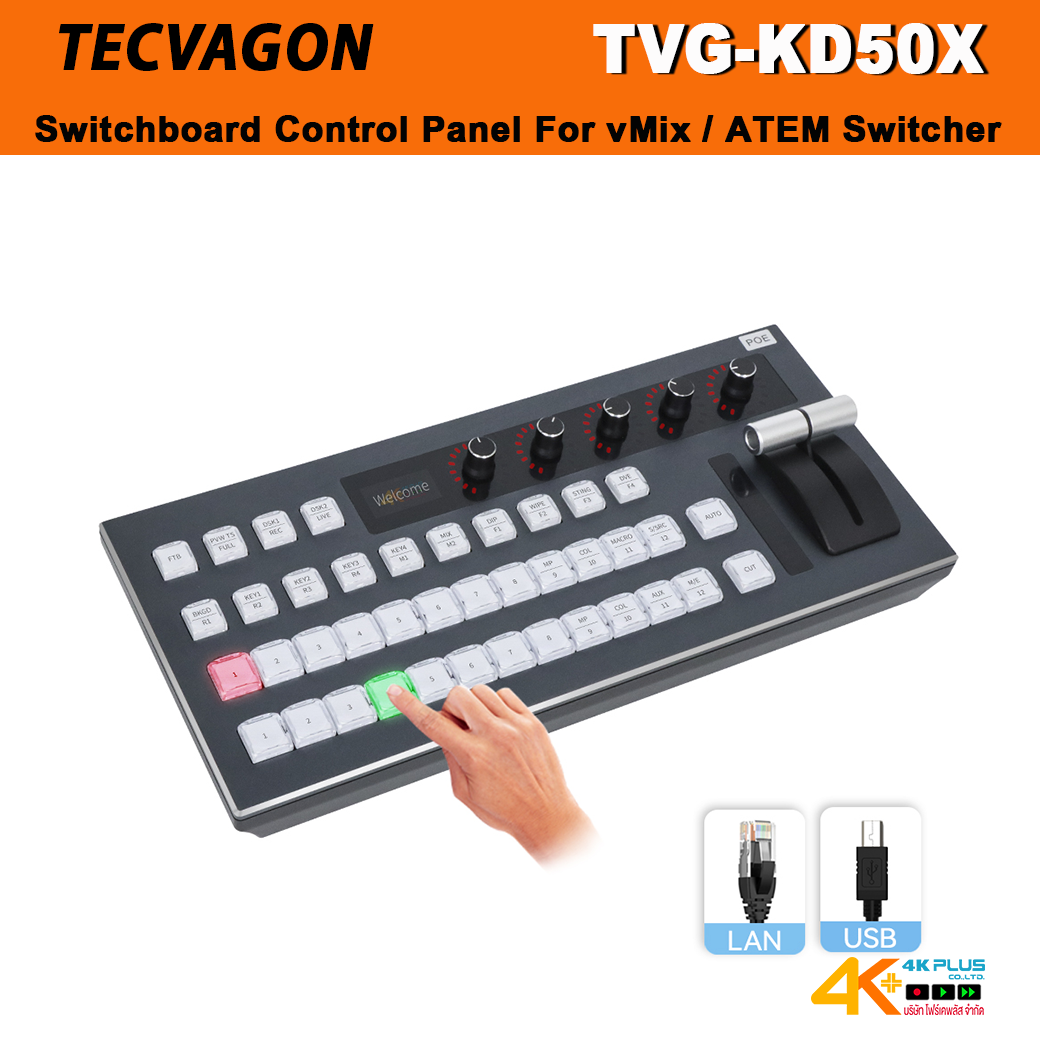

TECVAGON TVG-KD50X Switchboard control panel (For ATEM Switcher/vMix , OBS Software)

Integrated hardware design:

Easy-to-use ,fully embedded system with simplified structure, integrating director switching, audio adjustment and special effects & transitions all in one.

Both ATEM and vMix support 12 channel PGM+12 channel PVW live switching.

Built-in custom audio adjustment function:

Customized audio settings support Audio、 XLR、 MIC、MP and other multi-channel audio control functions.

Compatible with plenty of live broadcast software:

In addition to supporting ATEM series devices, it also supports MIDI protocol, compatible with Vmix and other various live broadcast software.Complete the control of functions such as directing, transitions, tuning, one-key black screen, etc., multi-purpose machine is more worry-free.

Support 24-channel tally output function:

Built-in DP25 tally interface, supports up to 24 tally signal output functions.

Supports LAN and USB 2.0 drive-free connections ( Note: ATEM only supports LAN connection ), and can transmit video signals to computers and live video production software without a capture card, simple and convenient.

All aluminum alloy body:

Anodized aluminum alloy panel process treatment, outstanding quality.

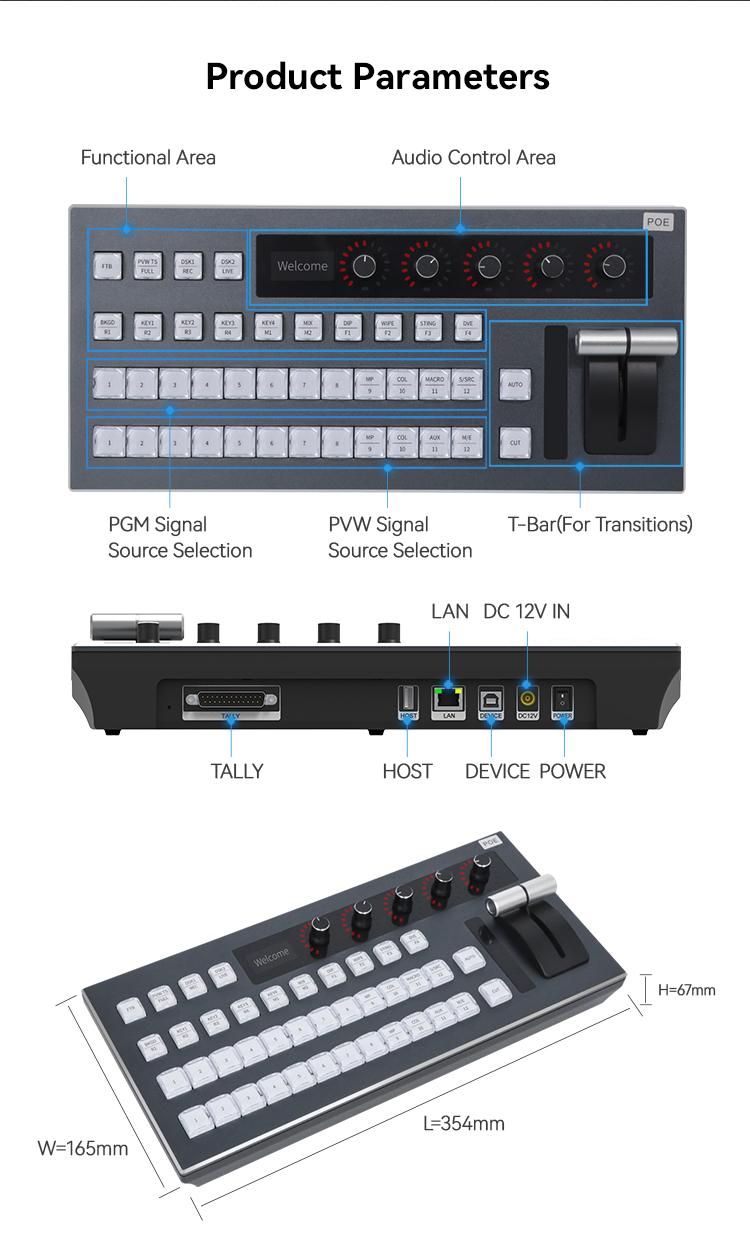

Specifications
