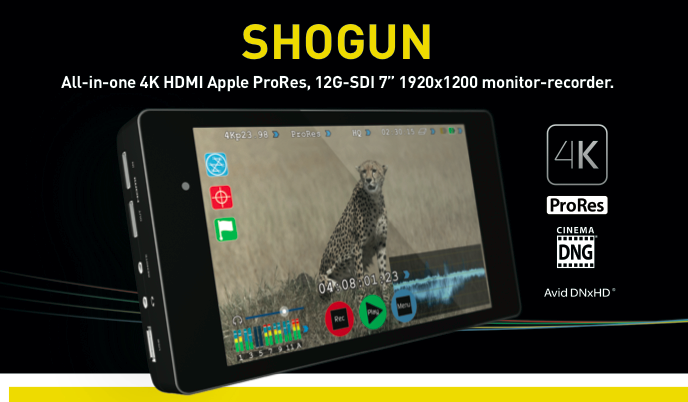

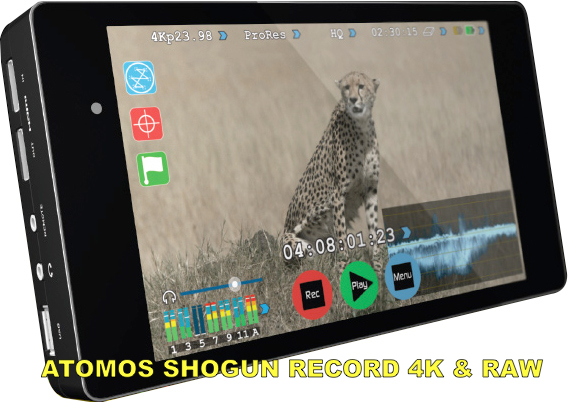

ATOMOS SHOGUN RECORD 4K & RAW

ATOMOS SHOGUN RECORD 4K , HD & RAW

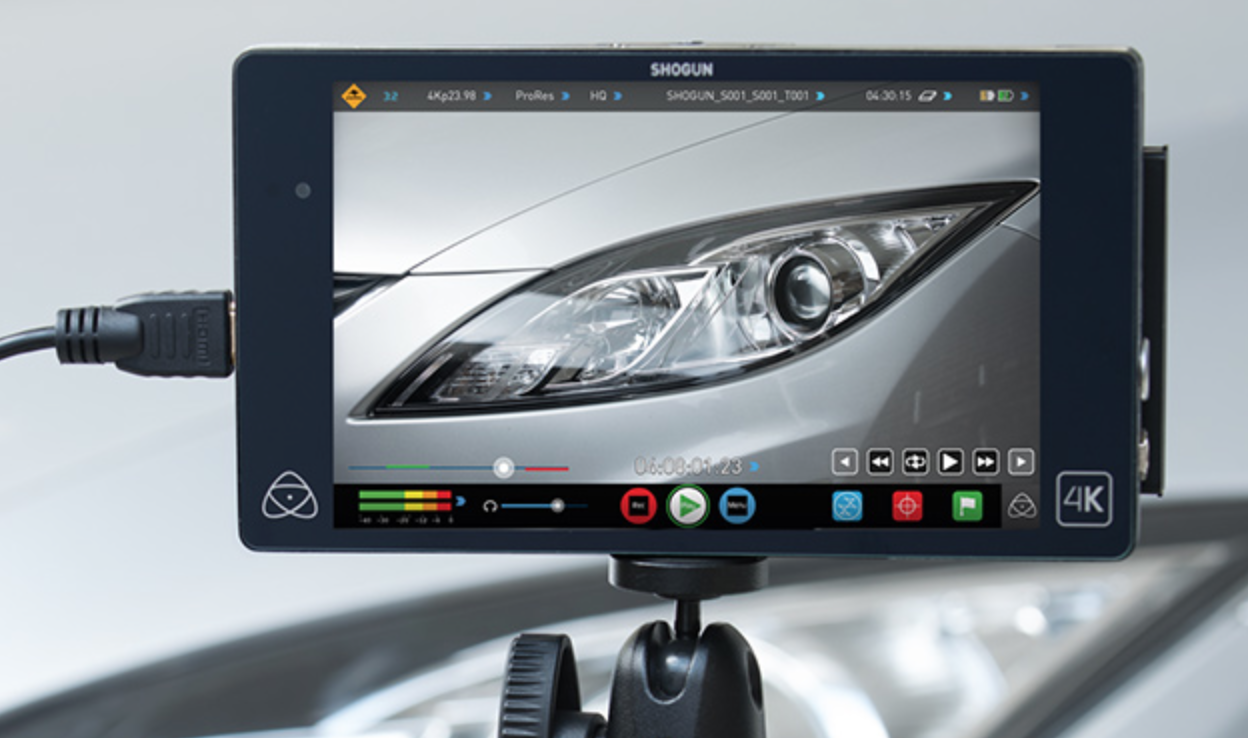

   Record 4K Apple ProRes or Cinema DNG Raw over HDMI and 12G-SDI. Seamlessly switch between 4K cameras with HDMI to SDI and SDI to HDMI conversion. HD recording Boasting 10-bit Apple ProRes recording, high frame rate 1080p120/60/50 and 2-way conversion between HDMI and SDI. The HD world is not forgotten with Shogun.Full  HD director monitor A stunning 7.1” 1920 x 1200 320ppi screen with 178˚ viewing angle, makes Shogun perfect as a director’s monitor. With class leading features like waveform, focal assist, zebra, calibration and 2:1 zoom it’s the perfect tool or perfect shot setup

Tech Specs

   Video input/loop out

HDMI : 1 x HDMI (1.4b)

SDI : 1 x 4K-SDI 12G/6G or HD-SDI 3G/1.5G (SMPTE)

Signal : Uncompressed 10/8bit 4:2:2 (camera dependent)

   Video output (play out)

HDMI :1 x HDMI (1.4b)

SDI : 1 x 12G HD/SD-SDI (SMPTE)

Signal : Uncompressed 10/8bit 4:2:2 (Playback file dependent)

   Supported formats (in/out)

4K  : 2160p 24/25/30

HD - high frame rate : 1080p120, 1080p60/50, 720p120

HD : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98,

     1080pSF24, 1080pSF25,1080pSF30, 720p60, 720p59.94, 720p50, SD 480i, 576i

   Supported applications

Supported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+ EDIUS 6.0+ / Vegas

Pro 10+ / Lightworks /Autodesk Smoke 2015+
