ATOMOS Samurai Blade HD-SDI Recorder/Monitor

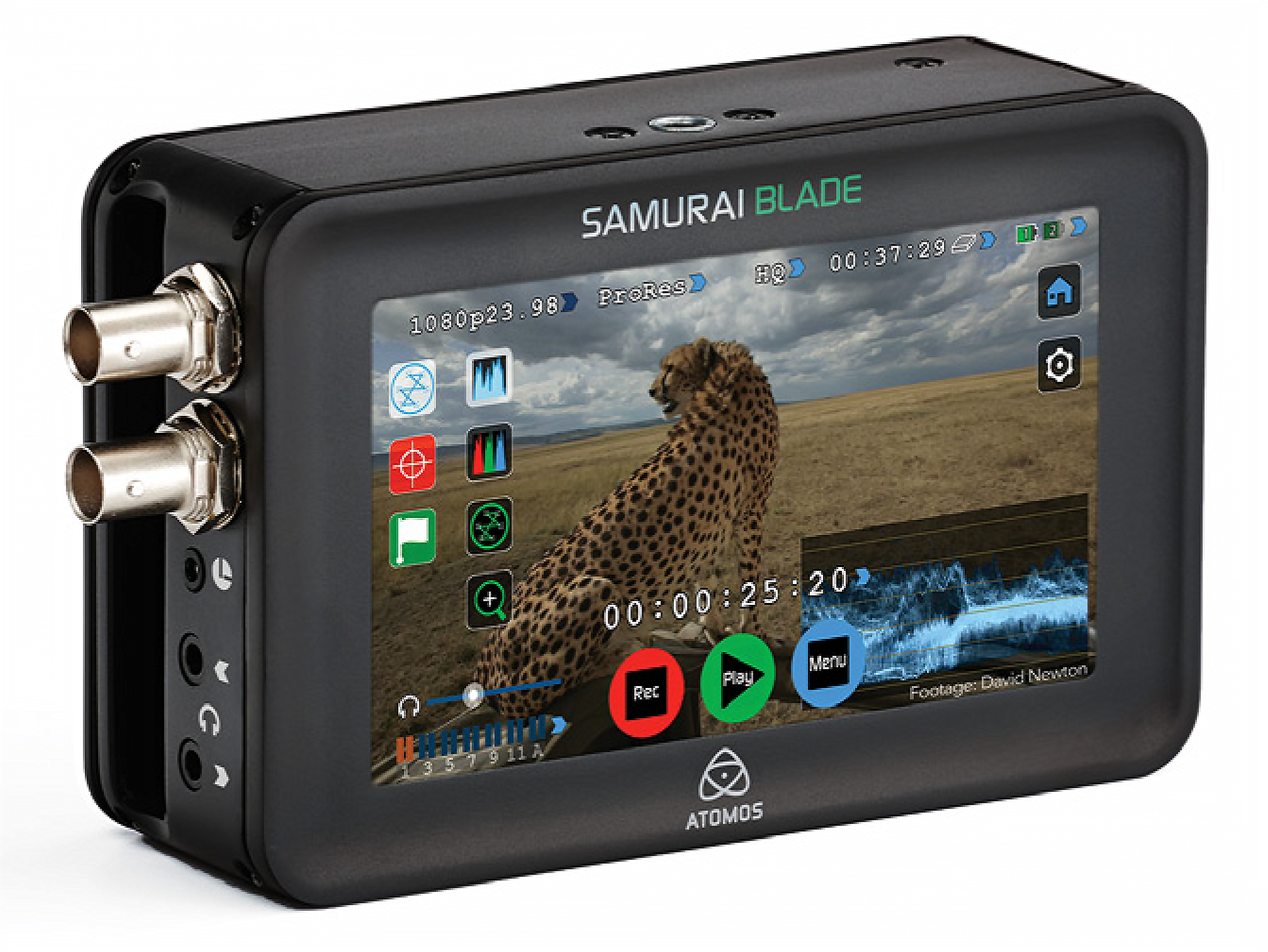

ATOMOS Samurai Blade  HD-SDI Recorder/Monitor

     Director quality monitor SuperAtom 5” IPS 325ppi 1280x720 capacitive touchscreen. Monitoring functions at your fingertips including waveform, vectorscope, luma parade, RGB, focus peaking, zebra, false color & blue only.

The Samurai Blade records to a 2.5" HDD or SSD in edit-ready Apple ProRes or Avid DNxHD codecs, and features professional monitoring features such as waveform, false color, and focus peaking. It comes included with a docking station that offloads these drives to your computer via USB 3.0/2.0, as well as a Sony-type NP-F570 battery, charger, AC adapter for continuous power, D-tap battery adapter, and two master caddies.

Features

 - Super-bright 5” IPS 1280 x 720 touchscreen monitor

 - Records 1080p, 10-bit, 4:2:2

 - ProRes or DNxHD Encoding and Playback

 - SDI Input and Loop-Output

 - Records to 2.5" HDDs/SSDs

Inbox

 - Docking Station with USB 3.0 & 2.0

 - Sony-Type NP-F570 Battery

 - Single Battery Charger

 - AC Adapter

 - D-Tap Battery Adapter

 - 2 x Master Caddies

 - 1-Year Limited Warranty

Video input/loop out

SDI : 1 x HD/SD-SDI (SMPTE)

Signal : Uncompressed 10/8bit 4:2:2 (camera dependent)

Video output (play out)

SDI : 1 x HD/SD-SDI (SMPTE)

Signal : Uncompressed 10/8bit 4:2:2 (Playback file dependent)

Supported loop out formats

SDI to SDI : 1280 x 720p 50 , 1920 x 1080i 50/60 , 1920 x 1080p 24/25/30

Supported formats (in/out)

HD : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24,

         1080pSF25,1080pSF30, 720p60, 720p59.94, 720p50, SD 480i, 576i
