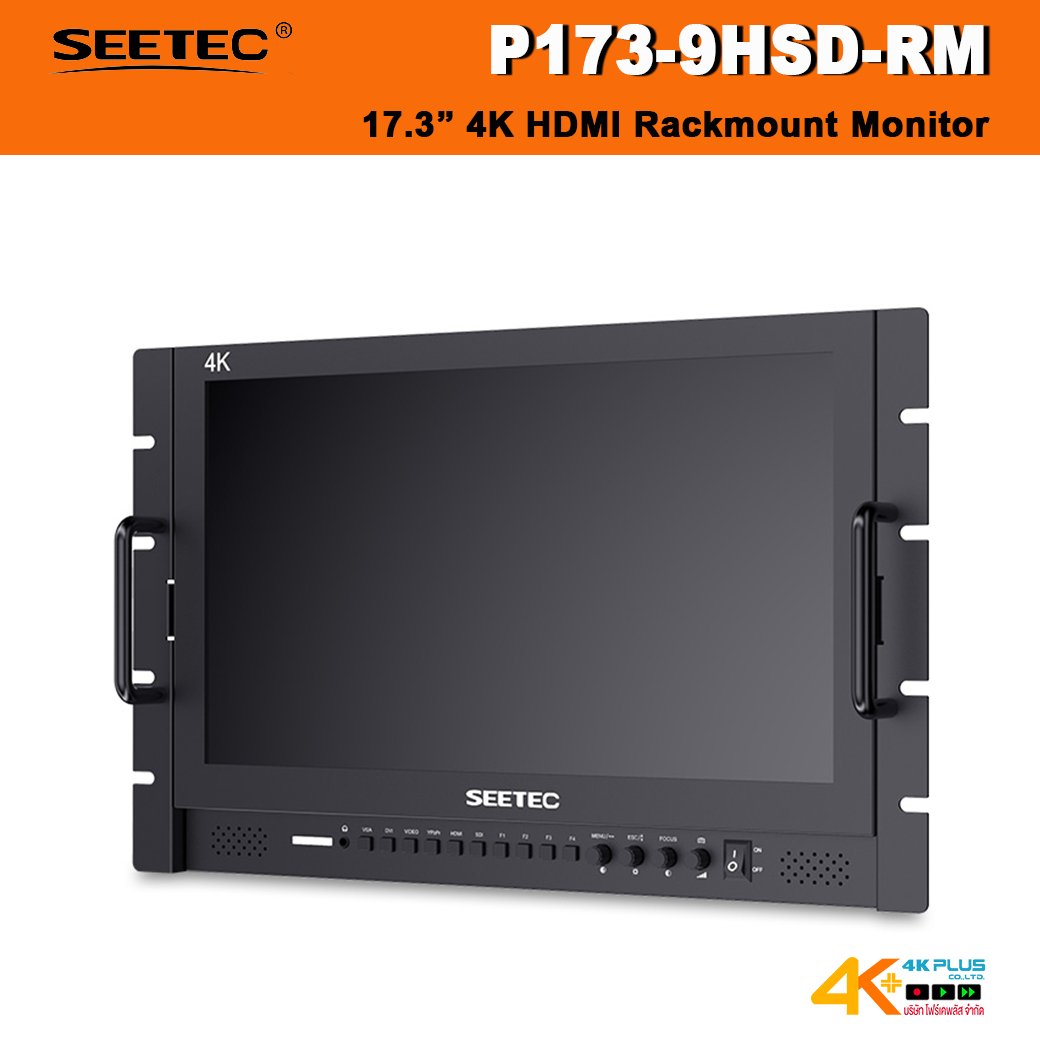

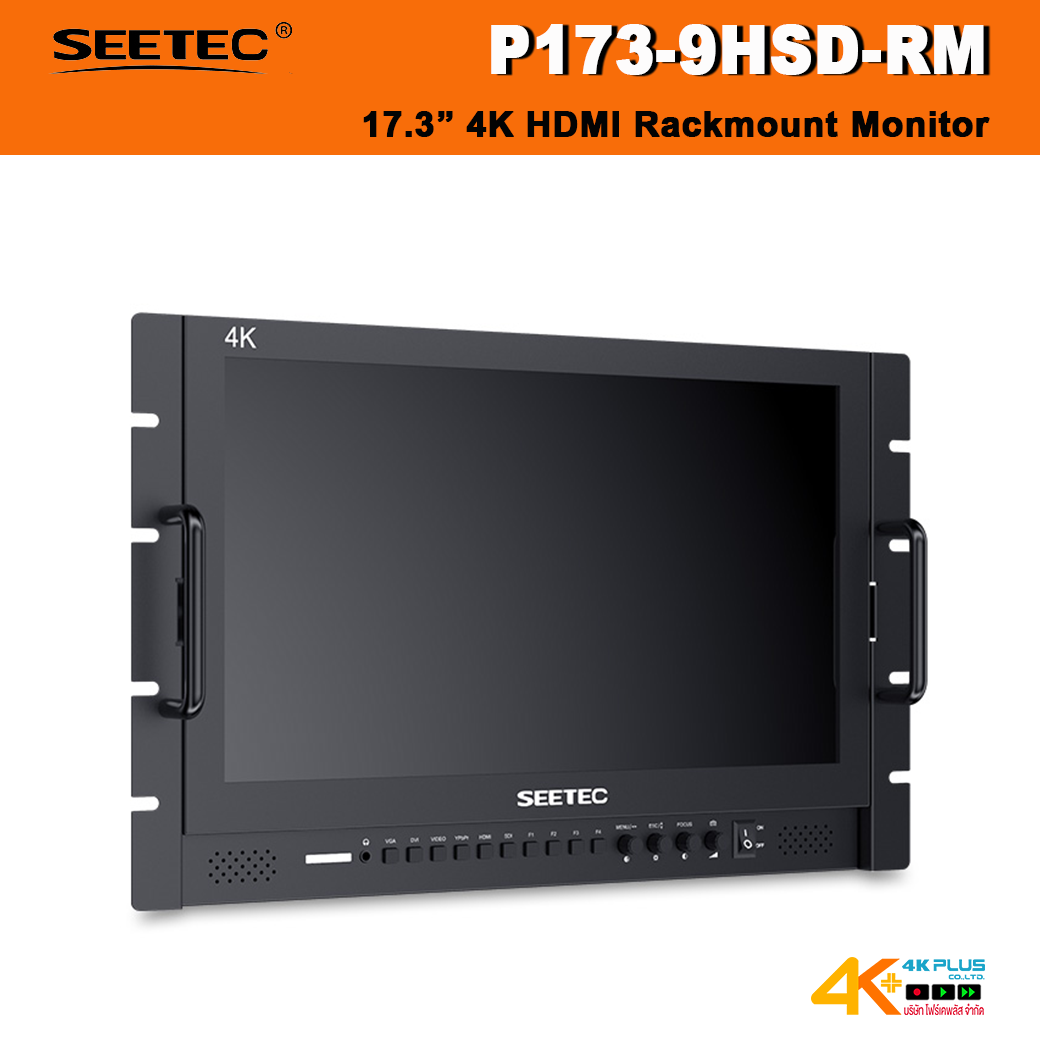

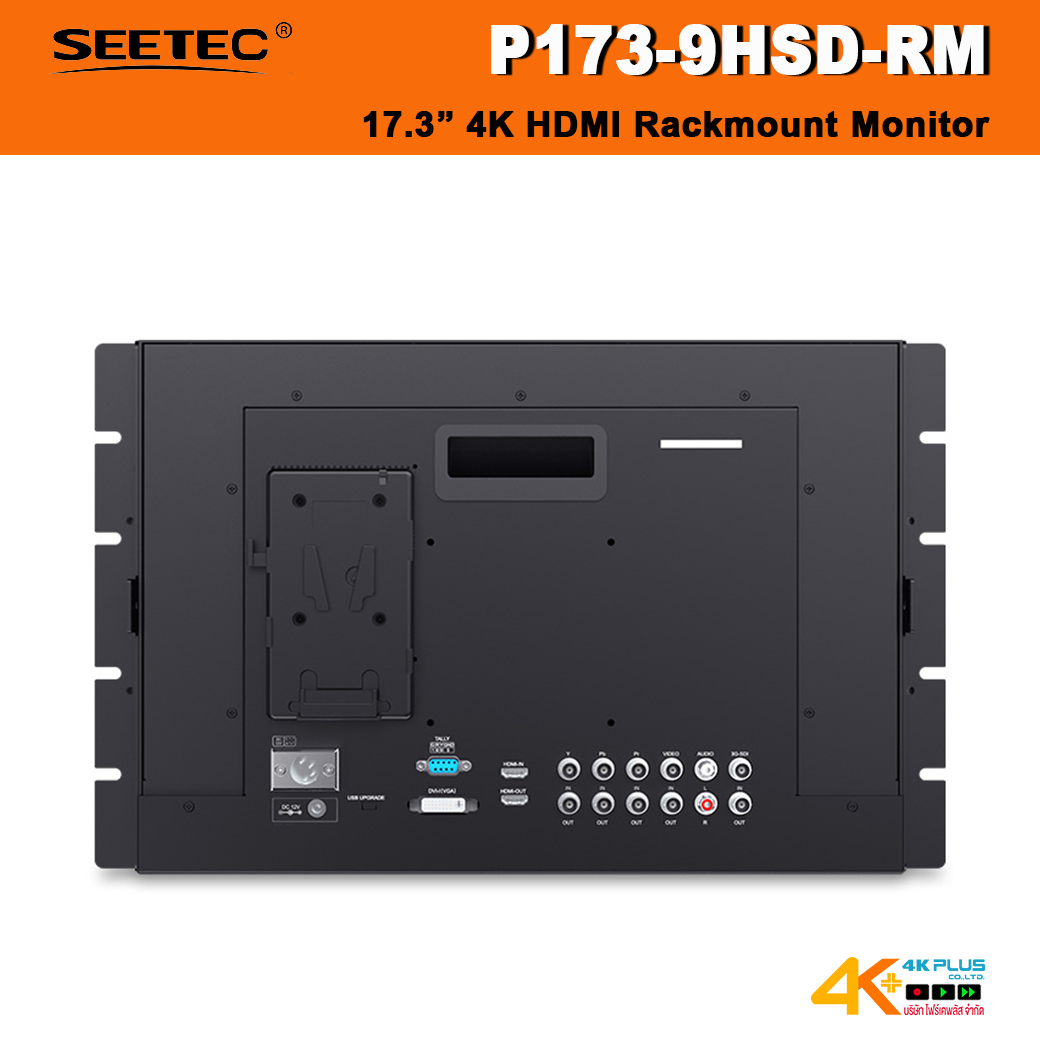

SEETEC P173-9HSD-RM 17.3 Inch 4K HDMI Rackmount Monitor
Tags : "SEETEC P173-9HSD-RM", "SEETEC P173-9HSD-RM ขาย", "SEETEC P173-9HSD-RM ราคา", "SEETEC Monitor", "P173-9HSD-RM", "Seetec Rackmount monitor", "SEETEC P173-9HSD-RM ตัวแทนจำหน่าย", "SEETEC จอมอนิเตอร์ใส่แร็ค", "P173-9HSD-RM Rackmount Moniotor", "Seetec 17.3inch monitor", "SEETEC P173-9HSD", "SEETEC P173-9HSD Broadcast Monitor", "SEETEC P173-9HSD บรอดแคสต์ มอนิเตอร์", "จำหน่ายอุปกรณ์ผลิตสื่อ", "อุปกรณ์ผลิตคอนเทนต์", "P173-9HSD-RM จอมอนิเตอร์ 17", "จอมอนิเตอร์ผู้กำกับ SEETEC P173-9HSD-CO", "P173-9HSD-CO"
รายละเอียดสินค้า
Features
* 17.3-inch 1920x1080 full HD large screen
* Rugged aluminium housing, durable
* Flexible and intuitive button operation, easy to use
* 7RU Rackmount design, meet multiple installations
* Built-in LED tally indicators (Red, Green, Yellow)
* Peaking focus assist, check field, camera mode, etc. auxiliary functions, assist users to accurately monitor when shooting, making and playing movies/ videos.
* Multiple interfaces, meet different needs (4K HDMI, 3G-SDI, Ypbpr, Video, DVI)
* Power using included 12-volt supply or use standard 4-pin XLR
* Stereo Earphone output, built-in speaker

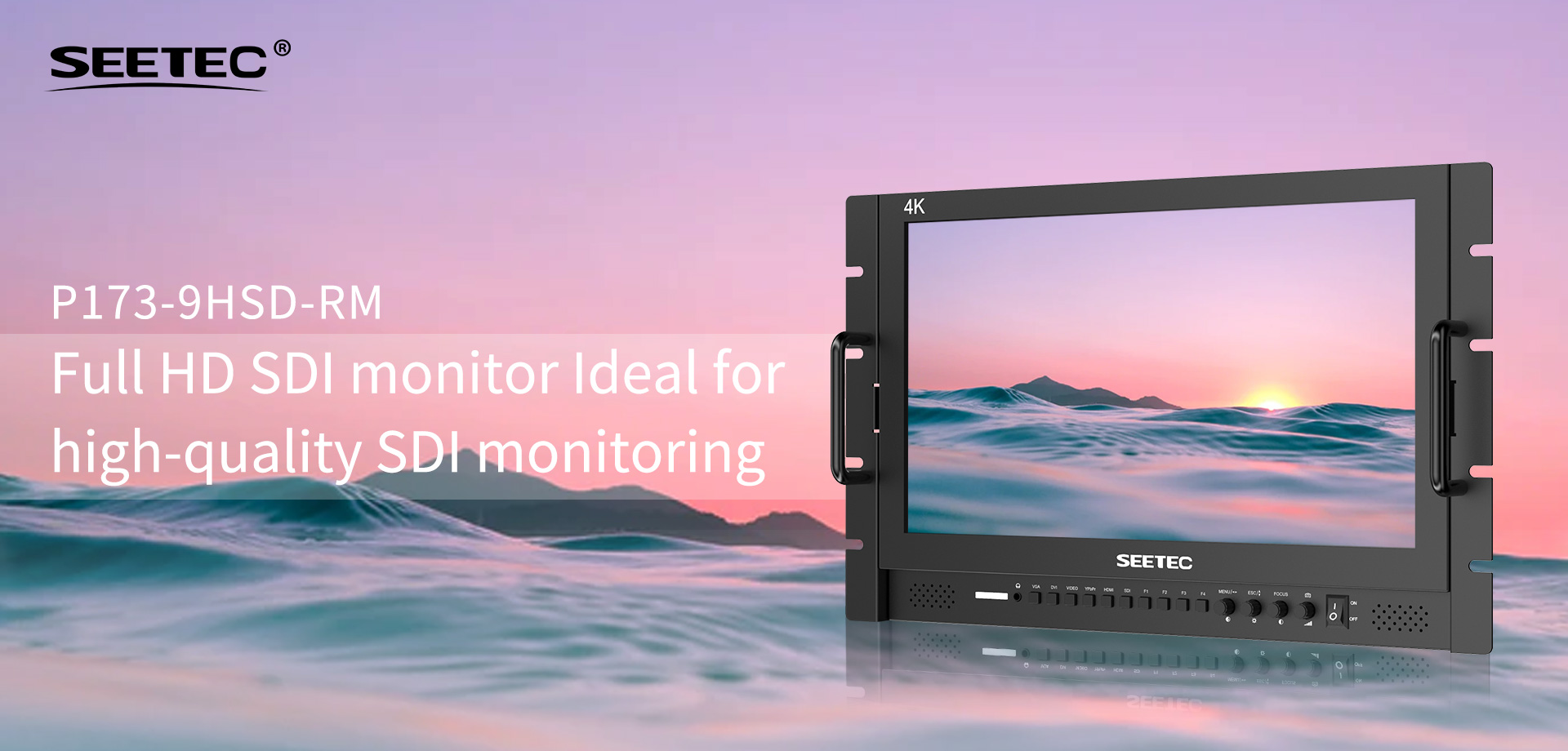

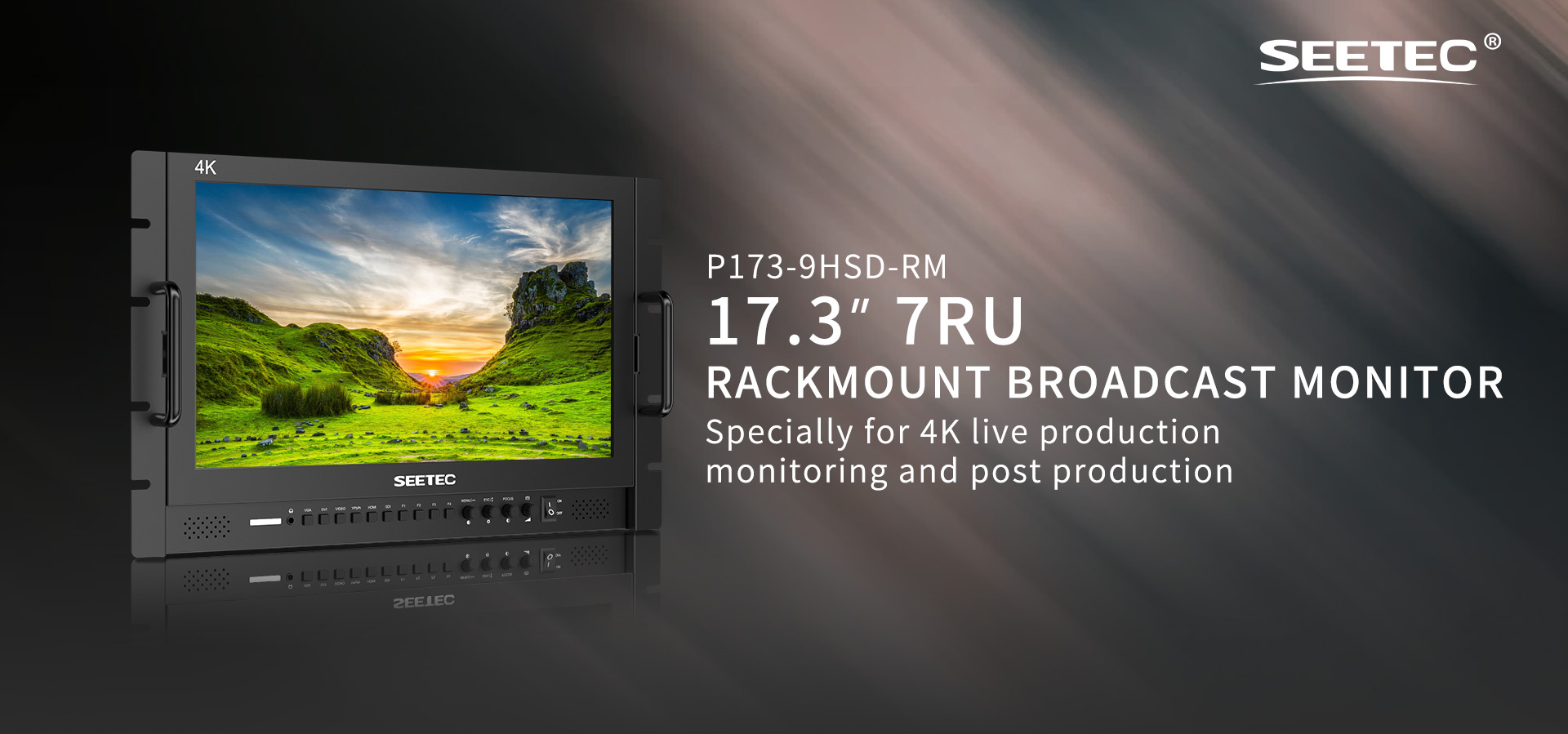

17.3” Full HD 3G-SDI/HDMI Rackmount Broadcast Monitor

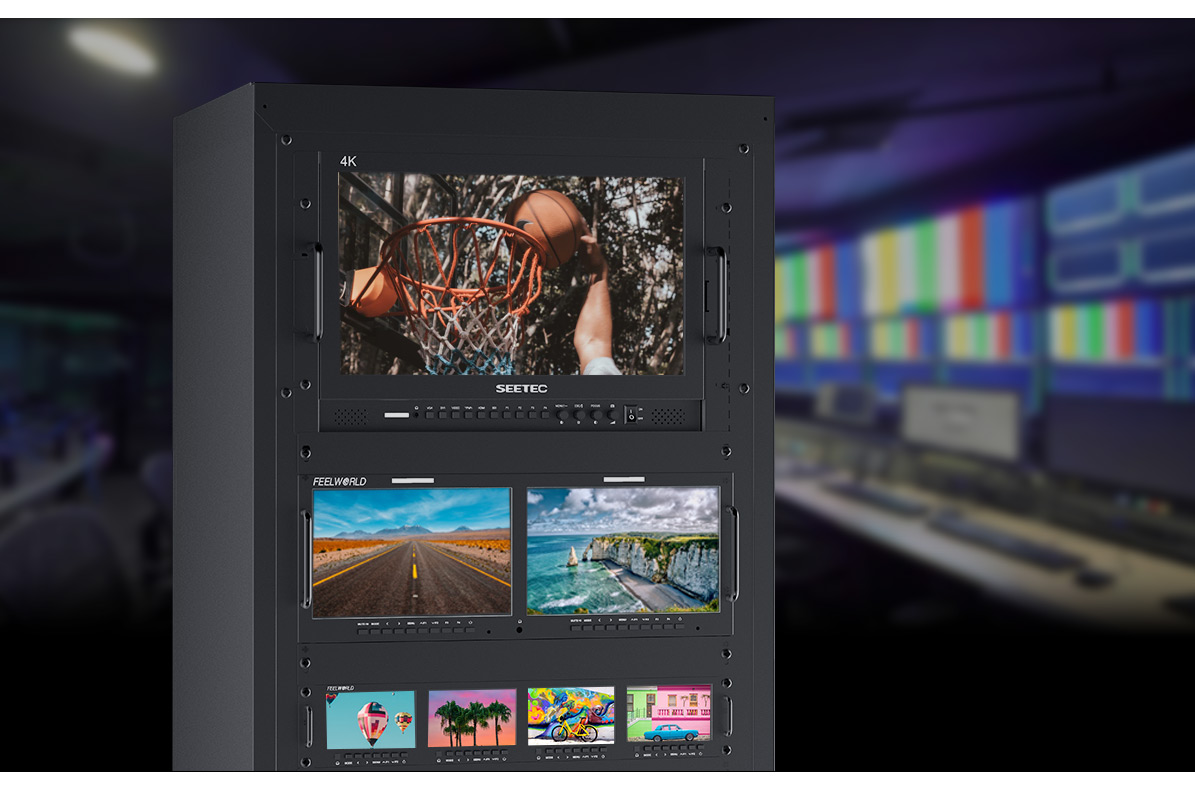

SEETEC P173-9HSD-RM is the full HD rack mount broadcast monitor with 3G-SDI, HDMI supports up to 4K@30Hz. Adopts Rec.709 color standard, display vivid images and professional effects. Rugged and durable aluminium housing. Its equipped with VESA standard, can be rack-mounted but also wall-mounted installation. P173-9HSD-RM is the perfect professional monitor for any broadcast facility, mobile broadcast truck or even fly kit.
1920X1080 Full HD Panel
With the P173-9HSD-RM's 17.3-inch 1920×1080 Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The P173-9HSD-RM's Full HD Panel is the tool of choice for high quality color reproduction.

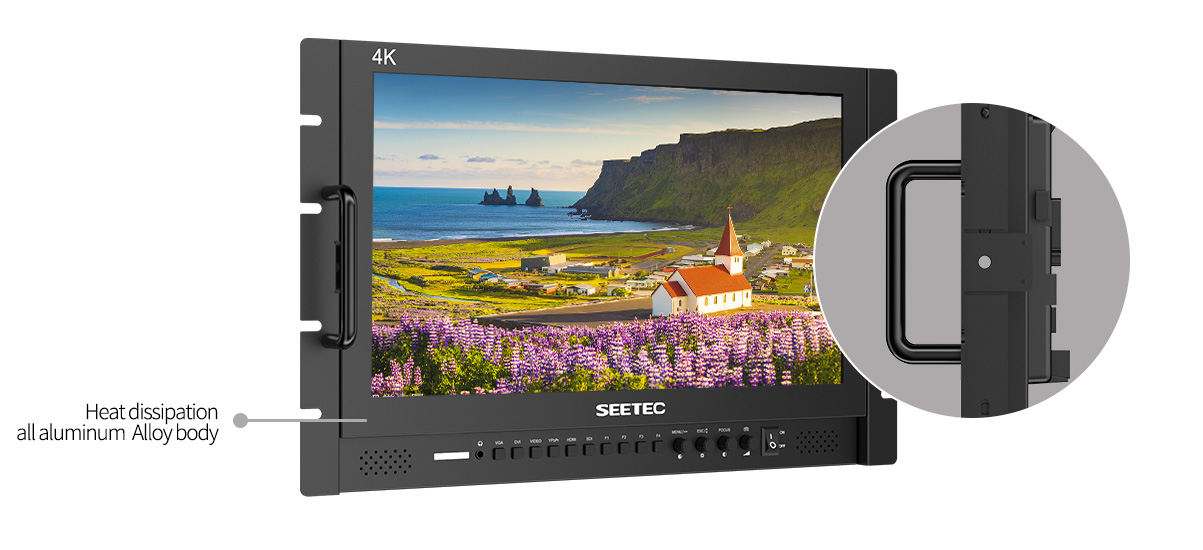

Rugged and Durable, Easy to Dissipate Heat
The full aluminum alloy frame not only make the device more solid and durable, but also solve the problem of heat dissipation. The equipped cast iron hand grips, easy to hold.
Extremely Thin Design, Suitable Size
The full aluminum alloy frame not only make the device more solid and durable, but also solve the problem of heat dissipation. The equipped cast iron hand grips, easy to hold.

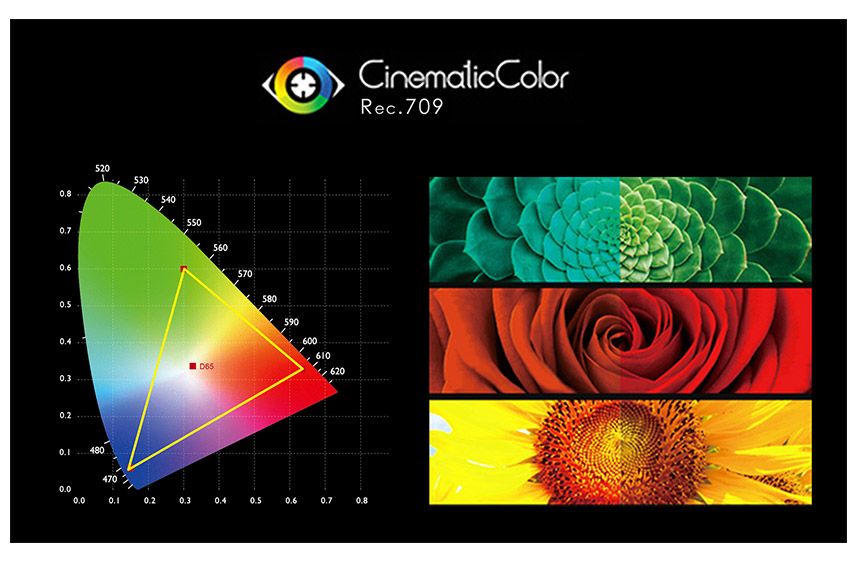

Accurate Color Reproduction
Use Rec.709 color standard
SEETEC monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.

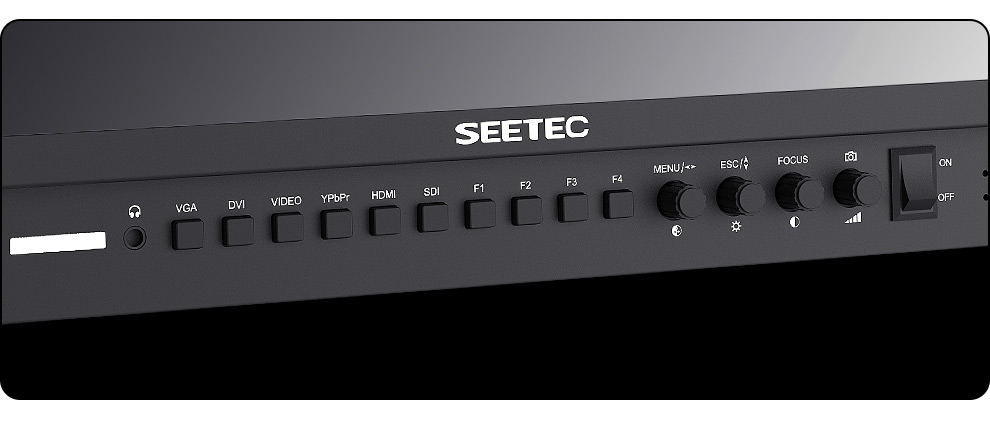

Innovation OSD Operation
P173-9HSD-RM not only set up four "F key" for peaking focus assist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.
Professional Monitoring

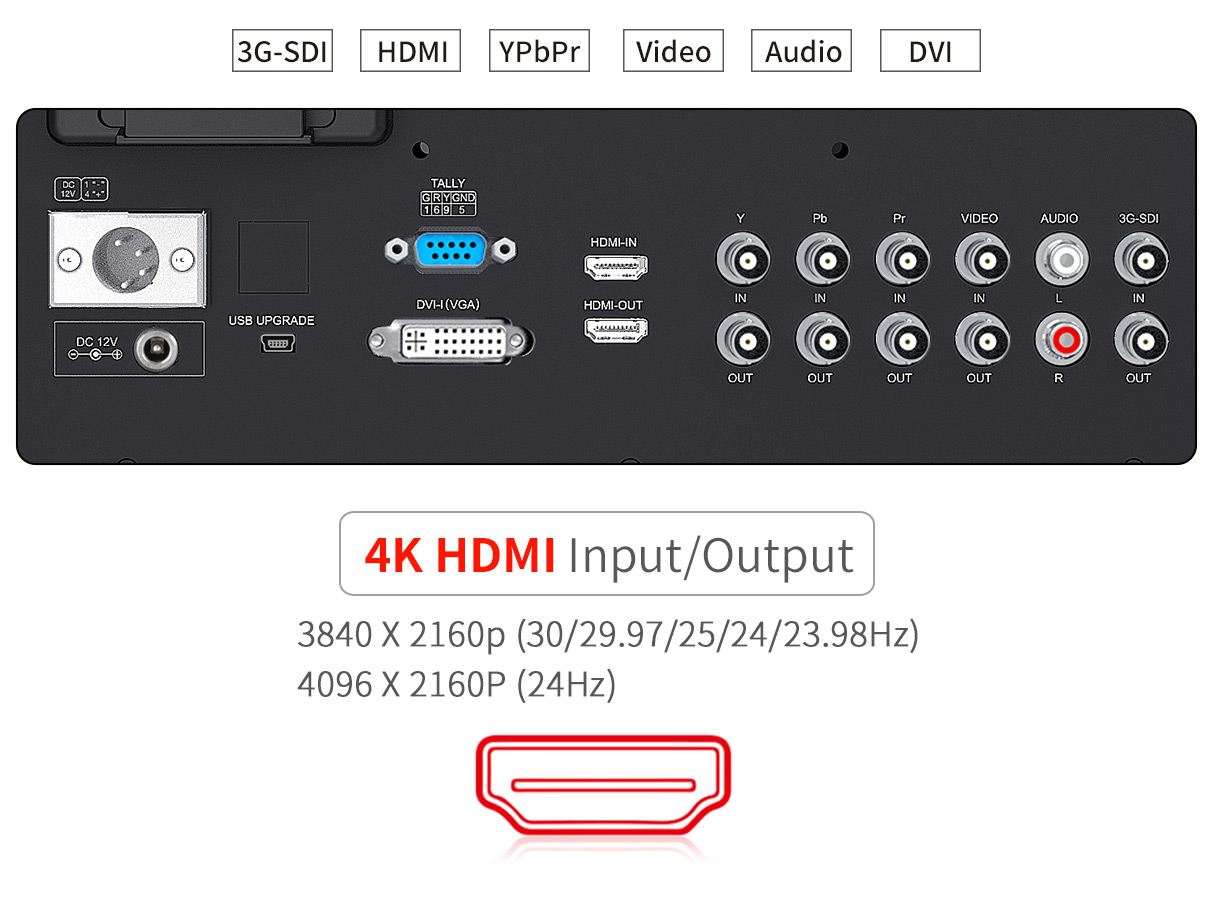

P173-9HSD-RM is an incredibly high quality monitor that's versatile enough to be used from the broadcast facility, mobile live production or on set for feature film production! The monitor comes with 3G/HD/SD-SDI, HDMI, YPbPr, Audio, Video, DVI inputs. Multiple input formats to meet all HD, SD, analogue video signal input and display demand professional functions set.
Hassle-free Power
Monitoring anywhere you need it！
We've made it easy to power the monitor. P173-9HSD-RM can be powered in two ways: with an DC adapter or lithium batteries. The P173-9HSD-RM has a flexible battery system that supports V battery plate (standard), Anton Bauer battery plate of your choice.

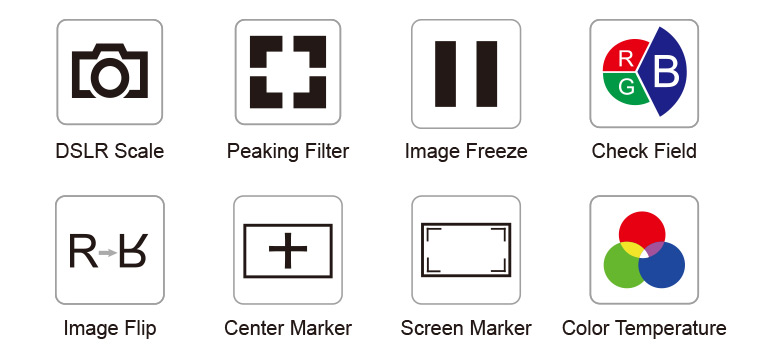

Professional Auxiliary Shooting Functions
SEETEC monitor is ideal for high end broadcast monitoring because they feature high quality focus assist function, also includes check field, image freeze, image flip, center marker, safe frame, color temperature adjust, assist users to accurately monitor when shooting, making and playing movies/videos.

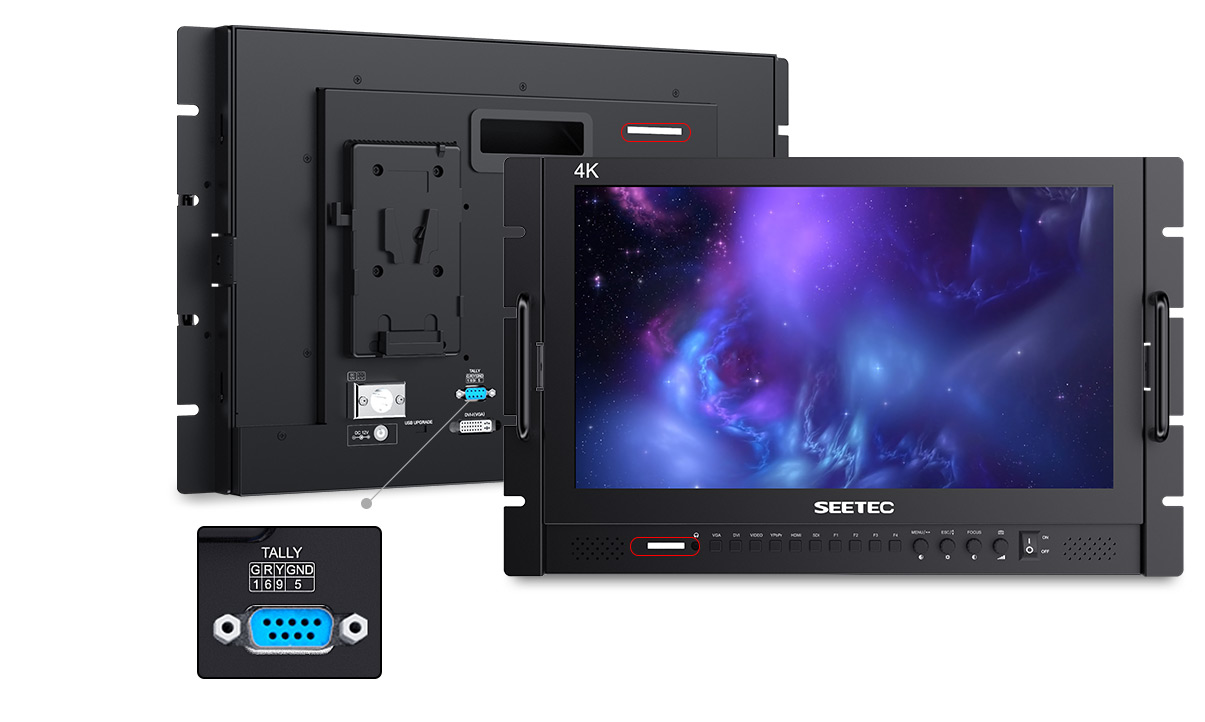

3 Color Tally Light
Both front and rear side
There is front and rear TALLY lights for with 3 colors display (Red, Green, Yellow), and controlled via DB-9 ports on the rear panel.
Specifications
Display Spec.
| Model | P173-9HSD-RM |
| Screen Size | 17.3" |
| Color Depth | 16.7M |
| Resolution | 1920×1080 pixels |
| Pixel Pitch | 0.1989(H)×0.1989(V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 300cd/m² |
| Contrast Ratio | 700:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
Input
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 3 X BNC | YPbPr |
| 1 X DVI-I | DVI-I |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
Output
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 3 X BNC | YPbPr |
| 1 X BNC | Video |
Audio
| Audio | Stereo Headphone, Speaker |
SDI Support Format
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
General
| Input Voltage | DC9～24V |
| Power Consumption | ≤26W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |

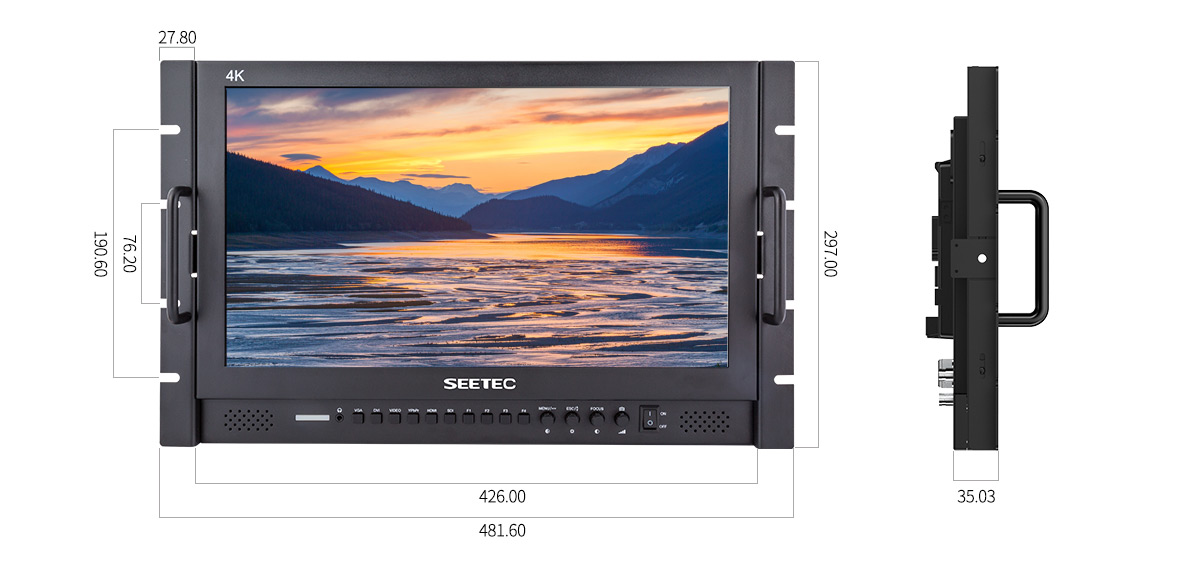

| Unit Size | 481.6L×297H×35D mm |
| Unit Weight | 3.4kg |
| Outer Carton Qty | 2 |
| Outer Carton Size | 535*350*425 (mm) |
| Gross Weight | 9.795kgs |
Advanced Features
| * Peaking Focus Assist(Red highlight over parts of the monochrome image in focus) |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
| * Image Freeze |
| * Image Flip (H, V, H/V) |
| * Camera Mode |
| * Pixel-to-Pixel |
| * Check Field (Red,Green,Blue,Mono) |
| * Zoom All (Nonsupport in 4K input) |
| * U/D & L/R Zoom (Nonsupport in 4K input) |
| * Aspect Ratio (Nonsupport in 4K input) |
| * Custom Color Temperature |
| * Built-in LED tally indicators |
Standard Accessories:
1× Mini HDMI Cable
1× V Battery Plate
1× 3A Power Adapter
1× Tally Kit
2× Hanging Ears
1× Operation Manual
