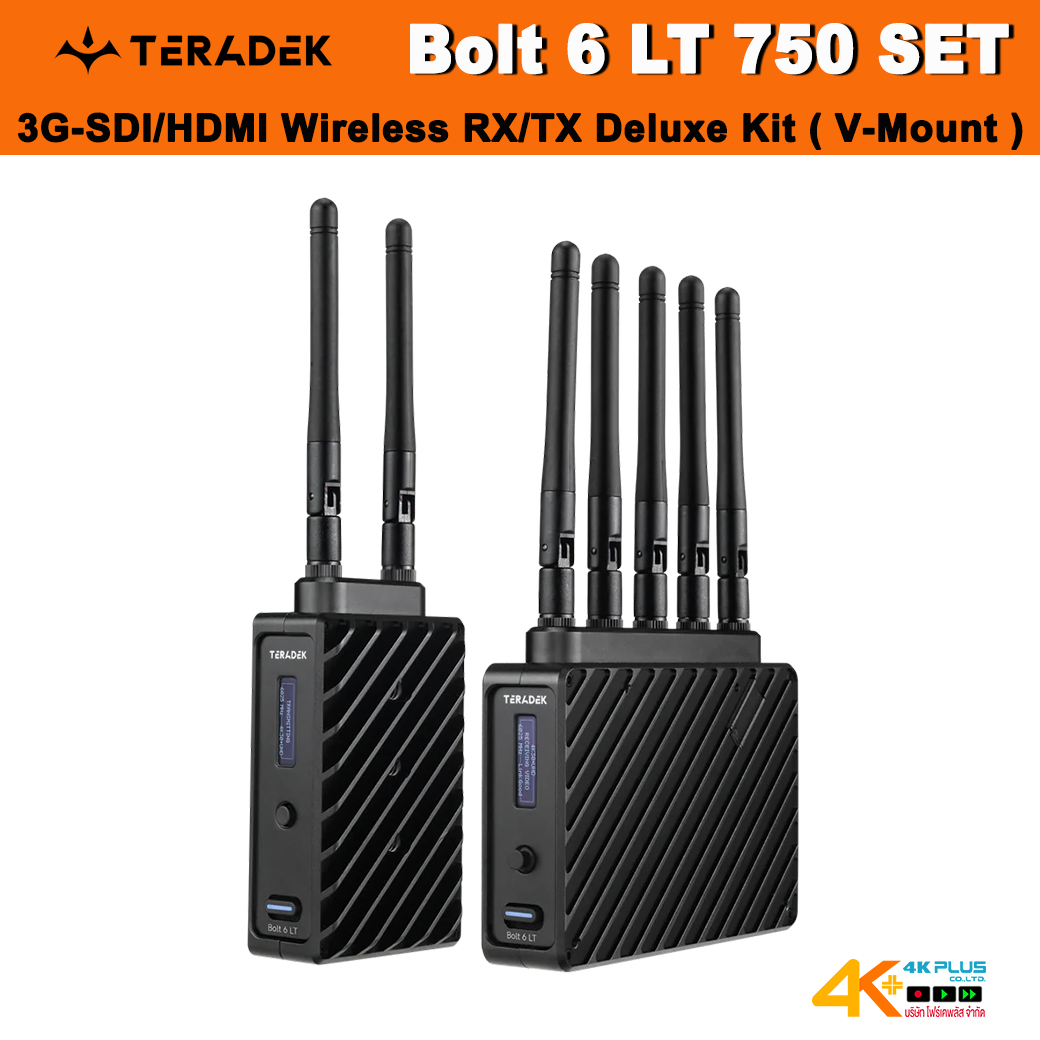

จำหน่าย Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless RX/TX Deluxe Kit ( V-Mount )
Product Highlights
- Zero Delay
- 6GHz Wireless Frequency Access
- HDMI and 3G-SDI Inputs and Outputs
- Gold Mount RX Battery Plate
- Up to 4K30 10-bit 422 HDR Video
Bolt 6 LT is a wireless video transmission system that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 LT Sets offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter.
The 750 model includes V (vertical) antennas. 1500 and MAX models include both V antennas and H (horizontal) antennas. H antennas are designed to maximize signal robustness in the most challenging RF environments.
Optionally, the 750 model of Bolt 6 LT can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.
Kit options include the Transmitter and Receiver by themselves or within a Deluxe kit that also includes Gold or V-Mount Battery plates.
Specifications
Key Specs
| Video I/O |
Transmitter: 1x HDMI 1.4b Input
Transmitter: 1x BNC (3G-SDI) Input
Transmitter: 1x BNC (3G-SDI) Loop Output
Receiver: 1x HDMI 1.4b Output
Receiver: 1x BNC (3G-SDI) Output
|
| Embedded Audio |
HDMI: 2-Channel
SDI: 2-Channel
|
| Latency |
< 0.01 ms
|
| Video Format |
HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
|
| Battery Type |
Receiver: 1x V-Mount
|
| Power Consumption |
Transmitter: 9 W
Receiver: 11 W
|
| Mounting |
: 1x 1/4″-20 Female ()
: 1x 3/8″-16 Female ()
|
Inputs/Outputs
| Antenna I/O |
Transmitter: 2x RP-SMA Female
Receiver: 5x RP-SMA Female
|
| Video I/O |
Transmitter: 1x HDMI 1.4b Input
Transmitter: 1x BNC (3G-SDI) Input
Transmitter: 1x BNC (3G-SDI) Loop Output
Receiver: 1x HDMI 1.4b Output
Receiver: 1x BNC (3G-SDI) Output
|
| Embedded Audio |
HDMI: 2-Channel
SDI: 2-Channel
|
| Audio I/O |
No
|
| Power I/O |
Transmitter/Receiver: 1x LEMO 2-Pin Input
|
| Other I/O |
Transmitter/Receiver: 1x Micro-USB Input
|
| Encryption |
Yes, 256-Bit AES
|
Wireless
| Wireless Range |
750′ / 228.6 m (Line-of-Sight)
|
| Channel Bandwidth |
40 MHz, 20 MHz
|
| Frequency Range |
Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
|
| Latency |
< 0.01 ms
|
| RF Power |
23 dBm
|
| Wi-Fi |
No
|
| Bluetooth |
Yes
|
| Mobile App Compatible |
Yes: Android & iOS
|
| Cellular Support |
No
|
Format Support
| Video Format |
HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
|
| Audio Format |
2-Channel 24-Bit 48 kHz
|
| Timecode Support |
Yes
|
Power
| Input Power |
6 to 28 VDC
|
| Battery Type |
Receiver: 1x V-Mount
|
| Power Consumption |
Transmitter: 9 W
Receiver: 11 W
|
Mounting
| Mounting |
: 1x 1/4″-20 Female ()
: 1x 3/8″-16 Female ()
|
General
| Environmental Resistance |
No
|
| Operating Conditions |
32 to 72°F / 0 to 40°C
|
| Material of Construction |
Aluminum, Polycarbonate
|
| Dimensions |
Transmitter: 4.1 x 2.4 x 1.3″ / 103 x 60 x 33 mm
Receiver: 4.8 x 3.7 x 1.1″ / 122 x 94 x 27 mm
|
| Weight |
Transmitter: 7.27 oz / 206.00 g
Receiver: 10.30 oz / 292.00 g
|
Packaging Info
| Package Weight |
5.7 lb
|
| Box Dimensions (LxWxH) |
12.5 x 8.4 x 7.9″
|
