จำหน่าย Blackmagic Design : ATEM 1 M/E Advanced Panel 20

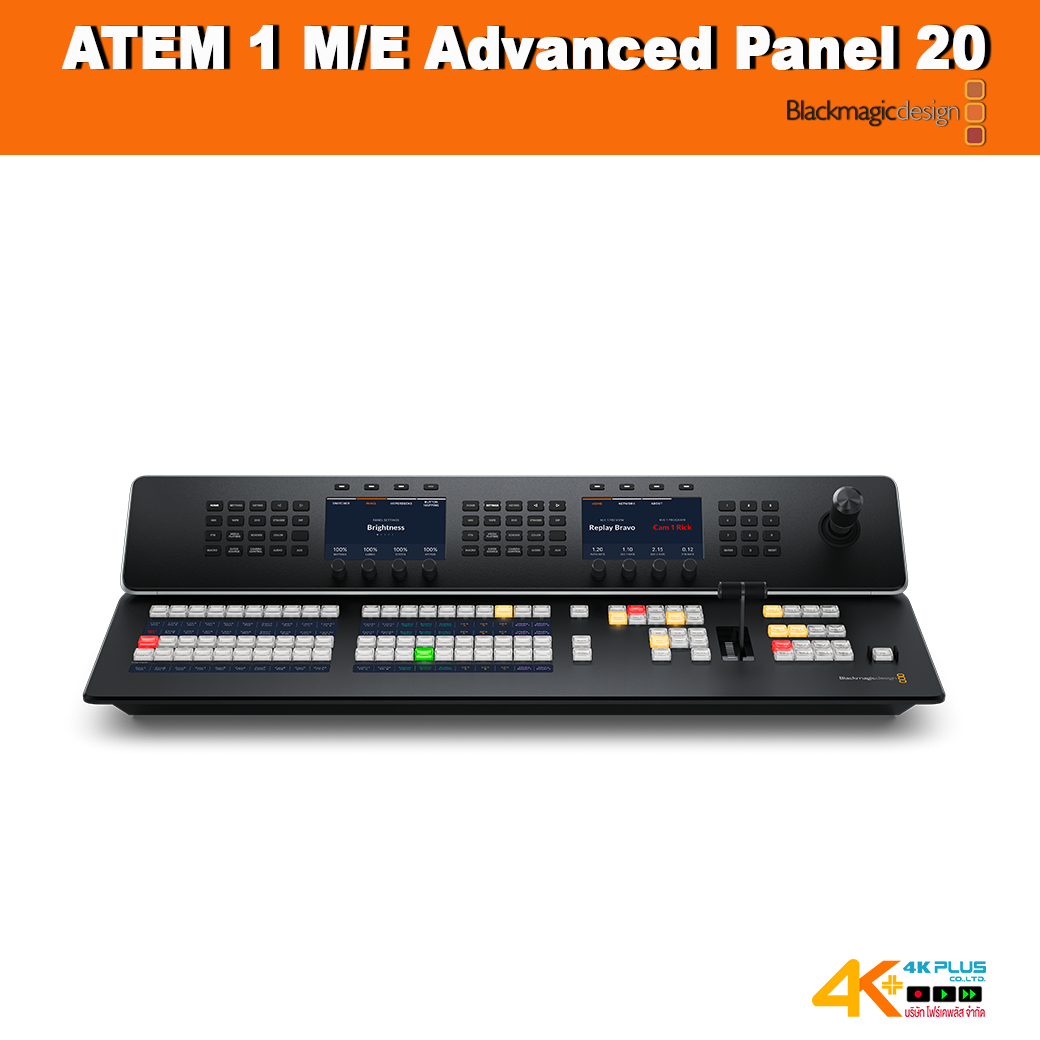

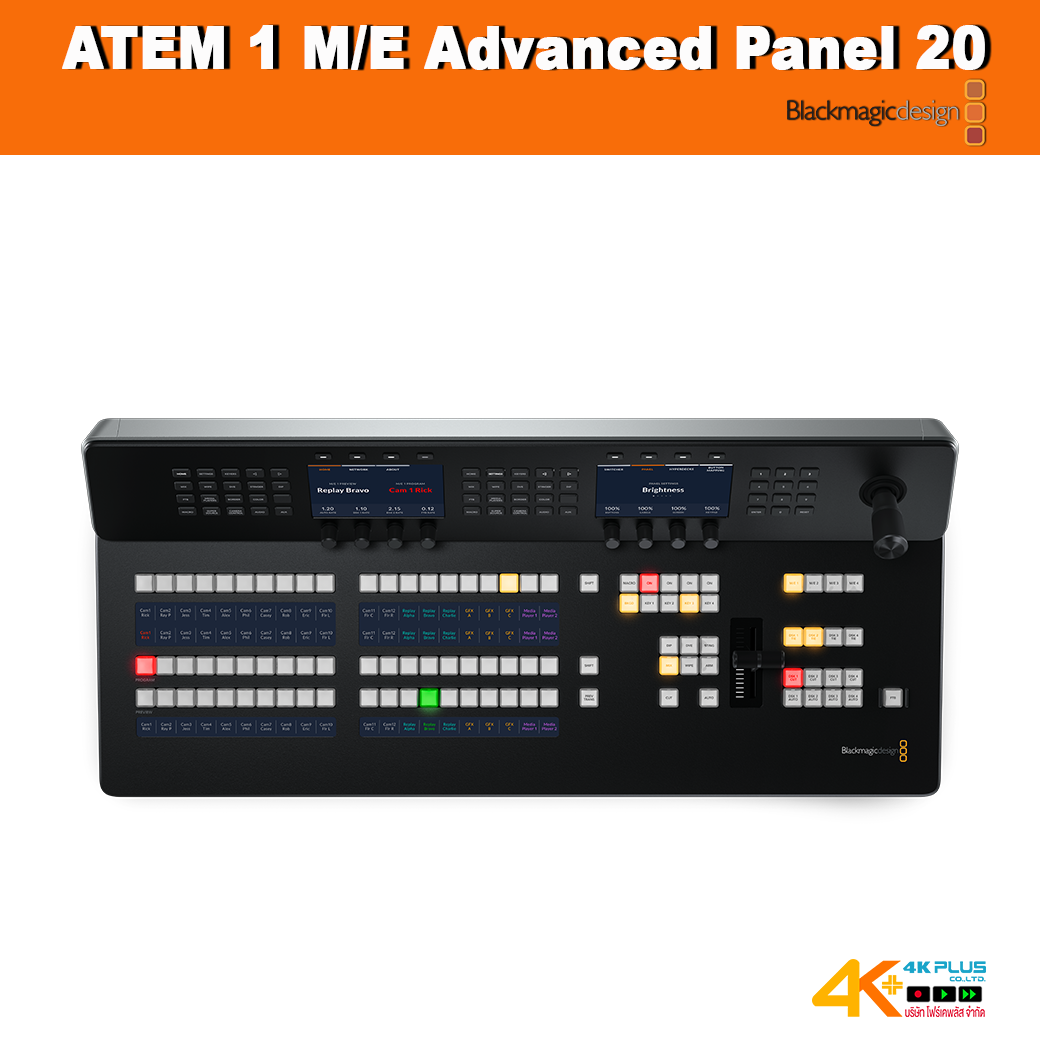

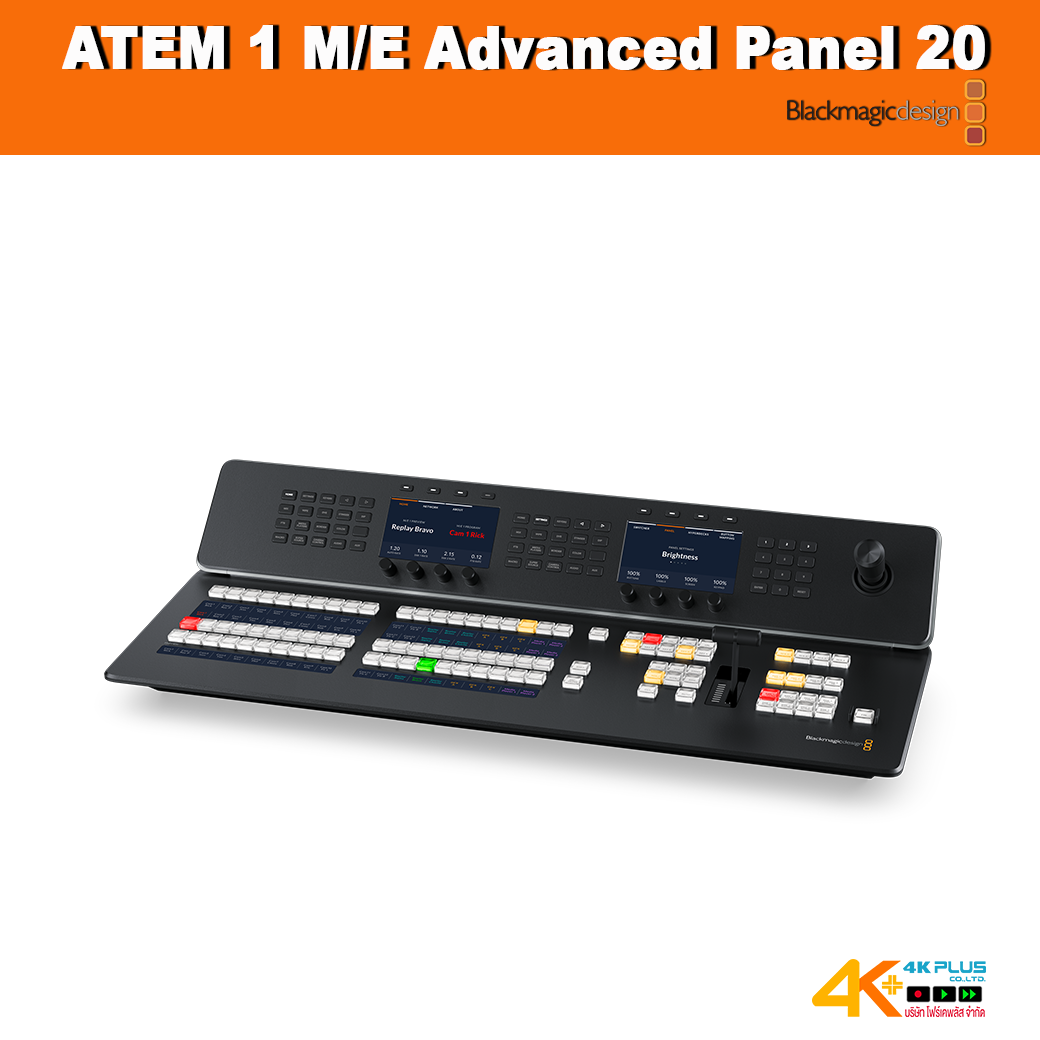

The ATEM 1 M/E Advanced Panel 20 is a single M/E, 20 input button switching panel that includes the features and flexibility needed for switching big and small productions in a highly portable and compact design. It has 2 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and there is an independent select bus. Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces.

Connections

Ethernet

4 x 10/100/1000 BASE-T with loop outputfor additional control panels or computers.

Software Updates

1 x USB-C for firmware updates.

ATEM 1 M/E Advanced Panel 20

Product Specifics

Number of Mix Effects Rows

1

Direct Cross Points

20

Shifted Cross Points

40

Crosspoint Button Type

Tri-Color LED

Preview Transition

1

Transition Rate Displays

Via main menu

LCD Menu Displays

2

Menu Control

2 x 20 buttons

Dedicated Macro Buttons

1 x 20

Transport Control Buttons

8

Destination Bus

1

Source Select Bus

1

Fader Bar

1

3 Axis Joystick

1

Numeric Keypad

1

Software

Software Applications

ATEM Software Control Panel.

Operating Systems

Mac icon

Mac 11.1 Big Sur,
Mac 12.0 Monterey or later.

Windows Icon

Windows 10 and 11.

Power Requirements

Input Voltage

2 x Internal 100 - 240V AC.

Redundant Power

Yes

Power Usage

75W

Physical Specifications

ATEM 1 M/E Advanced Panel 20

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 95% non-condensing

What's Included

ATEM 1 M/E Advanced Panel 20

Welcome wallet with QR code for software download

Warranty

12 Month Limited Manufacturer’s Warranty.
