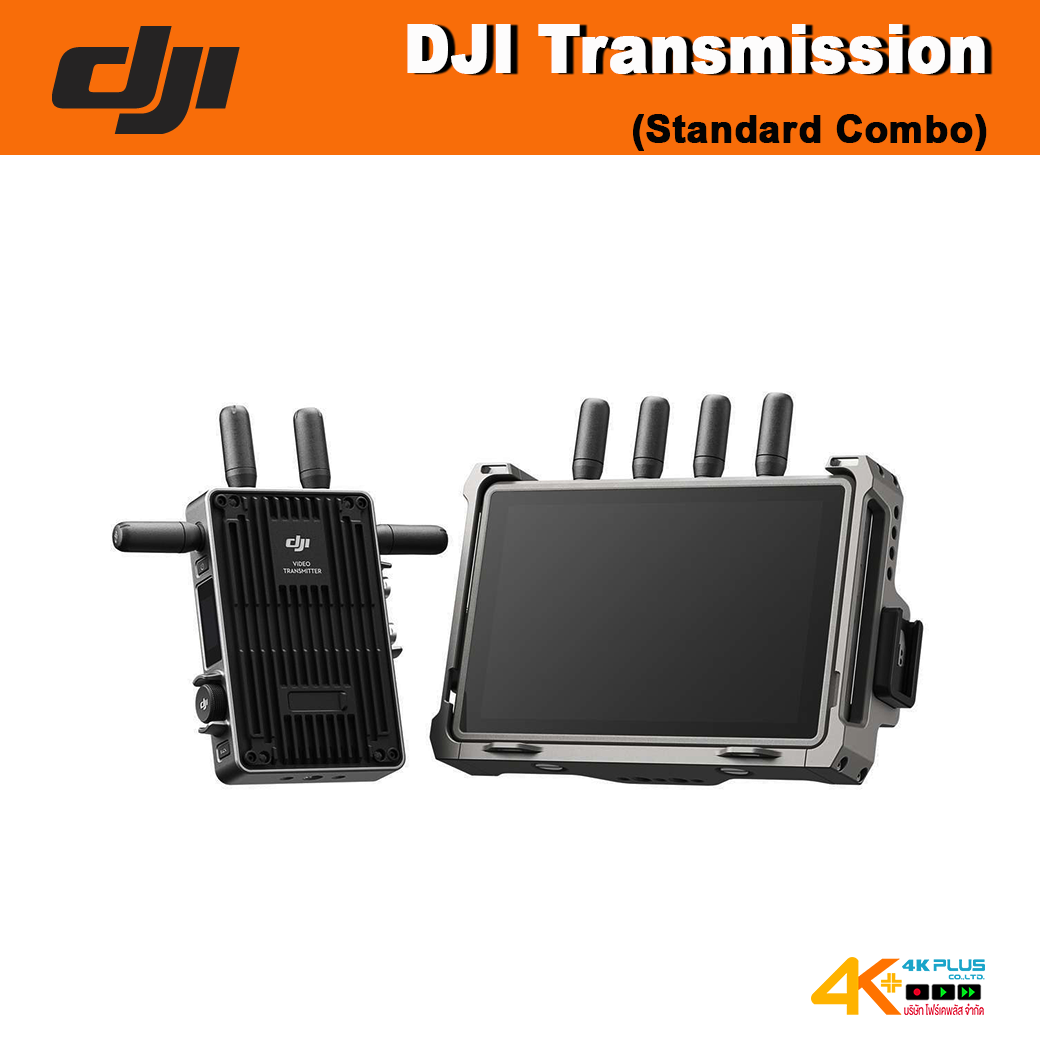

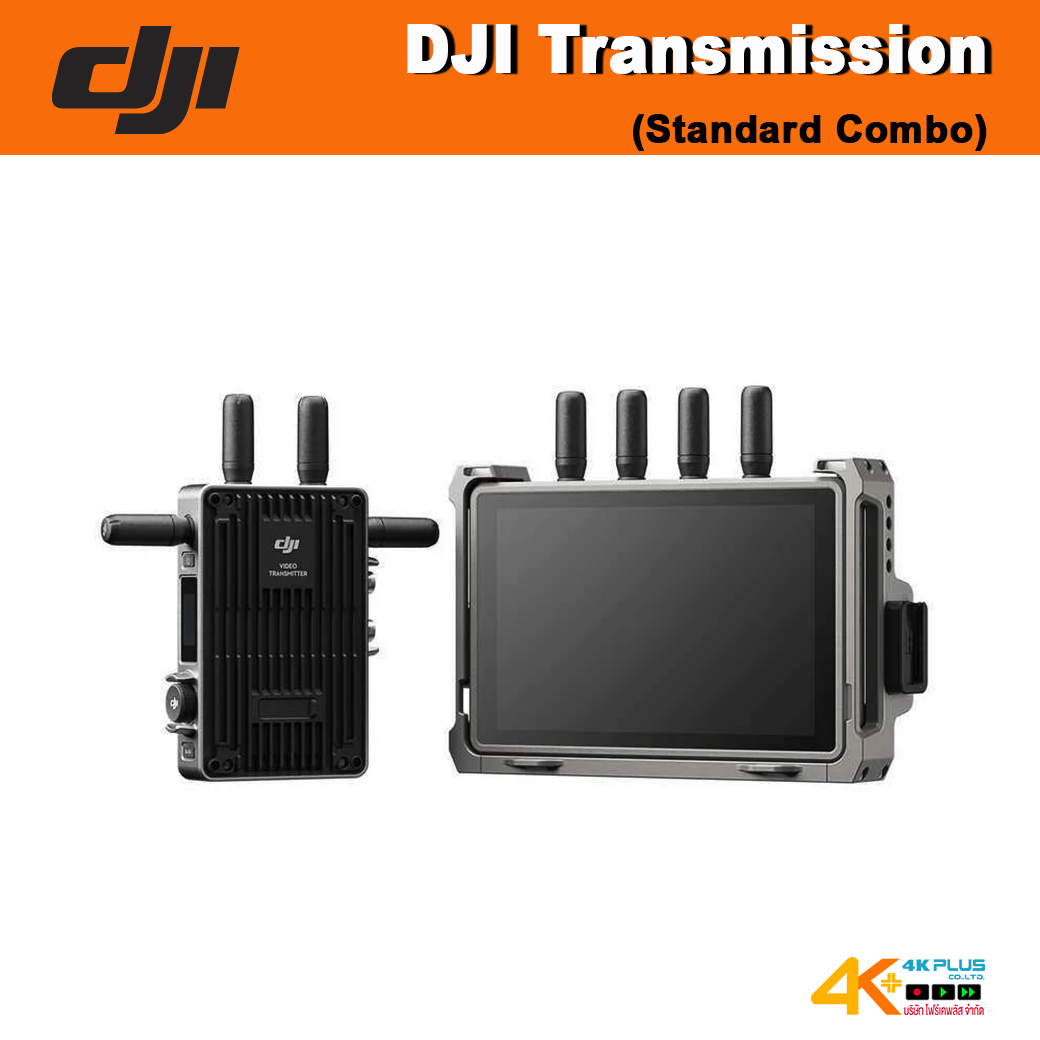

DJI Transmission (Standard Combo)

• Transmitter & High-Bright RX Monitor Kit
• Transmit 1080p60 Video over 3 Miles LoS
• 7" 1920 x 1200 Touchscreen Display
• Gyroscopic Sensor to Control Gimbals
• Custom LUTs, Built-In Image Tools
• O3 Pro Video Transmission Technology
• AES 256-Bit Encryption
• Power via WB37 Intelligent Batteries
• Works with Ronin 2 / RS 3 Pro Gimbals

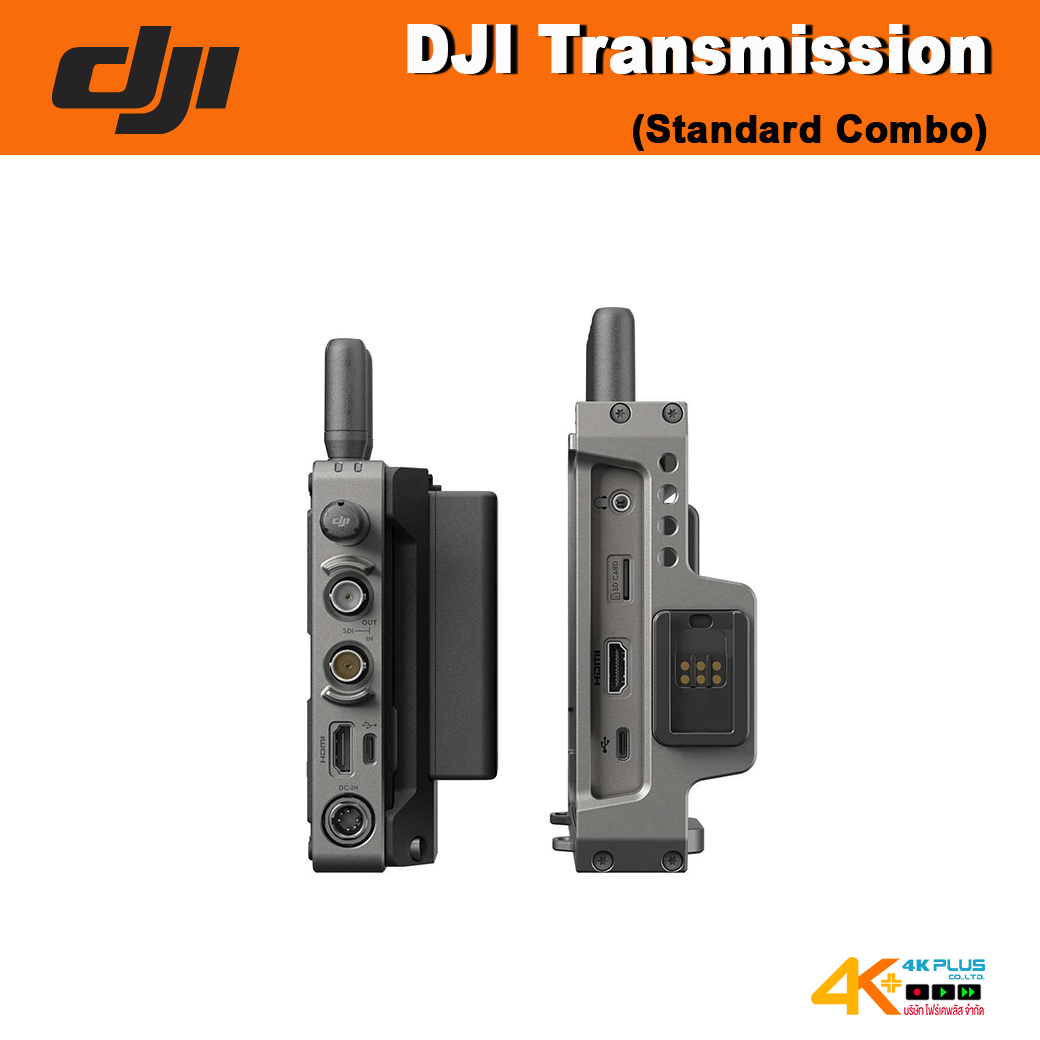

• HDMI/3G-SDI I/O with Optional Expansion

Specifications

• Weight

• DJI Video Transmitter: Approx. 350 g (excluding antennas)
  DJI High-Bright Remote Monitor: Approx. 727 g (excluding antennas)
  DJI Video Receiver: Approx. 350 g (excluding antennas)

• Dimensions

• DJI Video Transmitter: 127×87×26 mm (L×W×H, excluding antennas)
  DJI High-Bright Remote Monitor: 213×135×51 mm (L×W×H, excluding antennas)
  DJI Video Receiver: 127×87×26 mm (L×W×H, excluding antennas)

• Operating Frequency

• When using the DJI Video Transmitter with the DJI High-Bright Remote Monitor:
  Non-DFS Frequency Band:
  2.400-2.484 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz

  DFS Frequency Band:
  5.250-5.350 GHz
  5.470-5.600 GHz
  5.650-5.725 GHz

  When using the DJI Video Transmitter with the DJI Video Receiver:
  Non-DFS Frequency Band:
  2.4000-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz

  DFS Frequency Band:
  5.250-5.350 GHz
  5.470-5.725 GHz
  In some countries and regions, the 5.1/5.2/5.8 GHz frequencies are prohibited, or the 5.1/5.2 GHz frequencies are only allowed for indoor use. Check local laws and regulations for more information. 5.600-5.650 GHz is not used.

• Transmitter Power (EIRP)

• When using the DJI Video Transmitter with the DJI High-Bright Remote Monitor:
  2.400-2.484 GHz:
  <33 dBm (FCC)
  <20 dBm (SRRC/CE/MIC)

  5.150-5.250 GHz:
  <23 dBm (FCC/SRRC/MIC)

  5.250-5.350 GHz:
  <30 dBm (FCC)
  <23 dBm (SRRC/MIC)

  5.470-5.600 GHz, 5.650-5.725 GHz:
  <30 dBm (FCC)
  <23 dBm (CE/MIC)

  5.725-5.850 GHz:
  <33 dBm (FCC/SRRC)
  <14 dBm (CE)

  When using the DJI Video Transmitter with the DJI Video Receiver:
  2.4000-2.4835 GHz:
  <33 dBm (FCC)
  <20 dBm (SRRC/CE/MIC)

  5.725-5.850 GHz:
  <33 dBm (FCC)
  <14 dBm (CE)
  <23 dBm (SRRC)

• Max Bandwidth

• 40 MHz

• Max Bitrate

• 40 Mbps

• Power Consumption

• DJI Video Transmitter: 11 W
  DJI Video Receiver: 9 W

• Power Supply Voltage

• 6 to 18 V

• Output Voltage

• Power output port: 6 to 18 V

• Operating Time

• DJI Video Transmitter: 3 hours 40 minutes
  Measured at room temperature (25°C/77°F) with a fully charged WB37 Intelligent Battery.

  DJI High-Bright Remote Monitor: 2 hours
  Measured at room temperature (25°C/77°F) with a fully charged WB37 Intelligent Battery.

  DJI Video Receiver: 3 hours 50 minutes
  Tested at room temperature (25°C/77°F) when powered by a fully charged WB37 Intelligent Battery and used with the DJI Video Transmitter.

• Input Video Format

• DJI Video Transmitter:
  1080p: 23.98/24/25/29.97/30/50/59.94/60fps
  720p: 50/59.94/60fps

• Output Video Format

• When using the DJI Video Transmitter with the DJI High-Bright Remote Monitor:
  1080p: 23.98/24/25/29.97/30/50/59.94/60fps
  720p: 50/59.94/60fps

  When using the DJI Video Transmitter with the DJI Video Receiver:
  1080p: 23.98/24/25/29.97/30/50/59.94/60fps
  720p: 50/59.94/60fps

  When using the Ronin 4D Video Transmitter with the DJI Video Receiver:
  1080p: 24/25/30/50/60fps

• Input Audio Format

• SDI embedded, HDMI embedded

• Output Audio Format

• PCM

• Video Transmission System

• O3 Pro

• Video Transmission Latency

• 70 ms
  Measured when shooting 1080p/60fps video.

• Video Coding Format

• H.264

• Max Transmission Distance

• 6 km (FCC)
  4 km (CE/SRRC/MIC)
  Measured in open environments without obstructions or interference.

• Operating Temperature

• -10° to 45° C (14° to 113° F)
  When using the WB37 Intelligent Battery, the recommended operating temperature is above 0° C (32° F). Take measures to keep the battery warm when using in temperatures below 0° C (32° F).

• Mirror Control Mode Supported Camera Models

• ZV1/A7 III/A7S III/A7M III/A7R III/A7R IV/A7 IV/FX3/A7S II/A6600/A6400 and all Sony cameras that support BRAVIA (HDMI control).
