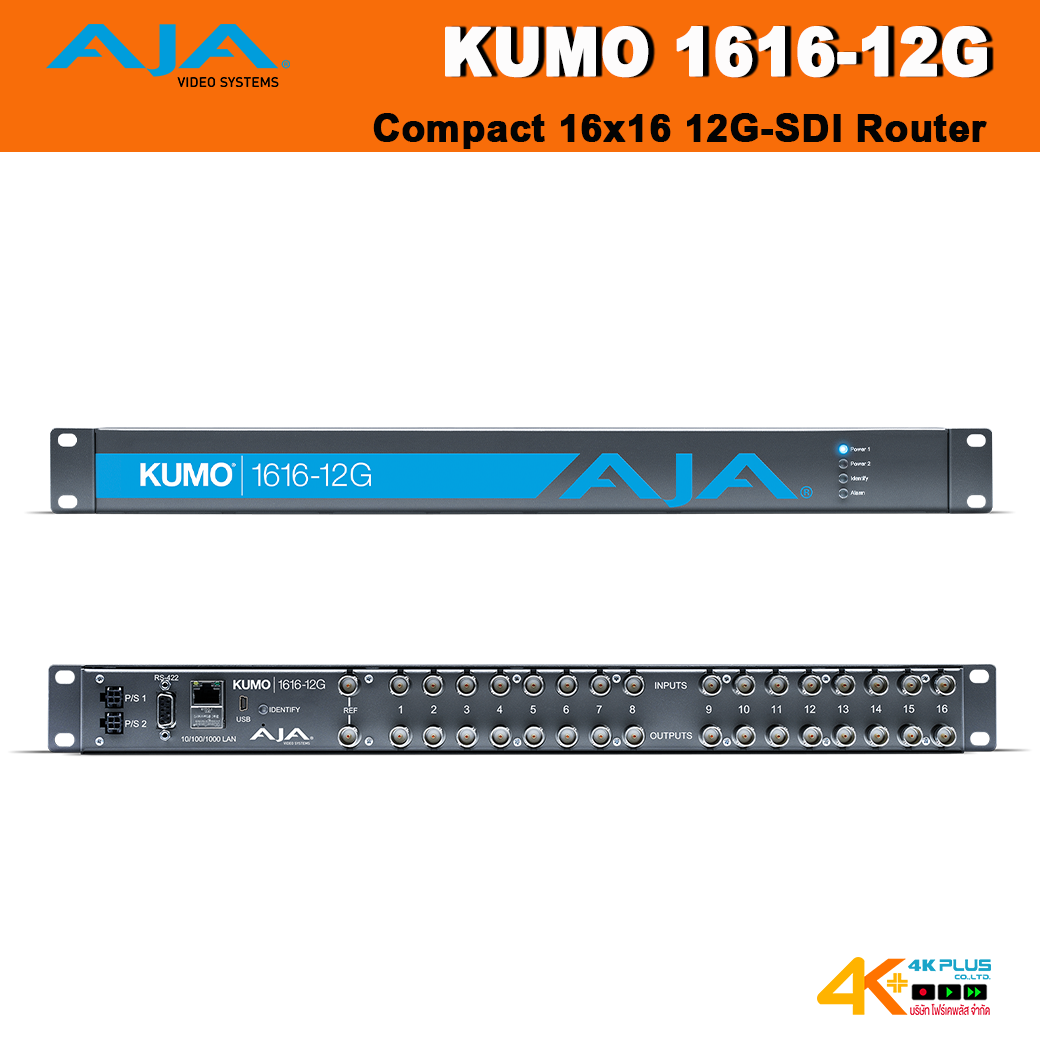

AJA KUMO 1616-12G Compact 16x16 12G-SDI Router

KUMO 1616-12G offers the perfect size for combining multiple cameras, monitors, editing systems, tape decks and file based recorders into a seamless workflow with a compact 1RU profile and support for 12G-SDI/6G-SDI/3G-SDI/1.5G-SDI from 16x 12G-SDI inputs and 16x 12G-SDI outputs. Supports ganged dual and quad port routing control, allowing users to group together multiple inputs and outputs for Dual Link, Quad Link 4K/UltraHD, and 8K/UltraHD2 workflows.

KUMO 12G-SDI routers support large format resolutions, high frame rate (HFR) and deep color formats, while reducing cable counts when transporting 4K/UltraHD over SDI. The routers offer network-based and/or physical control using KUMO CP and CP2, and mirror the physical form of AJA’s production-proven KUMO 3232 and KUMO 1616 routers, with a USB port for configuring IP addresses via AJA’s eMini-Setup software.

Built to the same quality standards as all AJA KUMO products, KUMO 1616-12G is the ideal choice for any situation where a balance of size and capacity are critical such as mid-sized post facilities and mobile trucks.

Features

• 16x 12G-SDI inputs and outputs
• Small, portable form factor
• Single cable support for 4K/UltraHD
• Supports ganged dual and quad port routing for resolutions up to 8K/UltraHD2
• Redundant power supply (option)
• Eight salvos per router
• Embedded web server for remote control
• Configure IP Address via USB port and supplied AJA eMini-Setup software for PC/Mac

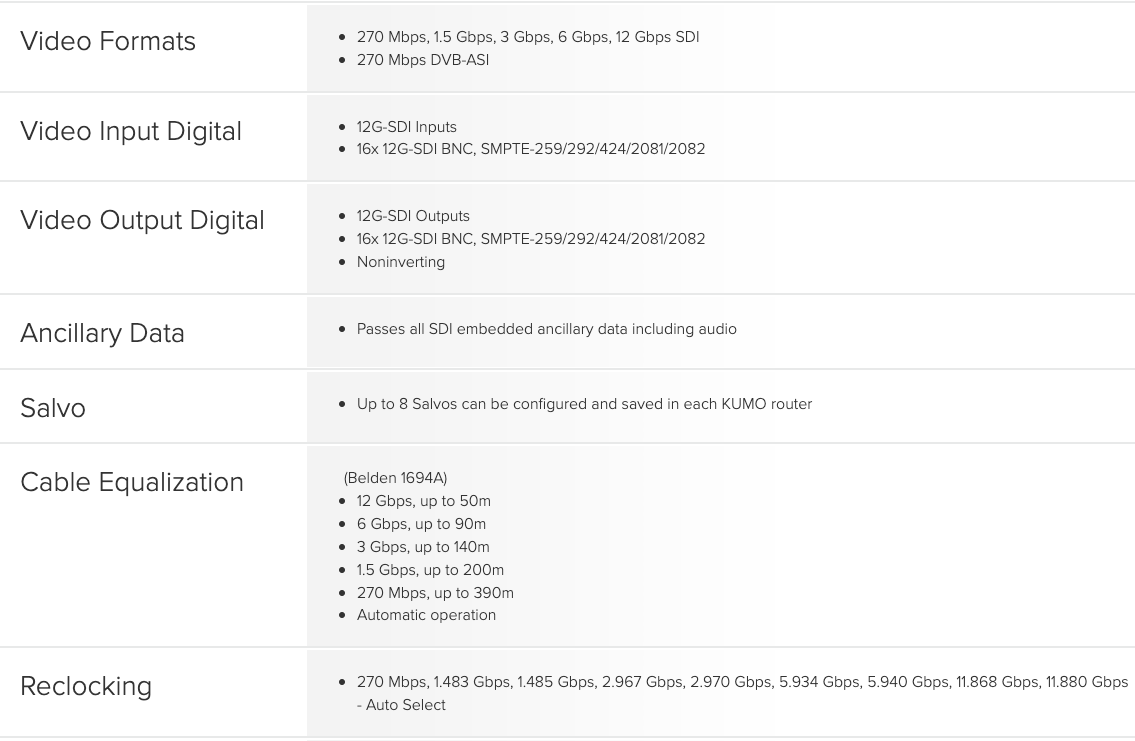

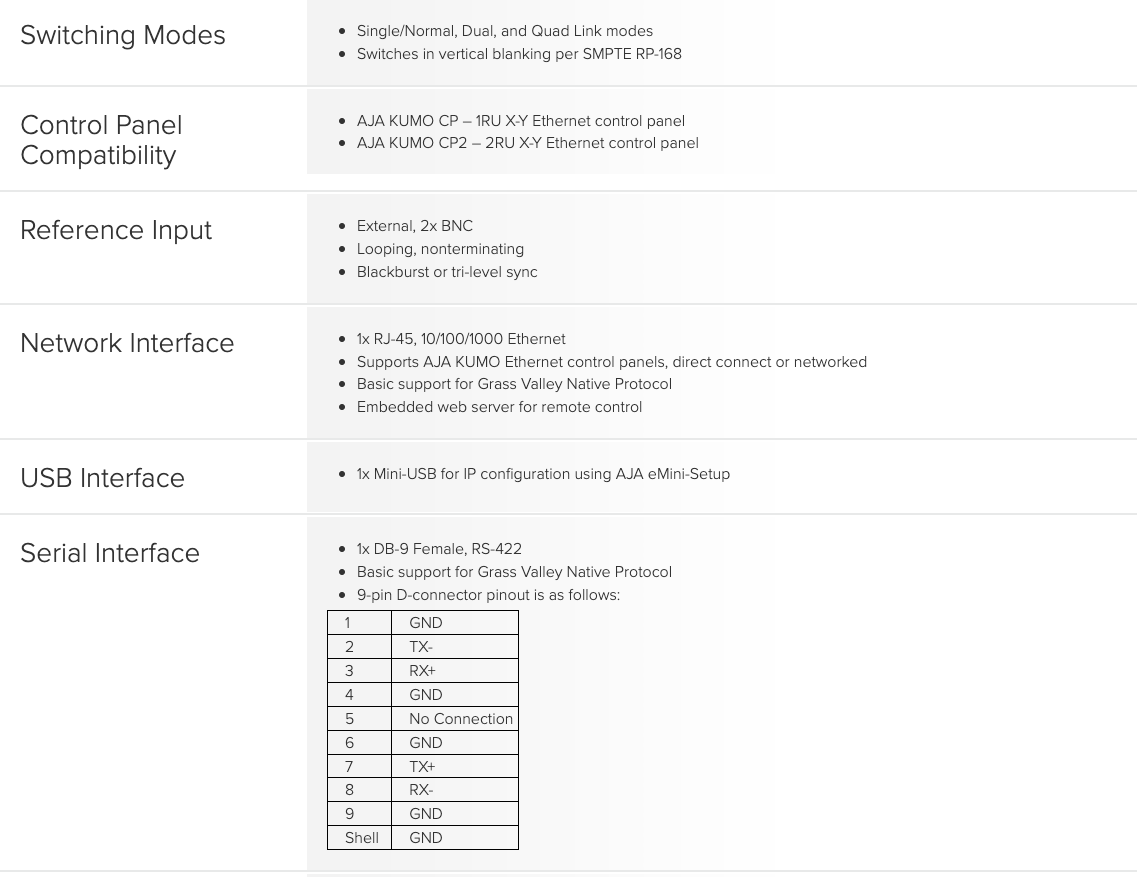

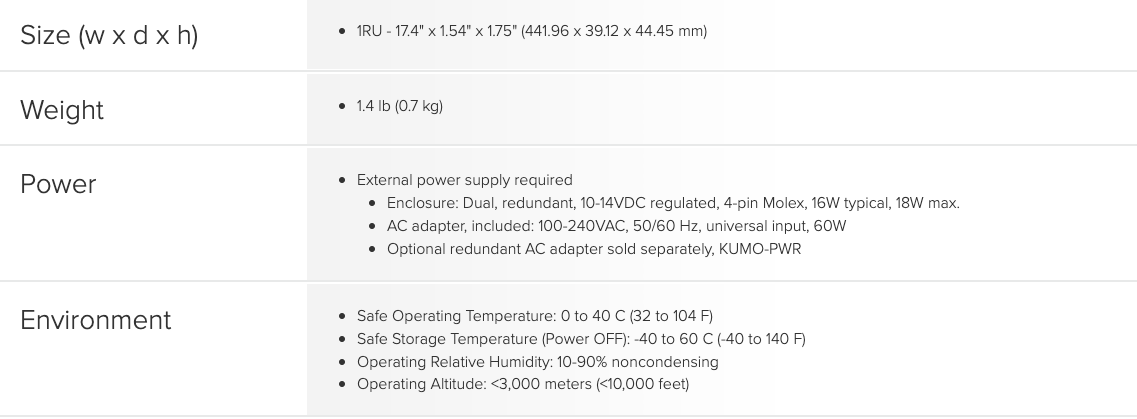

Tech Specs
