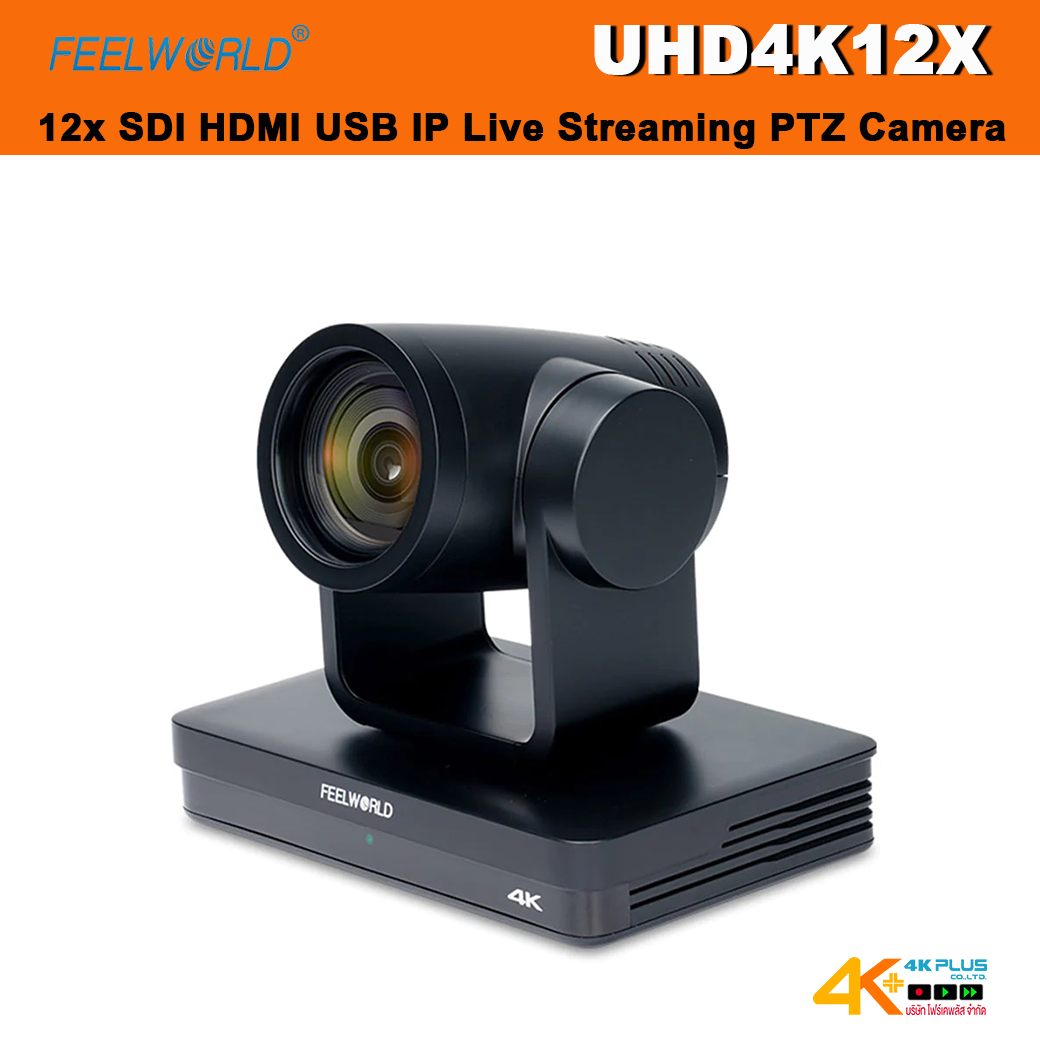

Feelworld UHD4K12X PTZ Camera SDI HDMI USB IP Live Streaming 12X Optical Zoom 4K 30fps Support PoE

จำหน่าย Feelworld UHD4K12X PTZ Camera SDI HDMI USB IP Live Streaming 12X Optical Zoom 4K 30fps Support PoE

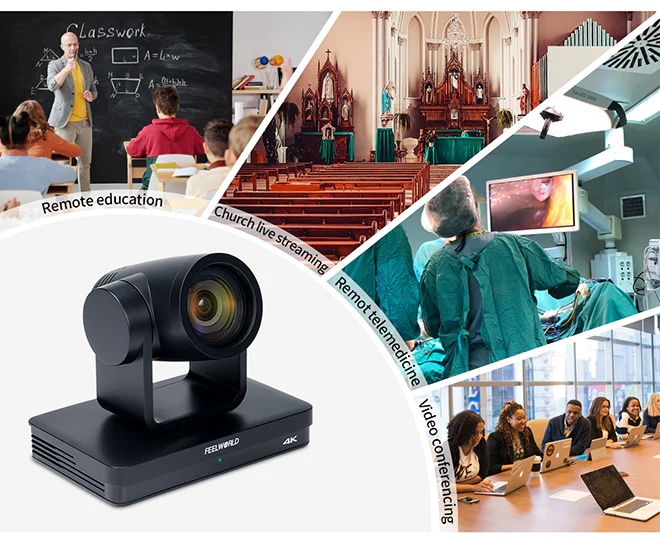

Do you want to feel the 4K Ultra HD video experience? FEELWORLD UHD4K12X PTZ camera can satisfy. It adopts 8.51megapixel high quality SONY CMOS sensor, 12X optical zoom lens and 70° wide angle lens. Equipped with 4K 3840x2160 resolution, present clear and smooth ultra HD video. Ideal for church live streaming, video conferencing , remote education,telemedicine, etc.

Streams in amazing 4K ultra high-definition 30fps resolution, and with 8 bit color depth, good color reproduction.

Note : The zone tracking needs to be set in network control

.

IP live streaming supports H.264&H.265 video compression, which makes motion video more fluent and clear under low bandwidth conditions.

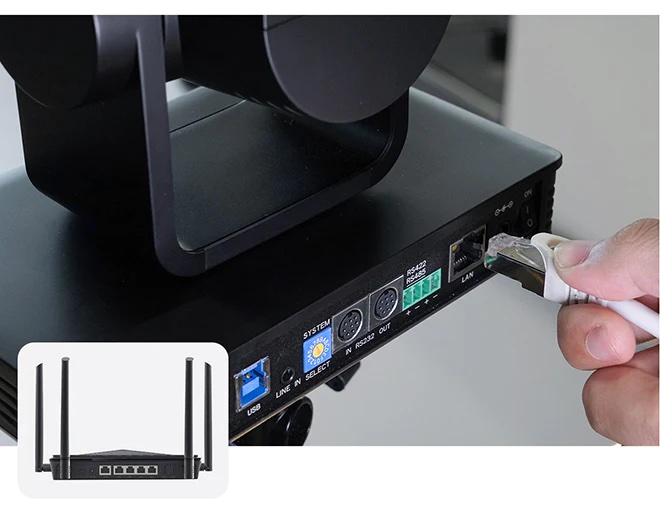

PoE Support
The camera supports PoE ( (Power over Ethernet) allows you to only bring up a single network cable to both power and stream video when using LAN.

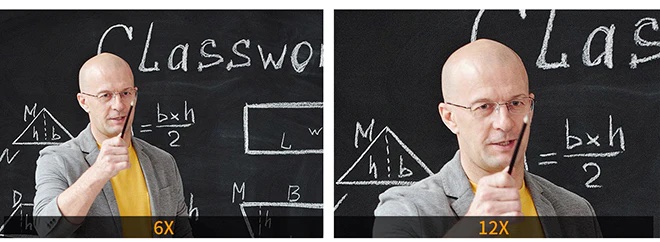

Auto Focus, Smart Frame Capture Everyone
Take close-ups on characters, details, and there is no need to worry about blurring your image when you're speaking choice.

Accurate, Smooth and Silent PTZ Movement

Capture every person in the room with multi-angle Built-in two-way high speed and silent pan/tilt, the lens can rotate 340° horizontally (±170°) and 120° vertically (-30°～+90°).

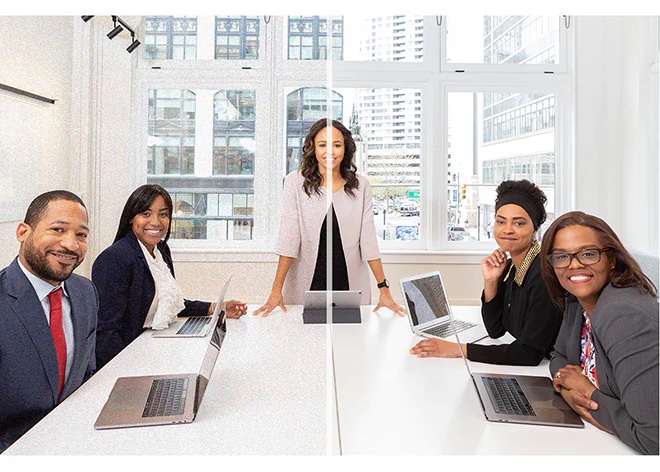

Low Noise and High SNR
Super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.

Up to 255 Preset Positions

10 preset positions by IR remote controller，that can save pan, tilt, and zoom settings, and smoothly transitions between them at the touch of a button. Up to 255 preset positions via network control or keyboard controller.

Multi Ways to Control Your Camera

Operate Nearby or Far Away You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. You can also operate it from a remote location with network control, FEELWORLD L2 PLUS video switcher or FEELWORLD KBC10 keyboard controller.
Note: The distance of IR remote control about 10M, the higher of battery level, the better effect.

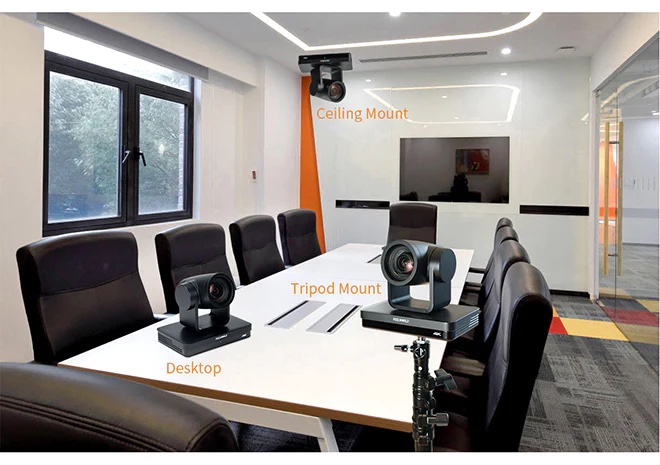

Multiple Mounting Options
The camera can be installed on any wall/ceiling/tripod/desktop to capture close-up shots for your every Live Video Production.

Note: Bracket not included

Pack List:

1× PTZ Camera
1× Remote Control
1× USB3.0 Cable
1× RS232 Control Cable
1× RS422 Terminal Block
1× Power Adapter
1× Manual

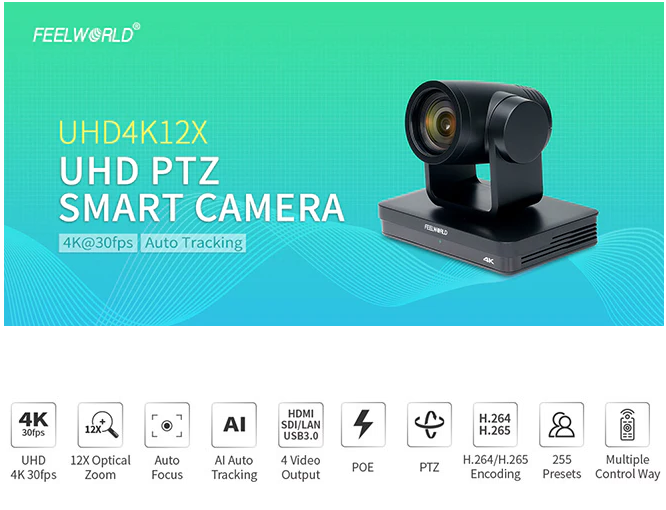

Features:

* 8.51M megapixel high quality SONY CMOS sensor
* Up to 4K@30fps , presenting ultra clear and vivid image
* 12X optical zoom lens and 70° wide angle lens
* Simultaneous SDI, HDMI, USB3.0, IP Streaming video out, easily for professional video production
* PoE(Power over Ethernet) supported
* Auto focus, smart frame capture everyone
* Supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions.
* Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity
* High speed and silent pan/tilt, capture all the actions
* Multiple control protocol and network protocol
* Support real-time AI tracking
* Ideal for online education, live streaming, video conference, Tele-medicine, etc.

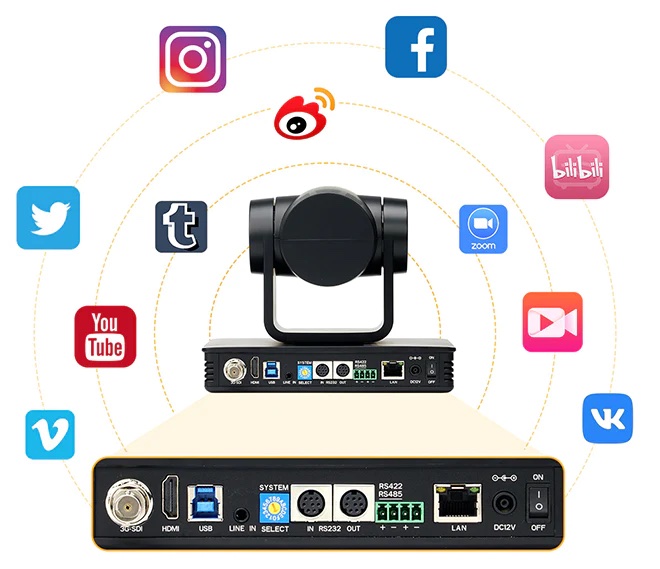

Input/output Interface

  Interface

HDMI, SDI, LAN(POE), USB3.0, A-IN, RS232-IN, RS232-OUT, RS422(Compatible with RS485), DC12V Power Supply, Dial Switch, Power Switch

Video Output

 HDMI, 3G-SDI, USB3.0, LAN(support PoE)


Video Compression Format

 LAN: H.264, H.265; USB: MJPG, H264, YUY2, NV12


Audio Interface

 Double track 3.5mm linear input


Audio Compression Format

 AAC, MP3, G.711A


LAN Interface

 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and

video output

 Control Interface

 RS232-IN, RS232-OUT, RS422 compatible with RS485


Control Protocol

 VISCA/Pelco-D/Pelco-P


Serial Port Communication Protocols

 VISCA/Pelco-D/Pelco-P


USB Communication Protocols

 UVC（Video Communication Protocol）, UAC（Audio Communication Protocol）

Network Protocol

 RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, support remote upgrade, remote reboot, remote reset


Power Supply
HEC3800 Power Socket(DC12V)
