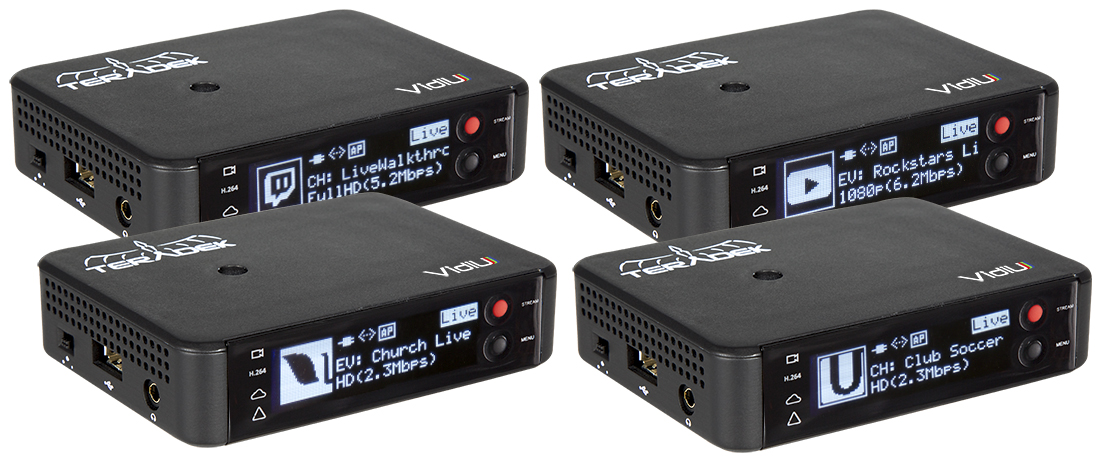

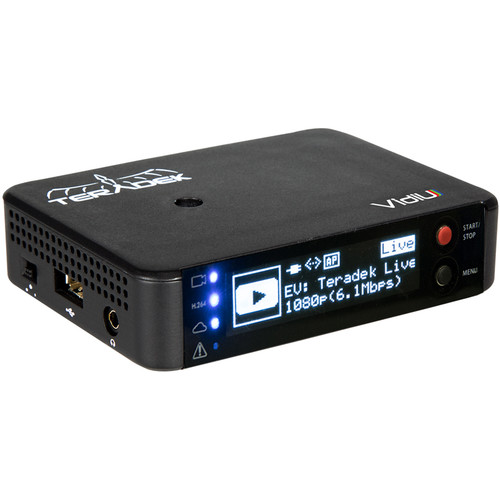

TERADEK VidiU Stream HD video to the Web over WiFi, Ethernet, or 3G/4G LTE.

TERADEK

Transmit live HD video to the Web over WiFi, Ethernet, or 3G/4G LTE.
• HDMI input
• H.264 up to 5Mbps
• Integrated with: Ustream, Livestream, YouTube Live, & Twitch.tv

Features

Wowza Support

Wowza Media Systems reduces the complexities of video and audio delivery with customizable software for organizations to build, deploy, and manage high-quality live and on-demand streaming solutions. Wowza and Teradek partner to provide deeper integration of their market leading media engine and encoding products to make the end-to-end streaming more efficient for our joint customers and creating a better user experience for end viewers.

Go Live Anywhere Cable-Free

VidiU streams over dual band MIMO WiFi, Ethernet, or via a single 3G/4G USB modem. For events that require you to be completely wireless, VidiU’s rechargeable Li-Ion battery lets you roam cable-free for up to 60 minutes.

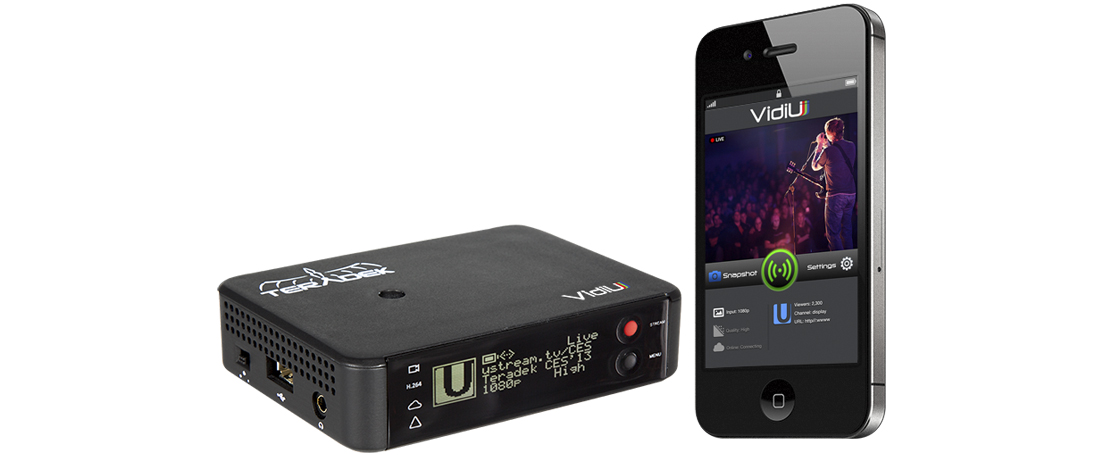

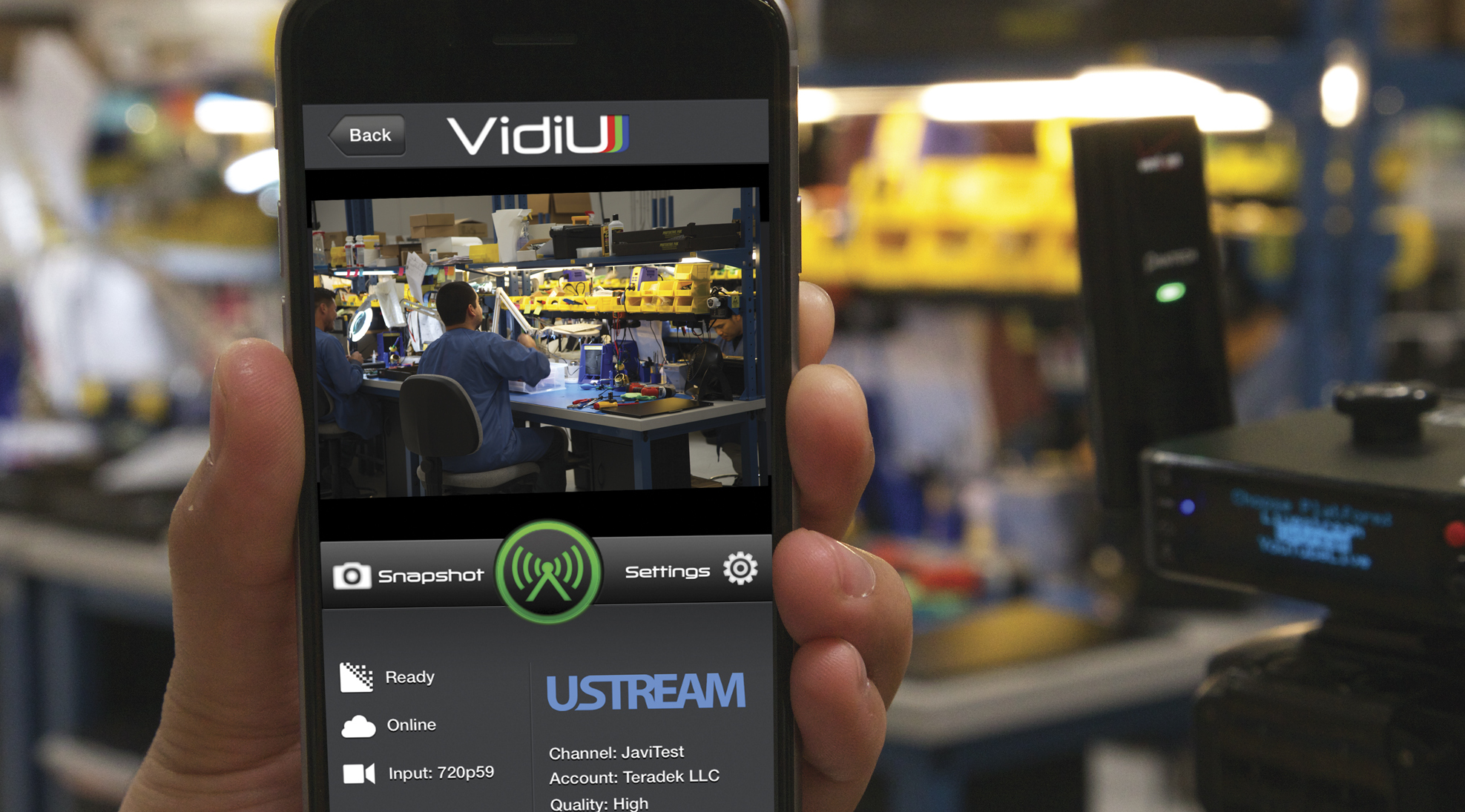

Stream to iOS Devices

VidiU offers a free application for iOS that allows you to stream a second video feed to your mobile device for monitoring your live broadcast. Since VidiU acts as its own dual-band access point, you can choose to connect your iPad or iPhone directly to the device or to your local network.

Full HD Video

Connect your HD video source to VidiU via HDMI and stream at resolutions up to 1080p. VidiU encodes video in real-time using H.264 compression and AAC audio at up to 5Mbps. Embedded HD audio, headphone output, and a mic/line input are supported.

TECH SPECS

VIDEO INPUTS

• HDMI

SUPPORTED INPUT RESOLUTIONS

• 1080i 50/59.94/60
• 1080p 23.98/24/25/30
• 720p 23.98/24/50/59.94/60
• 576i/p
• 480i/p

SUPPORTED RESOLUTIONS

When Widescreen is set to Yes (16:9):

• Full HD: 1920 x 1080
• HD: 1280 x 720
• High: 960 x 540
• Medium: 736 x 414
• Low: 480 x 270
• Mobile: 360 x 200

When Widescreen is set to No (4:3):

• Full HD: 1440 x 1080
• HD: 960 x 720
• High: 720 x 540
• Medium: 560 x 414
• Low: 368 x 270
• Mobile: 272 x 200

*Note: 30fps support for NTSC. 25fps support for PAL.

SUPPORTED VIDEO BIT RATES

• Full HD: 5.2 Mbit/s
• HD: 2.2 Mbit/s
• High: 1.4 Mbit/s
• Medium: 796 Kbit/s
• Low: 446 Kbit/s
• Mobile: 273 Kbit/s

SUPPORTED AUDIO BIT RATES

• Full HD: 192 Kbit/s
• HD: 128 Kbit/s
• High: 96 Kbit/s
• Medium: 96 Kbit/s
• Low: 48 Kbit/s
• Mobile: 48 Kbit/s

VIDEO CODEC

• Compression: Base/Main H.264
• Bit Rate: 250 Kbps to 5 Mbps

STREAMING

• Transport protocol: RTMP
• API level integration: Ustream, YouTube Live & new Livestream

AUDIO

• Audio compression: AAC-LC
• Embedded audio input
• Analog line or mic-in
• Headphone output

PHYSICAL

• Dimensions: 3"W x 4"D x 1"H
• Weight: 5oz

INTERFACES

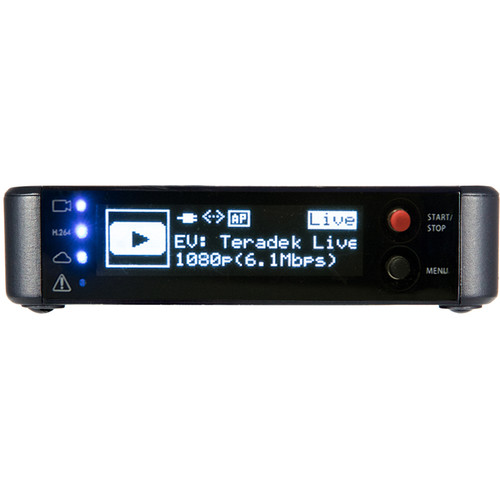

• OLED display with joystick navigation buttons
• On/Off and reset switch
• Powered USB 2.0 host port

NETWORK

• Ethernet: 10/100BASE-T
• WiFi: Dual Band MIMO 802.11 a/b/g/n
• USB 3G/4G modem support

POWER

• DC power input: 6-12V
• Internal rechargeable lithium-ion battery
• Nominal power consumption: 3W
• Nominal power consumption while charging : up to 10W
