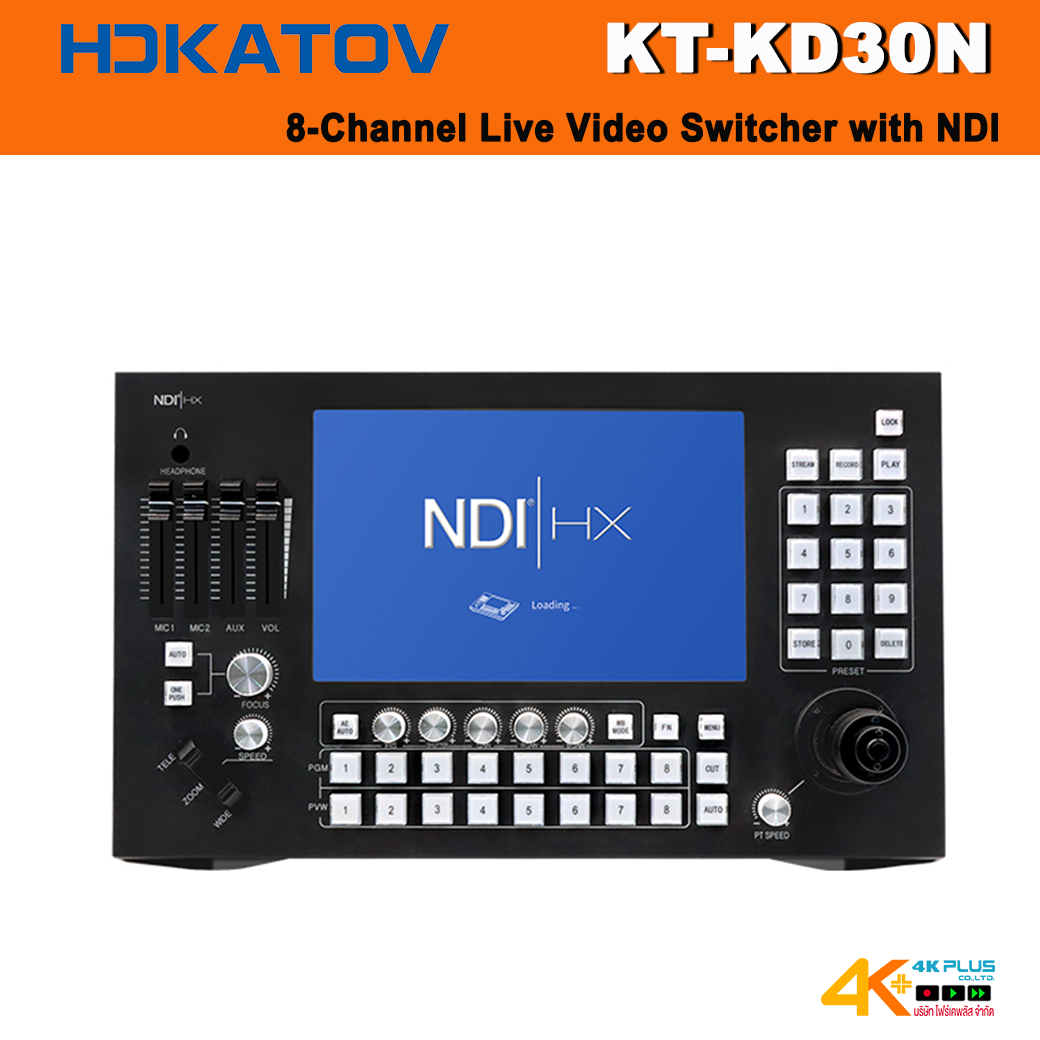

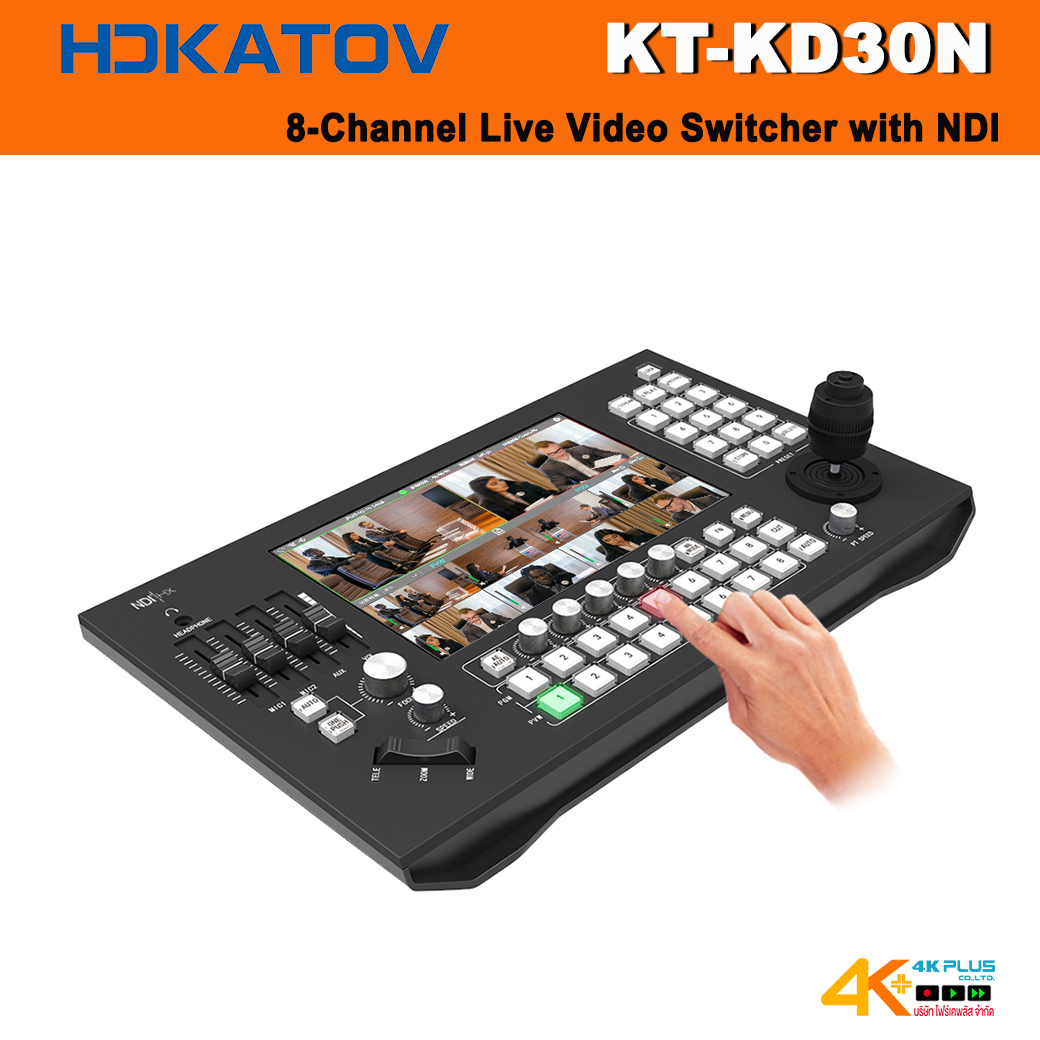

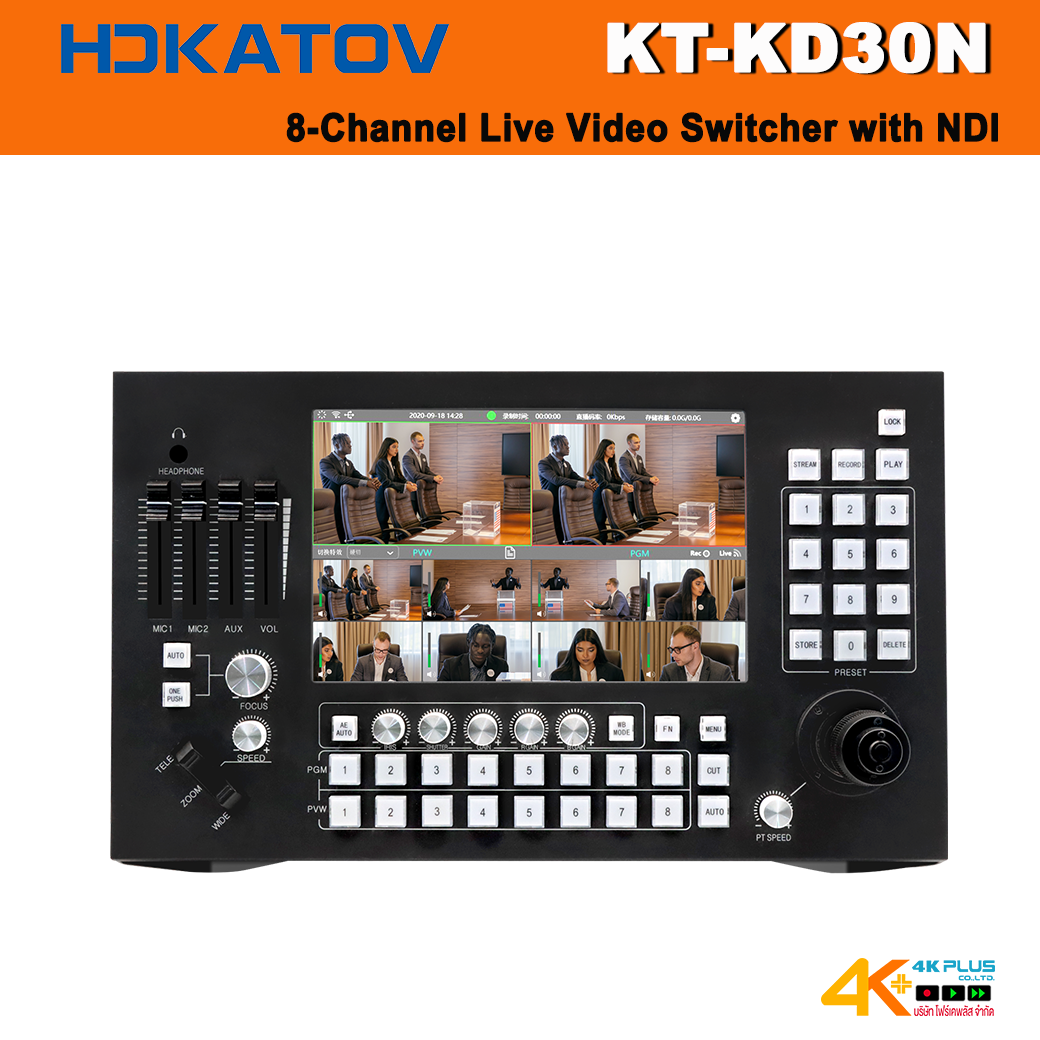

HDKATOV KT-KD30N 8-Channel Live Video Switcher with NDI

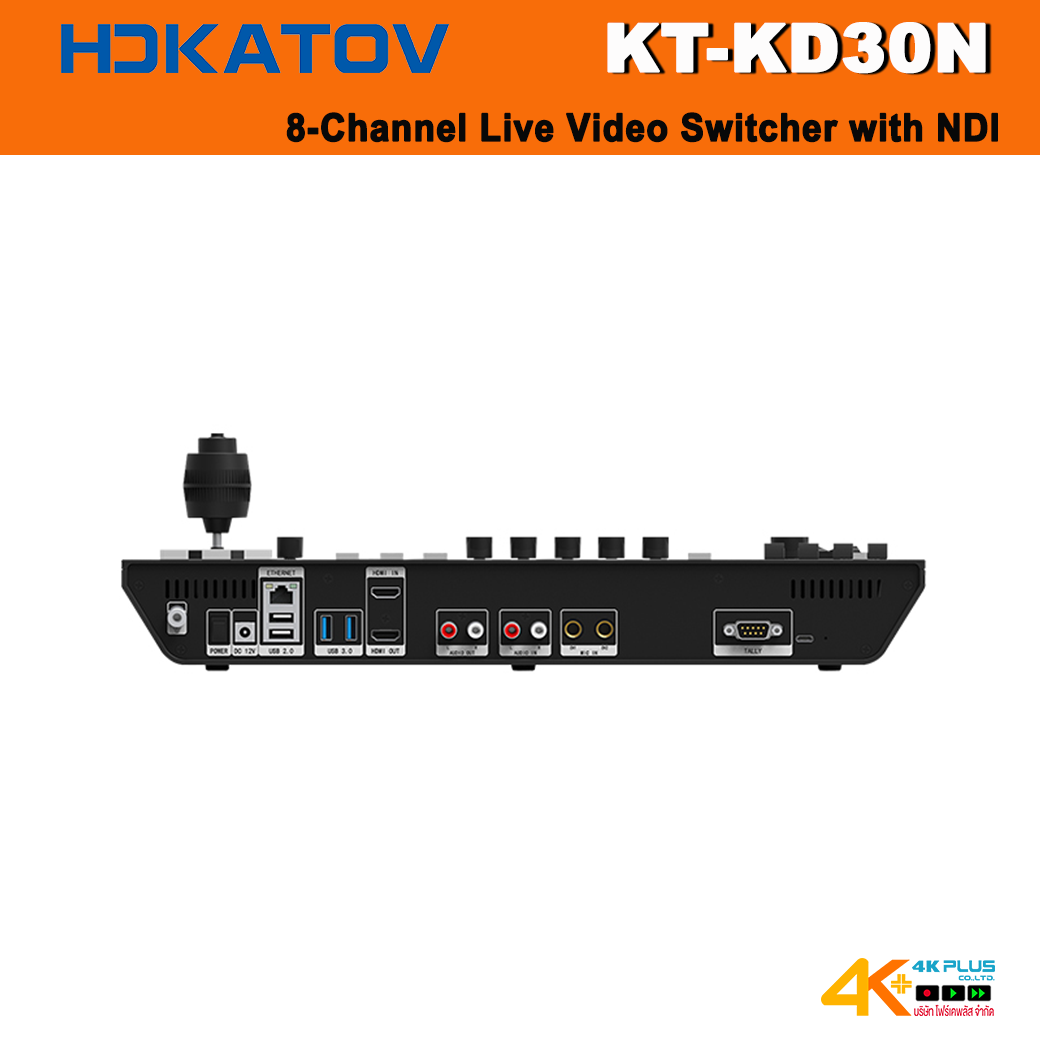

Device Interface

Video Input Interface

8CH NDI|HX 2, 1CH HDMI Type A 1.4

Video Output Interface

1CH PGM-HDMI Type A 1.4

Audio Input Interface

1 group x RCA; 1 group x6.5mm stereo mini jack

Audio Output Interface

1 group x RCA; 1x3.5mm stereo mini jack

RJ45 Ethernet

RJ45x1, Ethernet support 10, 100, 1000 BaseT, can be used for live streaming, background setting, software update

Computer Interface

2xUSB-A 3.0; 2xUSB-A 2.0; support external U disk (FAT32, NTFS, exFAT), external mouse and keyboard

Format Parameter

HD Video Input Format

1080P25, 1080P30, 1080P50, 1080P60

HD Video Output Format

1080P60

Video Sampling

4:2:2 YUV

Color Accuracy

10bit

Color Space

Rec 709

HDMI Input Resolution From Computer

1280x720p 50Hz,59.94Hz,60Hz

1920x1080p  29.97, 30, 50, 59.94,60Hz

Color Space Conversion

Hardware real time

Play Local Files

Video file format: MP4

Image file format: PNG，JPG，BMP

File Recording Format

MP4

File Recording Bit Rate

512KB, 1MB, 3MB, 5MB, 8MB, 12MB, 16MB, 20MB

File Recording Resolution

1920×1080, 1280×960, 960×540

File Playback In Real Time

Support

Product specification

Video System

HD

Number of Function Keys

40

Number of Adjustment Knobs

8

Monitor Screen

10.1”

Monitor Minimum Resolution Requirements

1920x1080 pixels

LOGO

1 set

Clock Display

Support

Operating Mode

Landscape (16:9)

Subtitle

Horizontal subtitle x1; scrolling subtitle x1

Video Keying

Support Chroma Key green screen keying (optional)

Tally

Support

Stunt Switch

CUT & AUTO

Stunt Effects

Cut,4 special effects

PIP Mode

Support (8 PIP and POP modes)

Language Model

Simplified Chinese, Traditional Chinese, English

Audio

Mixer

8-channel mixer with 8 inputs

Each channel is equipped with selectable disable, follow, lock, and the channel can have independent gain control

Analog Input

Unbalanced stereo, support independent gain control

Analog Input Delay

Max 500ms

Audio Input Level Range

0dB~50dB

Audio Sample Rate

48kHz

Audio Format

AAC

Audio Connection

1 set of RCA; 1 set of TRS 6.3mm

Stream media

Streaming Output

Up to 2 channels of streaming media addresses can be output at the same time, and streaming media can be directly broadcast live through Ethernet

Streaming Output Protocol

RTMP, RTMPS, RTSP, NDI HX

Streaming Input

Up to 8 channels of streaming media signals can be input at the same time

Streaming Input Protocol

RTSP, NDI HX, SRT

Streaming Address

Support 1 stream address preset

PTZ Camera Control

PTZ Control

Support

PTZ Control Quantity

8 channels

PTZ Camera Control Mode

4D joystick

PTZ Aperture Control

Support

PTZ Focus Control

Support, Manual, Automatic

PTZ Exposure Control

Support, Manual, Automatic

PTZ Exposure Mode

Red gain value, blue gain value adjustment

PTZ Preset Number

9

Software Update

Firmware Upgrade

Direct connection to Windows, Linux computers using the Ethernet interface

Power Supply

Input voltage

External 12V 3A power supply

Input Current

3A(Max)

POE

not support

Rated Power

36W(Max)

General Specifications

Operating Environment

Indoor

Operating Temperature

5°-40°

Storage Temperature

-10°-60°

Color

Black

Dimension

(W)420*(D)257.5*(H)55.3mm（Without rocker height）

Weight

1.2kg
