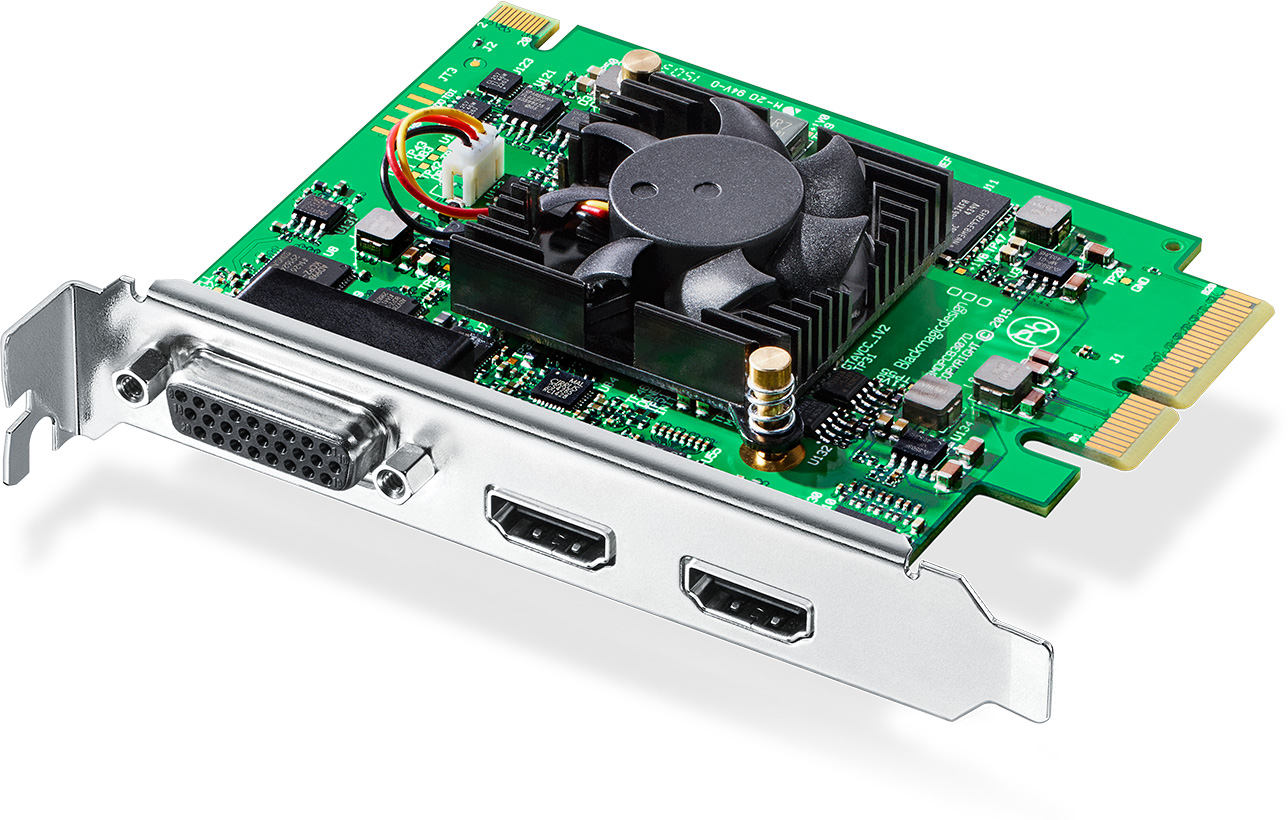

Intensity Pro 4K

capture and playback in SD, HD and Ultra HD for your HDMI, YUV, S-Video and NTSC/PAL devices.

Introducing the new Intensity Pro 4K, the easiest and highest quality way to capture video on your computer! Intensity Pro 4K has all the same great features of the original Intensity Pro capture card but now you also get Ultra HD and 1080p60 high frame rate support! Now you can capture Ultra HD images at up to 30 frames per second or 1080HD at an incredible 60 frames per second.

Highest Quality Connections Connect to all of your SD, HD and Ultra HD devices.

         Intensity Pro 4K features the highest quality HDMI and analog connections so you always get the best looking video possible. Intensity Pro 4K includes HDMI connectors for working with the latest HD and Ultra HD equipment, as well as analog YUV, S-Video, and NTSC/PAL connections for working with older analog televisions, videotape players and more. That means Intensity Pro 4K works with everything from your old VHS decks and DVD players all the way up to the latest gaming consoles and big screen Ultra HD televisions.

SD, HD and Ultra HD Supports video formats up to 1080p60 and 2160p30

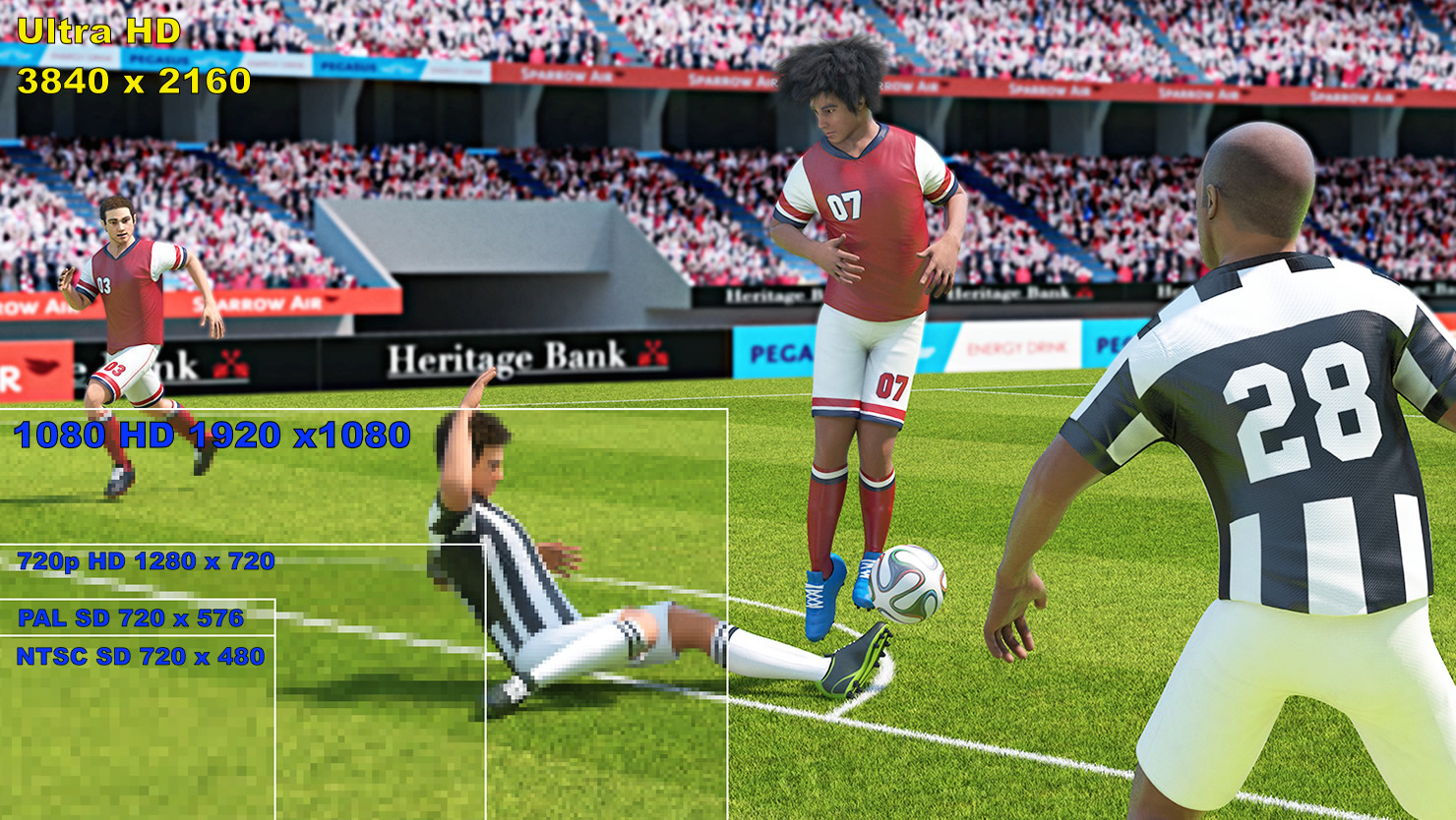

         Intensity Pro 4K works with everything from NTSC, PAL, 720HD, 1080HD and all the way up to Ultra HD, the world’s newest video standard. Ultra HD has a massive resolution of 3840 x 2160 pixels which is four times the resolution of regular 1080HD! That means you get an amazing, lifelike experience because the images are incredibly sharp, colors literally pop off the screen and you’ll be able to see more detail than ever! With Intensity Pro 4K you can capture full 10-bit quality YUV video and deep color from the latest game consoles.

TECH SPECS

Connections

HDMI Video Input

1 x HDMI type A connector.

HDMI Video Output

1 x HDMI type A connector.

HDMI Audio Input

8 Channels embedded in SD, HD and Ultra HD.

HDMI Audio Output

8 Channels embedded in SD, HD and Ultra HD.

Analog Video Input

Component, Composite or S-Video.

Analog Video Output

Component, Composite or S-Video.

Analog Audio Input

2 Channel RCA HiFi audio in 24-bit.

Analog Audio Output

2 Channel RCA HiFi audio in 24-bit.

SPDIF Audio Output

2 Channel 24-bit.

Multiple Rate Support

HDMI video connections are switchable between SD, HD and Ultra HD. Component analog video connections are switchable between SD and HD.

Computer Interface

PCI Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.



SD Format Support



625i/50 PAL and 525i/59.94 NTSC, 480p

HD Format Support

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.

Ultra HD Format Support

2160p23.98, 2160p24, 2160p25, 2160p29.97 and 2160p30.

HDMI Video Sampling

RGB 4:4:4 in HD and YUV 4:2:2 in Ultra HD.

HDMI Audio Sampling

Television standard sample rate of 48kHz and 24-bit.

Color Space

REC 601, REC 709.

HDMI Color Precision

10-bit

HDMI Configuration

HDMI 1.4b supports Deep Color and automatically configures to connected display.

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

UHD/HD Down Conversion

Software based down conversion during video playback.

HD Up Conversion

Real time SD to 1080HD and 720HD during video capture.

Real Time Effects

Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
