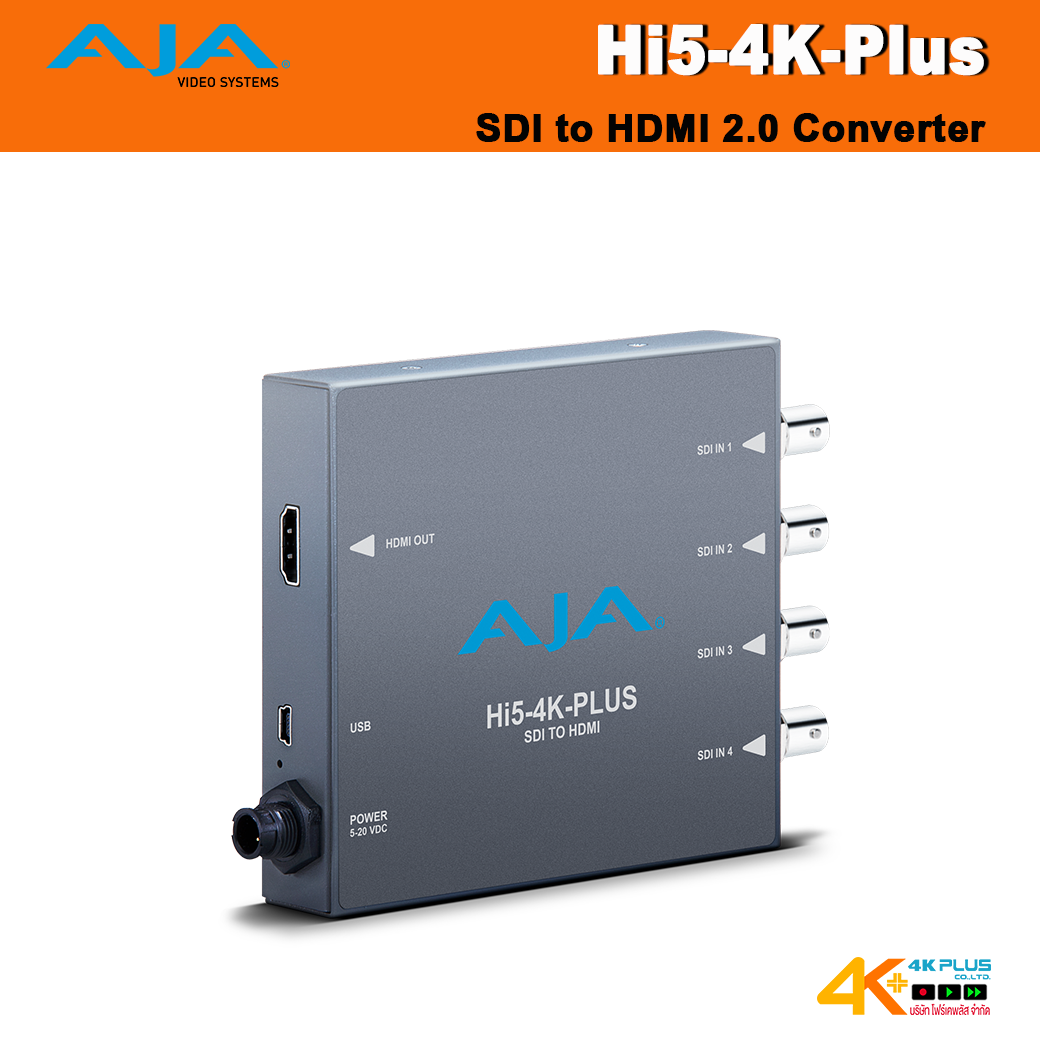

AJA Hi5-4K-Plus SDI to HDMI Converter

• (4K) 4096x2160p
• (UltraHD) 3840x2160p
• (2K) 2048x1080p
• (HD) 1920x1080p
• (HD) 1920x1080i
• (HD) 1280x720p
• (SD) 720x576i
• (SD) 720x480i

Note: Raster and Frame Rate Dependent, please see Hi5-4K-Plus Video Formats in the Download / Documents section of the website product page.

• 4x 3G-SDI BNC, SMPTE-259/292/424
  • YCbCr 4:2:2/4:4:4
  • RGB 4:4:4, SMPTE or Full level
  • 8, 10, 12-bit
  • Two Sample Interleave (2SI) or Square Division (Quadrant) pixel mapping
• 4x 3 Gb SDI (Level A or B Dual Link)
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (4K) 4096x2160PsF* 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (Ultra HD) 3840x2160PsF* 23.98, 24, 25, 29.97, 30
• 4x 1.5 Gb SDI
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
  • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
• 2x 3 Gb SDI (Level B Dual Stream)
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
  • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
• 1x 3 Gb SDI (Level A or B Dual Link)
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p** 50, 59.94, 60
• 2x 1.5 Gb SDI (Dual Link HD-SDI), SMPTE-372
  • (HD) 1920x1080p 50, 59.94, 60
• 1x 1.5 Gb SDI
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
  • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
• 1x 270 Mb SDI
  • (SD) 625i 50
  • (SD) 525i 59.94

*PsF is Level B Dual Link
**1280x720p is Level A Only

• 1x HDMI Type A connector*, HDMI v2.0b
  • HDR infoframe generation with pass-through or override for Colorimetry and Transfer Characteristic
  • YCbCr 4:2:2/4:4:4/4:2:0
  • RGB 4:4:4, SMPTE or Full level
  • 24, 30, or 36 Bits Per Pixel  (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 720x576i 50
  • (SD) 720x480i 59.94

*If a connected monitor doesn’t support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio)

• PCM
• Dolby Digital (AC-3)
• Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)

• SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel

• HDMI embedded audio, 24-bit, 8-channel

• USB port used with supplied cable and Mini-Config software application to configure the device via Mac or Windows.

• 5.76" x 4.02" x 0.90" (146.31 x 102.11 x 22.86 mm)

• 0.6 lb (0.3 kg)

• 5-20VDC regulated, 12 watts, power supply required, included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

Note: Hi5-4K-Plus uses approximately 12 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the Hi5-4K-Plus with other Mini-Converters.
