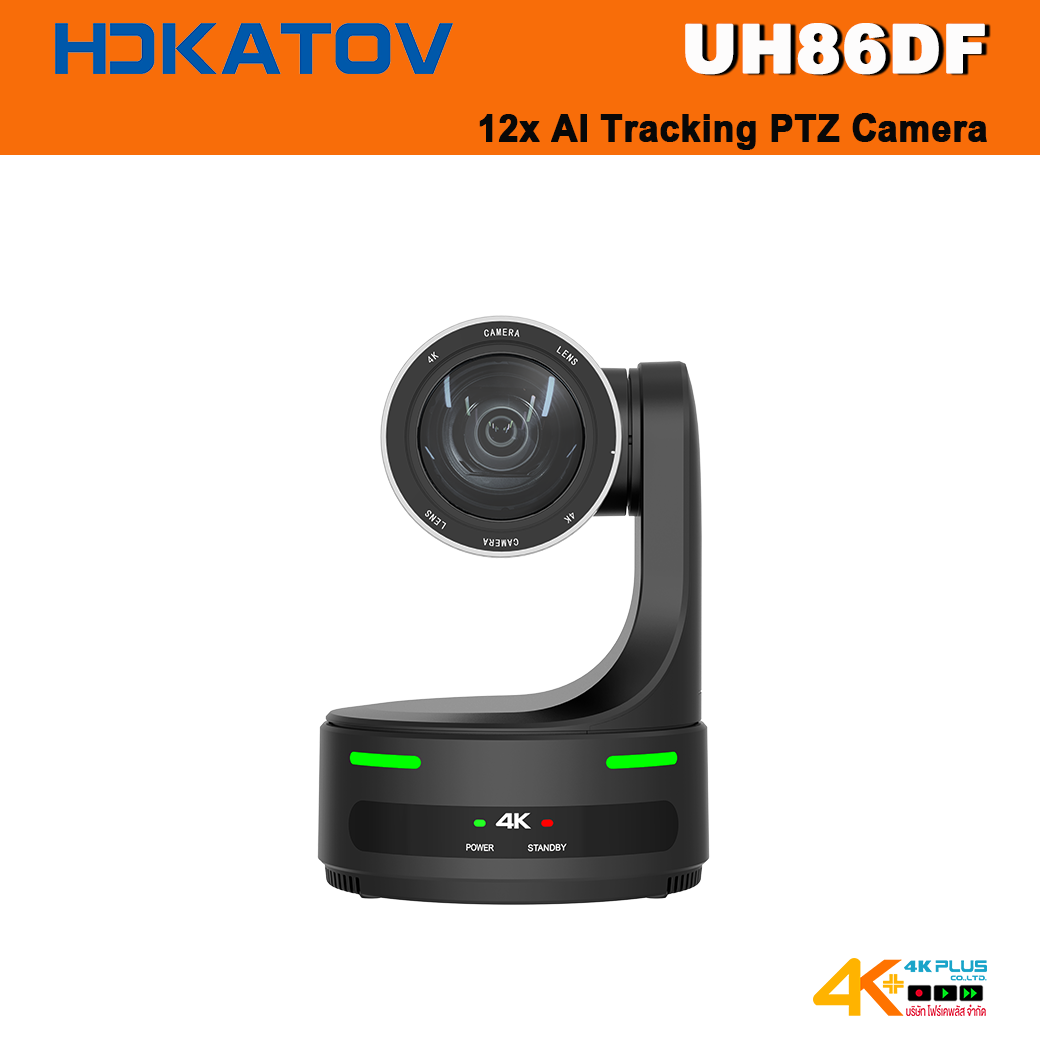

HDKATOV UH86DF 12x AI Tracking PTZ Camera
| รหัสสินค้า | UH86DF |
| หมวดหมู่ | Video Conference |
| ราคา | 32,900.00 บาท |
| VAT7% | ราคาสินค้ารวมภาษีมูลค่าเพิ่ม 7% แล้ว |
| สต๊อกสินค้า | เช็คสินค้าอัปเดตกับทางร้านเท่านั้น |
| สถานะสินค้า | พร้อมส่ง |
| อัพเดทล่าสุด | 8 ก.ค. 2568 |
| จำนวน | ตัว |
รายละเอียดสินค้า
4K60 NDl PTZ Camera, 12X Optical Zoom Al Auto-Tracking NDI®|HX2 Optional Camera with USB3.0 3G-SDI HDMI LAN Outputs,Video
Conference Camera Works with Zoom,OBS,TikTok,YouTube.etc
4K Ultra HD Resolution ：
Adopting the new generation of SONY 1/2.5-inch high-quality CMOS sensor, it can achieve maximum 4K60 ultra-high-definition resolution broadcasting and image output, suitable for larger scene recording.

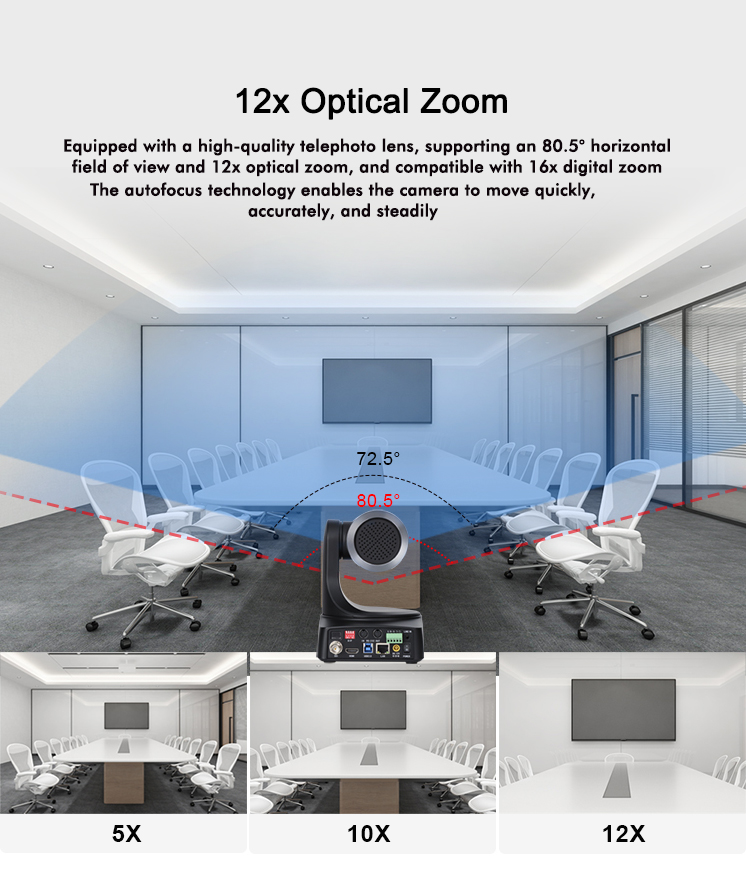

12x/20x optional optical zoom lens :
UH86DF: 80.5° field of view, 12x optical zoom + 16x digital zoom
Equipped with a high-quality telephoto lens, achieving a 12x optical zoom and supporting 16x digital zoom.
UH86DHS: 60.05° field of view, 20x optical zoom + 16x digital zoom
Utilizes a high-quality telephoto lens, offering a 20x optical zoom and supporting 16x digital zoom.

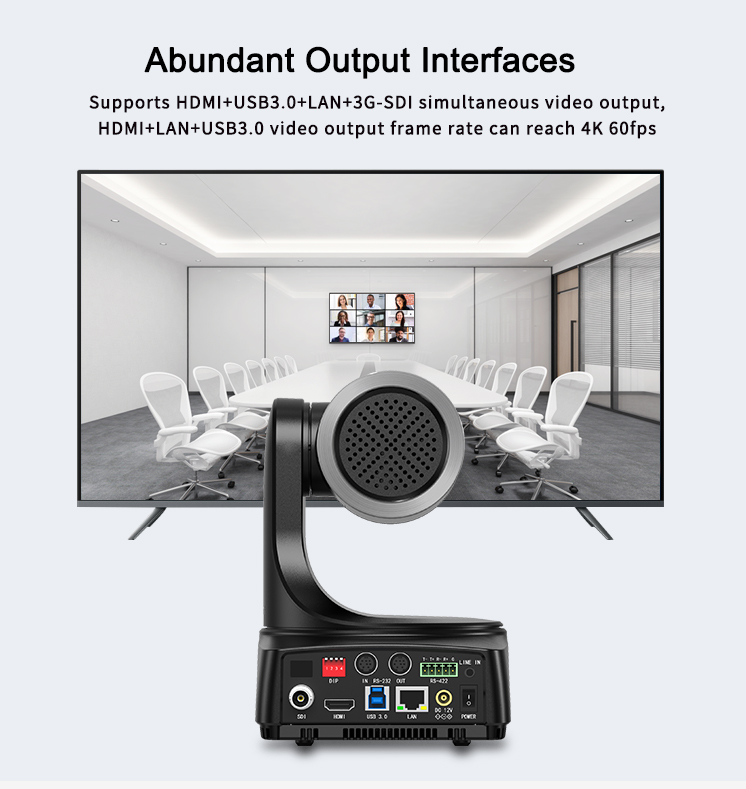

USB3.0+HDMI+LAN+3G-SDI Abundant Outputs for Rich Application Scenarios :
Compatible with all current mainstream video output interfaces, HDMI+USB3.0+LAN supports 4K60 resolution output, 3G-SDI supports 1080p60 resolution output, all interfaces can output simultaneously.
Low Light :
Brand new CMOS image sensor with ultra high S/N Ratio can effectively reduce image noise in low light conditions. Applied 2D&3D Digital noise reduction at the same time, it reduces image noise greatly, even in ultra low light conditions, it could still remain the frame clean and clear, S/N Ratio of the image is higher than 50dB.
IR Pass-through :
In addition to receiving signals from its dedicated remote control, it can also receive signals from users' infrared remote controls and transmit them to the video conferencing terminal through the VISCA IN port.
Multiple Video Compression Standards :
Different interfaces support YUY2, H.265, MJPG, H.264 multiple video compression formats.
Multiple Network Protocols :

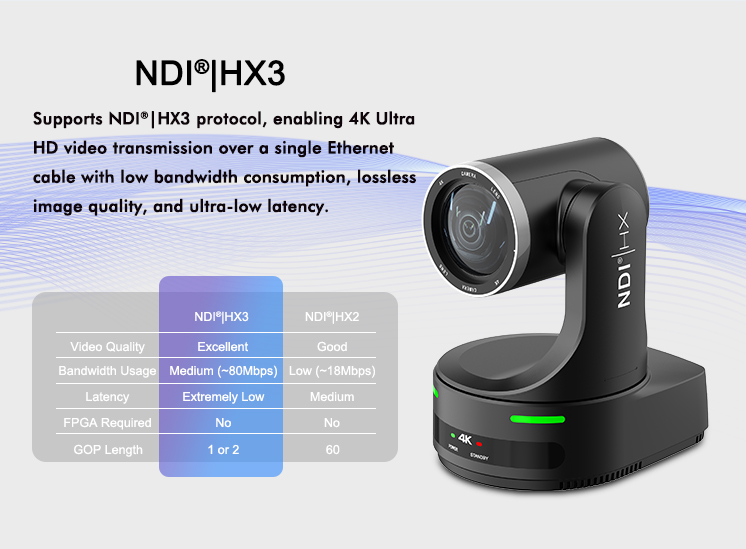

Supports ONVIF, SRT, RTSP, RTMP, Free D and NDI®|HX (optional) protocols, Support automatic identification protocol.
* Free D protocol is being continuously updating, please refer to the shipping version.
Multiple Control Protocols :
Support VISCA ( VISCA Over IP ), PELCO P/D, NDI® (optional) protocol, and automatically identifies protocols.
New generation AI humanoid + face recognition tracking algorithm :
Supports intelligent tracking, automatic framing, and gesture recognition functions. It enables control through five types of gestures, such as activating/deactivating intelligent tracking and automatic framing, switching tracked targets using gestures, customizing tracking sizes, and zooming in/out the lens through gesture control.
Multi-installation Methods:
Wall mounting, desktop or ceiling mounting.
Specification
|
Image Parameters |
|
|
Resolution |
HDMI: 4K60/59.94/50/30/29.97/25, 1080p60/59.94/50/30/29.97/25,1080i60/59.94/50, 720p60/50 |
|
Image Sensor |
SONY 1/2.5" CMOS |
|
Pixels |
8.50 Megapixels, 8.29 Effective Megapixels |
|
Scan Mode |
Line by line |
|
Lens |
12X Optical Zoom, f=3.4m(W)~40.4mm(T), F1.8~F3.6 |
|
Digital Zoom |
16X |
|
Horizontal View Angle |
80.5°(W)~7.6°(T) |
|
Vertical View Angle |
50.5°(W)~4.4°(T) |
|
Focus System |
Auto, Manual |
|
Shutter Speed |
1/50s ~ 1/10000s |
|
Minimum Illumination |
0.1Lux |
|
Exposure |
Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
|
White Balance |
Auto, Indoor, Outdoor, Keying, Auto Tracking |
|
Backlight Compensation |
Support |
|
Digital Noise Reduction |
2D&3D Digital noise reduction |
|
S/N Ratio |
≥50dB |
|
Pan/Tilt |
|
|
Pan Angle |
355° |
|
Tilt Angle |
-30°~+90° |
|
Pan Speed |
1°~80°/s |
|
Tilt Speed |
1°~60°/s |
|
Preset Positions |
9 preset positions by IR remote controller, 255 preset positions by joystick controller |
|
Preset Accuracy |
0.1°±10% |
|
Flip |
Support |
|
Image Freeze |
Support |
|
POE |
802.3af |
|
AI |
|
|
Intelligent tracking |
Support |
|
Auto Framing |
Support |
|
Gesture Recognition |
Support |
|
USB |
|
|
Protocol |
UVC 1.1, UAC1.0 |
|
Operating System |
Window7 and above, MacOS, Linux, Android |
|
Video Compression |
YUY2, MJPEG |
|
Resolution |
MJPEG: 3840*2160, 2560*1440, 1920*1080, 1280*720, 960*540, 800*600, 720*576, 720*480, 640*480, 640*360, 352*288, 320*240 |
|
Frame Rate |
Max.60 |
|
UVC Control |
Support |
|
LAN |
|
|
Protocol |
TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, Onvif, DHCP, VISCA Over IP, Free D, NDI®HX2 (Optional) |
|
Video Compression |
H.264, H.265 |
|
Code Stream |
Main code stream*1, Sub code stream*1 |
|
Main Stream Resolution |
3840*2160, 1920*1080, 1280*720 |
|
Sub Stream Resolution |
640*480, 640*360, 352*288, 320*240, 176*144 |
|
Bitrate Control |
VBR, CBR |
|
Audio |
|
|
Audio Compression |
AAC |
|
Audio Bitrate |
48K and 44.1K |
|
Interface |
|
|
HDMI Interface |
1 Line, HDMI: Version 2.0 |
|
SDI Interface |
1 Line, 3G-SDI |
|
USB Interface |
1 Line, USB3.0, Type-B Socket |
|
Network Interface |
1 Line, RJ45: 1000M adaptive Ethernet port |
|
Audio Interface |
1 Line, Line In, 3.5mm |
|
Serial Interface |
1 Line, RS232 IN/OUT: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P Protocol. |
|
Power Interface |
JEITA RC-5320A Type 4 |
|
General Specifications |
|
|
Tally Light |
Support |
|
Input Voltage |
DC 12V |
|
Input Current |
Max.2.0A |
|
Power Consumption |
Max.24W |
|
Operating Temperature |
0~40℃ |
|
Storage Temperature |
-10~60℃ |
|
Color |
Black, White (Optional) |
|
Dimension |
(W)134*(D)174*(H)187mm |
|
Weight |
1.2kg |
|
Accessories |
DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
