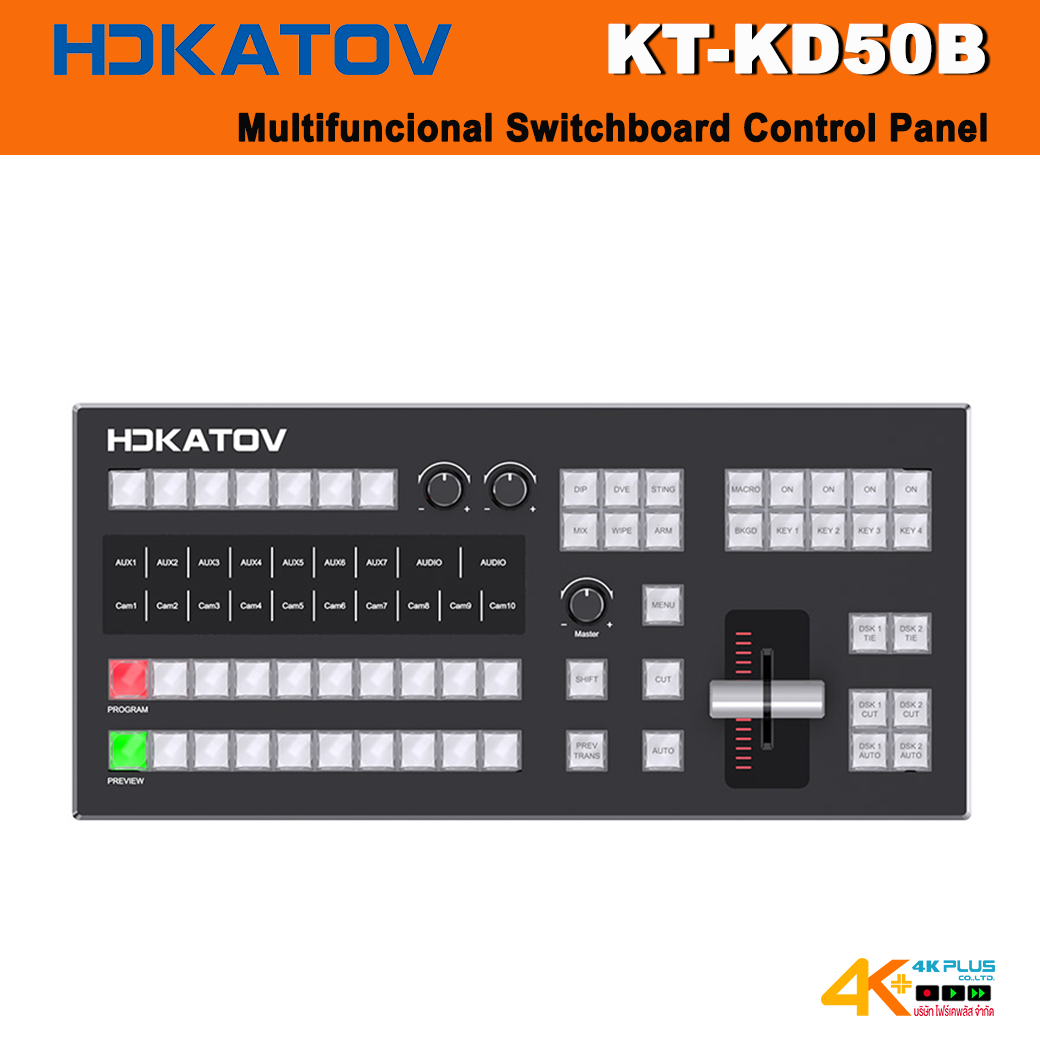

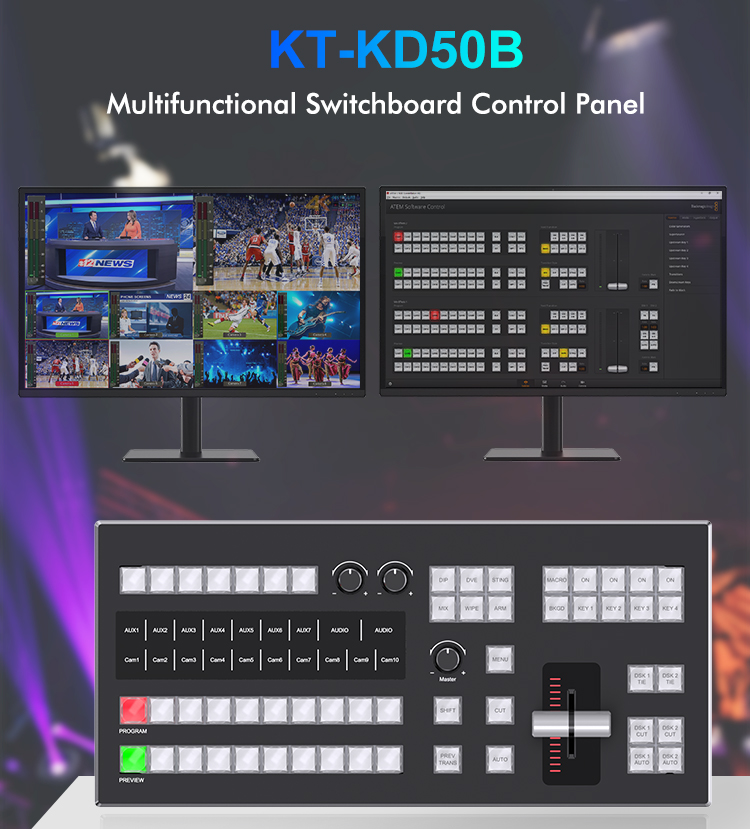

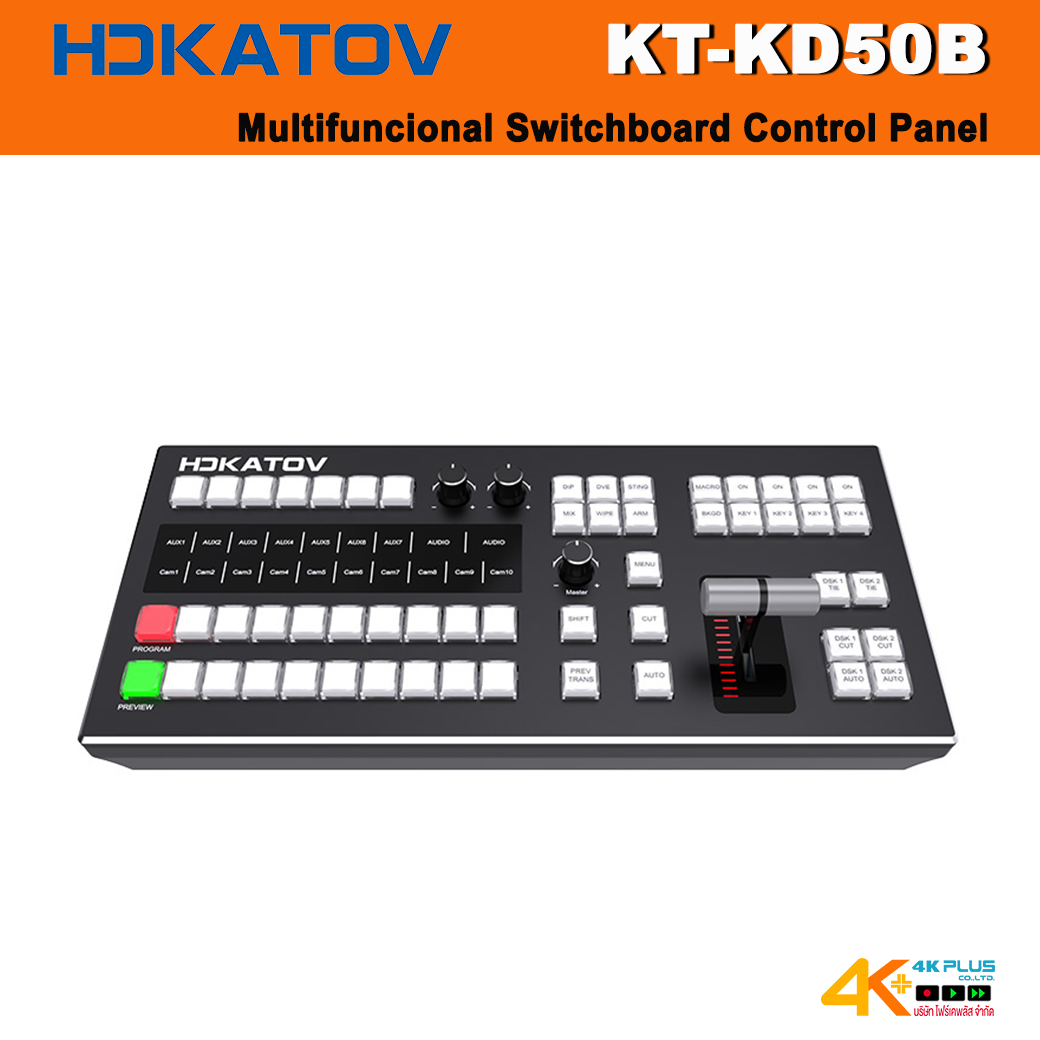

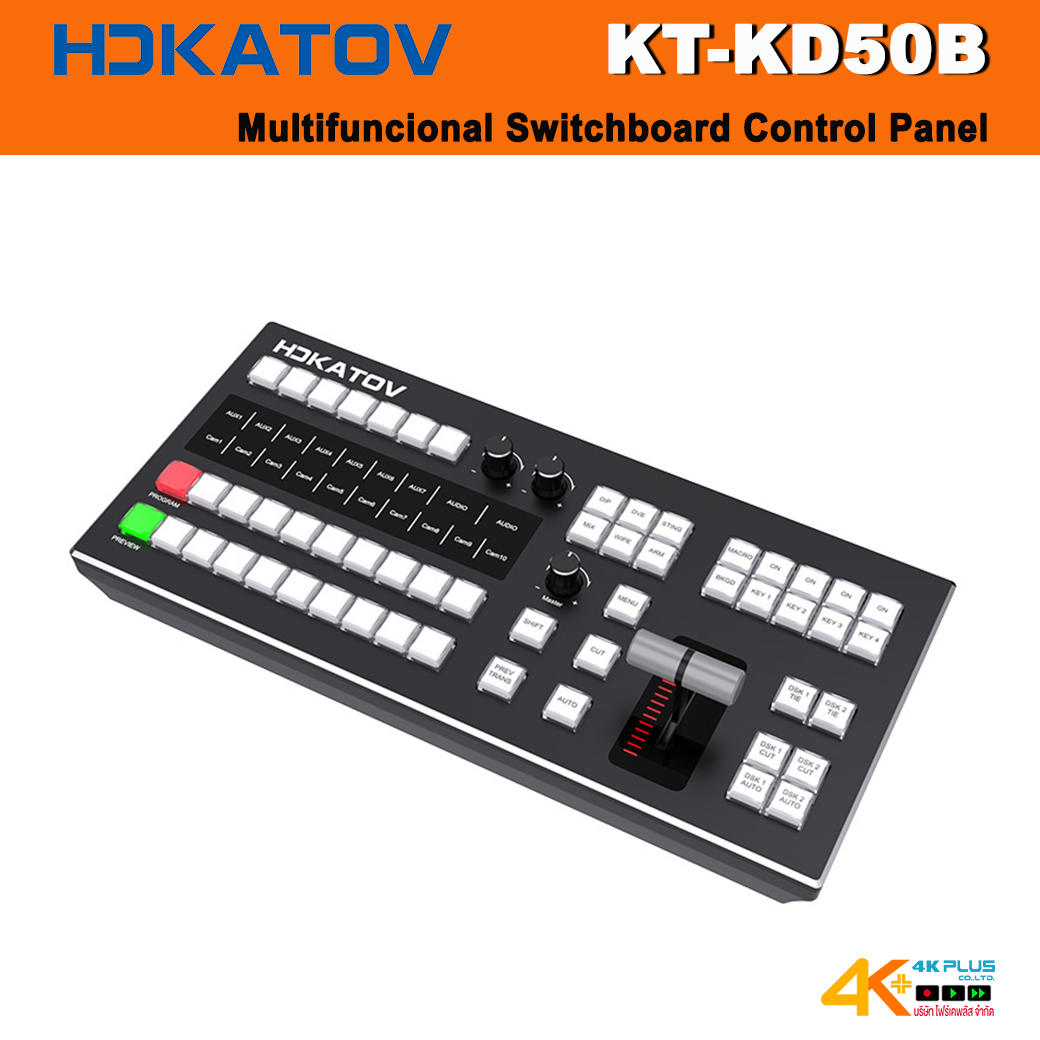

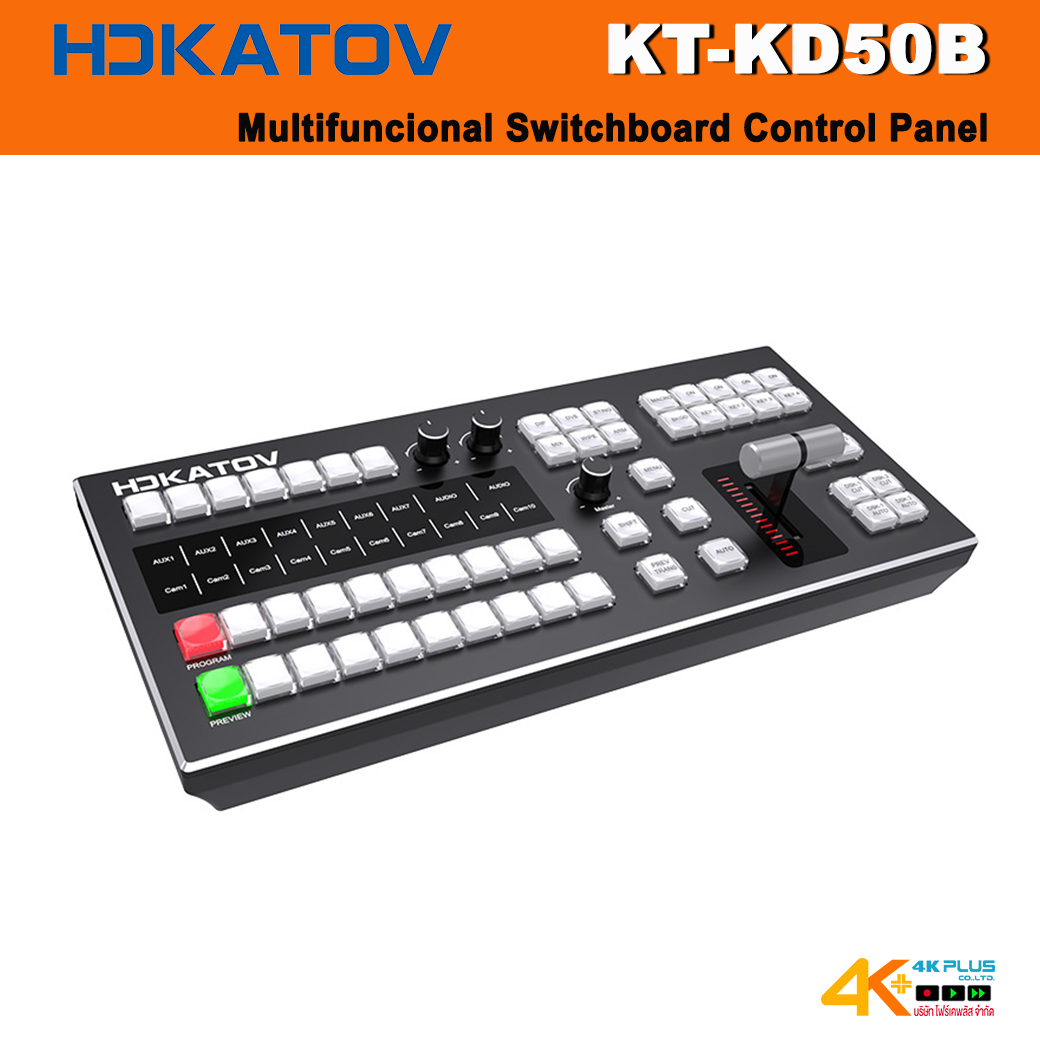

HDKATOV KT-KD50B Multifuncional Switchboard Control Panel

Integrated hardware design

Easy-to-use fully embedded system with a streamlined structure, integrating director switching, audio adjustment and transition effects.

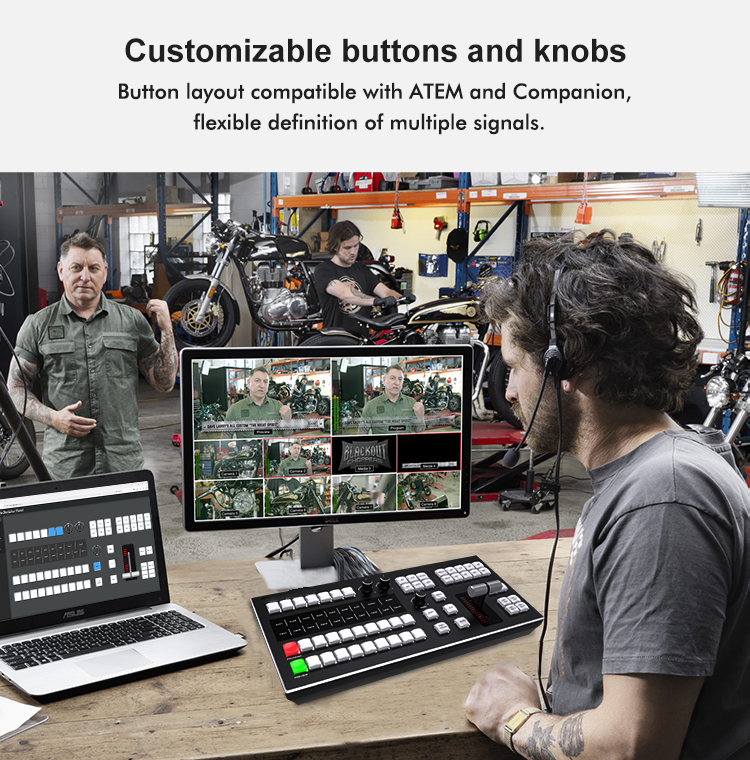

[New upgraded functions, custom buttons and knobs to play more effects]

Connect to ATEM switcher/Bitfocus companion software via LAN, customizable functions supported by buttons and knobs, allowing for personalized configurations to create a unique broadcasting experience, real-time display of button functions on the screen.

Built-in LCD display

Customize functions for display buttons and knobs, and provide a display menu interface for changing switcher IP settings through the on-screen menu.

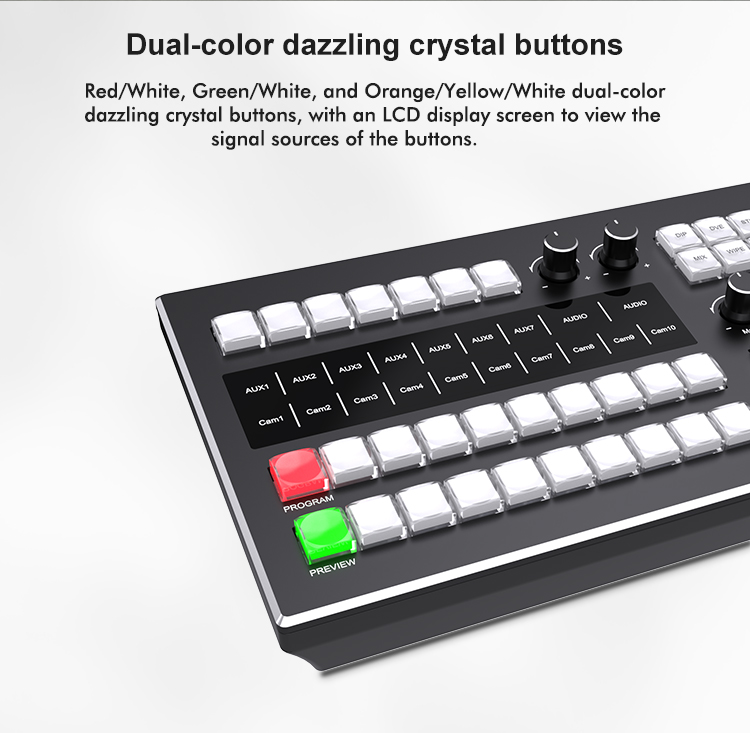

Multi-functional system control integration, tri-color crystal buttons

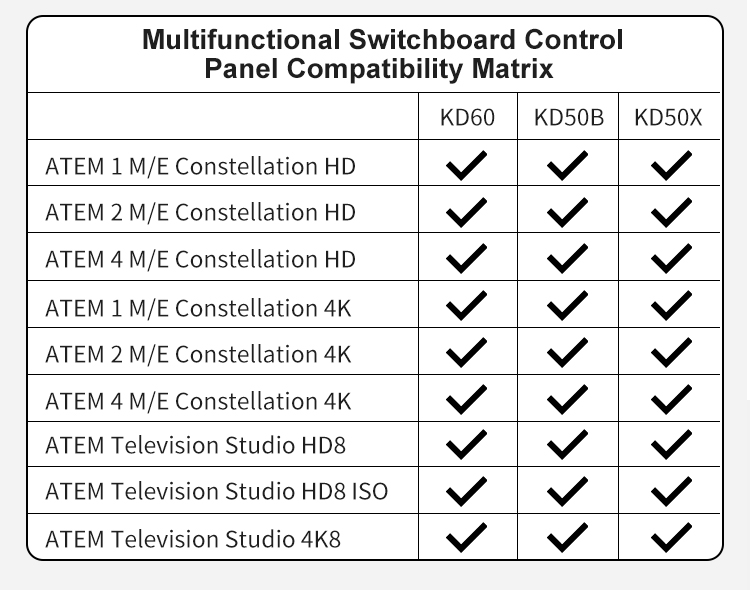

Supports basic corresponding functions of BMD ATEM Constellation and Television Studio series 1 M/E – 4 M/E products, with red, green, and orange-yellow tri-color crystal buttons for clear director seat effects.

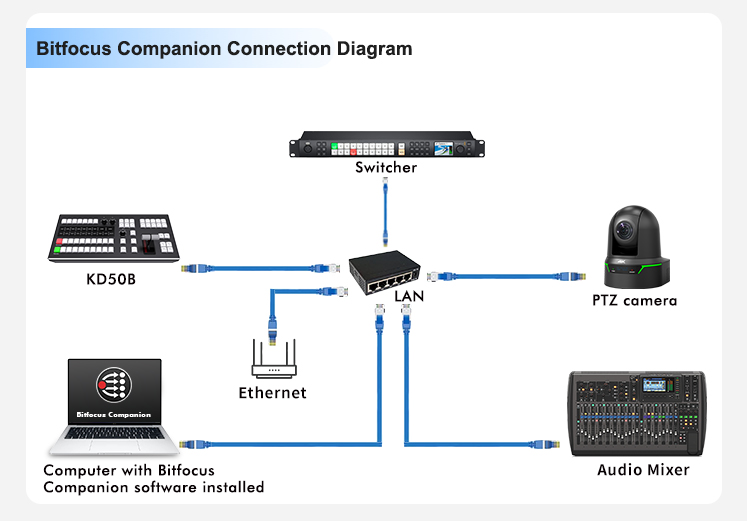

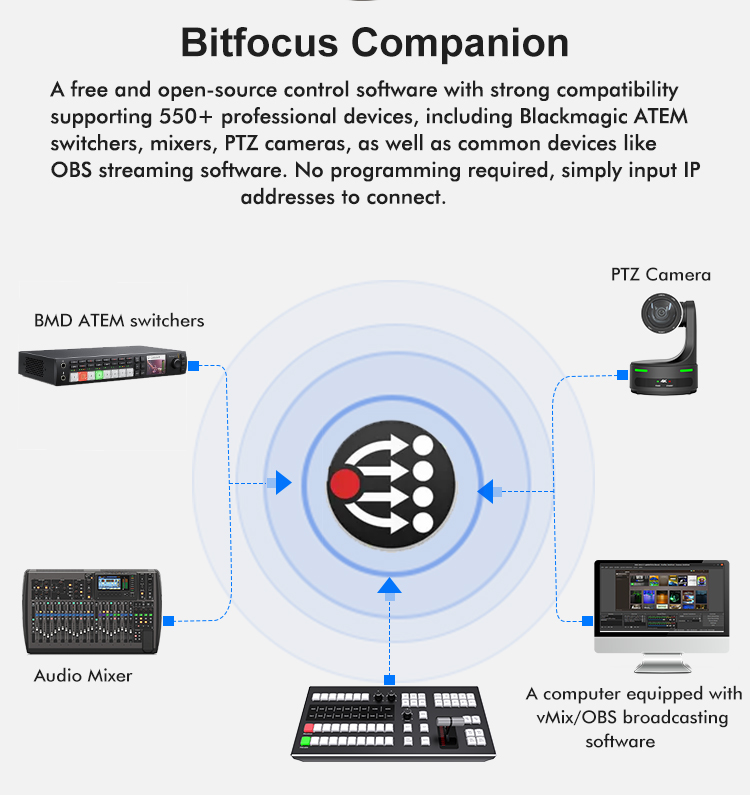

Control panel + Companion smart linkage

The control panel connects to the Companion software, allowing for custom vMix multi-camera switching, OBS live streaming, camera PTZ control, PTZ speed adjustment, zoom and focus control, enabling control over vMix/OBS/PTZ cameras.

High quality aluminum alloy T-BAR faders

Aluminum alloy high-quality T-BAR fader, combined with a nine-level LED light progress bar, is very director-style.

Supports live switching of up to 20 video signal sources

Support selecting up to 20 signal sources for PGM and PVW using the SHIFT key combination, enabling conventional live switching between 10 PGM and 10 PVW sources.

Transition Control

Each transition effect has a dedicated button for full control over the transition effects. The CUT button executes a direct cut transition, while the AUTO button uses the selected transition effect such as DIP, DVE, STING, MIX, WIPE, ARM, allowing quick access to transition effect buttons.

Audio custom adjustment function

Customized audio settings support multi-channel audio control functions such as Audio, XLR, MIC, MP, etc.

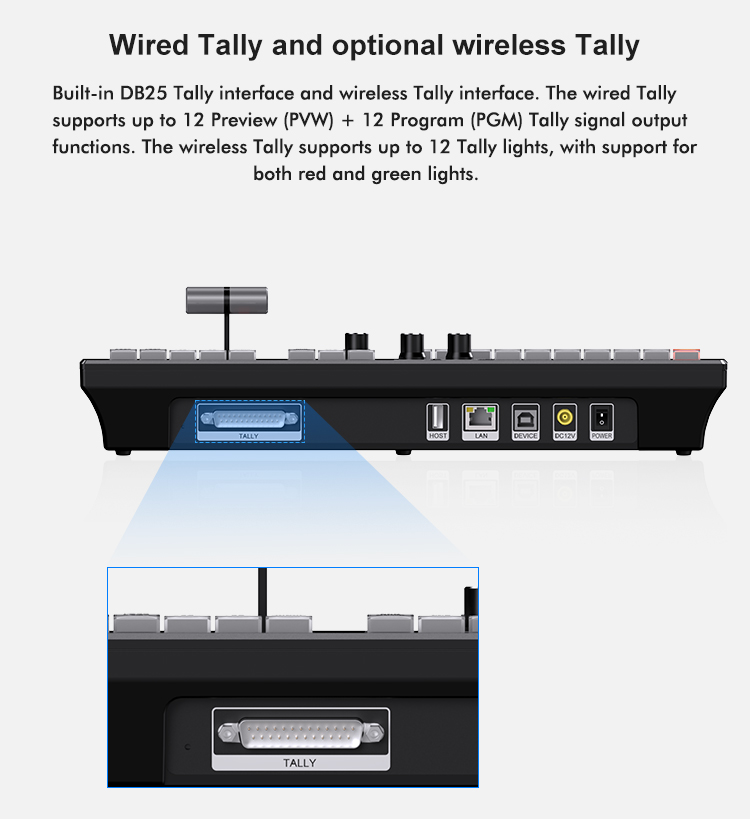

Support wired tally and wireless tally (optional) output functions

Built-in DB25 tally interface and wireless tally interface. Wired tally supports up to 12 PVW + 12 PGM tally signal outputs. Wireless tally supports up to 12 tally lights, including red and green lights.

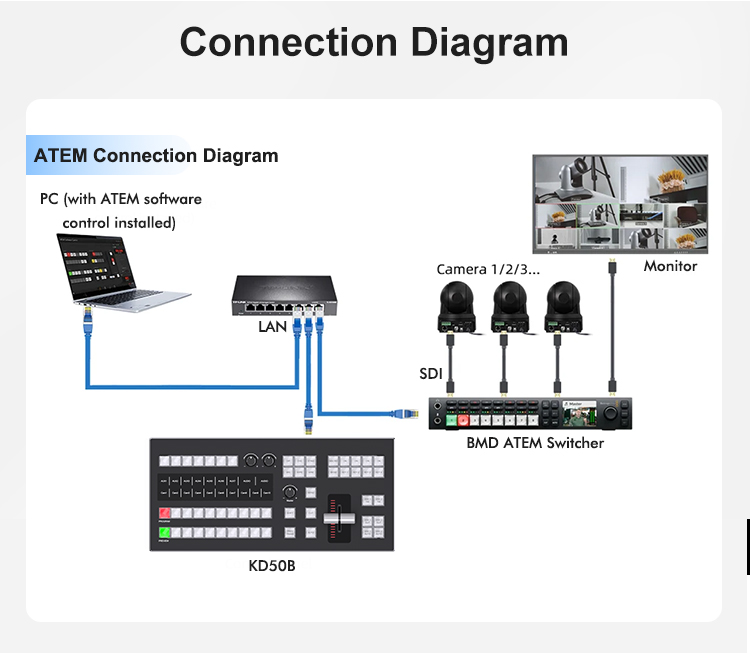

Supports LAN interface connection, simple and convenient

Support LAN connection for BMD ATEM 1 M/E – 4 M/E switchers.

All-aluminum alloy panel

The anodized aluminum alloy panel is processed to show the product quality.

Intuitive WEB backend interface

By remotely accessing the WEB backend interface, you can easily drag and drop the required functions to the button position to achieve customized button functions. At the same time, it supports device upgrades through the WEB backend to ensure that the system is always up to date.
