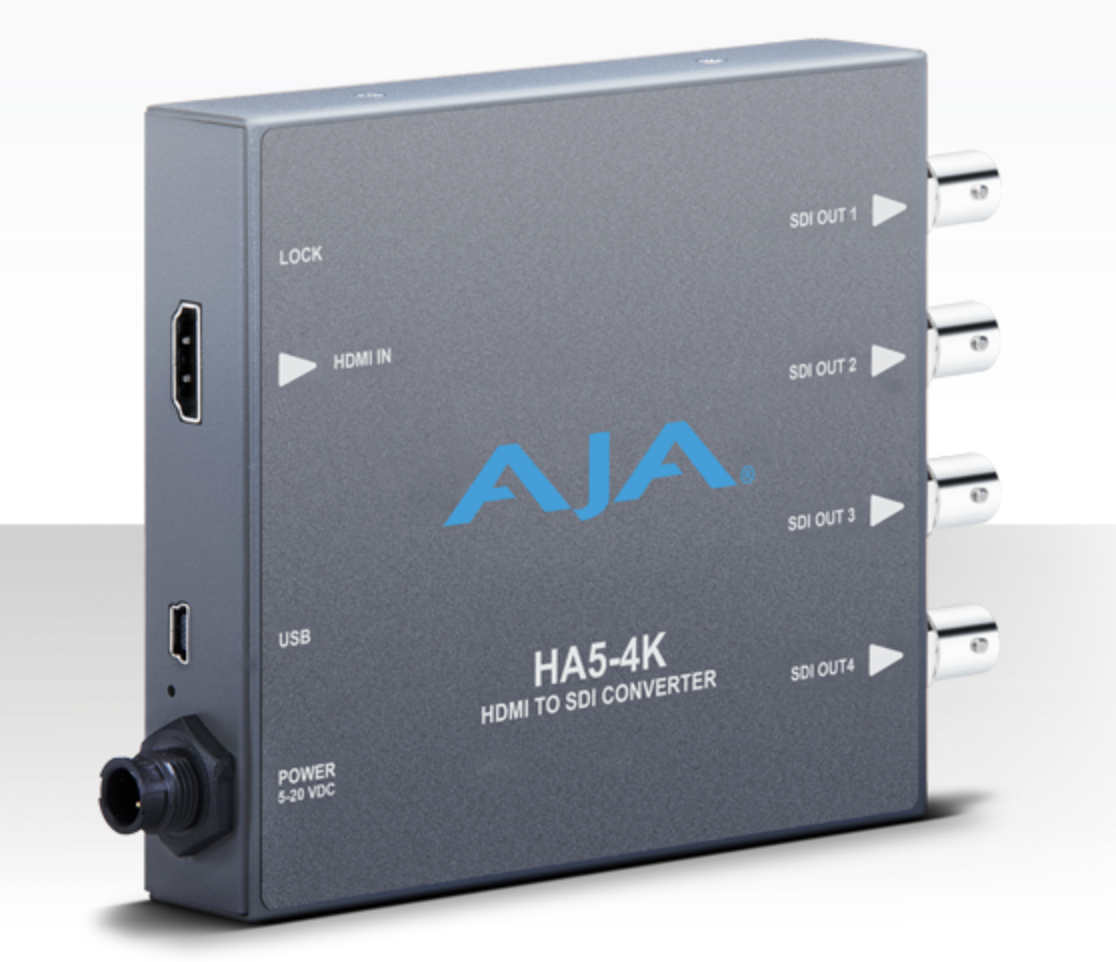

AJA HA5-4K/4K HDMI to 4K SDI

• HDMI Standard Type A connector
• HDMI v1.4a 30/36 bits per pixel, RGB or YUV
• HDMI v2.0b (3840 x 2160p 8-bit 4:2:0; 50, 59.94, 60)

• 2048x1080p 23.98, 24, 25, 29.97, 30
• 1920x1080p 23.98, 24, 25, 29.97, 30

NOTE: Supports 24-bit mode for UHD/4K video input.

• 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 1920x1080i 25, 29.97, 30
• 1280x720p 50, 59.94, 60

NOTE: Supports 24bit, 30bit, 36bit modes for HD video input.

• 525i
• 625i

NOTE: Supports 24bit, 30bit, 36bit modes for SD video input.

• 4K/3G-SDI (auto-selected), 4 x BNC

NOTE: Color space YCbCr, 4:2:2, 8/10 bit unless shown otherwise.

• 1920x1080p 23.98, 24, 25, 29.97, 30, RGB/YCbCr 4:4:4
• 2048x1080p 23.98, 24, 25, 29.97, 30, RGB/YCbCr 4:4:4

• 1920x1080p 23.98, 24, 25, 29.97, 30
• 2048x1080p 23.98, 24, 25, 29.97, 30

• 1920x1080p 50, 59.94, 60
• 2048x1080p 50, 59.94, 60

• 1920x1080p 50, 59.94, 60
• 1920x1080p 23.98, 24, 25, 29.97, 30, RBG/YCbCr 4:4:4
• 2048x1080p 50, 59.94, 60
• 2048x1080p 23.98, 24, 25, 29.97, 30, RBG/YCbCr 4:4:4

• 1920x1080p 23.98, 24, 25, 29.97, 30
• 2048x1080p 23.98, 24, 25, 29.97, 30
• 1280x720p 50, 59.94, 60

• 525i
• 625i

• HDMI embedded audio, 24-bit, 2-channel

• SDI embedded audio, 24-bit, 2-channel

• Uses AJA Power Supply model DWP-U-R1 (included with purchase)
• 100-240V, 50/60Hz Universal Input
• +5 to 20V DC regulated, 10 watt capacity

• 5.8” × 3.9” × 0.8”(147mm × 99mm × 20mm)
