Products Description

【1080P HD Resolution】

Applies SONY 1/2.8”  CMOS sensor, 2.07 Megapixels, max.1920x1080 high resolution with frame rate up to 60fps.

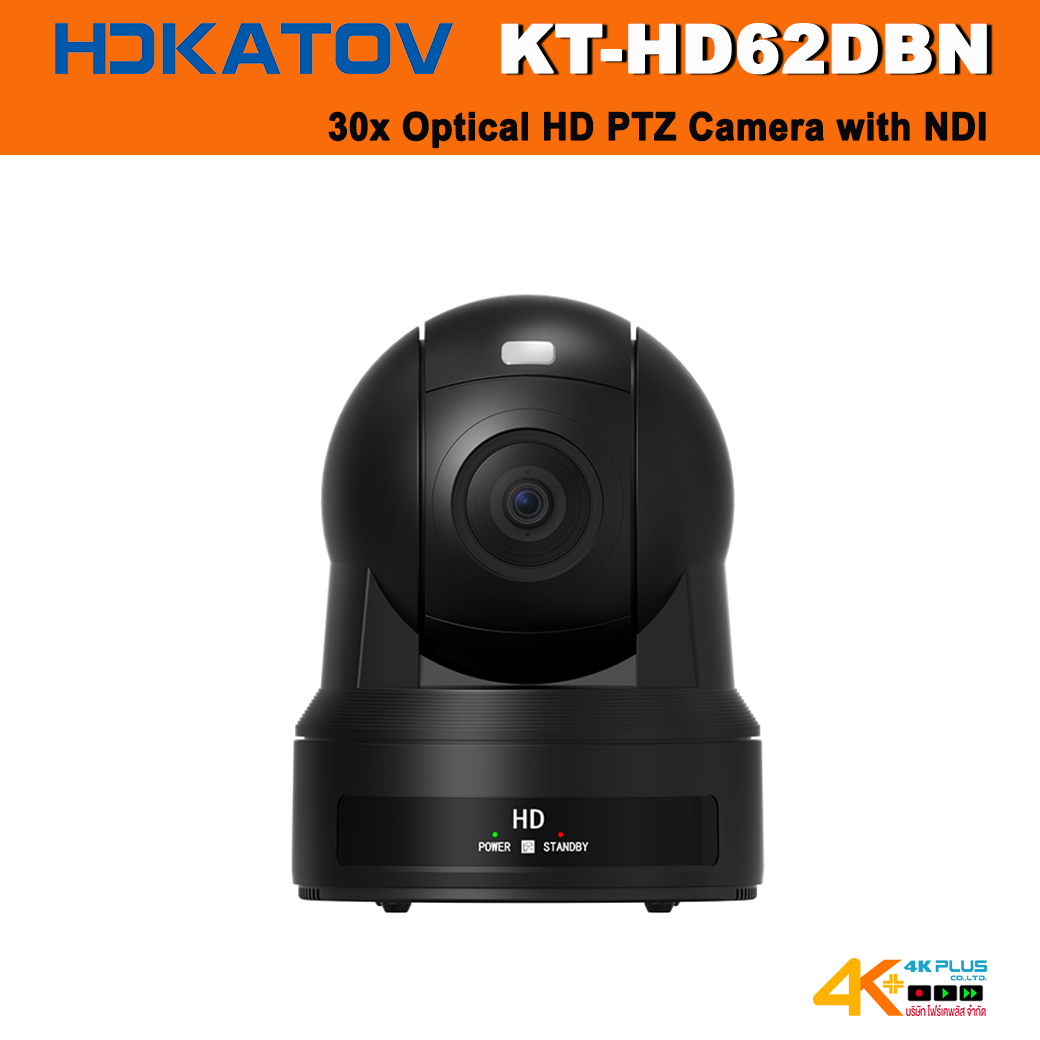

【30X Optical Zoom】

KT-HD62DB/62DBN: 30x optical zoom+16x digital zoom，58.1°distortion-free horizontal view angle.

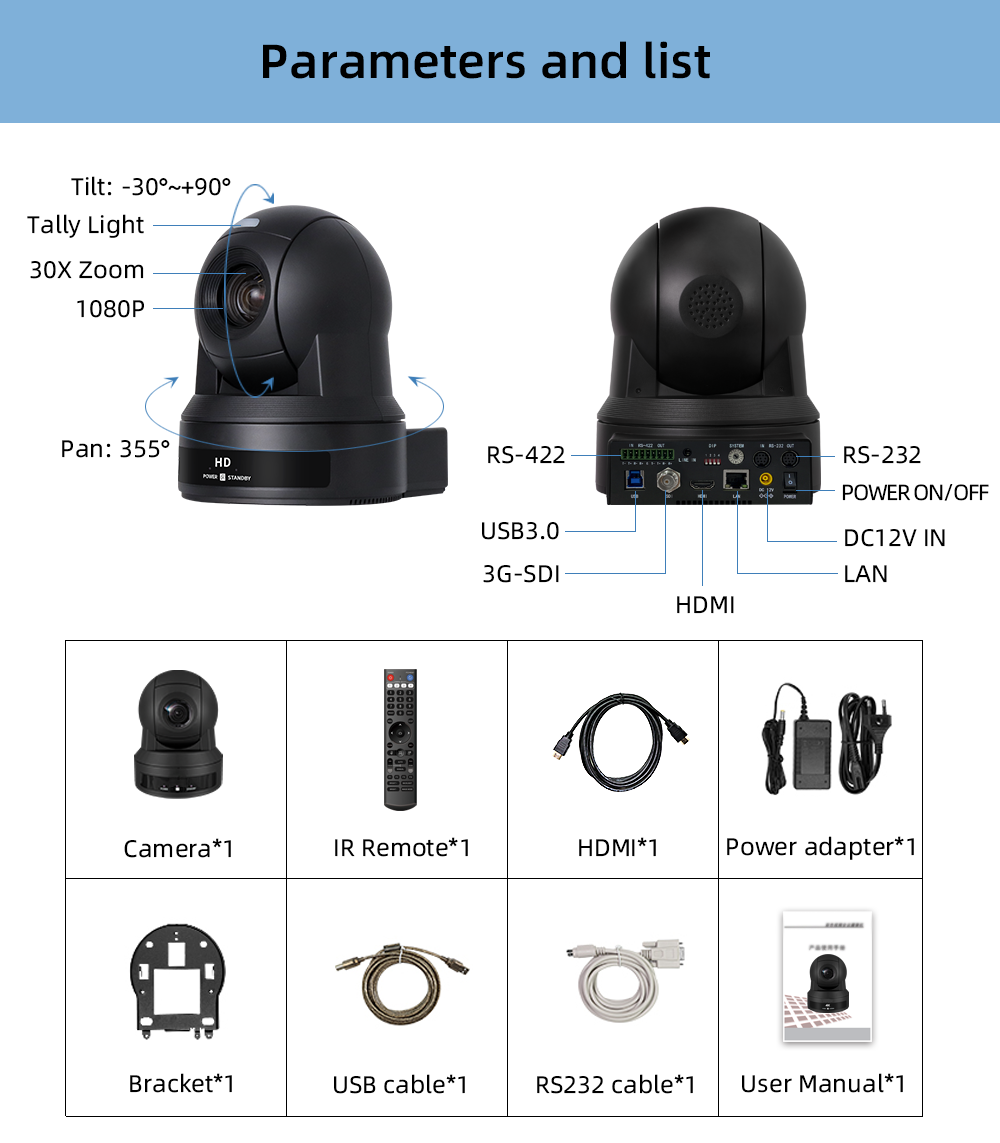

【USB3.0+HDMI+LAN+3G-SDI Full interfaces, Rich Application Scenarios】

USB3.0+HDMI+LAN+3G-SDI full interfaces, support up to 60 frames of 1080p full HD image output, rich application scenarios.

【Supports Both NDI®|HX2/Full NDI®】

Compatible with all video outputs of current mainstream. All interfaces can output video at the same time.In addition to NDI®|HX2(optional), it can supports Full NDI® protocol(optional) with lower delay.

【Low Light】

Brand new CMOS image sensor with ultra high S/N Ratio can effectively reduce image noise in low light conditions. Applied 2D&3D Digital noise reduction at the same time, it reduces image noise greatly, even in ultra low light conditions, it could still remain the frame clean and clear, S/N Ratio of the image is higher than 50dB.

【Remote Control】

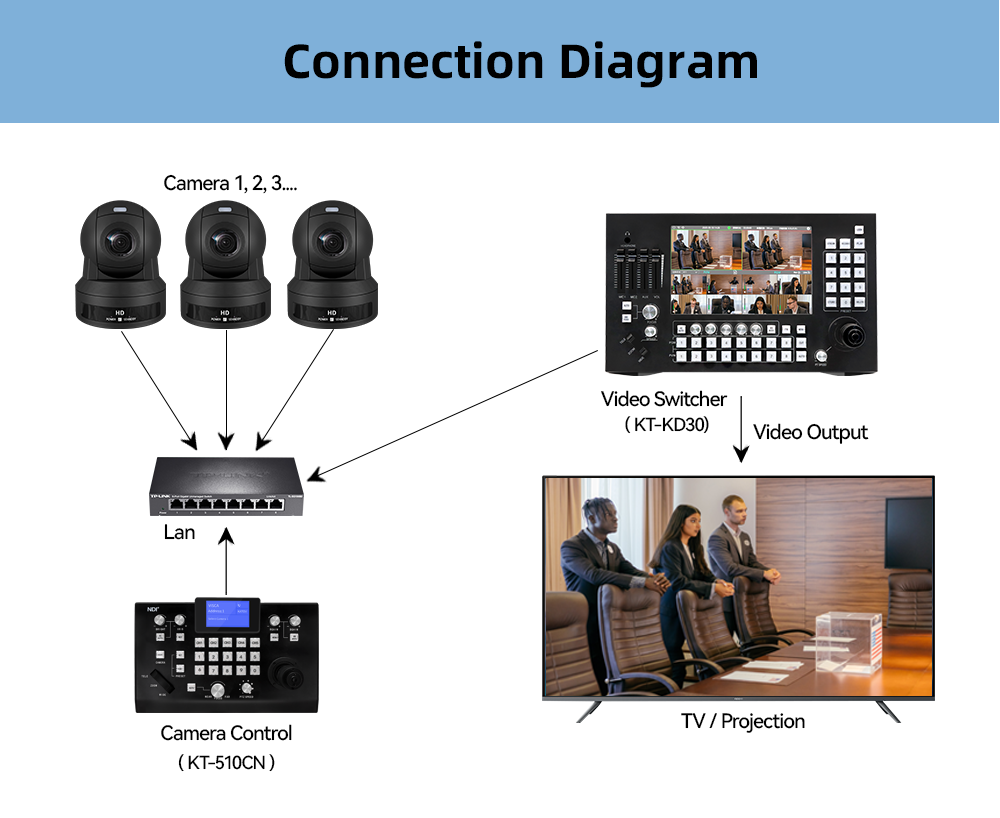

Uses RS232, RS422/RS485 serial ports to control multiple cameras with daisy chain.

【Signal Transparent Transmission Function of Infrared Remote Controller】

Apart from receiving its own infrared remote controller’s signals, it can also receive signals from the consumer’s infrared remote controller and send to video conference terminal via VISCA IN port.

【Various Video Compression Standards】

Different interfaces support YUY2, H.265, MJPG, H.264 multiple video compression formats.

【Various Network Protocols】

Supports ONVIF, SRT, RTSP, RTMP, RTMPS, NDI®|HX2 (optional) and other network protocols.

【Multiple Control Protocols

Supports VISCA (including VISCA Over IP), PELCO P/D, NDI® (optional) protocol, and automatically identifies protocols.

【Various Installation Methods】

A variety of installation methods, desktop, ceiling, wall installation.

【New generation AI human tracking algorithm】

Upgraded to support AI intelligent tracking and automatic framing functions.
