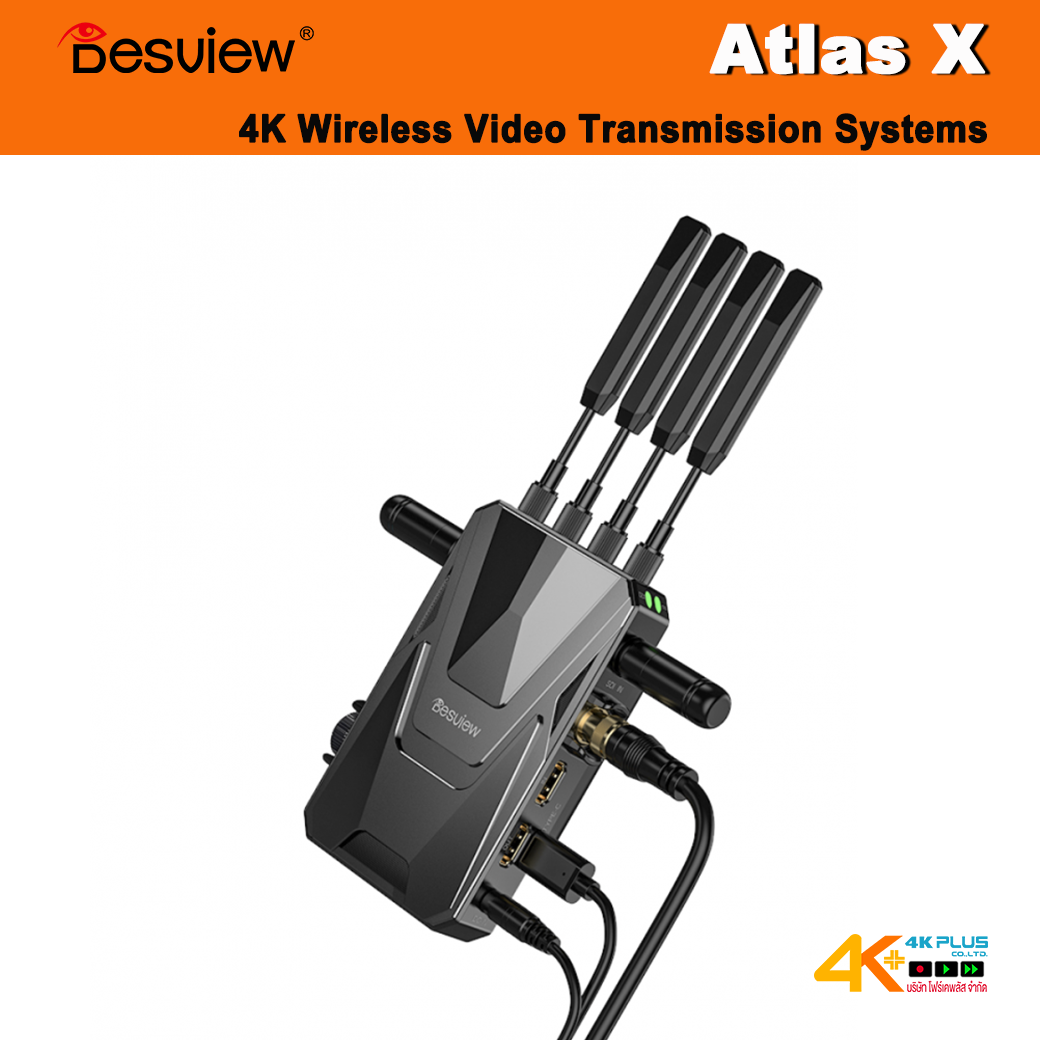

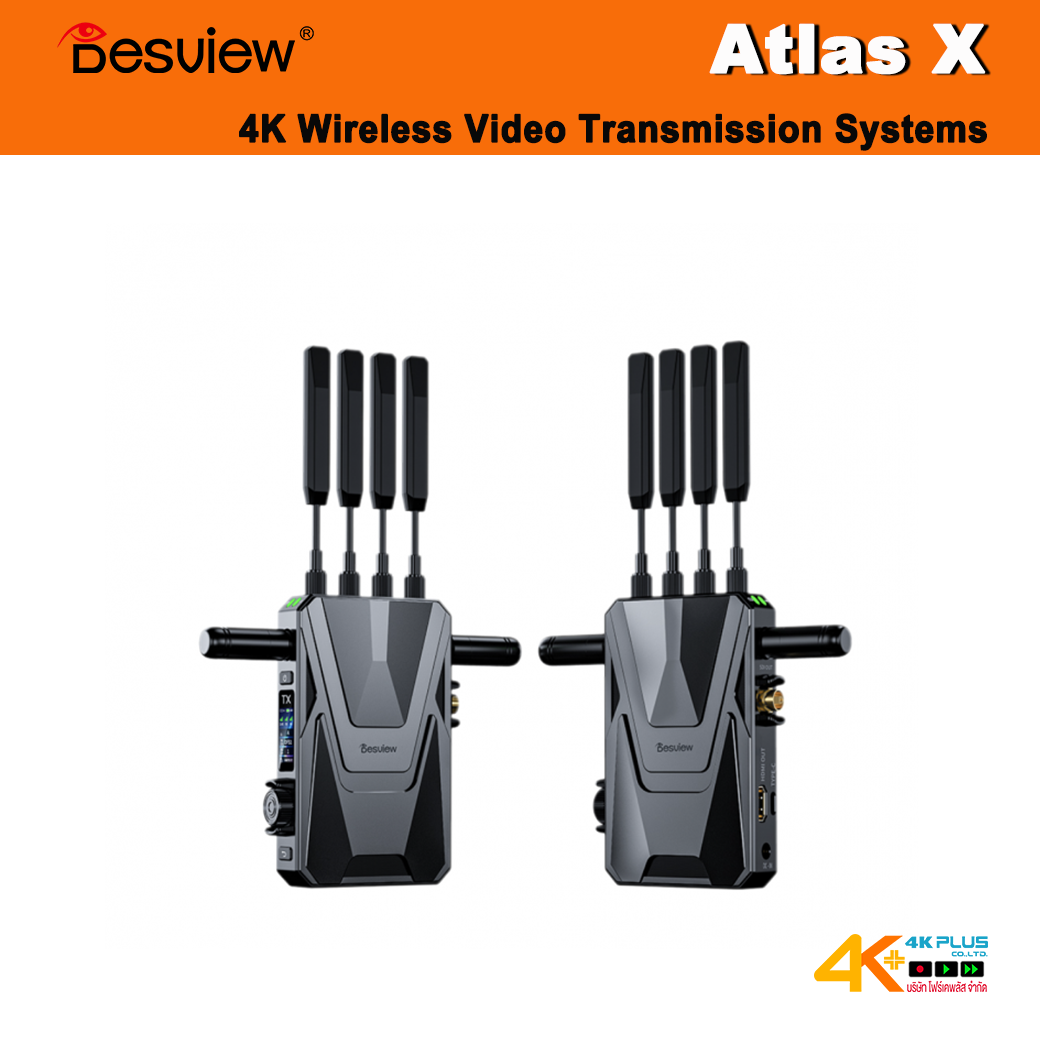

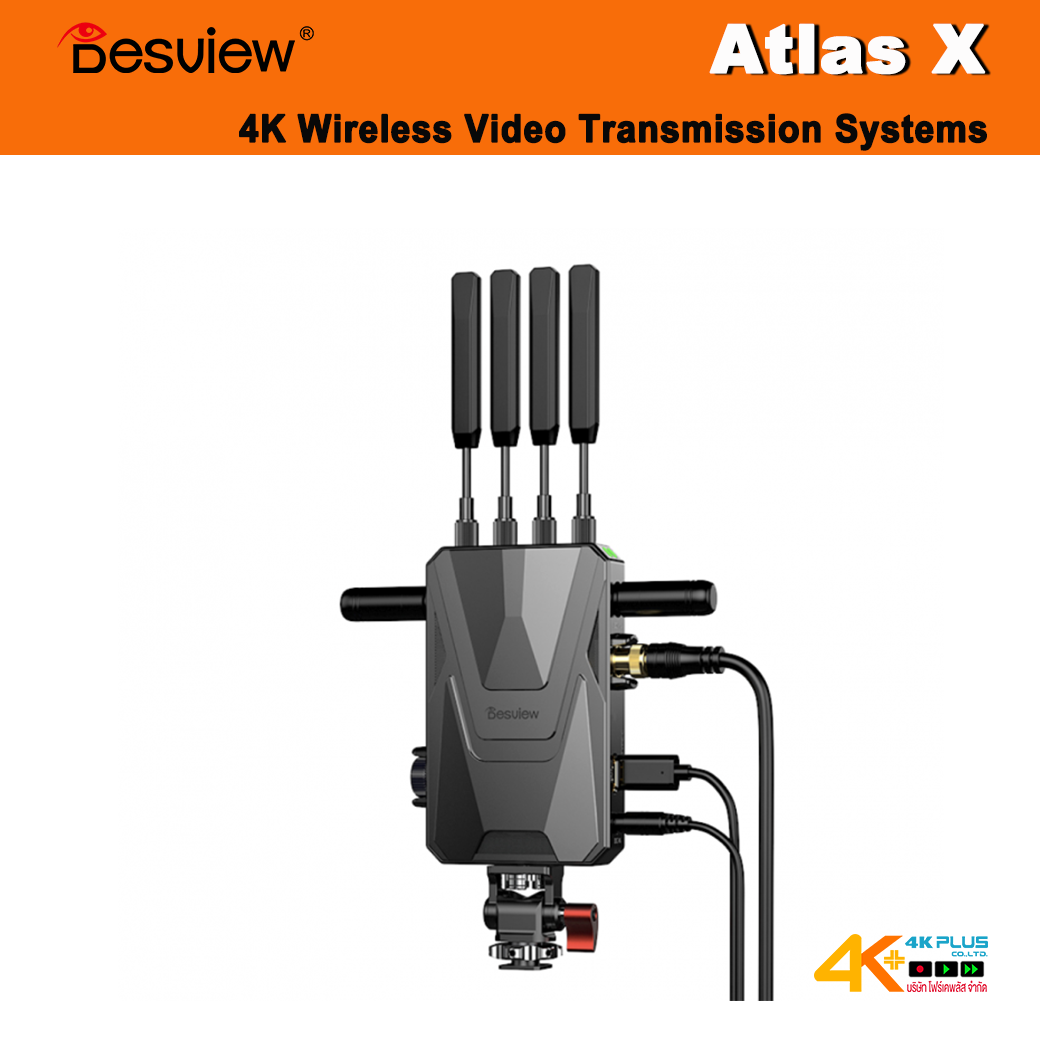

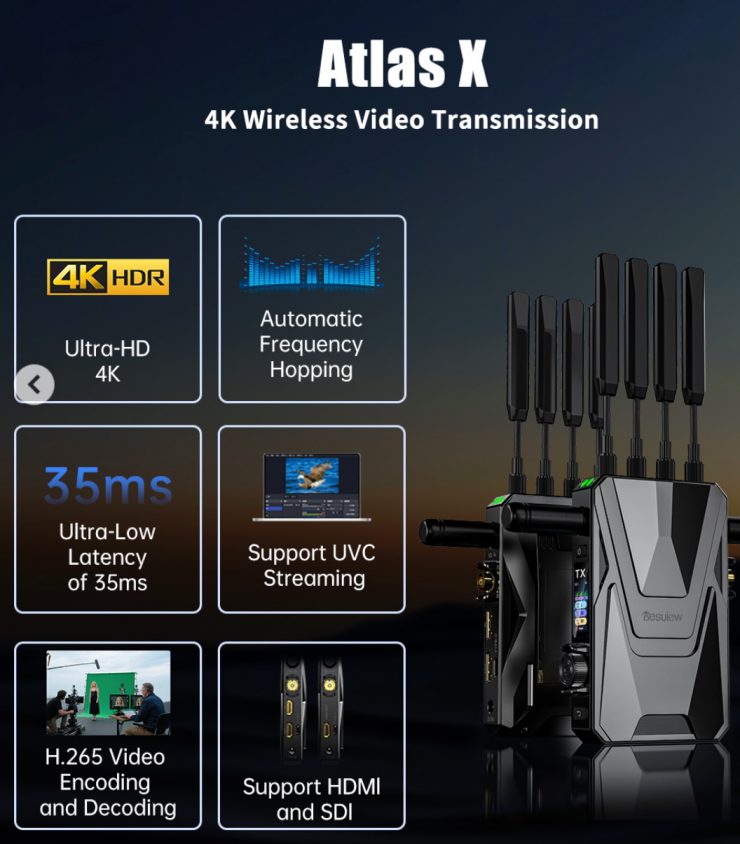

Desview Atlas X 4K Wireless Video Transmission Systems

• True Ultra-HD 4K
• Ultra-low latency of 35ms
• 24Mbps high bitrate

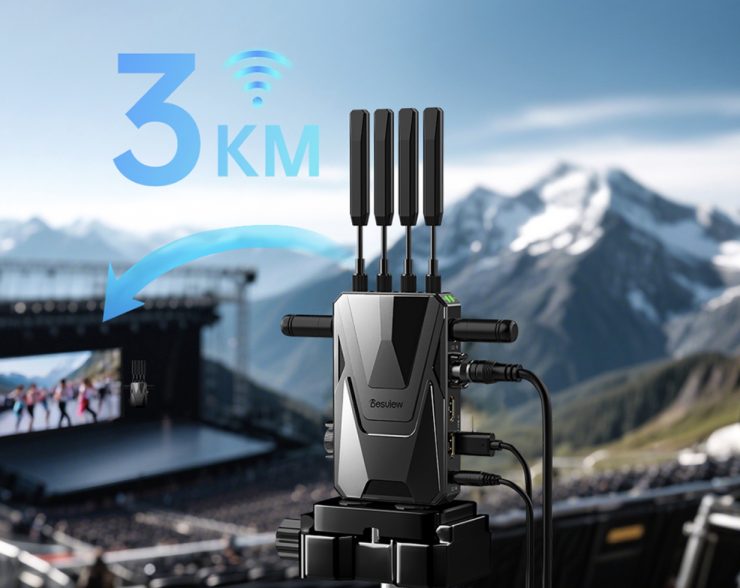

• Ultra-long transmission distance of 3km
• Automatic frequency hopping, anti-interference across the band
• Utilize the latest generation H.265 video encoding and decoding
• Full HDMI & SDI support
• Support UVC streaming, perfect for live-streaming

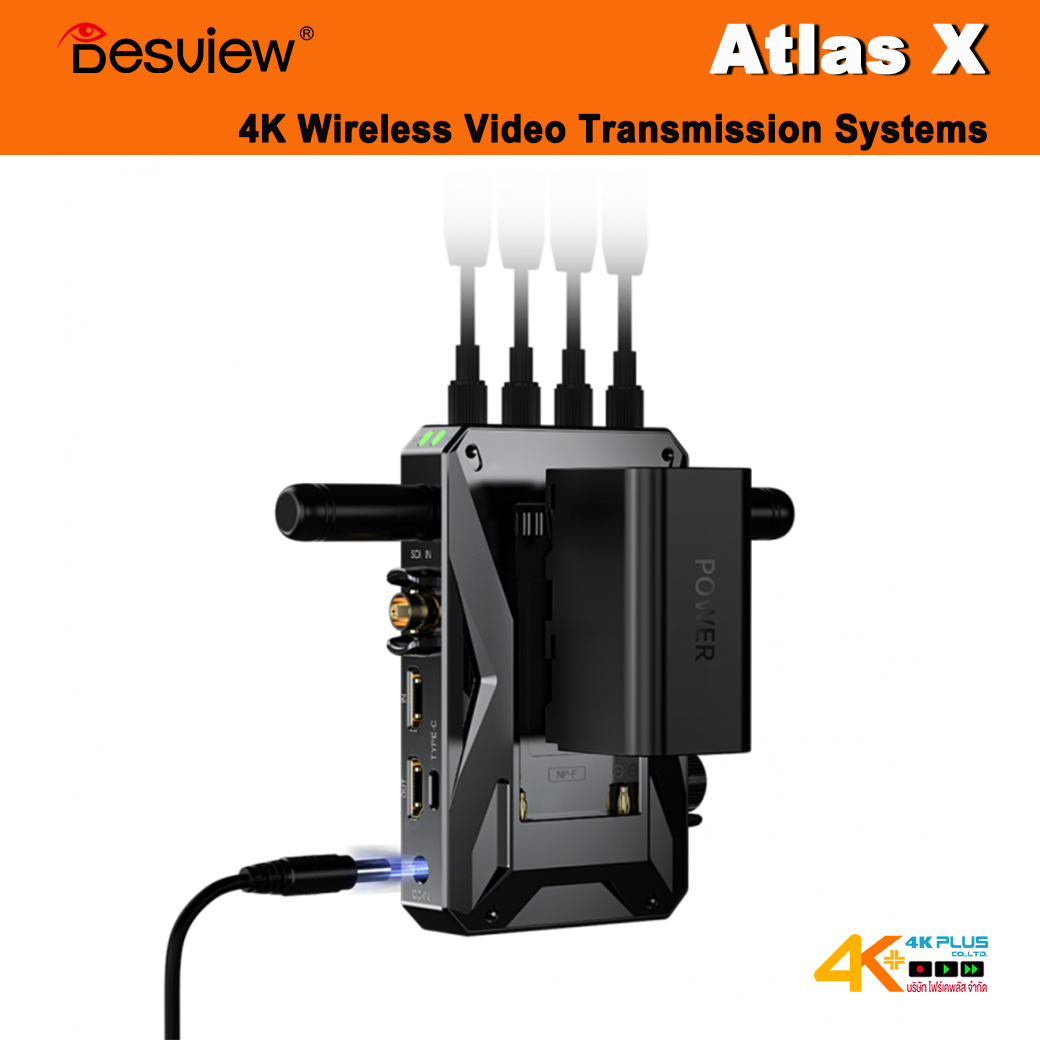

• Dual power supply: NP-F battery and a DC adapter
• 1.05-inch Full-Color LCD display
• Aerospace aluminum material

Atlas X uses Desview’s self-developed multi-band simultaneous transmission technology (2.4GHz+5GHz+6GHz+DFS channels), intelligently routing data across 23 channels. DFS channel delivers regulation-compliant and interference-free channels.

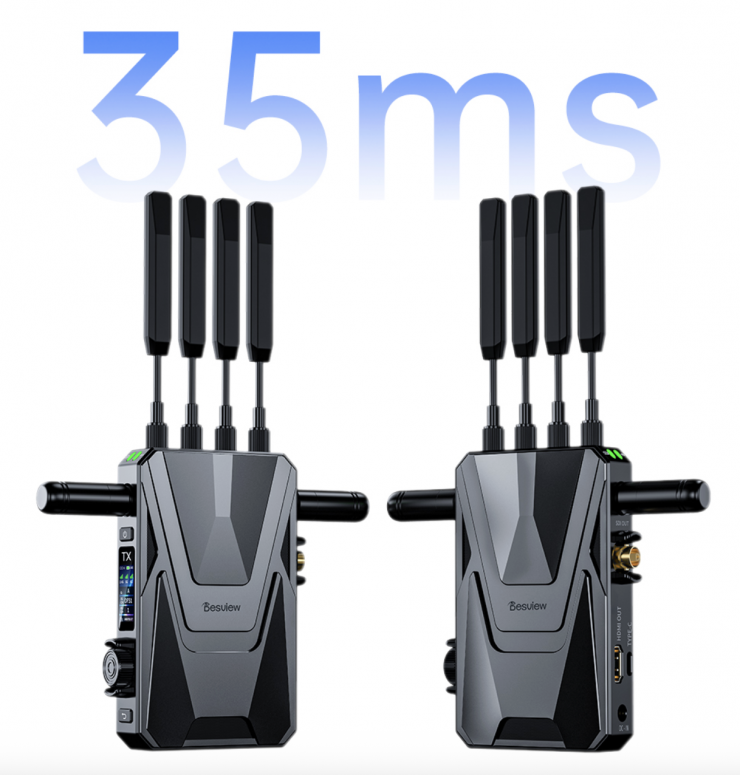

The triple-band simultaneous transmission is claimed to deliver an average one-to-one latency of 35ms in real tests.

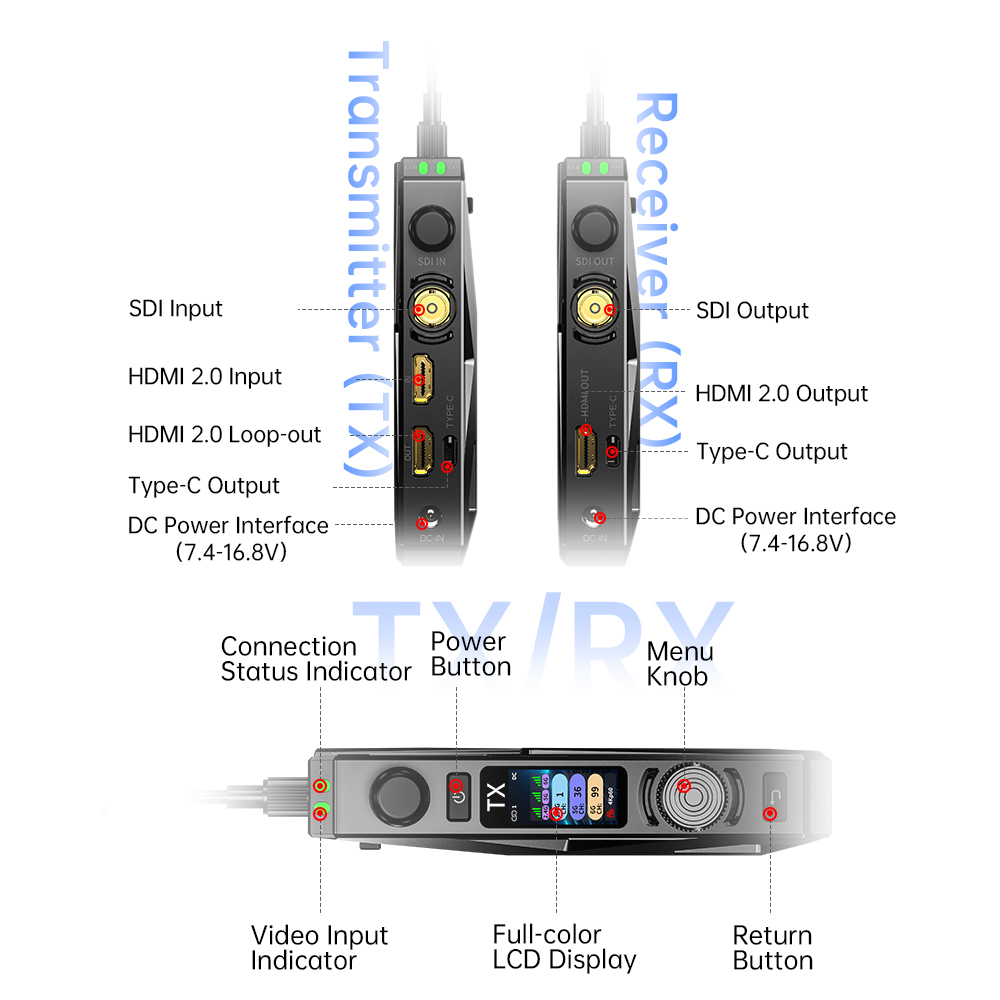

The TX supports simultaneous HDMI input and SDI input, and HDMI loop-out for real-time monitoring. The RX supports simultaneous HDMI output and SDI output, so director monitoring, DIT backup, and streaming encoding can all run at once.

The 1.05-inch full-color LCD display shows signal status, channel band, and battery level in real time.

Both the TX and RX are claimed to be made out of Aerospace aluminum material that meets military-grade anti-collision and scratch resistance standards. The built-in thermal system is also claimed to keep the core temperature ≤45°C under heavy load, ensuring non-stop, full-speed transmission without throttling.

Both the transmitter and receiver support the UVC protocol, so no drivers are needed for OBS and TikTok Live Studio.

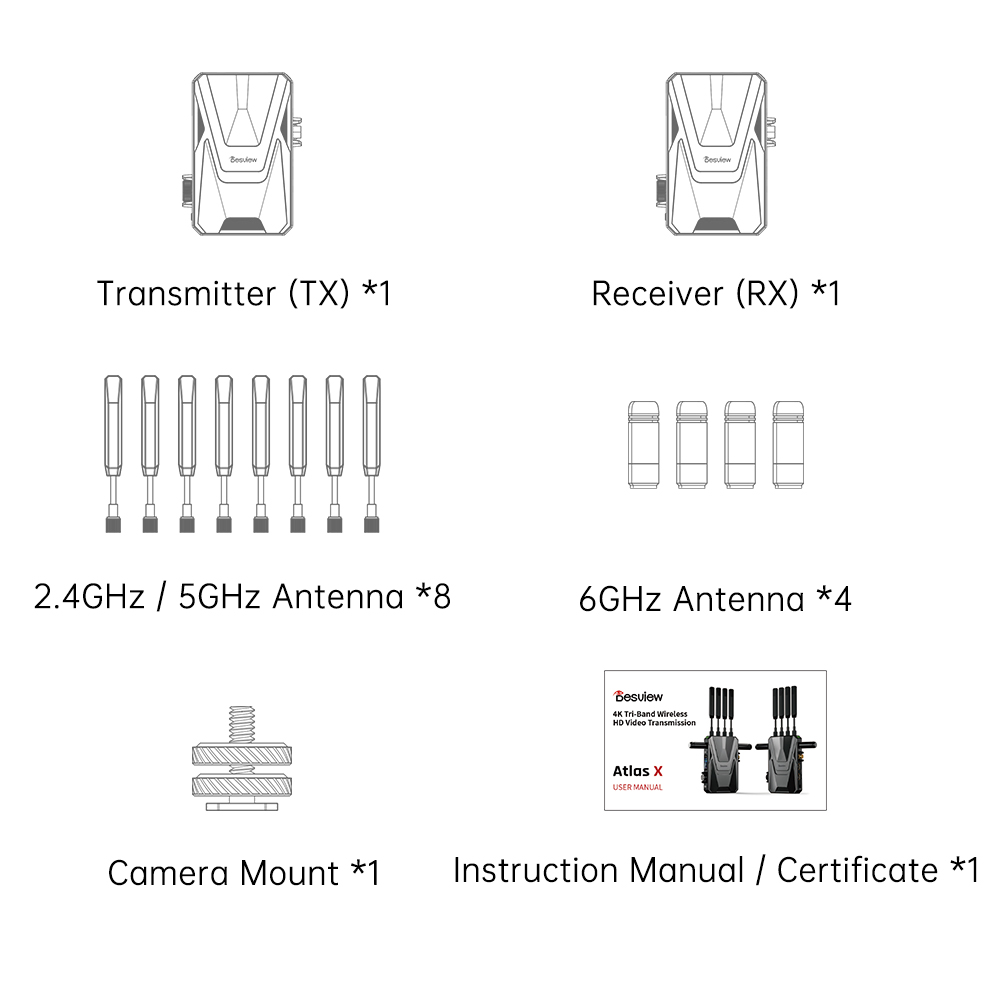

Packing List
