vMix Thunder Pro - Laptop based live / multi-camera production studio / Streaming

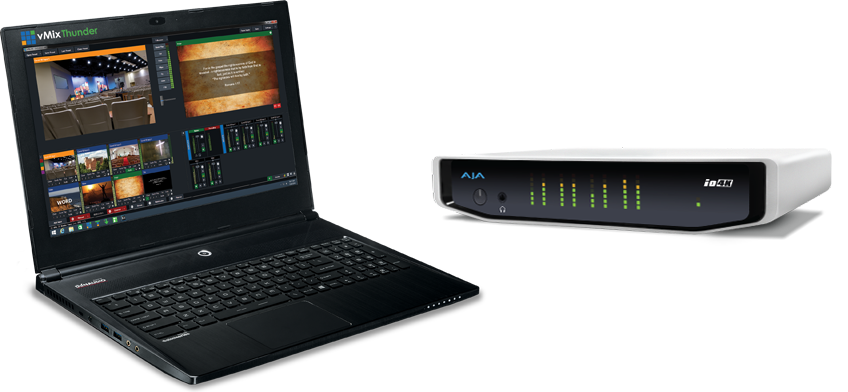

vMix Thunder Pro

    Laptop-based live, multi-camera production studio for broadcast, event production and streaming.

Includes

• - Mix Thunder Laptop - i7/2.6 GHz, 16GB, 256GB/1TB
• - Full Copy vMix PRO Live Production Software
• - Sony Vegas Pro Edit 13 Post Production Software
• - AJA Io® 4K Thunderbolt™ I/O Device
• - Includes

TECH SPECS

Laptop	Core i7-4720HQ 2.6 GHz, 16GB DDR3 256GB SSD System Drive, 1TB 7200RPM 15.6 FHD 1920x1080, Anti-Glare Quadro K2100M GDDR5 2GB Thunderbolt v2 802.11 WiFi / Bluetooth, Intel Gigabit Ethernet 10/100/1000 6 Cell Lithium Ion Battery, AC Adapter 3 USB 3.0 Ports, HDMI Out SD Card Reader, Webcam  Dimension 15.35" (L) x 10.47" (W) x 0.78" (H) Weight 4.36 lbs
Video Inputs	4 concurrent, bi-directional HD Input/Output (4x 3G-SDI, 1x HDMI with UHD 1.4b support) 2K HSDL 4:4:4, (using 2x BNC), 4K/UltraHD 4:4:4 (using 4x BNC)
Video Output	Up to 2 via SDI or HDMI (does not include display outputs for Multiviewer, etc) I/O ports are bi-directional, standard configurations are 4 in/0 out, 3 in/1 out, 2 in/2 out
Audio Input Digital	24-bit embedded, 48kHz, Synchronous / SDI 16-channel, HDMI 8-channel
Audio Output Digital	24-bit embedded, 48kHz, Synchronous / SDI 16-channel, HDMI 8-channel
Audio Output Analog	Stereo RCA Audio Monitoring, 8-channel, 24-bit, 48kHz, balanced, up to 8x XLR/TRS with DB-25 breakout cable (not inc)
Thunderbolt™ I/O	Two Thunderbolt™ 2 ports (Daisy Chain Devices)
Software Bundle	Windows 8.1 Pro 64bit, vMix Pro, Sony Vegas Edit 13
Media	Up to 1000 multi-source inputs including video/audio files, PowerPoint (Microsoft Office Req.), DVD, graphics, streams, desktop apps, titles, live social media. Network sources limited only by bandwidth. All imported media is live and ready to play
Transitions	Cut, Fade, Zoom, Wipe, Slide, Fly, CrossZoom, FlyRotate, Cube and CubeZoom.
Mix Effects	Each input includes up to 5 overlays for logo bugs, lower thirds, multi-box windows and more to create compelling effects templates. Re-entrant capability allows for complex, professional quality effects with nearly unlimited configurations
Downstream Keyers	4 DSKs per input with transitions, chroma key and custom size/positioning
Image Adjustment	Color Correct, Deinterlace, Sharpen, Zoom, Rotate, Pan and Crop any input in real time. All effects are processed in 4:4:4 32bit color space for optimal video quality
Audio Mixer	Mute, Follow (Auto Mixing) and Delay with VU Meter
Virtual Sets	4 built-in sets with full motion camera presets and high quality GPU-based chroma key. Build or purchase additional sets
Desktop Capture	High resolution, network screen capture from local/remote PC-Mac sources
Web/Remote Interface	Touch screen web interface with traditional hardware switcher layout. Use any web-connected device on the local network to fully control your production including title/graphics updates. Allows multiple task delegation to multiple individuals.
Social Media	Integrated application for live or queued insertion of Facebook, Twitter or IRC feeds. Approve and control content from any web-connected device
Output	Simultaneous record, stream and output to multiple formats/resolutions
Recording	ISO record multi-format video encoded as AVI, MPEG-2 from all live sources, program record to AVI, MPEG-2, WMV and MP4
Live Streaming	Multi-bitrate, fully customizable streaming - 720p, 1080p, 4K/UHD
Multiviewer	Fullscreen output of Preview, Program and Input windows on second and third displays

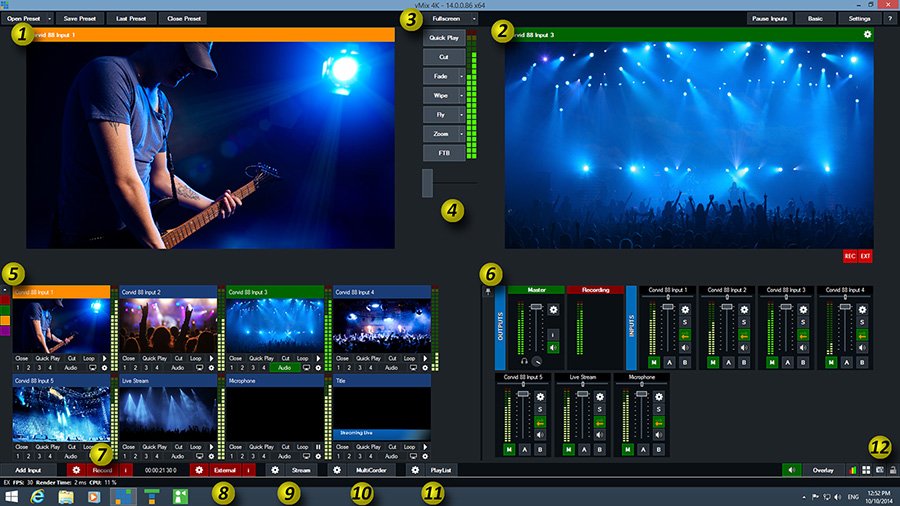

Interface

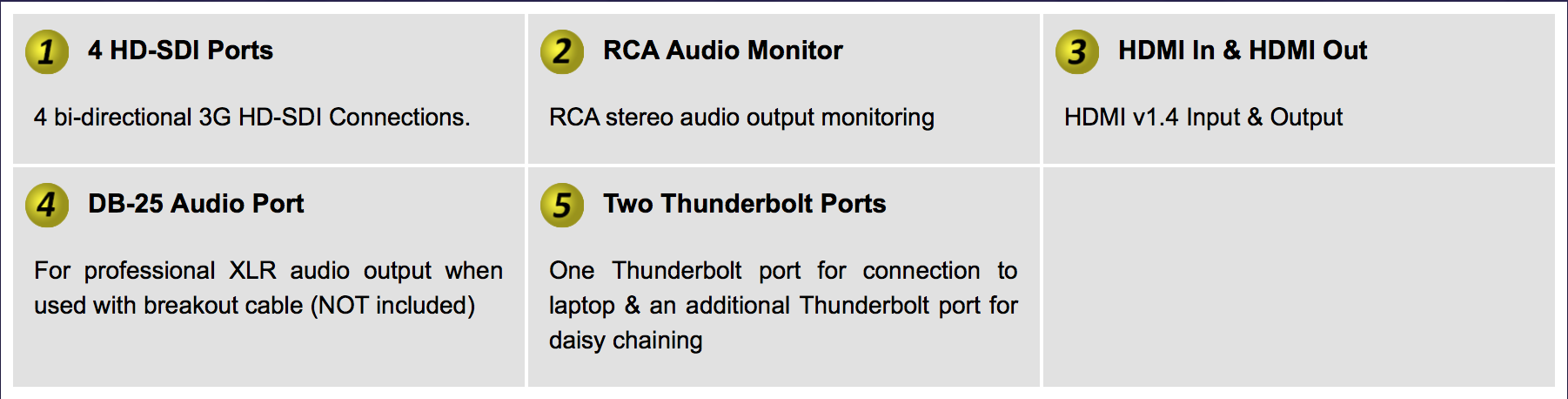

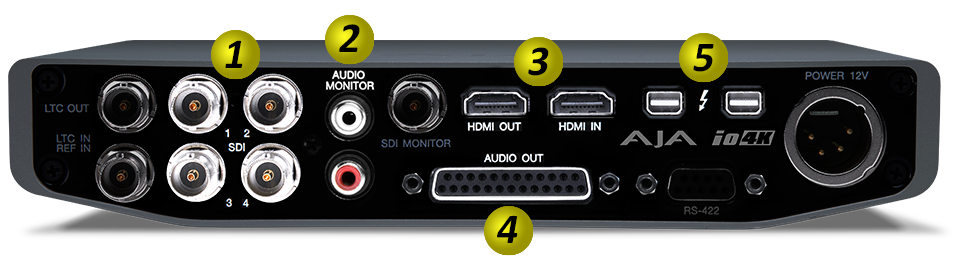

Diagram
