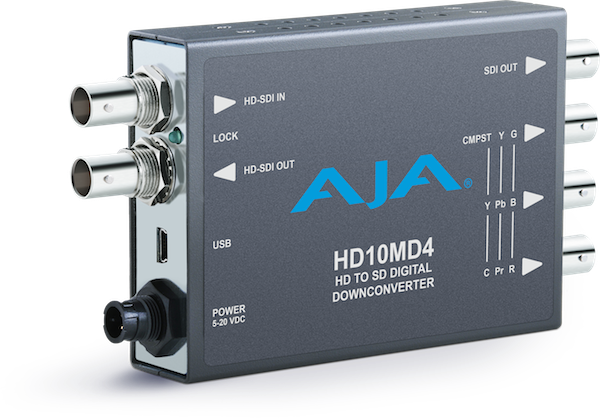

AJA HD10MD4 Digital Down-Converter / 10-bit, HD-SDI/SDI to SDI, YPbPr/RGB/NTSC/PAL

HD10MD4 HD down-converter, 10-bit, HD-SDI/SDI to SDI, YPbPr/RGB/NTSC/PAL

        The HD10MD4 down-converts HD-SDI video to standard definition SDI and analog component/composite video utilizing AJA's high-quality full 10-bit data path and multi-point interpolation to produce broadcast quality down-converted video.

Features

•  - Configurable across USB via AJA Mini-Config software for Mac and PC.
•  - Low-cost digital HD down-converter
•  - Dual-rate HD-SDI/SDI input
•  - SDI output
•  - Component/Composite output
•  - HD-SDI loop output
•  - Multi-standard Input Including 1080P/PsF 24 fps
•  - 10-bit data path, multi-point interpolation
•  - Configurable for 16:9 or 4:3 output
•  - 4:3 Safe-zone graticule

Framerate Conversion

        The HD10MD4 converts 1080p24 or 1080p24sf to 59.94 Hz output video using the standard 3:2 pulldown technique. The output can be formatted for either 4:3 or 16:9 standard definition monitors.
