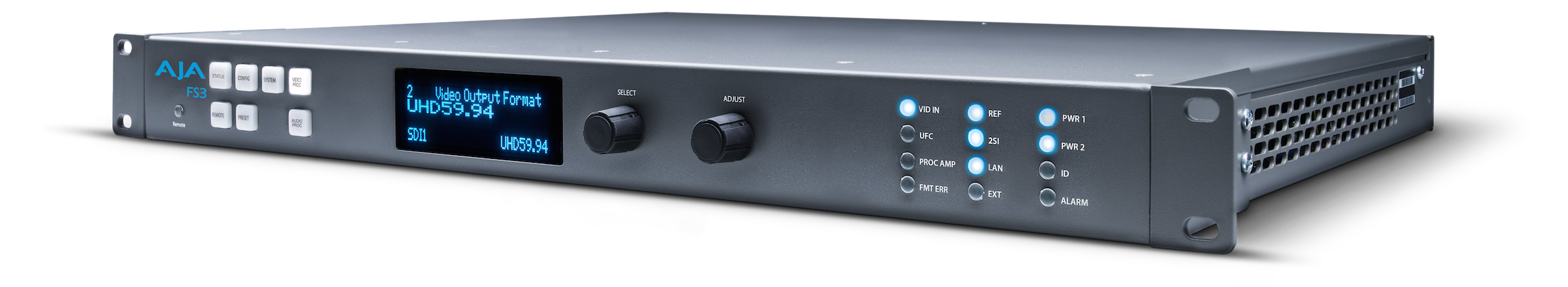

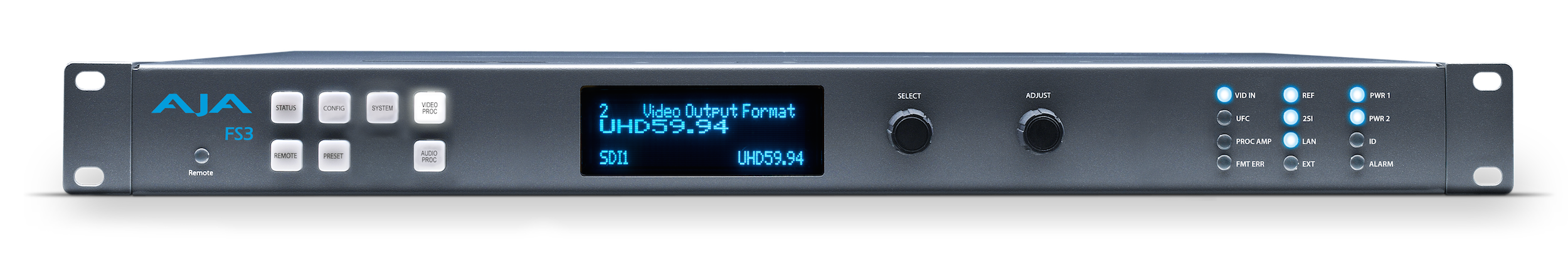

AJA FS3 High-quality SD/HD to 4K/UHD up-converter

• Four 3G-SDI Inputs, 2 BNC and up to 2 Fiber (optional)
• 4x1 selector feeds Video Processor
• SD/HD/3G-SDI, SMPTE-259/292/424, 8 or 10-bits
  • Single Link SD/HD/3G-SDI
  • Dual-Link HD-SDI (2x1.5G), SMPTE -372
  • 3G-SDI Level A, Level B-DL, or Level B-DS
• Fiber SDI, SMPTE-297, 8 or 10-bits (optional)
  • Single-channel LC connector modules
  • Single-channel SC connector modules
  • Dual-channel LC connector modules
• Formats and frame rates
  • YCbCr, 4:2:2, 10-bit
  • 2048x1080p 23.98/24/25/29.97/50/59.94
  • 1920x1080p 23.98/24/25/29.97/50/59.94
  • 1920x1080PsF 23.98/24/25/29.97/50/59.94
  • 1920x1080i 50/59.94
  • 1280x720p 50/59.94
  • 525i 59.94
  • 625i 50

• 64 channels via four 16 channel audio dis-embedders (1 dis-embedder per SDI input)
• SD/HD/3G-SDI, SMPTE-272/299
• 20-bit SD, 24-bit HD/3G, 48kHz sample rate
• Drop/repeat sample rate conversion to match output reference

• Twelve 3G-SDI Outputs, 8 BNC and up to 4 Fiber (optional)
• Video Processor feeds all outputs
• SD/HD/3G-SDI, SMPTE-259/292/424, 8 or 10-bits
  • Single Link SD/HD/3G-SDI (12 copies on Single SDI)
  • Dual 3G-SDI for 4K/UHDp23.98/24/25/29.97 (6 copies on Dual SDI)
  • Quad 3G-SDI for 4K/UHDp50/59.94 (3 copies on Quad SDI)
  • 3G-SDI Level A, Level B-DL, or Level B-DS
  • Quadrant (Square Division) or 2SI (Two Sample Interleave) 4K/UHD pixel mapping
• Fiber SDI, SMPTE-297, 8 or 10-bits (optional)
  • Single-channel LC connector modules
  • Single-channel SC connector modules
  • Dual-channel LC connector modules
• Formats and frame rates:
  • YCbCr, 4:2:2, 10-bit
  • 4096x2160p 23.98/24/25/29.97/50/59.94
  • 3840x2160p 23.98/24/25/29.97/50/59.94
  • 2048x1080p 23.98/24/25/29.97/50/59.94
  • 1920x1080p 23.98/24/25/29.97/50/59.94
  • 1920x1080PsF 23.98/24/25/29.97/50/59.94
  • 1920x1080i50/59.94
  • 1280x720p50/59.94
  • 525i59.94
  • 625i50

• 64 channels via four 16 channel audio embedders
• SD/HD/3G-SDI, SMPTE-272/299
• 20-bit SD, 24-bit HD/3G, 48kHz sample rate
• 64x64 mono audio matrix

The Component Analog Input accepts YCbCr 4:2:2 pixel format, configurable to SMPTE or Betacam levels. If the composite input is used, the component input is not available.

• Proc Amp controls
• Color Corrector
• Legalizer
• Frame-rate conversion (3:2, 1:2, 2:1)
• Delay 0-6 frames with H and V controls
• Closed Caption conversion (CEA-608/CEA-708)
• AFD input detection, down convert control, and output pass–thru or overwrite
• Freeze (manual or on input signal loss) to black or last good frame
• Matte generator for background fill
• Video test generator
• Nominal Video Delay
  • 4K/UHD, 3 frames (LFR), 6 frames (HFR)
  • HD/SD, 2 frames (LFR), 4 frames (HFR)

Convert any supported input HD/SD format to any supported 4K/UHD/HD/SD output format, as long as the input and output frame rates are of the same frame rate family. These three families are:

• 59.94/29.97/23.98
• 50/25
• 24

• Zoom in and out
• Reposition
• Region of Interest

• SD/HD/2K to UHD/4K
• SD to HD/2K
• Hardware 10-bit
• Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
• Zoom Letterbox: results in image zoomed to fill full screen
• Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting will introduce a small aspect ratio change

• HD/2K to SD
• Hardware 10-bit
• Anamorphic: full-screen
• Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
• Crop: image is cropped to fit new screen size

• Letterbox: This transforms SD anamorphic material to a letterboxed image
• H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
• SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
• V Crop: Will transform SD letterbox material to an anamorphic image

• 64x64 mono audio matrix, route 1 to 1, 1 to many
• Independent controls for each channel5.1 or 7.1 to stereo mixdown with gain adjust
  • Gain +18 to -18 dB in 0.5dB steps
  • Delay -16ms to 256 ms in 20.8us steps
  • Phase Invert
• Audio test generator

• SDI RP188 via SDI BNC
