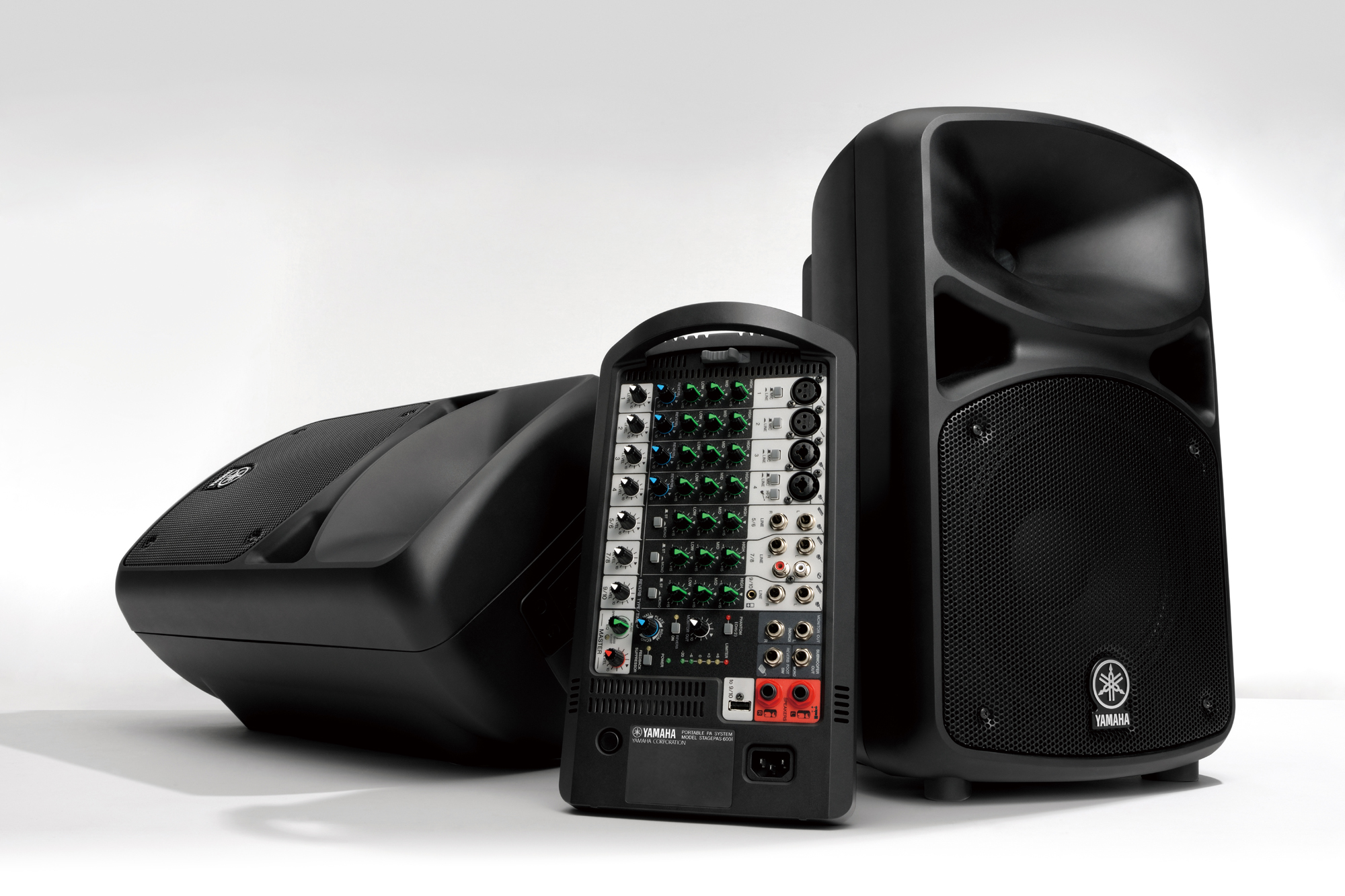

YAMAHA STAGEPAS 600i / Portable PA system with 10-channel powered mixer

YAMAHA STAGEPAS 600i
Portable PA system with 10-channel powered mixer

     680-watt, portable PA system with 10-channel powered mixer, two 10" speakers, iPod/iPhone USB connection, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.

Features

• 680W (340W + 340W) power output
• Newly designed high quality speakers (LF:10" woofer/ HF:1.4" voice coil compression driver)
• Detachable 10-channel mixer (4 mono/line + 6 mono / 3 stereo line)
• iPod/ iPhone USB connection
• 1-Knob Master EQ™ with virtual bass boost
• High resolution SPX digital reverbs (4 types, parameter control)
• Onboard feedback suppressor
• Great-sounding 3-band channel EQ
• Switchable stereo/ mono inputs
• Hi-Z (high impedance) inputs
• Phantom power
• Monitor and Subwoofer outputs

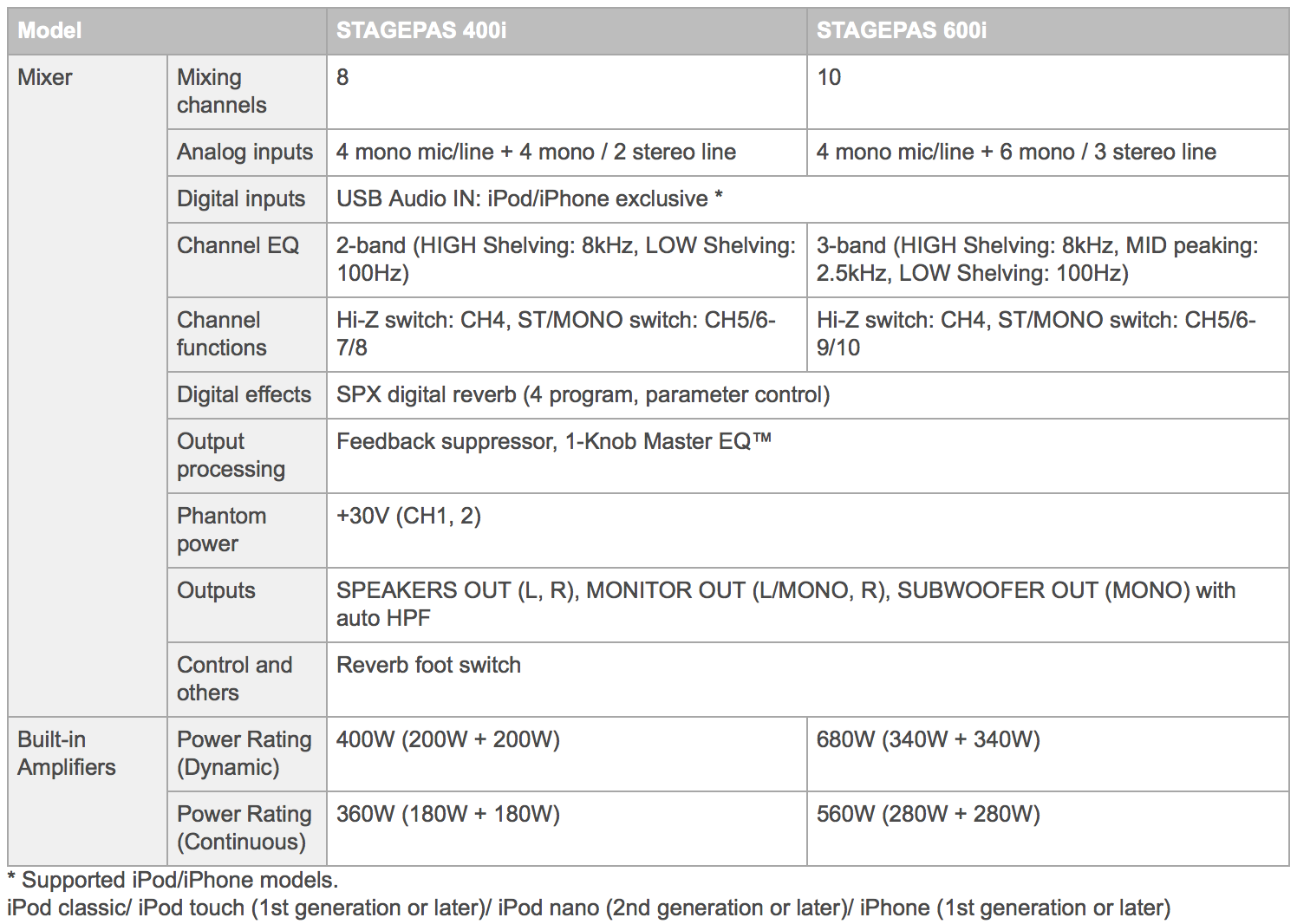

Powered Mixer

Input Characteristics

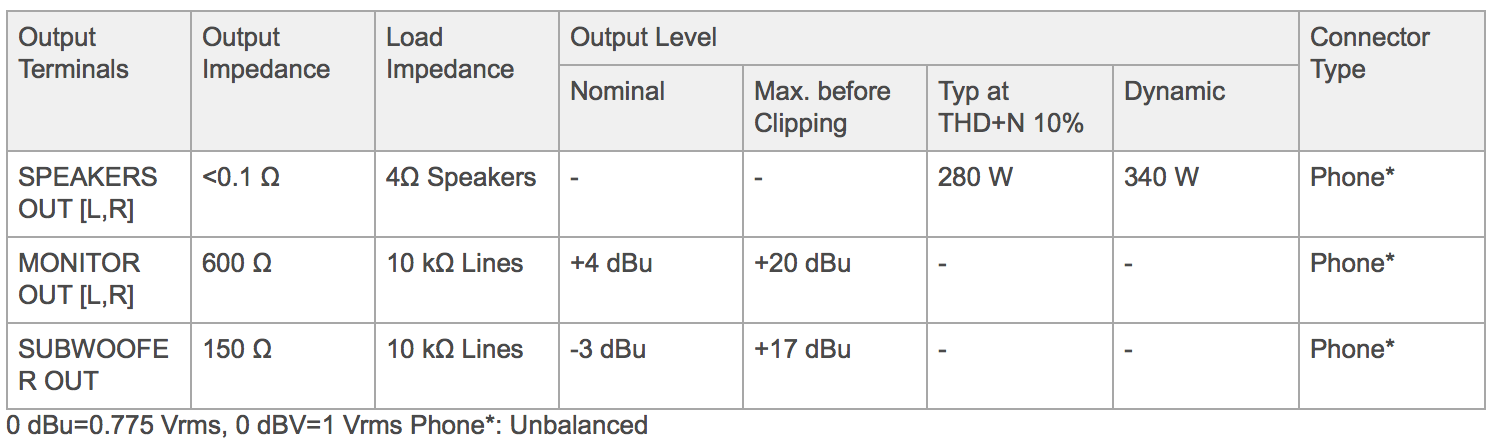

Output Characteristics
