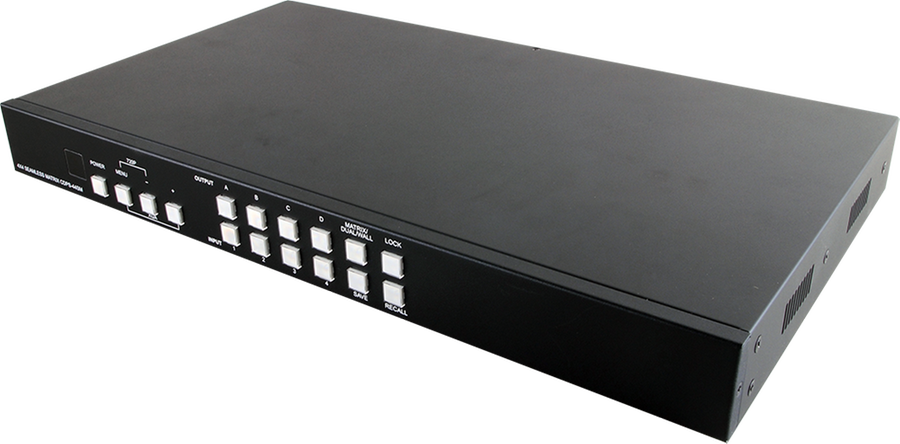

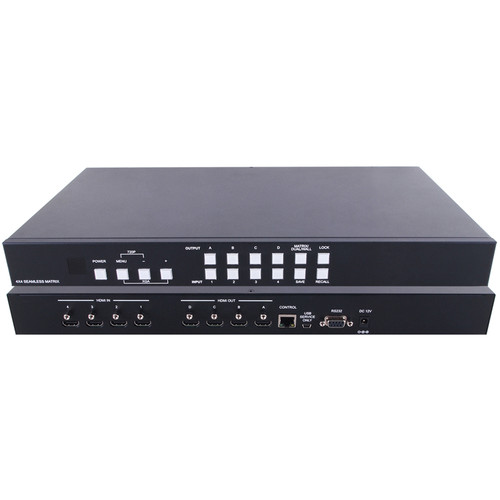

4x4 HDMI Video Wall Processor & Seamless Matrix Switcher

4x4 HDMI Video Wall Processor & Seamless Matrix Switcher

   HDMI on input and output, the A-Neuvideo 4x4 Video Wall Processor & Matrix Switcher offers three modes of operation: video wall, dual, and matrix, with seamless switching in matrix mode. It supports up to 1920 x 1200 and 1080p60 video and up to 7.1-Ch LPCM audio. Selections can be made via the front panel, wireless remote, RS-232, IP Telnet (Ethernet), included GUI (Ethernet or RS-232), or built-in web server. Setup is via OSD.

Feature

 - Support HDCP 1.1

 - 3 Output Modes: Video Wall, Dual, Matrix

 - Resolutions Up to 1080p60, 1920x1200/60

 - Audio Formats Up to LPCM 7.1-Ch

 - Front Panel, RS-232, Remote Control

 - IP Telnet, GUI, Web Server Control

TECH SPECS

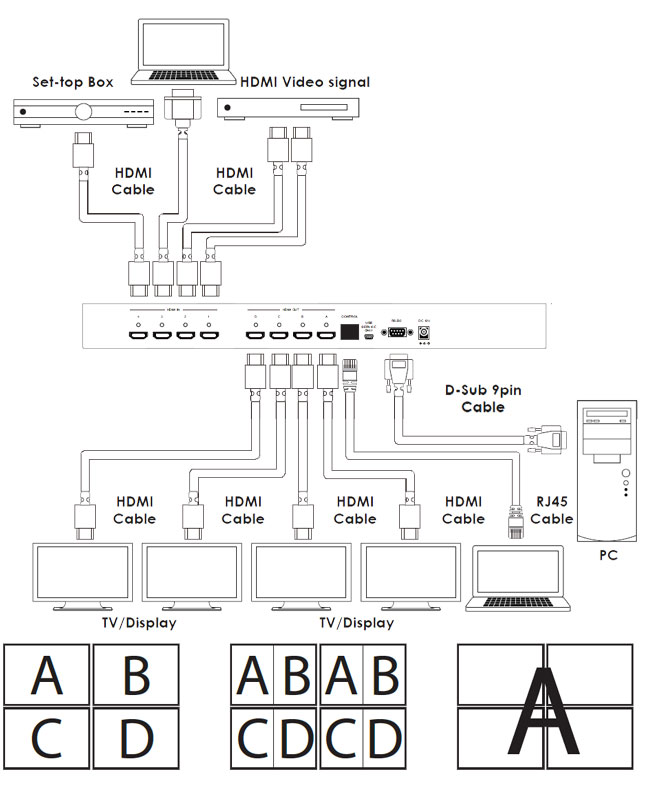

Diagram
