ALL TO HDMI 4K CONVERTER BOX

MEALINK ALL TO HDMI 4K CONVERTER BOX

ALL TO HDMI 4K CONVERTER BOX converts CVBS, YPbPr, VGA, HDMI and USB media to 720p and 1080p high definition 4k HDMI output. Respective stereo audio input is achieved for CVBS, YPbPr and VGA. Converter Box makes it convenient to connect such as DVD player, game player, Set-top box, PC and USB device etc. video sources. All inputs will be converted to high definition output. Excellent picture quality provided by the integrated noise reduction, advanced color process engine, dynamic luminance control, gamma control and 3D video decoder features.

Features

- 1x CVBS, 1xYPbPr, 1xVGA, 2x HDMI and, 2x USB inputs

-  USB movie, picture and music playback

-  1280x1024，720p，1080p and 4K HDMI output

-  PAL, NTSC and SECAM color systems supported

-  -5% to +5% display ratio range control

-  Auto Detect function (except USB)

-  Brightness, contrast, color, sharpness, hue control

-  Soft, Standard, Bright and Personal 4 preset picture modes

-   Picture mode setting saved for respective source

-   Geometry control for VGA input with auto tune function

-   Capture USB picture and save as user defined logo

-  Volume control

-   Remote control

-   Standby mode

Input formats

- CVBS: PAL, NTSC, SECAM with stereo audio input

- YPbPr: 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576i/p, 480i/p with stereo audio input

- VGA:640x480@60Hz, 800x600@60Hz, 1024x768@60Hz,1280x1024@60Hz, 1280x720@60Hz, 1360x768@60Hz,1440x900@60Hz, 1680x1050@60Hz, 1920x1080@60Hz with stereo audio input

- HDMI: 480i to 4K2K@30Hz

- USB: MPEG, H.264, RM/RMVB movie decode, JPEG, BMP, PNG

- Picture decode and MPEG1/2, MP3 audio decode

IN BOX

ALL TO HDMI CONVERTER BOX                                                                                           1pcs

5V/2A DC power adaptor                                                                                                         1pcs

Operation Manual                                                                                                                    1pcs

IR Remote                                                                                                                               1pcs

Panel Functions

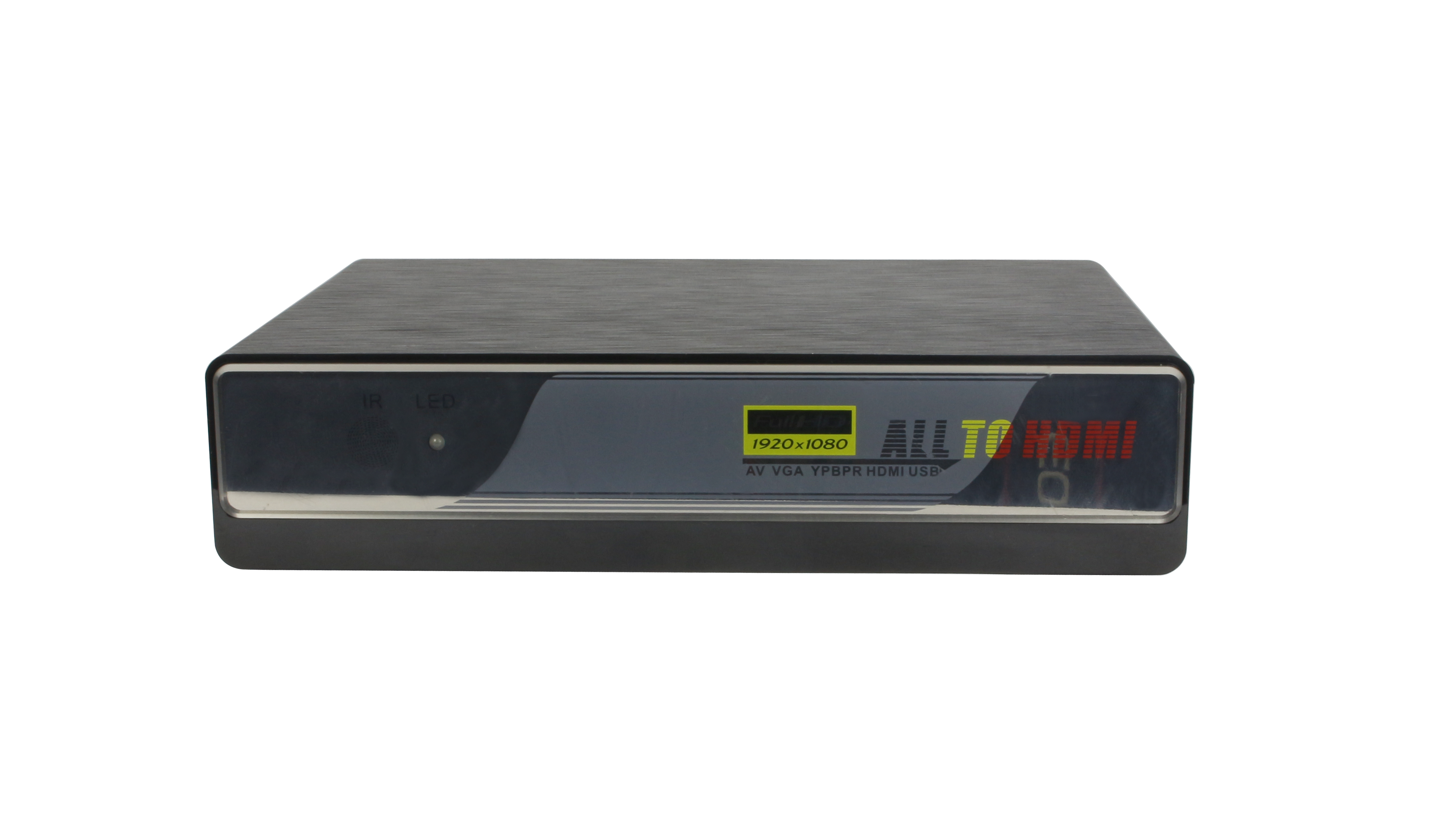

Part 1. IR: IR Receiver window (accepts the remote control signal of this device only).

Part 2. LED: The LED will illuminate blue when the power is on, red when it is in 'Standby' mode.

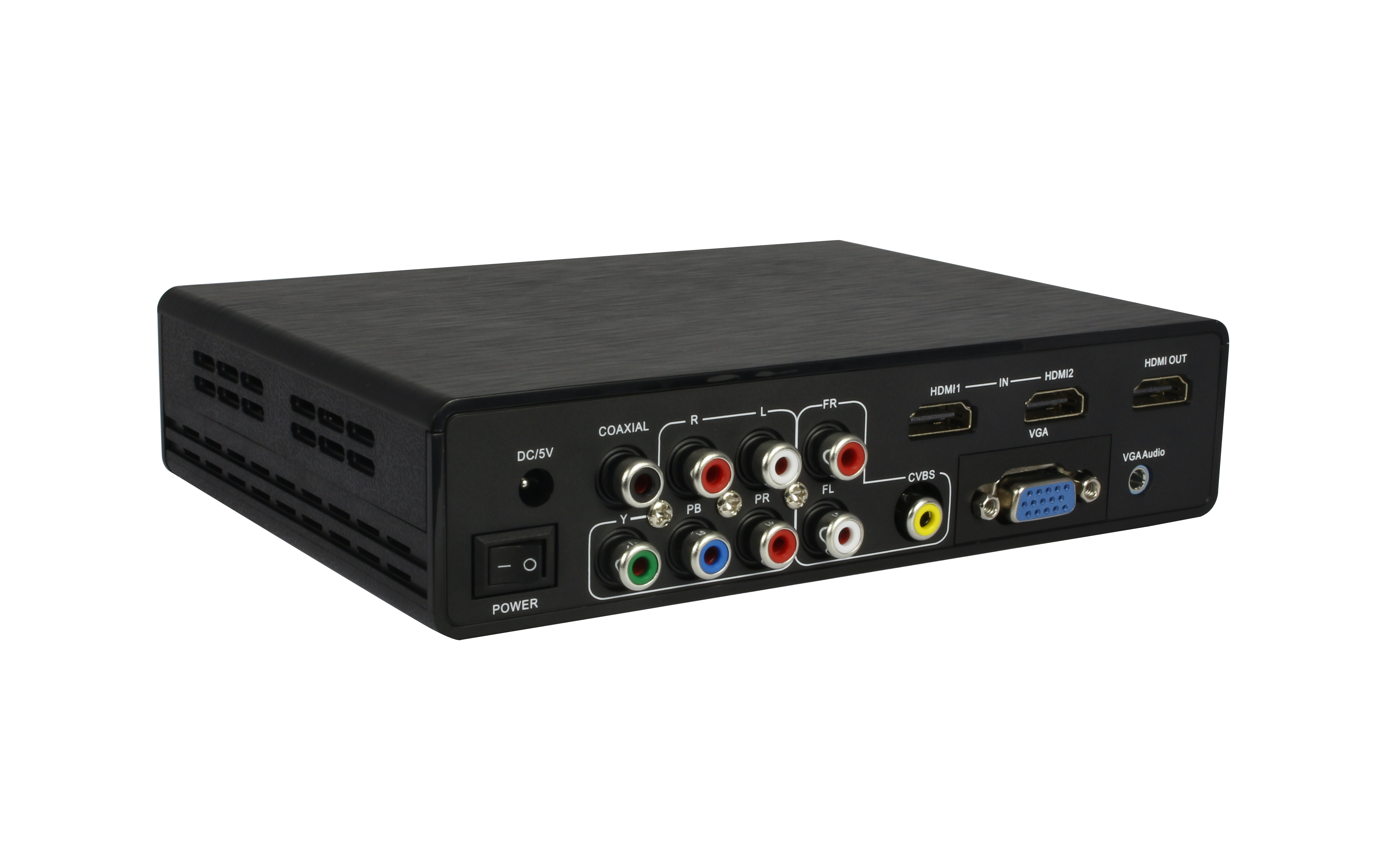

Part 3. DC POWER INPUT:

        Plug the 5V/2A DC power supply into the DC 5V power in.

Part 4.Digital audio output:

The coaxial output is connected an audio amplifier.

Part 5. Component and audio input:

                    Connect a DVD (YPbPr) source to the YPbPr IN RCA connector.

Part 6. CVBS and audio input

Connect a composite video source (for example, a composite video player) to the CVBS IN RCA connector.

Part 7. HDMI INPUT

Connect to HDMI sources such as DVD player /Blu-ray player for both video and audio signal conversion.

Part 8. VGA INPUT:

Connect a computer (RGBHV) source to the VGA IN video input D-Sub 15pin HD connector.

Part 9. HDMI OUTPUT:
