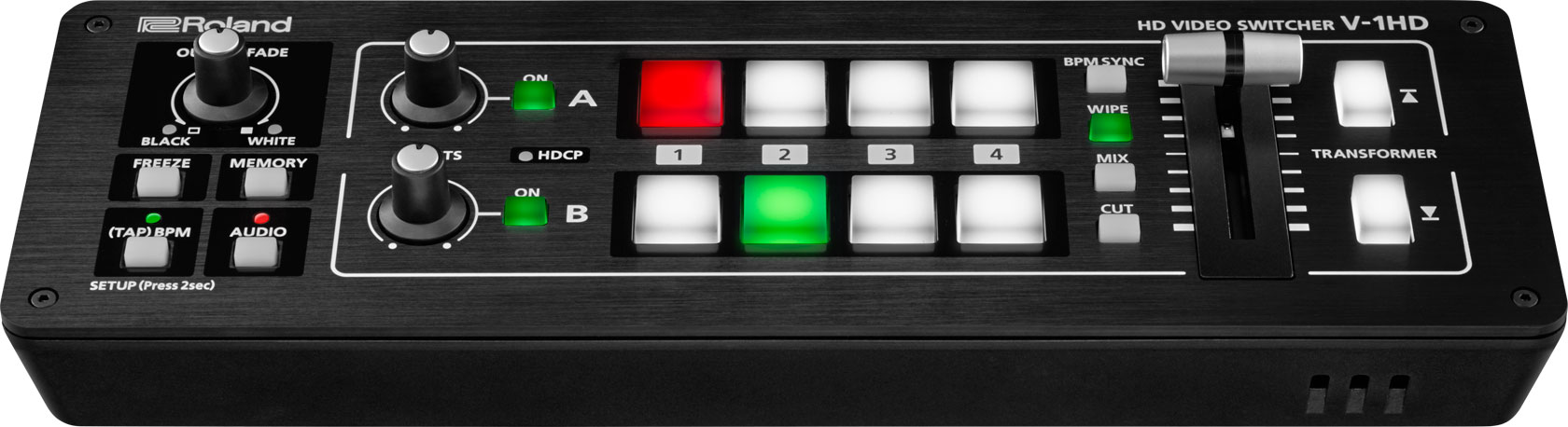

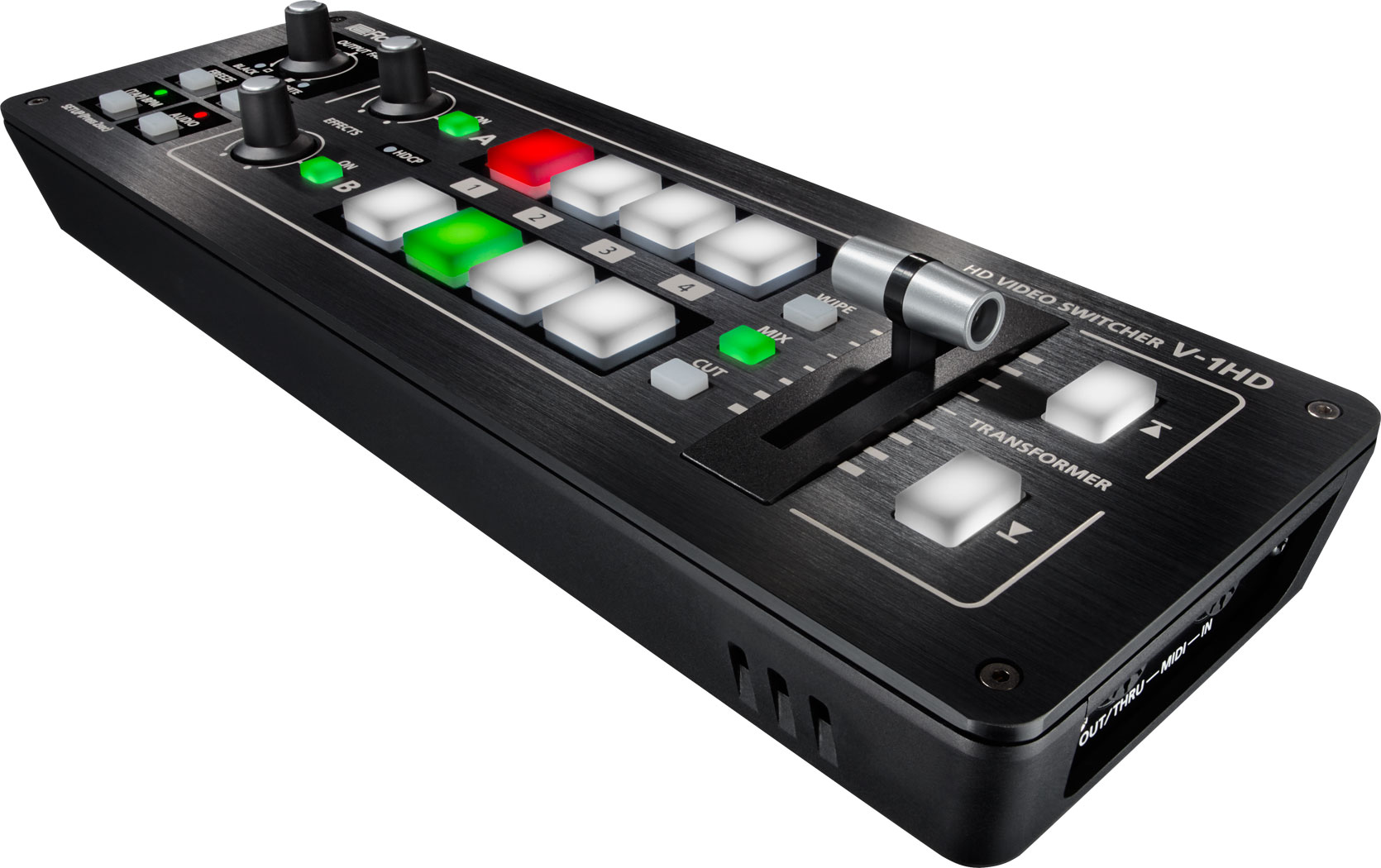

Roland V-1HD Portable 4 x HDMI HD Switcher

จำหน่าย Roland V-1HD Portable 4 x HDMI Input Switcher
The V-1HD makes it easy to connect and switch video cameras, smart phones, computers, tablets, Blu-ray players and other HDMI video sources with a simple push of a button or slide of the T-Fader. It supports professional compositing effects such as picture-in-picture and keying allowing for graphic insets, titling or even “green screen” ideal for news broadcast or corporate training productions.

Features

• Support for video cameras, action cameras, smart phones, tablet computers and other HDMI devices
• 4 HDMI inputs
• Supports up to Full HD 1080p
• Easy to Use Interface
• Picture-in-picture and split functions
• Two EFFECTS knobs deliver genuine visual performance
• Full 12 Channel Audio Mixer Included
• Easy to Operate with Hardware Controls
• Two HDMI Outputs
• Remote Control via USB or MIDI Connection
• Software Control using V-1HD RCS Application for Mac, PC and iPad

INPUT

The V-1HD has 4 HDMI input connectors compatible with a variety of equipment. The V-1HD supports 1080p/1080i/720p video resolutions. Devices outputting the same resolution can be input regardless of what type of device they are. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. Video signals input from a PC are accurately displayed thanks to progressive signal processing. HDCP is supported for input of copy protected content from devices such as Blu-ray disc players.

EFFECTS

 Compositing Effects

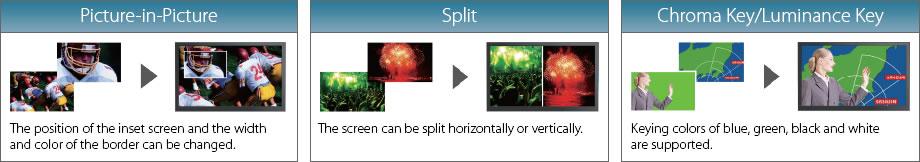

Compositing two videos in one screen using Picture in Picture or the split function is ideal for seminars and presentations. The V-1HD also supports chroma key and luminance key which ideal for creating professional looking broadcasts using green screen backgrounds or for overlaying computer generated titles on top of video sources.

 Filter effects with real-time visual performance control.

Many of the visual performance functions made popular by the V-4EX and V-8 are included. Use the knob A and knob B to apply and adjust effects to the A bus and B bus respectively. Nine types of filter effects including silhouette, colorpass, negative and findedge are possible. Effects can also be triggered using the TRANSFORMER buttons for even more interactive visual performance possibilities.

AUDIO MIXING

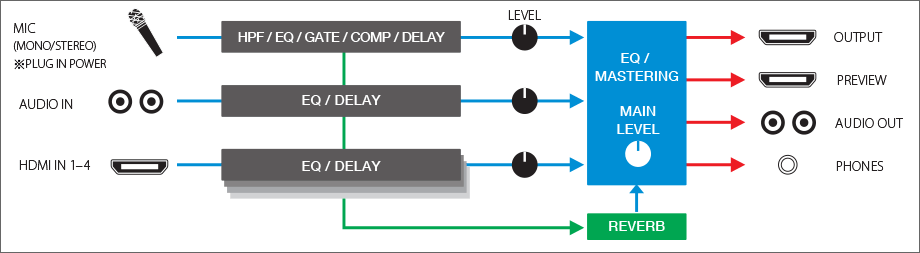

Included is a 12 channel digital audio mixer. The V-1HD can mix 4 stereo audio inputs from the HDMI ports, the stereo line level input and a mic level input. Every channel is equipped with a delay function* to synchronize the video and the audio. Audio follow function enables the audio to transition along with the video. Reverb function and mastering function used for adjusting sound quality and volume are also supported. The final audio mix is both embedded in the HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device.

*The maximum delay time is 500ms.

MENU AND SETTINGS

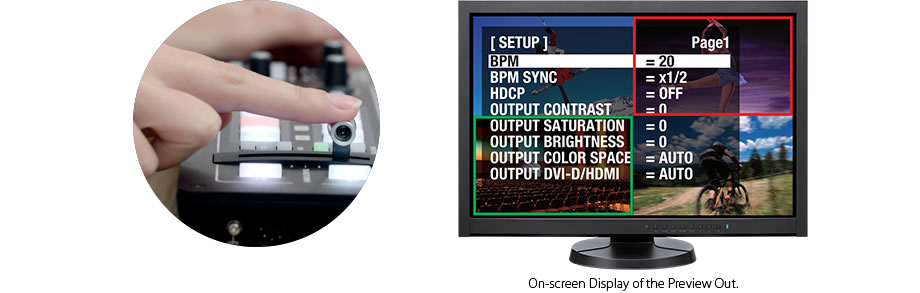

The on-screen menu display appears on the preview screen and is easy to operate with hardware controls. Making adjustments to parameters and operating the audio mixer can be made by simple operation of the buttons and the T-Fader on the unit.

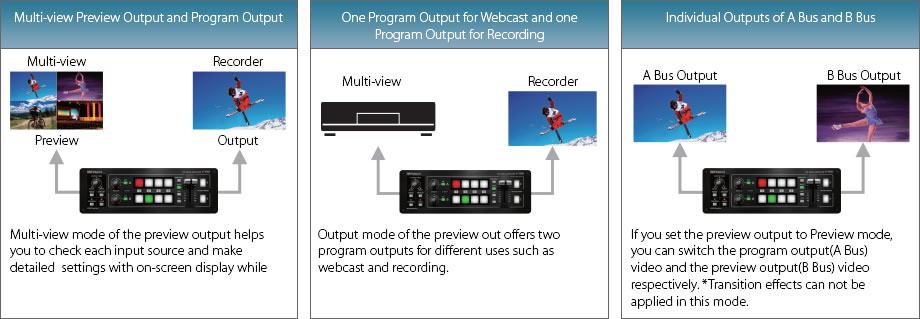

PREVIEW OUTPUT

The four-way multi-view preview screen shows all four input sources on a single display for confident moniotoring. A red border shows the video currently being output and a green one indicates the video to be output next. There are three types of view modes available for the preview output which are Multi-view, Output (as a secondary program output) and Preview. The on-screen display can be turned on or off.

SOFTWARE CONTROL

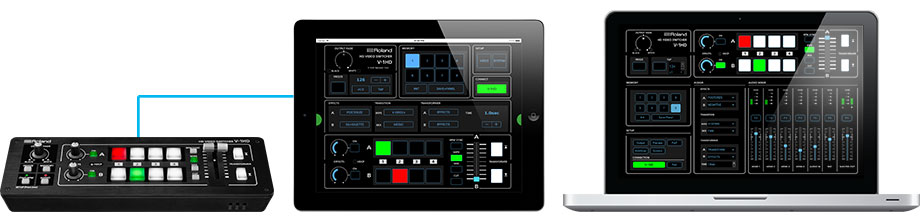

Remote control is possible with the V-1HD RCS dedicated computer software for Mac and PC or the V-1HD Remote iPad App connected via a USB cable. The application offers a detailed view of the connected V-1HD and can be used to switch video, mix audio or change settings. You can control the unit from a music instrument or a sequencer via the MIDI input connector via MIDI. The V-1HD also transmits MIDI over USB and its controls can be mapped to popular visual performance software applications.
* Please use the Lightning to USB Camera Adapter to connect an iPad to the V-1HD.

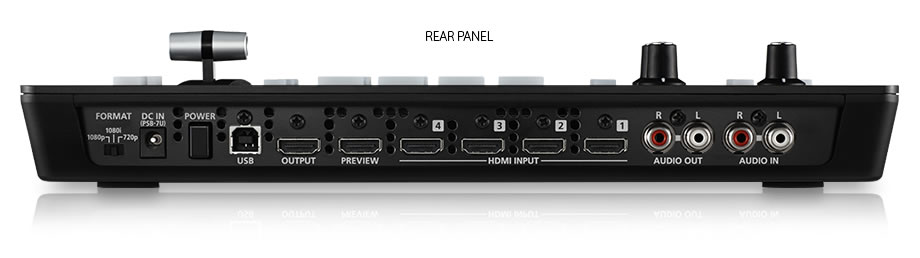

SPECS

Input

• 4 x HDMI Type A
• 1 x L/R pair RCA (audio)

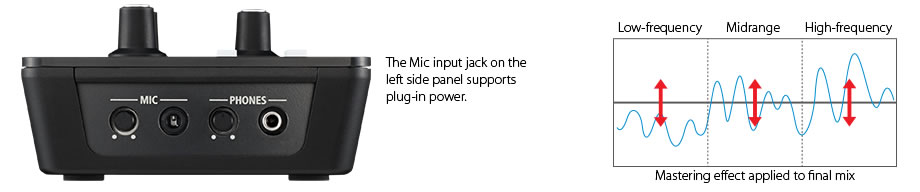

• 1 x Stereo mini jack, mic (plug-in power supported)

Output

• 2 x HDMI (preview, program output)
• 1 x L/R RCA (audio)
• 1 x Stereo mini jack

Video Format

• 1080p: 50/59.94
• 1080i: 50/59.94
• 720p: 50/59.94

Audio Processing

• 48 kHz
• 24-bit
• Max Audio Delay: 500 ms (each channel)

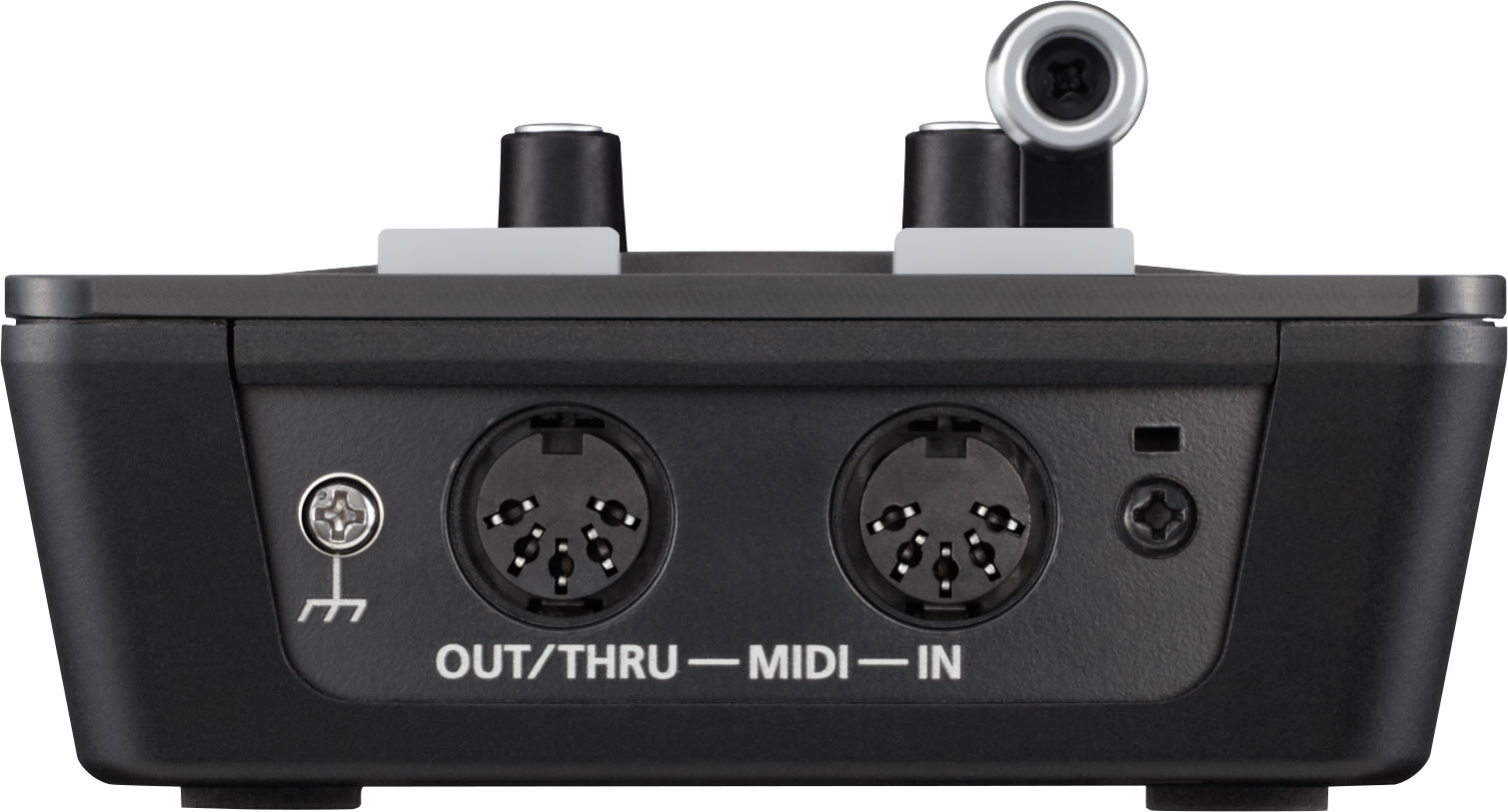

Interface - Connectors

• 1 x MIDI input
• 1 x MIDI output/through
• 1 x USB B (remote control from PC)
