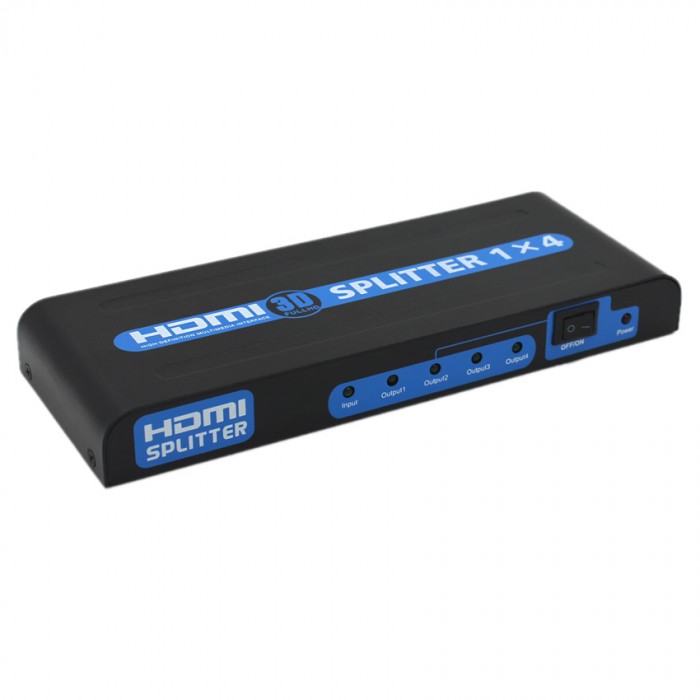

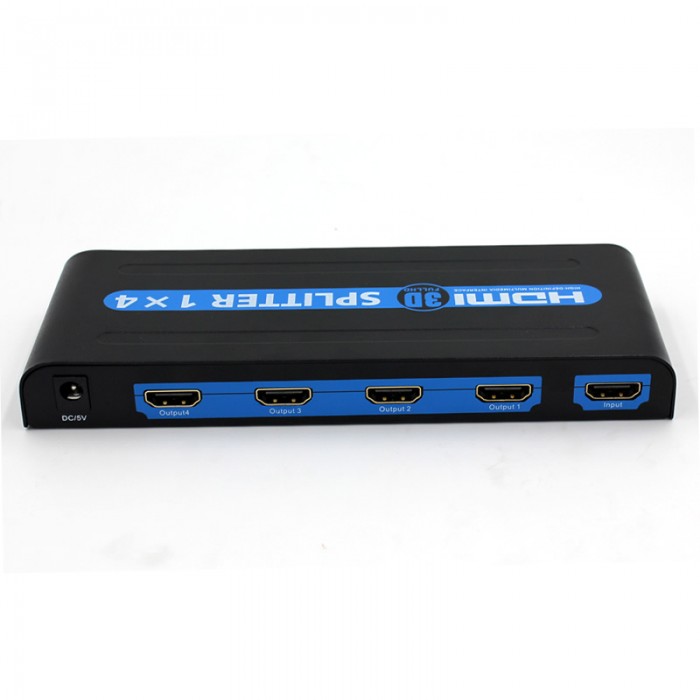

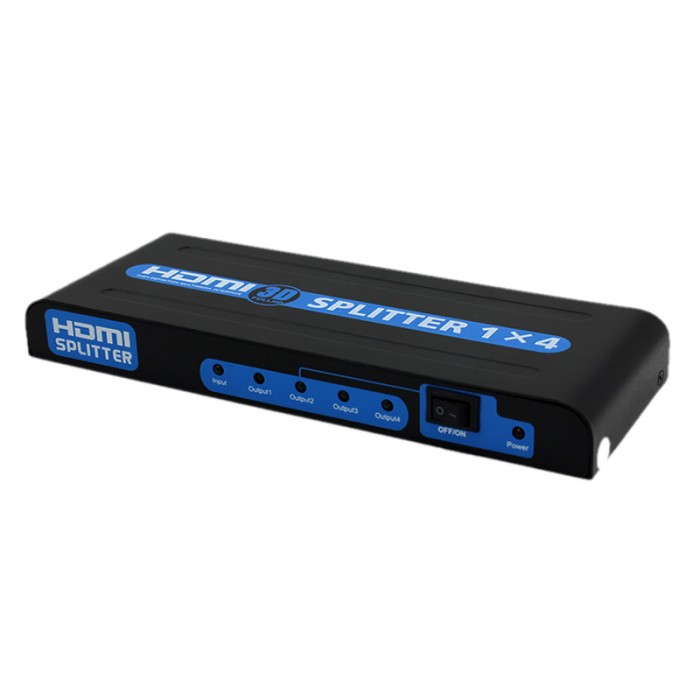

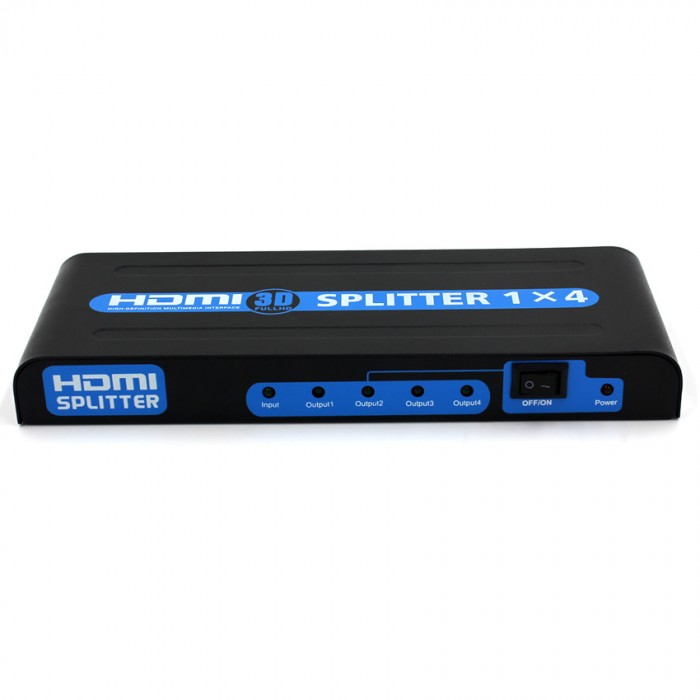

1x4 HDMI Splitter (1.3v)

 1x4 HDMI Splitter (1.3v)

The 1x4 HDMI Splitter use a single HDMI source，accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

FEATURES

- One HDMI 1.3b input signal split to four HDMI 1.3b sink devices

- HDCP 1.2 protocol compliant

- Support CEC

- Support deep color 30bit, 36bit

- Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

- Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

- Support signal retiming

- Support input up to 15metres AWG26 HDMI 1.3 standard cable length,  output up to 25metres AWG26 cable length

- No loss of quality

- Installs in minutes

- Need DC5V/1A power supply

Tech Specs

HDMI version…………………………………………….……………………………… HDMI 1.3b

HDCP version…………………………………………………………………………....HDCP1.2

HDMI resolution ………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit/deep color 30bit,36bit

Support audio format……………….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth…………………………………………………………………………….225MHz

Max baud rate……………….…….………………….…………………………………..6.75Gbps

Input/Output TMDS signal ………….…………………………..…………0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... ……………………….……≤15m AWG26 HDMI 1.3 standard cable

Output cable distance…………………………….…...≤25m AWG26 HDMI 1.3 standard cable

Max working current……………………………………………………………………….....600mA

Power adapter format..Input: …………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)

Dimension (L x W x H)     ……………………………….………………………179X67X21(mm)

Weight…..………………………………………………………..…….………………………260g
