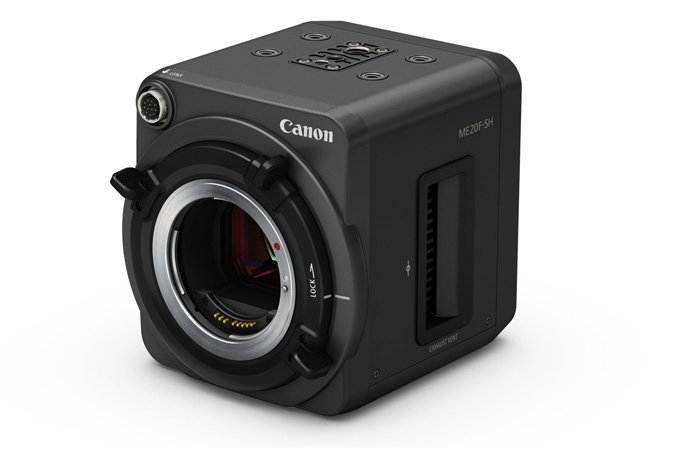

Canon ME20F-SH Multi-Purpose Camera/Super 35mm CMOS Sensor

Canon ME20F-SH Multi-Purpose Camera/Super 35mm CMOS Sensor
Canon ME20F-SH Multi-Purpose Camera/Super 35mm CMOS SensorCanon ME20F-SH Multi-Purpose Camera/Super 35mm CMOS SensorCanon ME20F-SH Multi-Purpose Camera/Super 35mm CMOS Sensor
รหัสสินค้า SKU-00236
หมวดหมู่ Cameras
ราคา 0.00 บาท
สถานะสินค้า พร้อมส่ง
อัพเดทล่าสุด 2 มิ.ย. 2559
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

Canon ME200S-SH Multi-Purpose Camera

 The ME200S-SH Multi-Purpose camera delivers the high quality video and versatility needed for a wide range of professional video production applications. The camera's modular design allows you to connect only the components you need, depending on how you want to use the camera- making it easy to incorporate into a variety of camera systems. An HDMI terminal allows for connection to compatible third party external displays, and 3G/HD-SDI terminals allow for connection to compatible third party external displays and recording devices. The camera is compact (4.42" W x 4.57" H x 4.49" D) and lightweight (2.43 lbs), helping to broaden the range of applications.

sensitivity. Capable of 204,000 ISO, the camera performs extremely well in low-light conditions. The camera's Dual Pixel CMOS AF (Auto-Focus) technology works to maintain focus of moving subjects, and it's rugged construction make it able to withstand use in harsh environments. In addition, the camera can be controlled using Canon's optional RC-V100 remote control, further expanding the potential uses of the camera.

Features

  • - Super 35mm CMOS Sensor
  • - Dual Pixel CMOS AF
  • - Canon Cinema Lock EF Lens Mount
  • - Wide dynamic range with up to 12 stops
  • - ISO Up to 204,800
  • - 1920 x 1080 / 1280 x 720, Up to 60 FPS
  • - Motorized ND and IR Cut Filters
  • Digital Teleconverter (2x, 4x, 8x)
  • - HD/3G-SDI & HDMI Connectors
  • - RS-422 Remote Control Terminal

Tech Specs

Image Sensor

Sensor
 - Super 35mm CMOS



Total Pixels
 - Approx. 9.84 (4206 x 2340)



Effective Pixels
 - Approx. 8.29M (3840 x 2160)



Resolution
 - 1920 x 1080, 1280x720



Min. Sub. Illum.
 - 0.015 lux or less (at 56dB, F1.2, 29.97P, 1/30 sec shutter)



Color Filter Array
 - RGB Bayer

Lens System
Canon EF Mount
 - Cinema Lock type
Cinema Lock type
 - Select EF, EF-S and Cinema (EF-mount) Lenses

Input Terminals
GEN LOCK
 - Black burst or Tri-level reference

Microphone
 - φ3.5mm stereo mini jack (plug-in power mic supported)

Remote Control
 - Remote A: φ2.5mm stereo mini jack (Canon protocol)
 - Remote B: Circular 8-pin for RS-422 (Canon protocol)

Output Terminals
3G/HD-SDI
 - Terminal 1 (On screen display optional)
 - Terminal 2 (Clean out only)
 - Bit Depth: YCbCr422 10bits (effective bits: 8)

- Frame Rates:
1920 x 1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P
1280 x 720: 59.94P/50P/29.97P/25P/23.98P

*Cannot set framerate and output size separately by SDI and HDMI.

HDMI
- Terminal 1 (On screen display optional)
Bit Depth: RGB444, YCbCr422, YCbCr444 (effective bits: 8 for each format)

- Frame Rates:
1920 x 1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P
1280 x 720: 59.94P/50P/29.97P/25P/23.98P

*Cannot set framerate and output size separately by SDI and HDMI.
**640x480: 59.94P & 768x576: 50P will be output when connected with a monitor that support 480P and 576P inputs. Cannot be set from the menu and the on screen display will not show.

Exposure Modes
Auto Exposure (AE)
- Iris, Gain, Shutter and ND filter operating together (Cannot set auto/manual separately)
- AE shift/AE response selectable
- AGC limit can be set from 30dB to 54dB (3dB intervals) / Off (56dB)
Manual
- Iris: 1/2 stops (push auto iris can be set to an assign button)
- Gain: 0dB to 56dB @ 3dB intervals (approx. ISO 204,800 equivalent at 56dB)
- Shutter: 1/3 to 1/2000 (1/4 stops); 1/3 only at 23.98p

Image Control
Focus Control
- Continuos Auto-Focus (Dual Pixel CMOS AF)
One-Shot AF (can be set to an assign button)

W/B
- AWB (2,000K-15,000K), Daylight, Tungsten, Custom Set A, Custom Set B

Optical Filters
- ND filters: 1/8 & 1/64 Built-in (auto or motorized manual)
- IR cut filter: On/Off (motorized manual)

Digital Teleconverter
- 2x, 4x, 8x

Custom Picture Setting
- EOS Standard, Wide DR, Canon Log, Custom 1-6

Other Functions
 - Auto black balance, color bar, test tone (interlocking with color bar), assign buttons, peripheral illumination correction, focus limit, crop for EF-S Lens, scan reverse, flicker reduction, noise reduction, time display, hour meter

Power Input
Terminals
- XLR 4-pin or terminal block 2-pin jack

Input
- DC +11V ~ +17V

Consumption
- Power Consumption Approx. 11W (body only)

Other
Operating Temperature
- Approx. 0 - 40 °C (32-104 °F)

Dimensions
- 4.0 x 4.6 x 4.4 in. (102 x 116 x 113mm)

Weight
- Approx. 2.2 lbs. (1,100g)

Included in the Box
- ME200S-SH, 2-pin DC Power Contact

Related Accessories
- Canon RC-V100 Remote Controller, Canon EF Lenses
