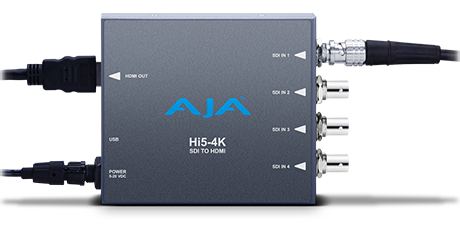

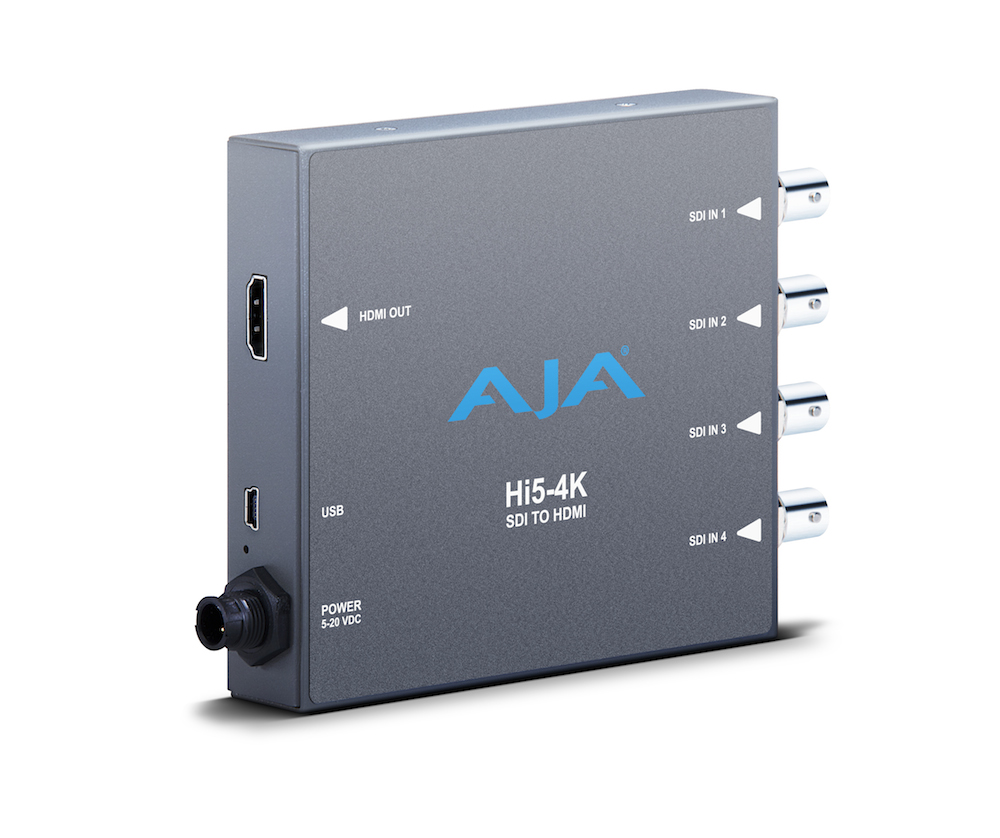

AJA Hi5-4K 4K SDI to 4K HDMI

Not every job is a 4K job. When you're not working in 4K , Hi5-4K can still be a useful tool for converting HD-SDI to HDMI. A single HD-SDI signal coming into the Hi5-4K will be sent out as an HD resolution HDMI signal , much like AJA  Hi5-3G Mini-Converter.

Format

     4 x 1.5GHz SDI:

• 4 x 1920x1080p, 4:2:2, 23.98, 24, 25, 29.97, 30
• 4 x 1920x1080PsF, 4:2:2, 23.98, 24, 25, 29.97, 30
• 4 x 2048x1080p, 4:2:2, 23.98, 24
• 4 x 2048x1080PsF, 4:2:2, 23.98, 24

2 x dual-stream 3GHz SDI (level B):

• 2 x 2 x 1920x1080p, 4:2:2, 23.98, 24, 25, 29.97, 30
• 2 x 2 x 1920x1080PsF, 4:2:2, 23.98, 24, 25, 29.97, 30
• 2 x 2 x 2048x1080p, 4:2:2, 23.98, 24
• 2 x 2 x 2048x1080PsF, 4:2:2, 23.98, 24

4 x 3GHz SDI:

• 4 x 1920x1080p, 4:2:2, 50, 59.94, 60
• 4 x 1920x1080p, 4:4:4, 23.98, 24, 25, 29.97, 30
• 4 x 1920x1080PsF, 4:4:4, 23.98, 24, 25, 29.97, 30
• 4 x 2048x1080p, 4:4:4, 23.98, 24
• 4 x 2048x1080PsF, 4:4:4, 23.98, 24

HD Inputs supported (4:2:2 if Single Link or 4:4:4 if Dual Link)

• 720p 50, 59, 60 (4:2:2 only)
• 1080i 25, 29.97, 30
• 1080p 23, 24, 25, 29, 30 (4:2:2 or 4:4:4)
• 1080p 50, 59, 60 (4:2:2 only)
• 1080PsF 23, 24, 25, 29, 30 (4:2:2 or 4:4:4)
• 1080PsF 50, 59, 60 (4:2:2 only)

SD Inputs Supported:

• 525i
• 625i
