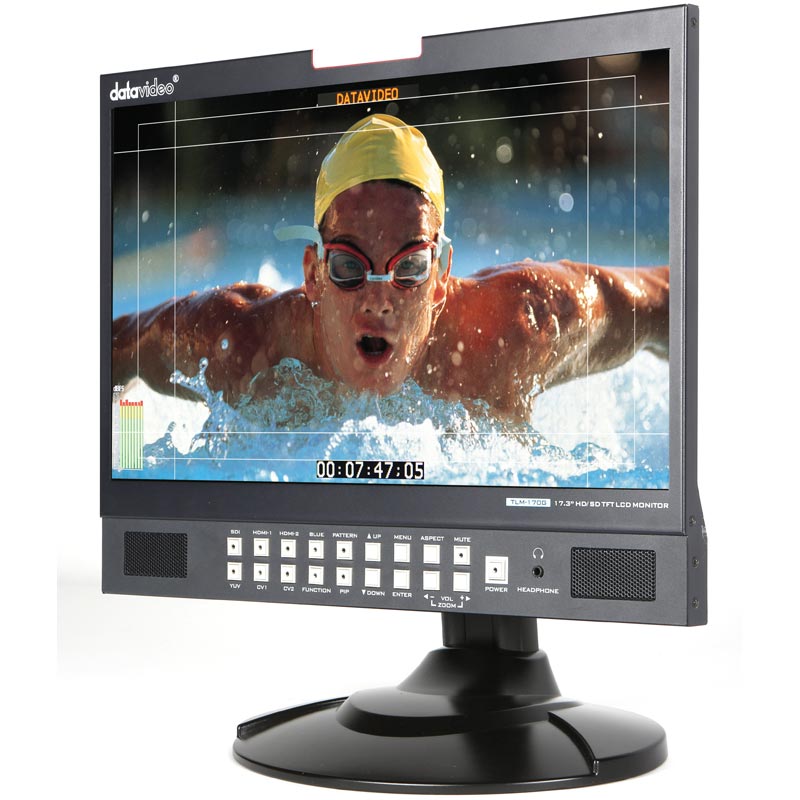

Datavideo TLM-170G 17.3" HD/SD TFT LCD Monitor - Desktop

Datavideo TLM-170G 17.3" HD/SD TFT LCD Monitor - Desktop

Features

• 17.3" (1600x900) LCD TFT Display
• Digital Video Inputs: SD/HD-SDI with loop thru and 2x HDMI
• Digital Audio Inputs: via SDI or HDMI inputs.
• Analogue Video Inputs: Component (Y,Pb,Pr), Composite x2 with loop thru
• Mono Audio Inputs: Single RCA phono socket for analogue inputs.
• Head phone 3.5mm stereo jack socket for discrete audio monitoring.
• Front Panel Buttons allow quick and easy selection of source input as well as PIP, Aspect Ratio, Blue only, Pattern ( Colour Bars ), Menu and audio controls.
• Colour temperature menu option has 3 modes (6500K, 9300K and user defined)
• OSD audio level peak meter for SDI and HDMI based digital audio inputs.
• On screen overlays for frame marker 80%, 90%, 4:3 marker, 16:9 Marker, Cinema Zone Marker, Center Point, embedded SDI Timecode and Monitor Title.
• 8 Ch-Audio level display & Mute Buttons
• Bi-colour Tally light [Red or  Amber] and 3.5mm Jack Tally input socket.
• Analogue Audio external speaker outputs L-, L+ and R-, R+ [Max 5v p - p (2w)].
• Supports Pixel Zoom upto 8x
• RJ-45 TCP/IP connection allows remote set up of the monitor using a PC / Mac based browser.
• USB 2.0 port for easy update of firmware

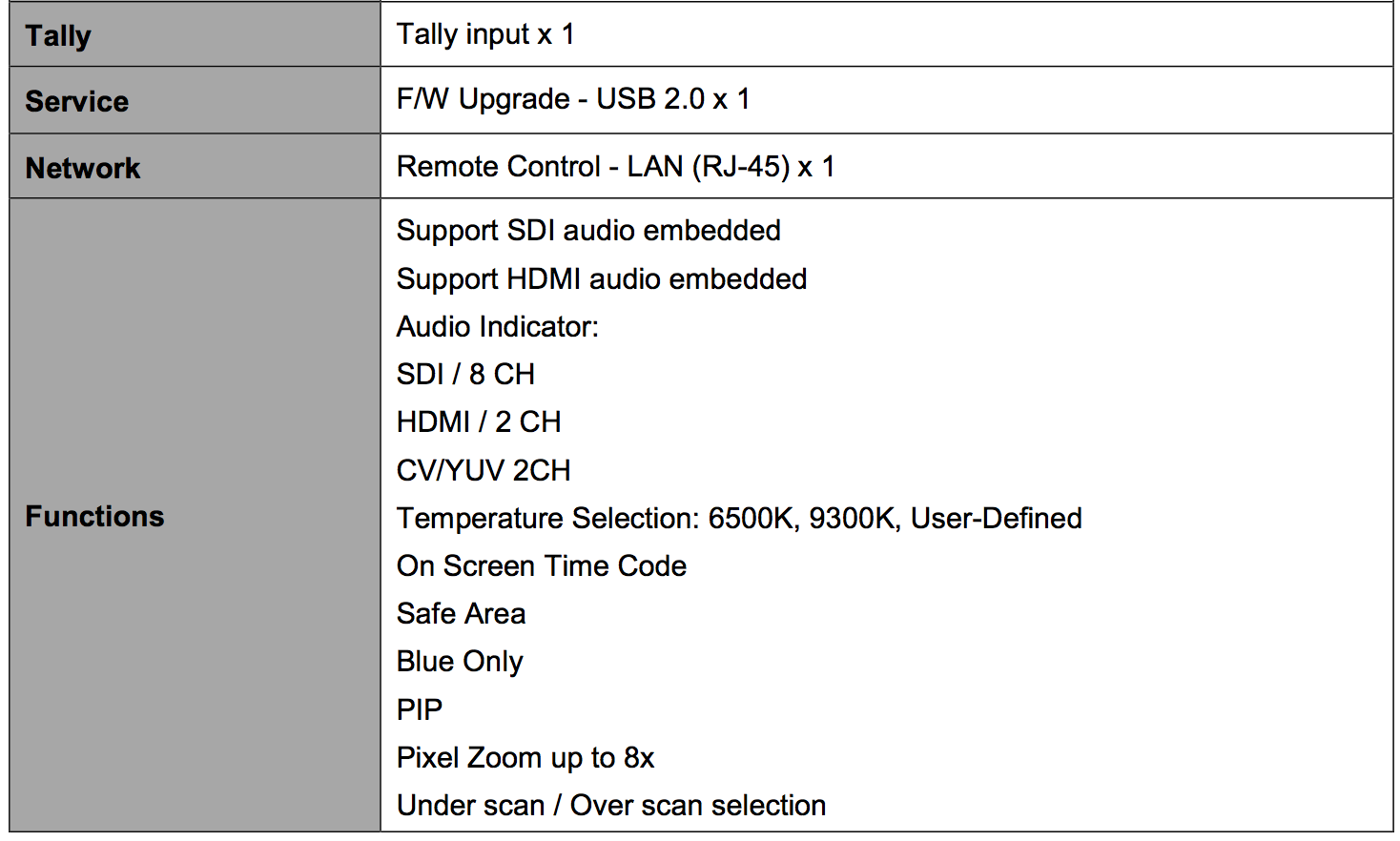

Tech Specs
