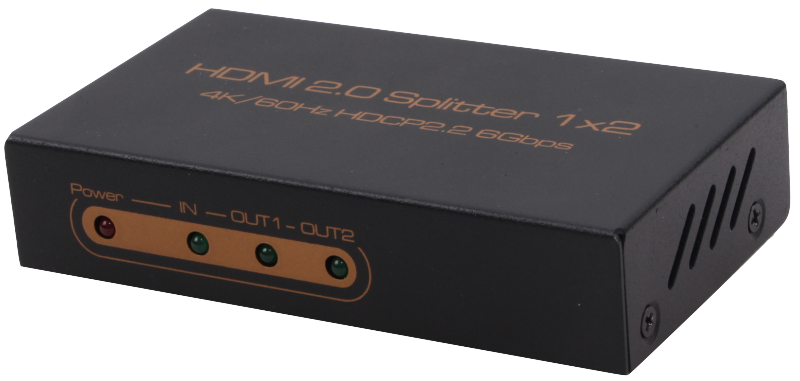

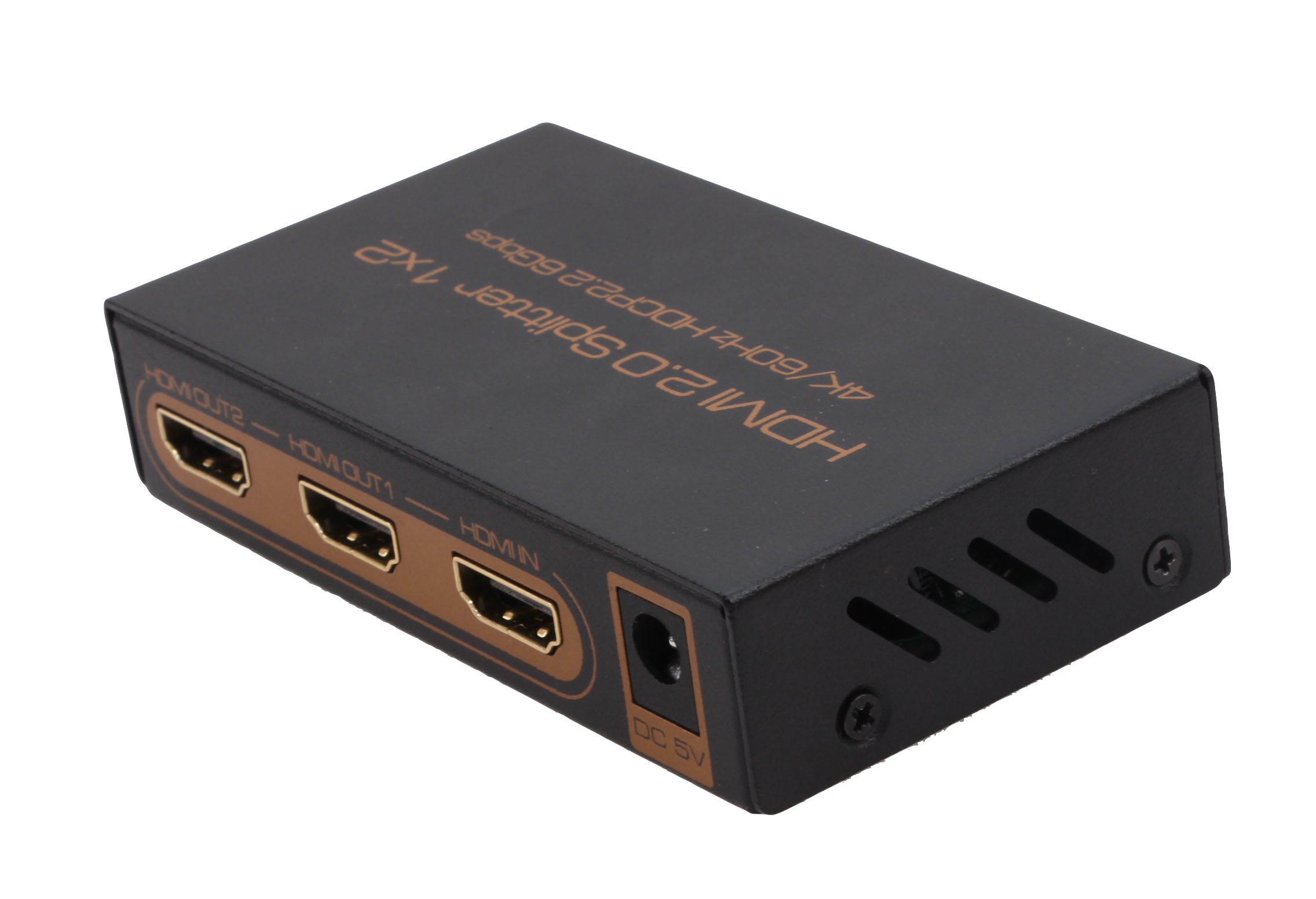

HDMI Splitter 1x2 / Support HDCP 1.4 to HDCP 2.2 conversion (ปลดล็อคสัญญาณ HDCP)

HDCP 2.2 HDMI Splitter 1x2

The  1x2 HDMI Splitter that supports Full HD , 3D , HDR&4K*2K/60Hz uses a single HDMI source，accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be Splitter easily to two HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long  HDMI cable to regenerate the HDMI signal.

Features

•    One HDMI 2.0 input signal split to two HDMI 2.0 sink devices
•    Support  HDR
•    Support 4K*2K @60Hz resolution
•    Support HDCP 1.4 to HDCP 2.2 conversion
•    Support HDCP 2.2 to HDCP 1.4 conversion
•    Support deep color 24bit, 30bit, 36bit
•    Video Format Support: 4Kx2K/60Hz 10Bit YcbCr4:2:0; YcbCr 4:4:4/
•    Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
•   Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3

SPECIFICATIONS: HDSP0010M1

HDMI resolution ……………4K@60Hz /4K@30Hz/3D/1080P/1080i/720p/576p/576i/480P/480i

Support video color format ……………………………..……………. 24bit/deep color 30bit,36bit

Support audio format……………………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth………………………………………………………………………………..600MHz

Max baud rate……………….…….………………….……………………………………..18Gbps

Input/Output TMDS signal ………….…………………………..……......… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ………………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….…. ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable

Output cable distance………………………≤10m(1080P)/5M(4K) AWG24 HDMI standard cable

Max working current……………………………………………………………………….....800mA

Power adapter format..Input: ………………...AC (50HZ, 60HZ) :100V-240V; Output: DC5V/2A

Operating Temperature range……..…………….………………………………………-0 to +40℃

Storage Temperature range…………………………………………………………… -20 to +60℃

Operating Humidity range………………………….….……….5 to 85%RH (No Condensation)

Storage Humidity range………………………….….……….…5 to 95%RH (No Condensation)

Dimension (L x W x H)    ……………………………….………………….………95.5X53X21(mm)

Weight…..………………………………………………………..…….…..………………………134g
