PIX-E7 7" Video Devices 4K Recording Video Monitor ฟรี Case ใส่ตัวเครื่อง ** สินค้าตกรุ่นแล้ว

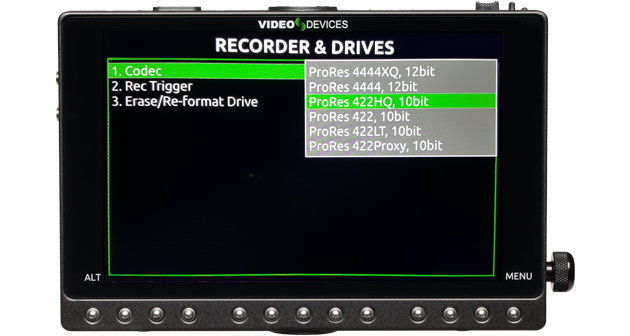

Video Devices PIX-E7 7" 4K Recording Video Monitor

** สินค้าตกรุ่น ด้วยโรงงานยกเลิกการผลิต

Features

 - Full HD, 7-Inch Touchscreen Display

 - TapZoom for Rapid Focus

 - PIX-Assist Monitoring Tools

 - 4K Recording

 - Apple ProRes 4444 XQ, 12-Bit

 - H.264

 - Real Buttons for Fast Tactile Control

 - Robust Die-Cast Metal Chassis

 - Virtually Indestructible Gorilla Glass 2

 - 2x SDI Inputs, 1x Loop Output

 - HDMI/SDI Cross-Conversion

 - 4K to HD Downscaling

Tech Specs

Display

• LCD Size: 7-inch
• Resolution & ppi: 1920 x 1200, 323 ppi
• Luminance (Brightness): 500 nit
• IPS with Gorilla® Glass 2

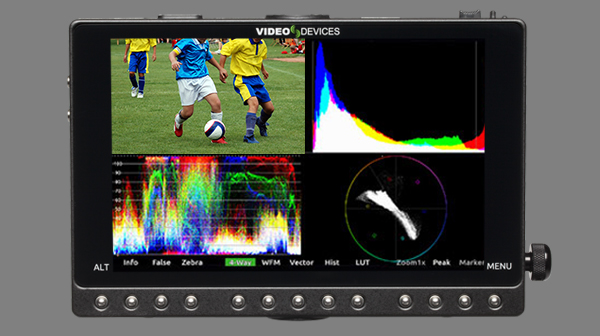

PIX-Assist Monitoring Tools

• TapZoom™: 2x, 4x
• LUTs: S-Log 2 & 3, Canon® Log, V-Log, custom LUTs (16x16x16, 17x17x17, 32x32x32 or 33x33x33 .cube)
• Peaking Filter
• Guide Markers
• False Colors: 4-step, 12-step
• Zebras: Zebras 1, Zebras 2
• Scopes: Waveform Monitor Luma (White, Green) RGB (Overlay, Parade); Vectorscope; Histogram Luma (White, Green) RGB (Overlay, Parade); Four-Way Monitoring (Video Feed, Histogram, Vectorscope, Waveform Monitor)
• Anamorphic Desqueeze: Sensor Ratio (4x3, 16x9/17x9), Lens Ratio (1.33x, 1.5x, 2x)

Recorder

• 4K (UHD, DCI) Max Resolution/Frame Rate 30 fps
• HD (1080i, 1080p, 720p) Max Resolution/Frame Rate 120 fps
• Codec: Apple® ProRes Proxy to Apple ProRes 4444 XQ
• Codec: H.264 (VBR ~ 10 Mb/s)
• File Transfer to Computer via SpeedDrive™ USB 3.0 interface

Media

• SpeedDrive – Enclosure plus approved 240 GB mSATA Solid State Drive
• SpeedDrive – Enclosure only (compatible with third-party 128 GB to 1 TB mSATA SSDs)
• SD card

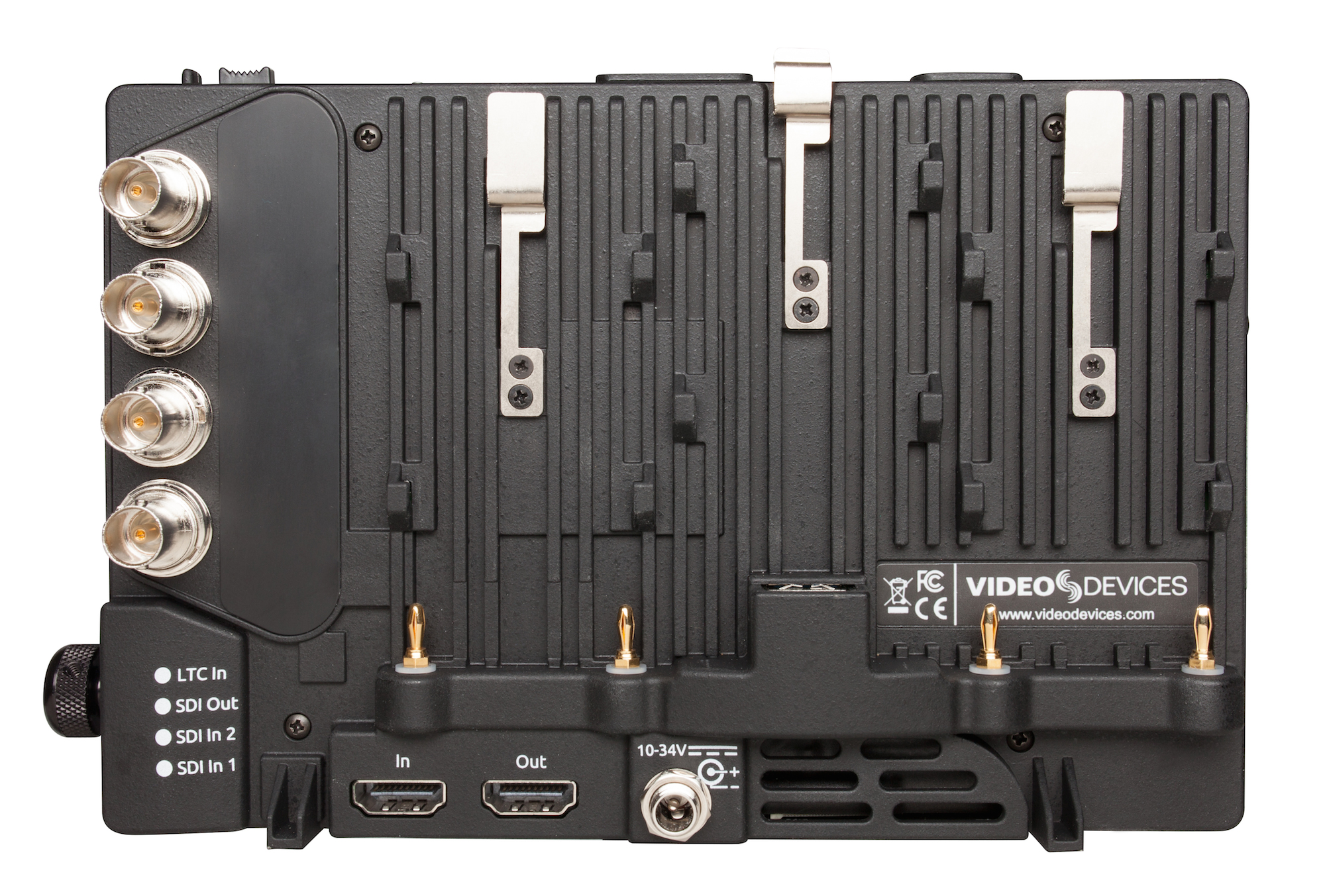

Video

• Inputs: 6G-SDI, 3G-SDI (level A & B), HDMI
• Outputs: HD-SDI, HDMI
• PsF to P
• 3:2 Pulldown Removal
• 4K Input to Output Scaling
• Automatic 4K-to-1080p scaling for H.264

Audio

• Max No. Tracks: 8
• Analog Inputs: 2x unbalanced line, 3.5mm, 2x balanced mic/line, XLR (via optional PIX-LR)
• Embedded Audio Inputs: 8 SDI and 4 HDMI
• Headphone Output

Remote Control & Timecode

• Record Start/Stop Flags: SDI/HDMI
• Embedded TC: SDI (BNC), HDMI, LTC In (BNC), and LTC (via Line In 1 & 2)
• TC Out: SDI

Powering, Weight, & Dimension

• Power Source EXT DC (10-34V), (optional) 2x Sony L-mount batteries
• Weight 1 lb 7 oz
• Dimensions (WxHxD) 7.3 in x 4.9 in x 1.5 in (185.42 mm x 124.46 mm x 38.1 mm)

In The Box

Quantity	Item
1	PIX-E7
1	PIX-E PSU (power supply unit)
1	USB boot cable
1	Product registration card
1	PIX-E7 Quick Start Guide
>1	Promo stickers
1	Full-line Video Catalog
