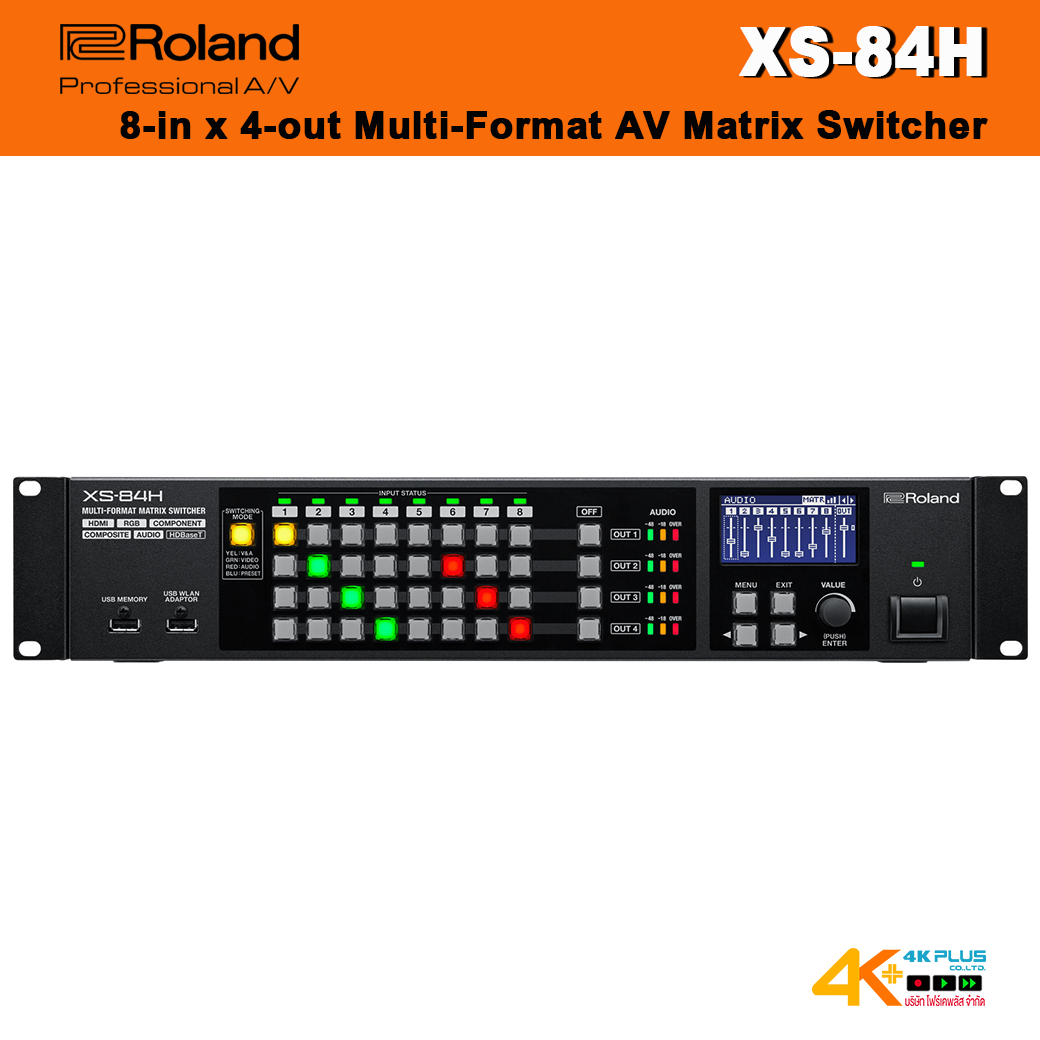

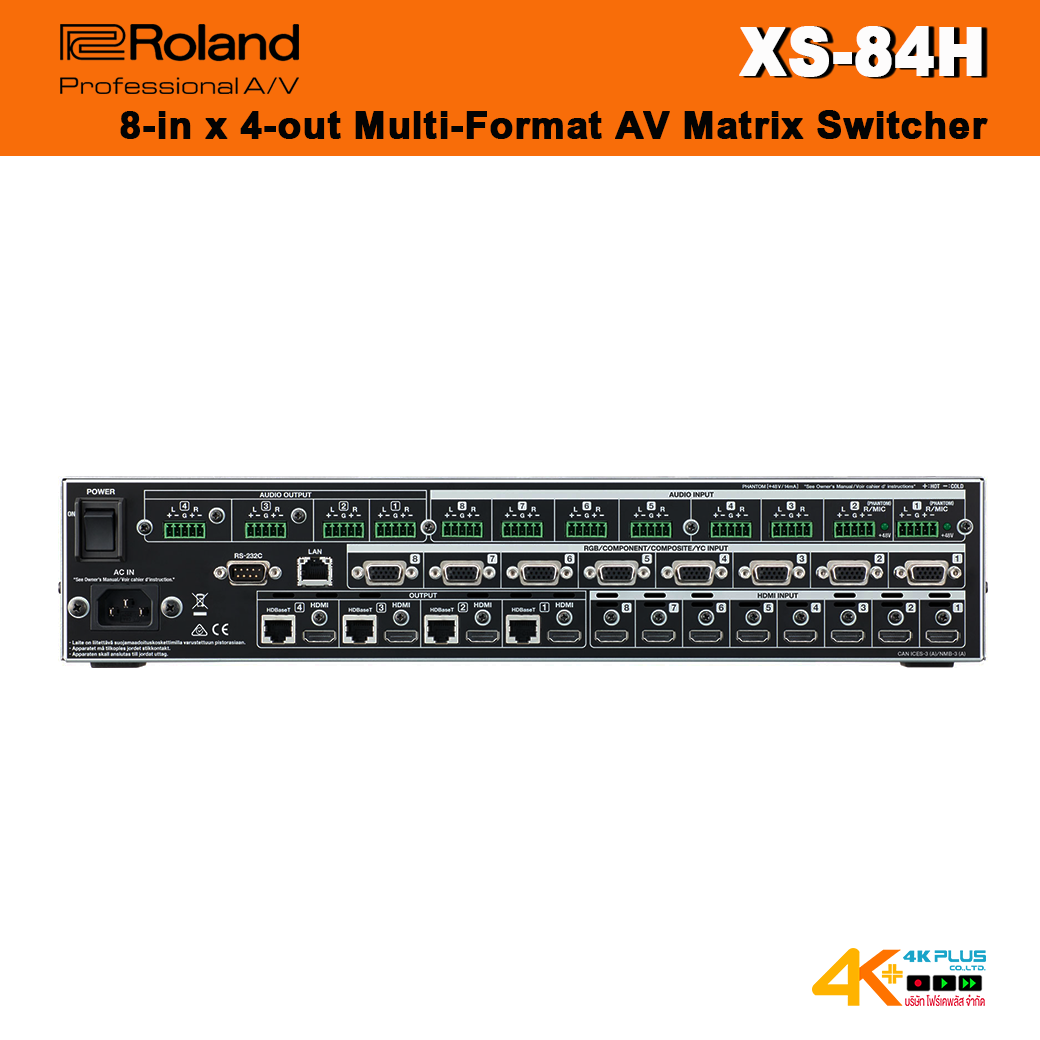

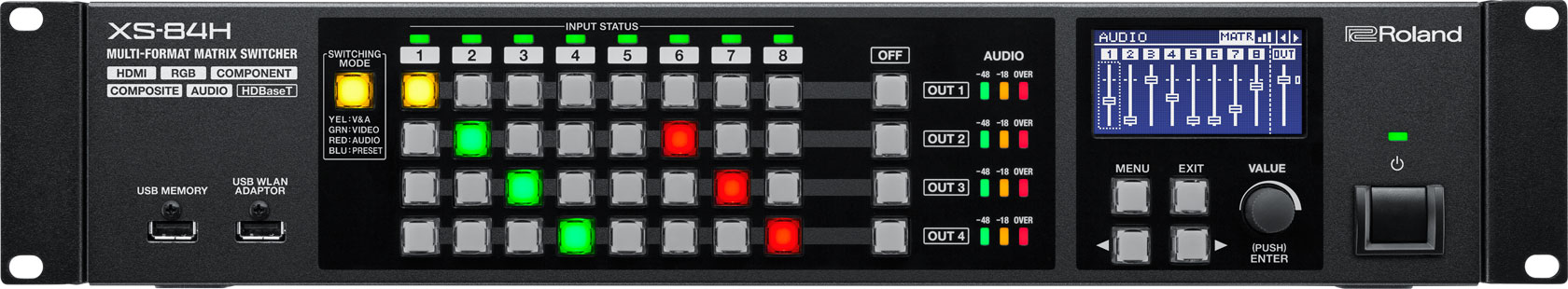

Roland XS-84H 8-in x 4-out Multi-Format AV Matrix Switcher

Roland XS-84H 8-in x 4-out Multi-Format AV Matrix Switcher

The Roland XS Series - the new line of Multi-Format Matrix Switchers designed for fixed installations requiring high-quality integrated video and audio conversion and switching. Version 3.0 introduces powerful new features for live events and enhanced audio matrixing. A single unit solution for total control of video and audio that is flexible enough to meet the diverse needs of classrooms, conference rooms, live presentations and events.

Features

 - Seamless switching

 - Built-in PGM/PST mode for confident switching

 - Scaling guide view feature

 - Enhanced control of settings of PinP windows in multi-mode

 - Stabilized video output when switching modes

 - Matrix configuration for the audio mixer

 - Expanded lock-out functions

 - Support for maximum resolution of WUXGA and 1080p 8 digital inputs and 8 analog inputs 2, 3 or 4 outputs according to the application

 - Accommodate HDMI/HD component/RGB/composite/S-video and audio inputs

 - Built–in scalers and video processor enable split-picture and compositing function

 - Dissolve transition and PGM/PST mode in Version 2.0 is ideal for live events

 - 16ch stereo digital audio mixer with 8 HDMI inputs and 8 analog inputs

 - Direct control via the iPad application XS-80 Remote

TECH SPECS

VIDEO

Processing4:4:4 (Y/Pb/Pr), 10-bitInput ConnectorsHDMI : Type A (19 pin) x 8 (Input 1 to 8) *HDCP supported
RGB/Component/S-video/Composite : HD DB-15 type x 8 (Input 1 to 8)Output ConnectorsHDMI : Type A (19 pin) x 4 (Output 1 to 4)
HDBaseT : RJ-45 x 4 (Output 1 to 4)
*HDCP supportedInput/Output Level and ImpedanceRGB/Component
Level : 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL)
Impedance : 75 ohms

Composite/S-video
Level : 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL)
Impedance : 75 ohms
Input Supported FormatsHDMI : up to 1080p/59.94, up to 1920x1200/60
Component : up to 1080p/59.94
RGB : up to 1920x1200/60 *Reduced Blanking
Composite : 480i/59.94, 576i/50
S-video 480i/59.94, 576i/50
Still Image: Windows® Bitmap File (.bmp)
* Maximum 1920 x 1200 pixels, 24 bit per pixel, uncompressedOutput Supported FormatsHDMI/HDBaseT: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480/60 Hz, 800 x 600/60 Hz, 1024 x 768/60 Hz, 1280 x 768/60 Hz, 1280 x 1024/60 Hz, 1366 x 768/60 Hz, 1600 x 1200/60 Hz, 1920 x 1200/60 Hz
* The output refresh rates of 640 x 480–1366 x 768 are 75 Hz when the unit’s frame rate setting is 50 Hz.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blankingEffectsTransition : Cut
Composition : PinP
Others : Vertically flip, Horizontally flip, Rotated 90 degreesAUDIOAudio ProcessingSampling Rate : 24-bit/48 kHzInput ConnectorsDigital : HDMI Type A (19 pin) x 8
Analog : 5 pin terminal block connector x 8Output ConnectorsDigital : HDMI Type A (19 pin) x 4
Analog : 5 pin terminal block connector x 4Input Level and ImpedanceCh 1 to 2 : -60 to +4dBu (Maximum: +22 dBu), 10k ohms (Gain 0 to 23 dBu), 5k ohms (Gain 24 to 64 dBu)
Ch 3 to 8 : +4dBu (Maximum: +22 dBu), 8.5k ohmsOutput Level and ImpedanceCh 1 to 4 : +4dBu (Maximum: +22 dBu), 600 ohmsAudio FormatsHDMI : Linear PCM, 24bit, 48kHz, 8chAudio EffectsInput : High-pass filter, 4-band equalizer, Gate/Expander, Compressor
Output : 4-band equalizer, Gate/Compressor, DelayOTHERS CONNECTORSRS-232C : D-Sub 9 pin type x 1
LAN : RJ-45 x 1
USB : A Type x 2 for USB memory, for WNA-1100RLDISPLAY2 color LCD 128 x 64 dotsOTHERSPower Supply : AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
Power Consumption : 50w
Accessories : Power Cord, Captive Screw Connectors, Rubber Foots, Owner’s Manual
